| I.C.T Acrab-Series Double Head Dip Soldering Machine
Men in factories have run this double head dip soldering machine for years. They trust it. Three sizes: 350, 450, 615 mm. Dual spray, long preheat, rock-steady wave, simple screen. Operating power sits around 8-10 kW. Change a part without tools. Customers in seventy-two countries keep buying more. They know it will still be running when the next shift walks in tomorrow.
| Feature
The Japanese Kuroda nozzles hang side by side. Stepper motors move them exact. Flux hits the board even and thin. Whole drawer rolls out. Wash cycle starts by itself. Stainless steel everywhere. Close the drawer and the double head dip soldering machine is ready again.
Three zones, 1800 mm total. Hot air and infrared work together. Fifteen minutes and it’s 250 ℃. Cotton keeps the heat from jumping around. Each zone stands separate. Pull a drawer, swap a heater, push it back in. No tools, no waiting. Top preheat waits if you ever need it.
Chain never jerks. Double-hook titanium fingers clamp hard. Heavy boards ride straight. Entry device catches every one. Speed stays inside two millimeters a minute. Fingers clean themselves while running. Width changes by crank or motor. The line never stops because of the conveyor on this double head dip soldering machine.
Cast-iron pot coated thick. 500-700 kg tin inside. Wave moves less than half a millimeter. Dross slides out the back channel. Joints come out full and bright. Tin lasts longer. Money stays in the account. That’s what a real double head dip soldering machine does.
Big fans start the second the board leaves the wave. Add bottom fans for thick stuff. Heat drops fast. Parts stay safe. Solder hardens clean. Board comes out cool to touch. No cracks, no damage. The double head dip soldering machine finishes right.
Screen is plain English. PC and PLC watch everything. Temperature stays where you set it. Line slows, machine sleeps, saves tin. Alarms write history. Hand crank works if power dies. CE and UL on the nameplate. New guy learns it in one shift.
| DIP Line Equipment List
| Model | Acrab 350 | Acrab 450 |
| Dimension(mm) | 4420X1420X1750 | 4420X1520X1750 |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 33kw | 33kw |
| Operation Power | 8kw | 8kw |
| Control System | PC+PLC | PC+PLC |
| Preheating Zone | 3 | 3 |
| Preheating Length | 1800mm | 1800mm |
| Preheating Temp. | (Room Temperature)-250°C | (Room Temperature)-250°C |
| PCB Width(mm) | 50-350mm | 50-450mm |
| Finger | Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger | |
| Solder Pot Capacity | Lead-free 500kg | |
| Machine Weight(kg) | Approx.1600kg | Approx.1900kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| DIP Line Equipment List

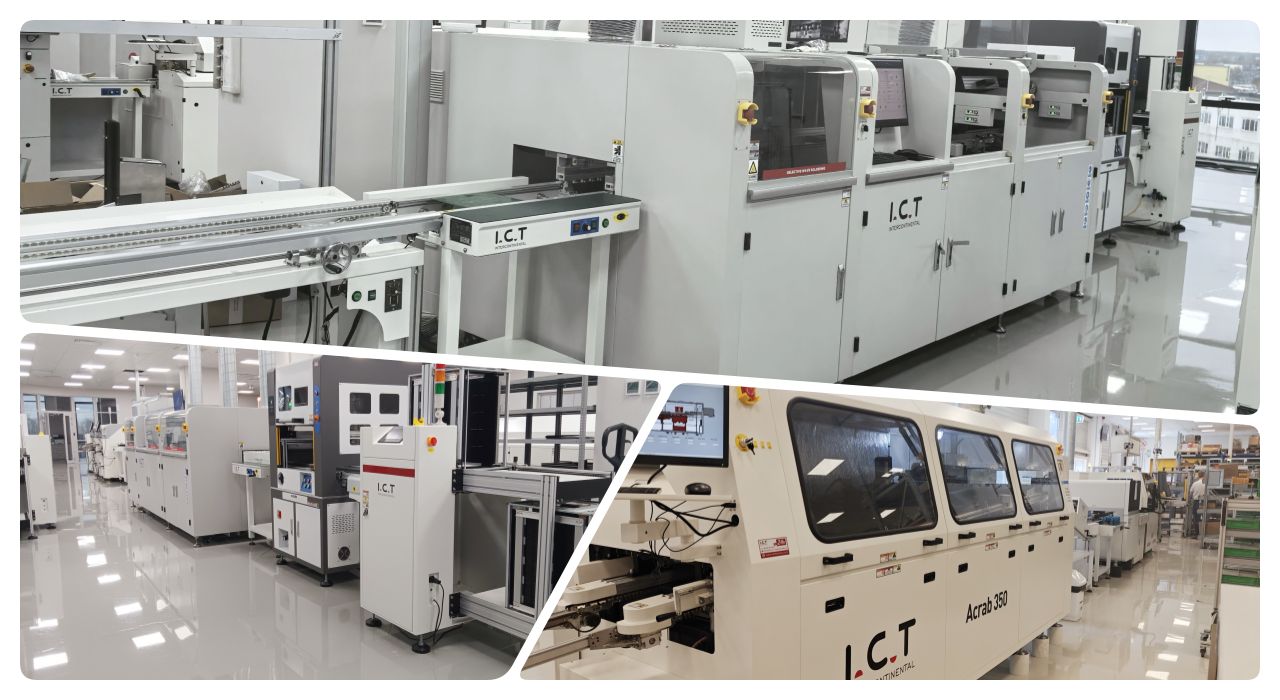

Start at insertion. Move to loader. Hit the Acrab double head dip soldering machine. Out through unloader. Finish on inspection belt. Everything talks to everything else. Boards move smooth. Defects almost disappear. Line grows when you grow. We keep it running near one hundred percent.
| Product Name | Purpose in DIP Line |
|---|---|
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Board input machine and board output machine | |
| DIP Peripheral | Peripheral products of DIP production line |
| Customer Success Video

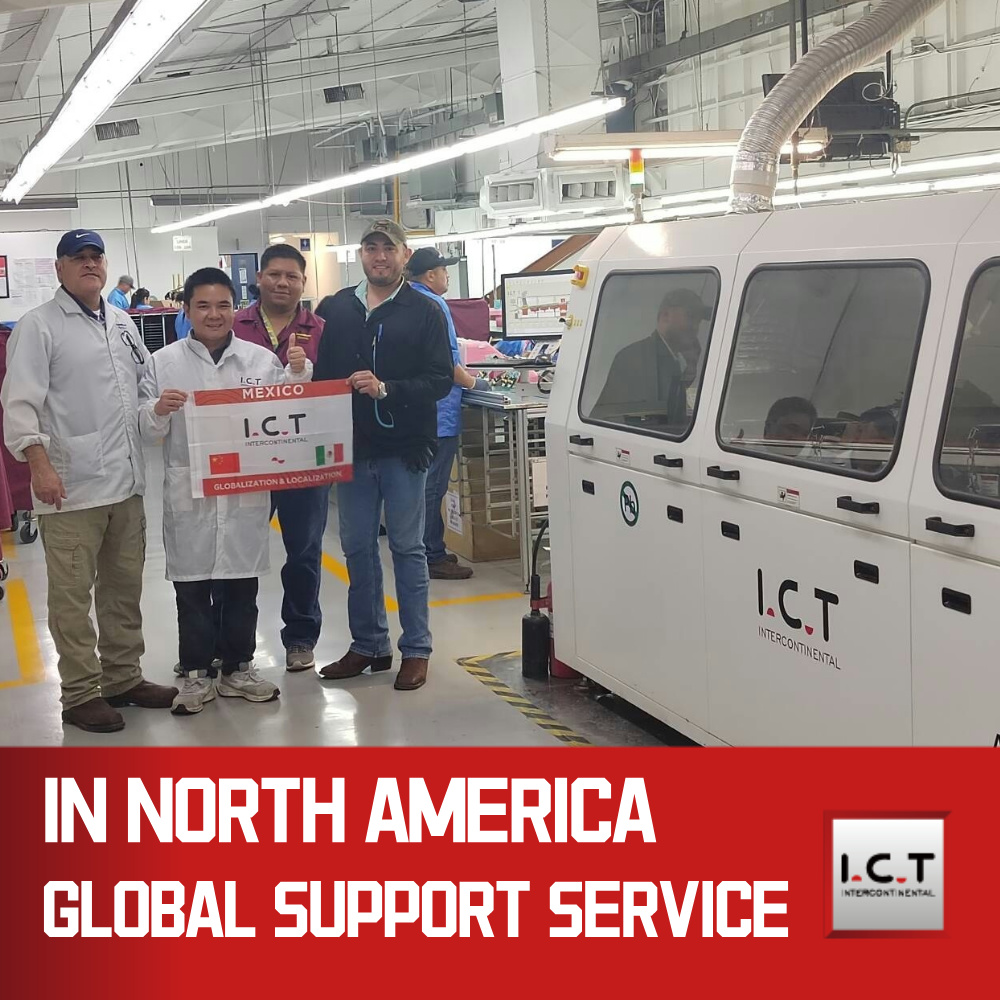

Our engineers landed in Mexico with tools. One automotive plant switched two different boards on the same Acrab double head dip soldering machine. Just changed fixtures. No bridges. Perfect fillets. Same place runs our coating line and SS-540 selective. They shot a video saying thanks. We still watch it sometimes.
| Expert Services and Training
We come in, set it up, train your people, leave it running perfect. Twenty engineers overseas. Phone rings, we answer. Parts ship same day. Your crew hits 99.5 % good boards in a week. Then we keep checking back. The double head dip soldering machine becomes theirs.
| Customer Testimonials
“Crates showed up perfect.” “Two days and everything worked.” “Tin bill dropped hard.” “Call at night, answer in minutes.”
| Quality Certifications
CE. RoHS. ISO9001:2015. Patents. Every double head dip soldering machine runs seventy-two hours full load in Dongguan before it leaves the building.
| About I.C.T Company and Factory
Since 2012. Ninety people. 12,000 square meters in Dongguan. We build the important parts ourselves. More than sixteen hundred customers. Seventy-two countries. Eight offices overseas. Twenty engineers always ready to fly. We stay.
