| Electra Wave Soldering Machine for DIP Production Line
The I.C.T Electra wave soldering machine is the proven wave soldering equipment for modern THT assembly lines and DIP production lines. This Electra wave soldering machine uses Japanese Kuroda nozzle for precise wave soldering machine flux control and horizontal independent heating zones to achieve perfect wetting on through the hole components. Energy-saving design keeps normal operation at only 7kW while optional nitrogen system delivers oxide-free joints. With successful applications in automotive, smart meter and industrial factories worldwide, this Electra wave soldering machine has become the top choice when customers search for high-quality wave solder machine for sale.
| Feature
Japanese Kuroda Seiko nozzle with adjustable atomizing area and pyramid filter deliver stable and economical wave soldering machine flux coating cycle after cycle. Digital flow meter and pressure-stable valve minimize waste and keep the chamber clean – perfect for continuous running of Electra wave soldering machine in high-volume THT lines.
Third-party independent over-temperature protection plus PLC+PID closed-loop control create multiple safety layers. Real-time monitoring and automatic emergency stop protect operators and wave soldering equipment during 24-hour operation on DIP production lines.
Horizontal independent heating zones with closed hot-air path and rectifier plates ensure absolutely uniform temperature across the whole PCB. Warm-up takes only about 15 minutes and normal power stays at 7kW – the most efficient system among similar wave soldering equipment for through the hole technology.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List
Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video

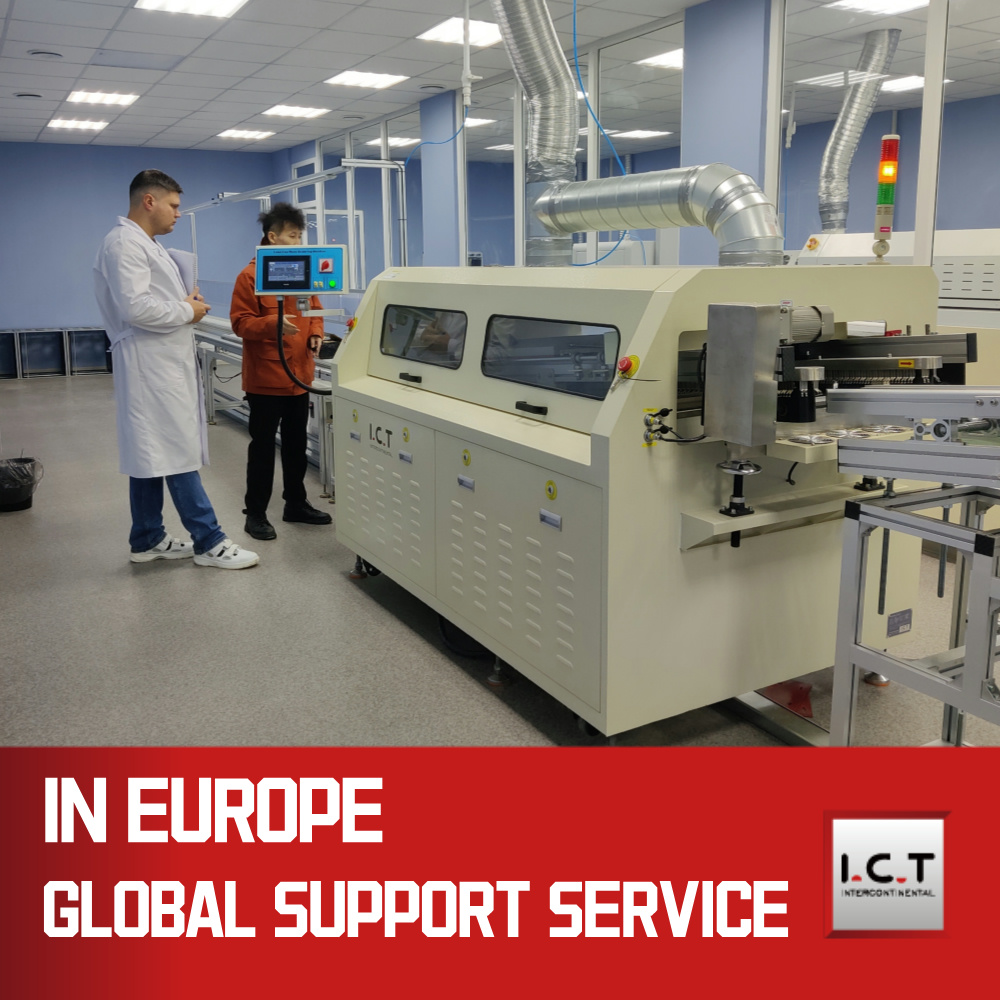

I.C.T engineers went to Uruguay to install and commission the Electra wave soldering machine for a smart meter manufacturer. The customer runs a high-volume DIP production line and needed stable lead-free soldering for complex PCBs with large parts. After our team completed the setup and operator training, the machine reached full speed with only 7kW running power and perfect joint quality. The customer shared a video showing the Electra wave soldering machine running smoothly in their THT assembly line, praising the low energy cost, easy maintenance and excellent after-sales support. This Uruguay smart meter project has become a successful reference for many Latin American DIP lines.
| Expert Services and Training
I.C.T offers full lifecycle support for every Electra wave soldering machine – from line planning and on-site installation to professional operator training and 7×24 global technical service. Our experienced team guarantees your wave soldering equipment and entire THT line operate at maximum efficiency with zero risk.
| Customer Praise
Customers worldwide praise the Electra wave soldering machine for its rock-solid stability, extremely low electricity consumption and perfect soldering results on large components. They especially love the fast global response, strong export packaging and outstanding value when searching for wave solder machine for sale.
| Quality Certifications
Every I.C.T Electra wave soldering machine carries CE, CCC, UL, RoHS and ISO9001 certifications plus multiple invention patents, fully meeting the strictest international safety and environmental standards for modern THT production lines.
| About I.C.T Company and Factory
I.C.T is a professional one-stop solution provider for SMT and DIP production lines with over 25 years of experience. Our 12,000㎡ factory in Dongguan employs 89 staff including 20 engineers. We design and manufacture all core equipment in-house and serve more than 1600 customers across 72 countries. Strict quality management and continuous innovation make us the most trusted partner for high-performance Electra wave soldering machine worldwide.
| Electra Wave Soldering Machine for DIP Production Line
