I.C.T V-320
I.C.T
| Quantity: | |
|---|---|

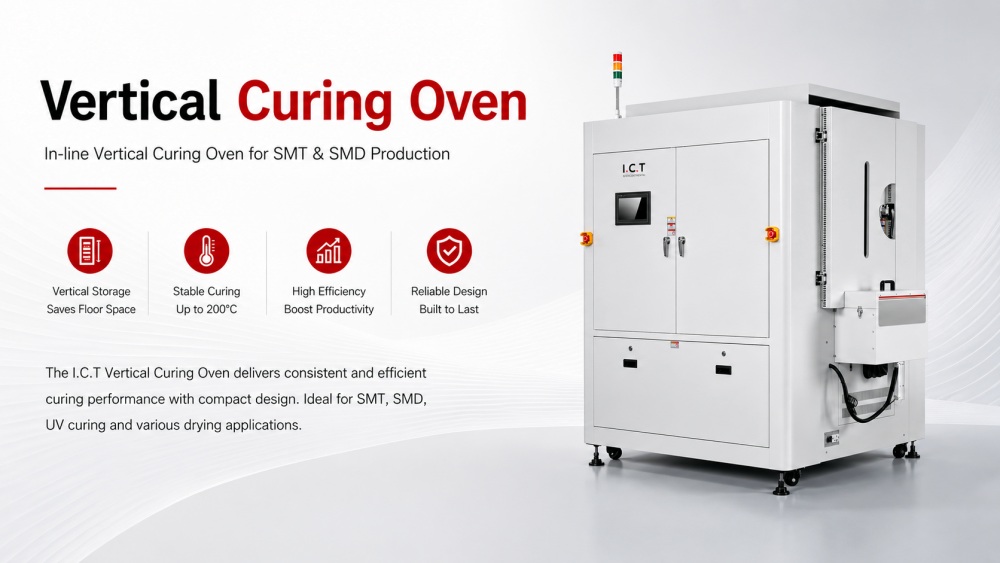

In-line vertical reflow oven, with compact structure, small occupying area and save the workshop space; High production efficiency which is much higher than the traditional oven, especially for the products which need long time heating in the oven and it effectively improves the production capacity, the demand for the vertical reflow oven is larger and larger, the vertical type instead of the traditional curing oven has become a trend.

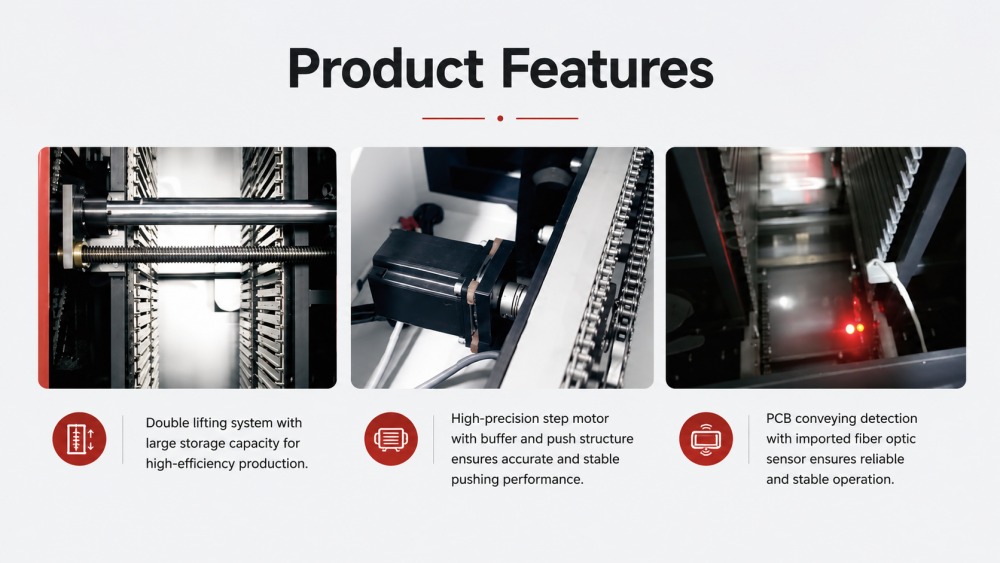

Double lifting system, great quantity of storage space, can meet the high efficiency production requirements.
Adopts high accuracy step motor for buffer and push structure, ensure the pushing accuracy.
PCB conveying detection in the oven adopts imported fiber optic sensor which greatly ensure the operation reliability.
| Model | V-320 |
| PCB Size | L120*W120~L400*W400mm (Length can be customized) |
| PCB Weight with Fixture | Max 10kg/pc |
| Conveyor Height | 900±20mm |
| Open Height | Top 100mm/Bottom 50mm |
| Storage | Vertical Storage |
| Storage Capacity | 60 pcs |
| Pitch Height | Integral Multiple of 25mm |
| Heating Zone | 4 zone (Identical temperature setting) |
| Heating Time | 10min (to 150℃) |
| Temperature Accuracy | ±1℃ |
| Dimension | L2000*W1550*H2200mm |
| Weight | Approx. 1500Kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
Service:
1. Pre-consultation: Provides professional SMT solutions for the full line.
2. Factory Warranty: One-year warranty for factory service.
3. Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: Provides professional training from Level 1 to Level 3.
5. Technical Support: Provides 7*24 technical support.
6. Software Upgrade: Offers lifetime free software upgrades for all products.
