I.C.T-U2
I.C.T
| Quantity: | |
|---|---|

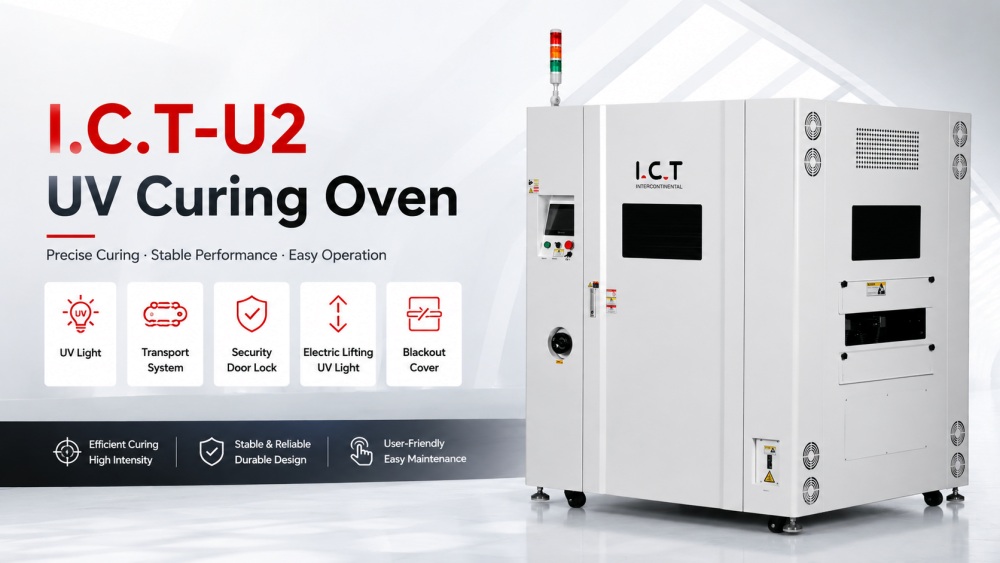

The I.C.T-U2 UV Curing Oven is built for fast, uniform curing of adhesives, inks, coatings, and UV-sensitive materials on SMT PCBs. It features a high-power UVA lamp array with independent height adjustment, reflective panels for efficient energy use, and a non-stick conveyor system driven by stepper motors for stable transport. The oven accommodates PCBs up to 500 mm width and ±100 mm height, supporting a load of 5 kg per board. Independent cooling ensures safe exit temperature. The system provides consistent curing, reduces defects, and integrates seamlessly into SMT SMD production lines.

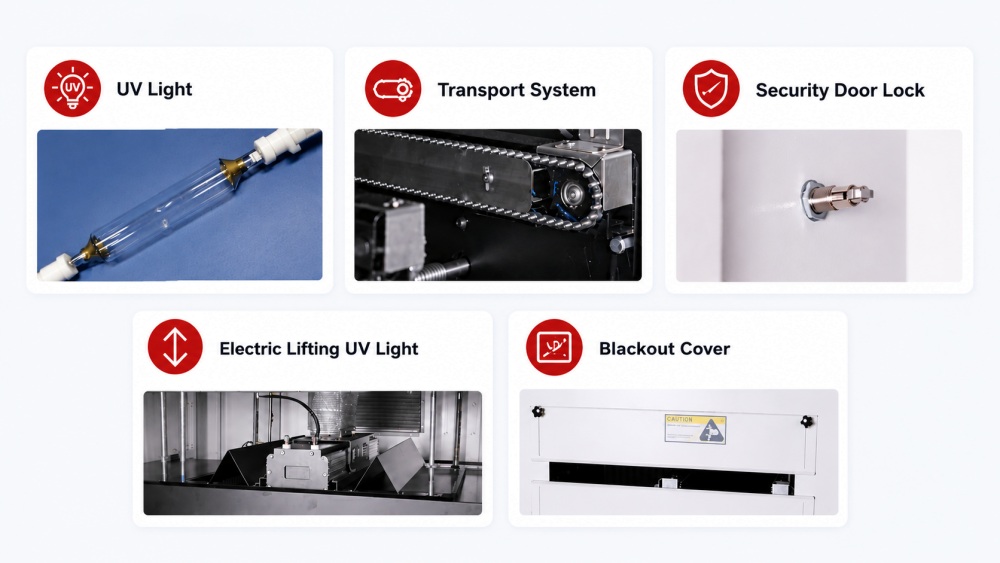

The UV lamps provide uniform irradiation with high-intensity energy. Each lamp can be independently controlled for height and exposure time. Reflective panels increase UV utilization and reduce energy consumption. PID temperature control ensures precision ±1°C. Safety features include lamp fault detection, over-temperature protection, and integrated alarms. The system guarantees rapid, stable curing for adhesives and coatings, supporting high-throughput SMT PCB production while maintaining board integrity.
The conveyor system uses Teflon-coated chains with stepper motor drive. Adjustable speed ranges from 0.5 to 3.5 m/min, and the system ensures precise board positioning. Fiber optic sensors detect PCB entry and exit, preventing jams and misfeeds. The design supports boards up to ±100 mm in height, 500 mm wide, and up to 5 kg per board. Cooling zones maintain low exit temperatures, reducing thermal stress. This combination ensures high reliability and consistent curing performance across the SMT PCB production line.
| Specifications:
| Specifications | I.C.T-U2 |
| Transport | Stainless steel long pin chain, 35B pin length 5mm, add stainless steel tabs. |
| Control System | PLC+touch screen |
| Conveyor Speed | 0.5~3.5m/minn |
| UV light quantity | 1set |
| UV light power | 6Kw/set |
| UV light source | UVA band |
| UV light length | 630mm, arc Length 500mm |
| Main wave length | 365nm |
| Max PCBA height | ±100mm |
| PCBA width | 50~500mm, manual adjustment, Withstand 5KG weight |
| Cooling method | Air cooling |
| Electric supply | 3Phase, 380V 50Hz |
| Dimension | L1500*D1370*H1935mm |
| Weight | Approx.450KG |
* The data is obtained under the ambient temperature of 25℃ and humidity of 60%.
| NO. | Item | Optional |
| Rail width adjust system | Motor automatic width adjustment | |
| Option function | Board return line |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| PCBA Coating Line Equipment List
The I.C.T-U2 integrates with I.C.T’s full SMT coating and dispensing line. Related equipment includes jet dispensers, conformal coating machines, UV curing ovens, PCB conveyors, AOI inspection, and depaneling systems. The oven handles controlled curing, while coating machines protect wider surfaces. AOI verifies quality, and depaneling separates finished PCBs. Together, these machines form a continuous workflow that optimizes throughput, reduces material waste, and ensures consistent PCB curing and drying.
| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
| Customer Success Video
In April 2026, I.C.T deployed a full SMT production line for a Portuguese automotive electronics manufacturer. Engineers performed on-site installation, line calibration, and hands-on operator training. They guided the team on oven operation, conveyor handling, and routine maintenance. The customer praised the smooth installation, reliable oven performance, and clear, practical training. Operators were able to manage the line efficiently, ensuring consistent curing across all PCB types and coatings throughout production.
| Service and Training Support
I.C.T provides support for entire SMT factory operations, not just individual ovens. Before delivery, engineers review PCB type, material, target output, workspace, and future expansion. After installation, support includes commissioning, operator training, maintenance guidance, and process optimization. Engineers ensure smooth integration of the UV Curing Oven with coating, dispensing, inspection, handling, and depaneling equipment. New factories receive guidance from layout to trial production. Existing factories benefit from improved workflow, balanced line operation, and reliable high-throughput SMT PCB curing.
| What Our Customers Say
Customers value I.C.T for hands-on guidance and rapid response. Engineers provide clear instructions, reducing errors and accelerating operator readiness. Protective packaging ensures safe long-distance shipping. Technical questions arising during installation or production are addressed promptly by coordinated sales and engineering teams. Customers gain confidence when launching new lines, maintaining high throughput, and achieving consistent, high-quality curing for adhesives, inks, and coatings.
| Certifications and Standards
The I.C.T-U2 UV Curing Oven is CE certified and meets international safety standards. Quality control includes component inspection, assembly verification, function testing, packing confirmation, shipment tracking, installation records, and after-sales service. Comprehensive procedures ensure reliable, repeatable curing performance, minimize operational risk, and maintain consistent high-quality results in SMT PCB production.
| About I.C.T Company and Factory
I.C.T delivers complete solutions for SMT, DIP, coating, dispensing, assembly, robotics, and smart factories. In-house R&D, production, engineering, sales, and service teams support customers from planning to steady production. I.C.T has served global clients with equipment supply, installation, training, and process optimization. Beyond delivering machines, I.C.T helps build factories from 0 to 1 and upgrades existing lines from 1 to 10, providing scalable, precise, and reliable SMT PCB production systems.
