Inline Label Sticker
| Quantity: | |
|---|---|

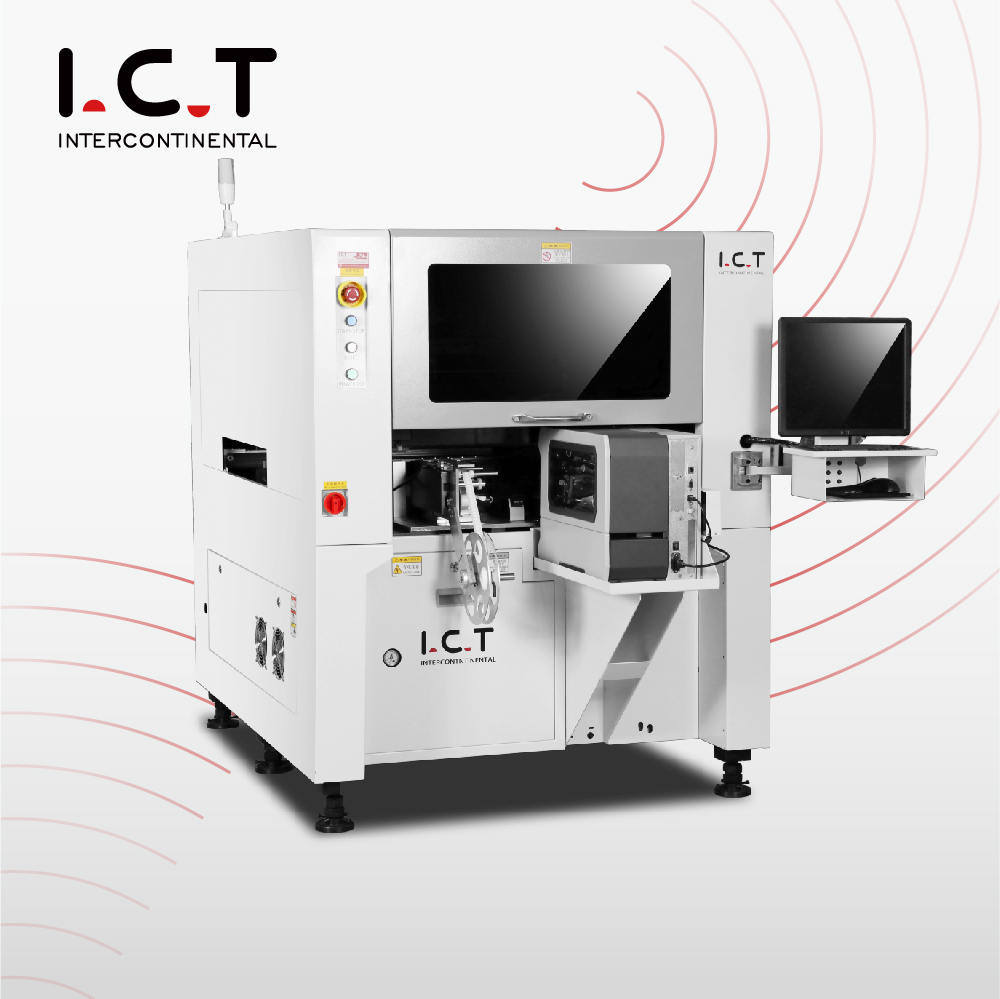

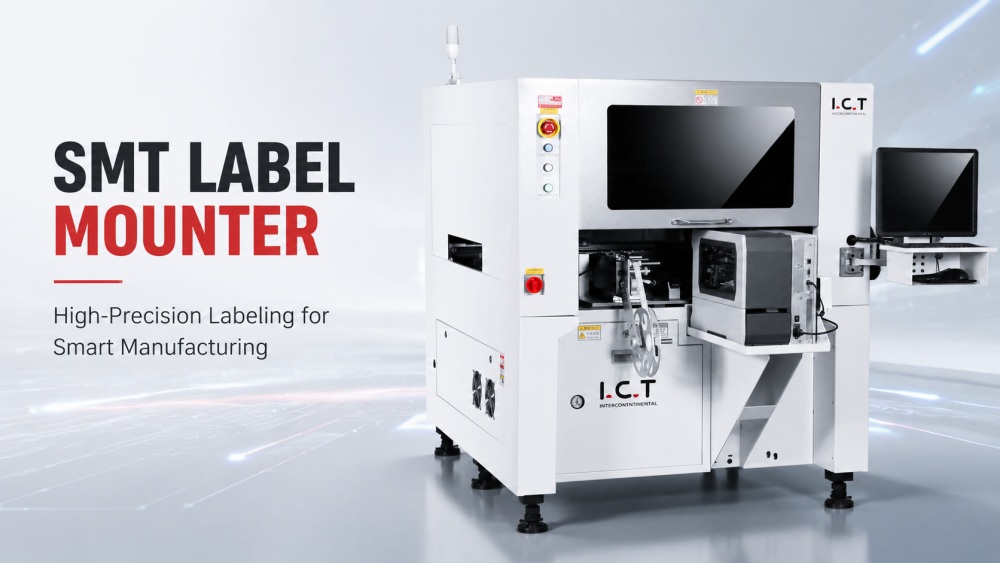

| Label Maker Placement Machine Overview
The label maker placement machine ensures precise labeling on various PCB sizes. Designed for high-volume SMT production, it integrates dual placement heads, independent vacuum detection, and optional SMT lable maker placement traceable machine features. Its compatibility with MES systems allows full traceability for production lines. I.C.T provides end-to-end support, from installation to maintenance, ensuring smooth operation. The machine handles multiple label materials and thicknesses, enhancing efficiency while minimizing errors in PCB assembly.
| Feature of SMT Label Mounter

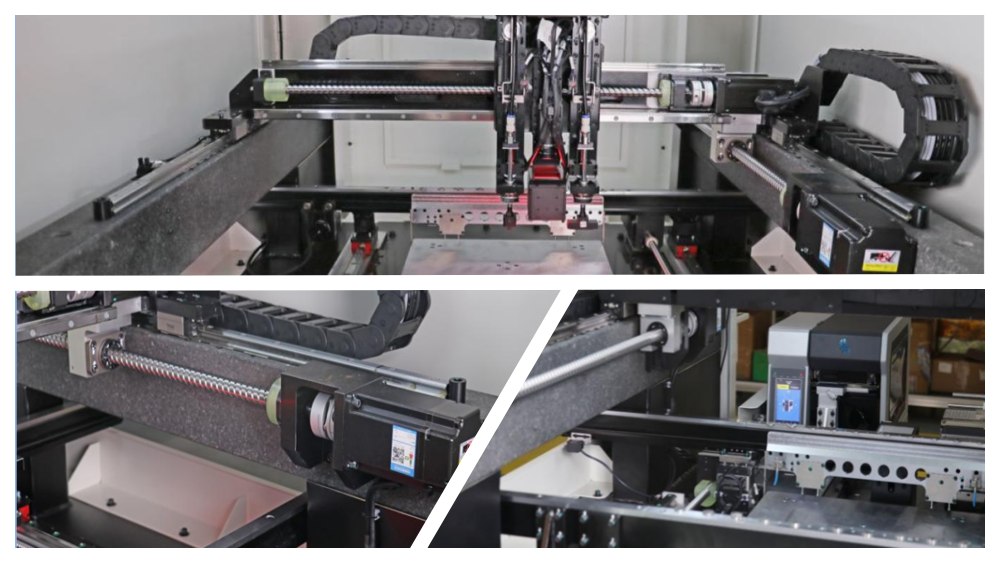

The frame combines reinforced steel and marble bases to guarantee long-term stability. Ball screws and linear guide rails provide accurate motion, while imported servo motors ensure high-speed performance. The bridge suspension structure supports heavy loads and maintains consistent operation, keeping placement precision consistent across shifts.

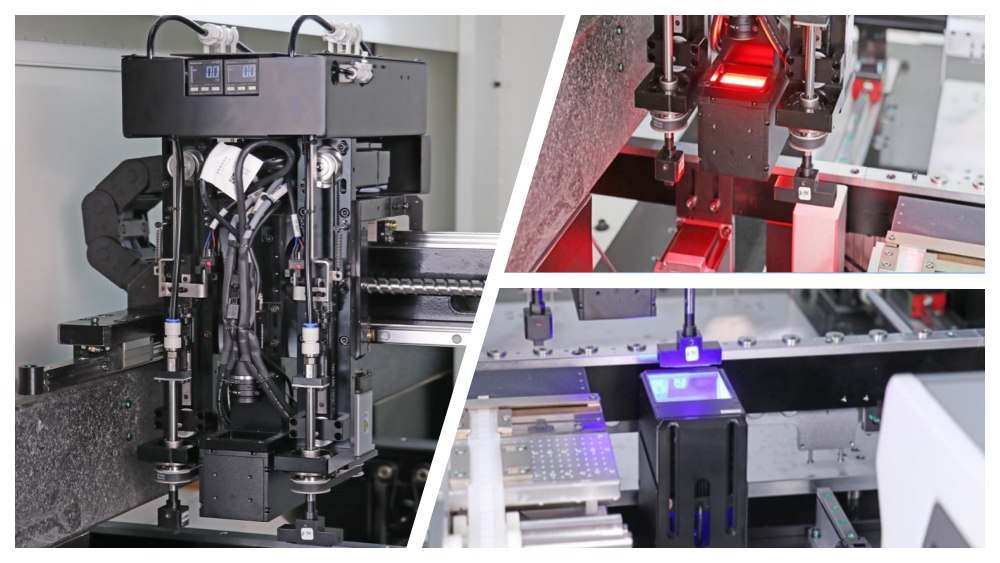

Dual mounting heads lift, lower, and rotate independently. Visual positioning combines flying and fixed cameras for rapid image capture. Red and blue lighting enhances label recognition. This system accommodates complex PCBA heights, ensuring reliable and fast label placement without misalignment.

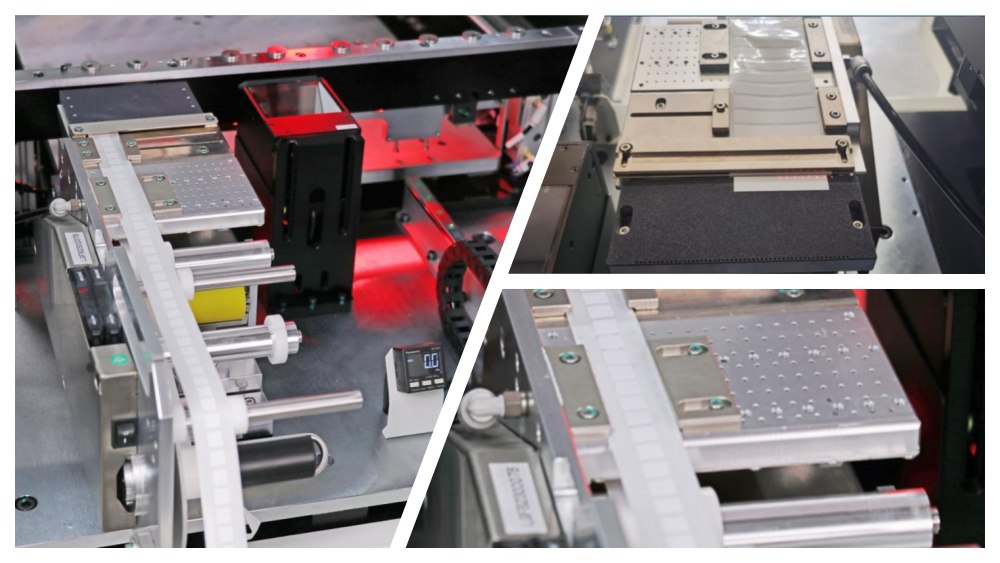

Electric intelligent feeders manage labels from 1.8×2.0 mm to 100×40 mm. Anti-slip mats reduce waste and optical sensors confirm correct label pickup. Special adjustments accommodate unique materials. This setup guarantees consistent feeding, even for high-mix PCB production.

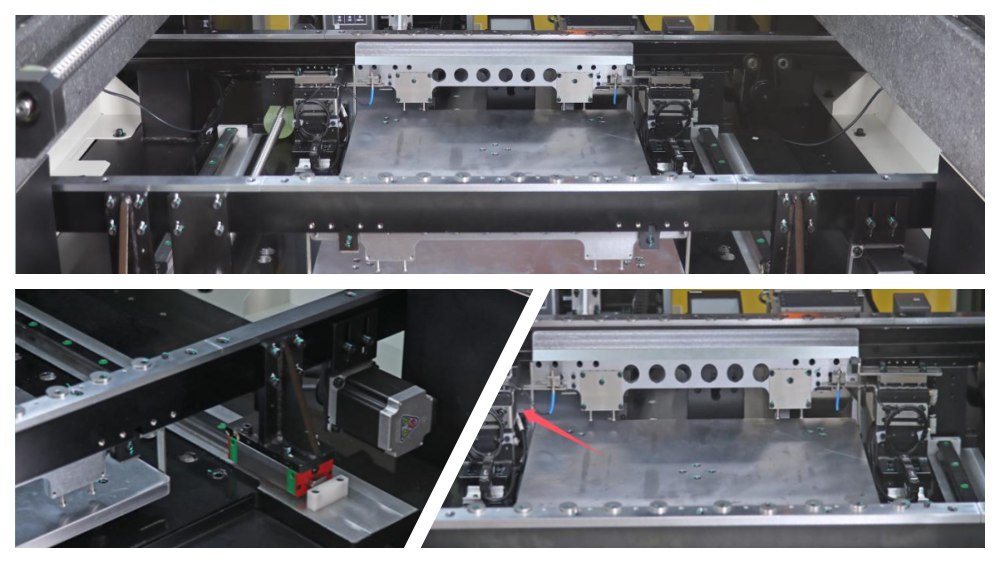

Conveyor direction is fully selectable, with adjustable speed. Pneumatic blockers and optical sensors ensure precise PCB positioning. Synchronization of the ball screw and slide rails keeps tracks parallel, preventing jams. The system enables smooth and efficient SMT line operation.
| Reflow Oven Specification
| No. | Item | I.C.T-310 | I.C.T-310D | I.C.T-310L |
|---|---|---|---|---|
| 1 | PCB Size | 50×50mm ~ 340×280mm | 50×50mm ~ 400×350mm | 100×100mm ~ 600×500mm |
| 2 | PCB Thickness | 1–6mm | 1–6mm | 1–6mm |
| 3 | Feeder Position | 2 | 4 | 2 |
| 4 | Feeder Width | 105mm | 105mm | 105mm |
| 5 | Mounting speed | 2500 pcs/H | 4000 pcs/H | 1300 pcs/H |
| 6 | Label Size | Label Feeder: 2×2 ~ 100×40mm (Option Barcode Printer: 13×13 ~ 100×40mm) | Same | Same |
| 7 | Label thickness | 0.05–0.3mm | 0.05–0.3mm | 0.05–0.3mm |
| 8 | Labeling Precision | ±0.05mm | ±0.05mm | ±0.05mm |
| 9 | Labeling Angle | 360° | 360° | 360° |
| 10 | Nozzle | 2 | 2 | 2 |
| 11 | Nozzle Vacuum | Vacuum pump | Vacuum pump | Vacuum pump |
| 12 | PCB safety height | Top: <25mm; Bottom: <25mm | Top: <25mm; Bottom: <25mm | Top: <25mm; Bottom: <25mm |
| 13 | Transfer height | 900±20mm | 900±20mm | 900±20mm |
| 14 | Positioning accuracy | ±0.025mm | ±0.025mm | ±0.025mm |
| 15 | Repeated accuracy | ±0.005mm | ±0.005mm | ±0.005mm |
| 16 | Mounting moment | Max 3Kg | Max 3Kg | Max 3Kg |
| 17 | Positioning method | CCD + Mark | CCD + Mark | CCD + Mark |
| 18 | Conveyor Speed | 50 ~ 600mm/min | 50 ~ 600mm/min | 50 ~ 600mm/min |
| 19 | Stripping method | Fibre optic detection + software control | Same | Same |
| 20 | Suction Detection | Vacuum testing, drop standard testing | Same | Same |
| 21 | Rail width | Automatic adjustment | Automatic adjustment | Automatic adjustment |
| 22 | Control mode | PC + Industrial control board | PC + Industrial control board | PC + Industrial control board |
| 23 | MES interface | Reserve network interface | Reserve network interface | Reserve network interface |
| 24 | Power | AC220V/50Hz, 1KVA | AC220V/50Hz, 1.5KVA | AC220V/50Hz, 1.5KVA |
| 25 | Dimension | L1096×W1130×H1426mm | L1074×W1590×H1440mm | L1250×W1610×H1530mm |
| 26 | Weight | 800Kg | 1300Kg | 1400Kg |
| 27 | Air Pressure | 0.5–0.6Mpa | 0.5–0.6Mpa | 0.5–0.6Mpa |
