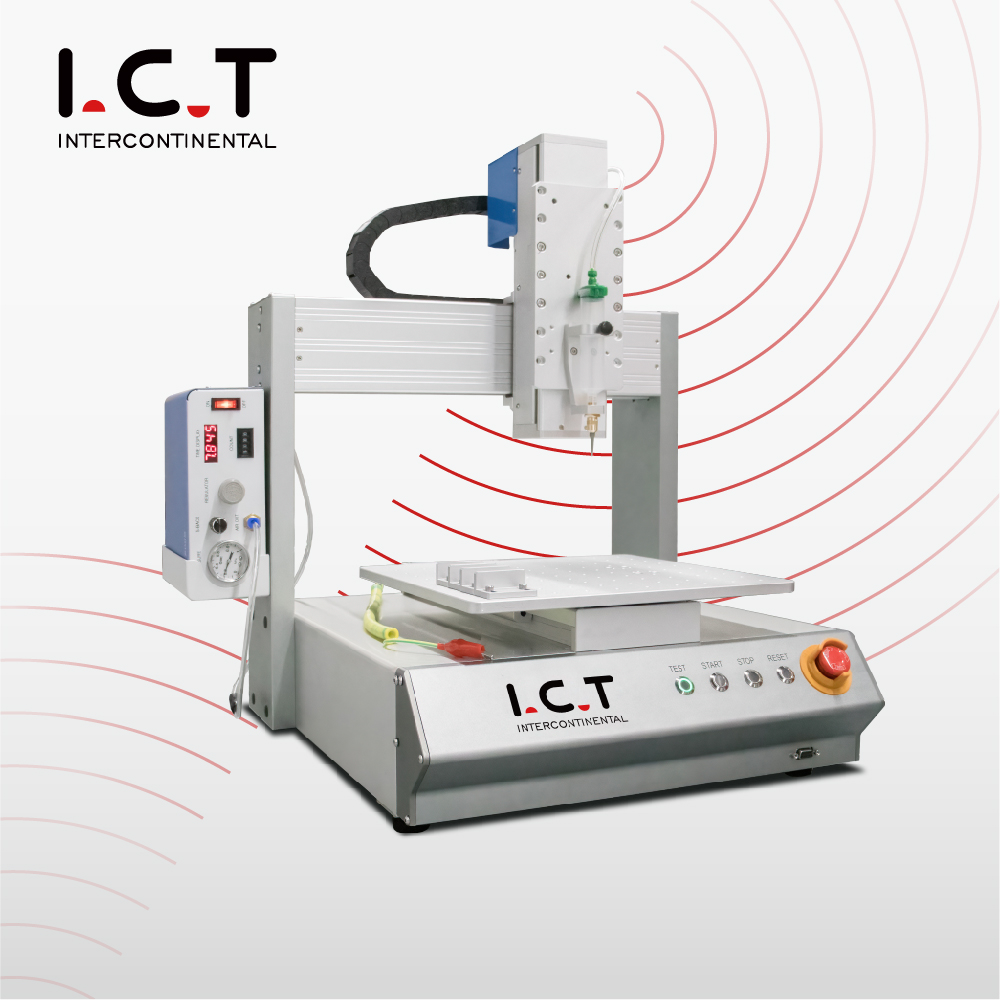

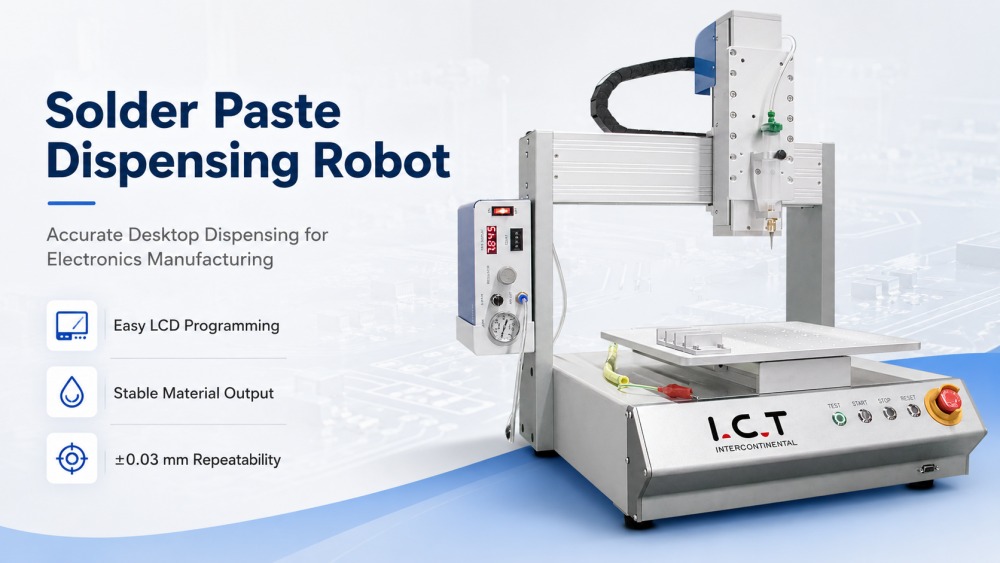

The I.C.T inline robot soldering solution is designed for controlled soldering paste and fluid dispensing in electronics manufacturing. It is suitable for PCB parts fixation, semiconductor packaging, LED dispensing, optical lens bonding, chip bonding, battery sealing, and other small-part processes. The system can work with solder paste, UV glue, epoxy, red glue, silver glue, silicone, thermal paste, and transparent paint. Operators can set movement paths, dispensing time, speed, and stop time through a simple LCD handheld controller. With compact size and flexible programming, it fits sample production, repair stations, engineering labs, and small-to-medium production areas.
This inline robot soldering machine uses an LCD panel and handheld programming device, so the operator can build programs without a complex computer setup. The interface is easy to understand, which helps new users start faster and reduces training time on the shop floor. Operators can adjust dispensing speed, material thickness, dispensing time, and stop time through clear parameter settings. This is useful when a factory handles different PCB models or small production batches. It also helps engineering teams test new soldering paste processes before moving them into a larger production flow.
The machine supports point, line, surface, arc, circle, irregular curve, and 3D non-flat trajectory dispensing. This gives process engineers more control when the product shape is not simple. For boards with different component layouts, bonding areas, or special dispensing points, the machine can follow the required path instead of forcing the process into one fixed pattern. It also supports array functions, graphical browsing, common graphics insertion, and group editing. These functions make the system practical for LED modules, PCB assemblies, optical parts, chip bonding, and other detailed electronic manufacturing tasks.
Stable dispensing is one of the main values of this paste dispenser robot. The special dispensing controller helps maintain steady material output, clean cutoff, and better glue breaking. This reduces common issues such as leakage, tailing, uneven dots, or wasted material. The automatic anti-curing function also helps prevent needle blockage during operation, which is important for repeat production. When a factory works with solder paste, epoxy, red glue, silver glue, or silicone, small changes in output can affect final quality. This design helps keep the process more predictable and easier to manage.
The system can store 999 parameter files, with up to 65,535 points in each file. This is helpful for factories that need to run many product types or repeat older orders. Instead of rebuilding programs every time, operators can call up a saved file and adjust it as needed. This saves time and reduces human error during product changeover. For customers using dispense robot solder psate processes in mixed production, program memory becomes a real daily advantage. It keeps work organized and helps the team move faster between engineering samples, pilot runs, and regular production.
The machine has strong PC compatibility and can work with Logoshop software. It can import NC, AI, DXF, JPG, BMP, scanner files, and other common formats from mainstream design software. This helps engineers turn existing product drawings into dispensing paths with less manual work. For custom products or frequent design updates, this reduces programming pressure and improves repeatability. The automatic soldering paste dispenser robot can also support more accurate path creation when the product requires special curves, arcs, or small dispensing areas. This is useful for both R&D and controlled batch production.
The imported photoelectric sensor supports automatic XYZ coordinate teaching. This helps the machine confirm reference points when changing product types or different needles. With a stepping motor, belt drive, precise linear guide rail, and ±0.03mm XYZ repeatability, the machine gives stable positioning for fine dispensing work. Accuracy is important for PCB fixation, chip bonding, LED dispensing, and other small-area applications. The system also offers different working areas, including 300×300mm, 400×400mm, and 500×500mm. Customers can choose the model based on product size, production space, and process requirements.
| Solder Paste Dispensing Robot Specifications:
| Item | I.C.T-S300 | I.C.T-S300L | I.C.T-S500 |
|---|---|---|---|
| Work Area | 300(X) × 300(Y) × 95(Z) mm | 400(X) × 400(Y) × 95(Z) mm | 500(X) × 500(Y) × 95(Z) mm |
| Machine Size | 490(L) × 528(W) × 679(H) mm | 590(L) × 628(W) × 679(H) mm | 690(L) × 728(W) × 679(H) mm |
| Travel Speed | 400 mm/sec(XY), 200 mm/sec(Z) | 400 mm/sec(XY), 200 mm/sec(Z) | 400 mm/sec(XY), 200 mm/sec(Z) |
| Maximum Load | 8 kg | 8 kg | 8 kg |
| Drive Mode | Stepping motor + belt + precise linear guide rail | Stepping motor + belt + precise linear guide rail | Stepping motor + belt + precise linear guide rail |
| XYZ Repeatability | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Operating System | LCD panel / handheld programming device | LCD panel / handheld programming device | LCD panel / handheld programming device |
| Program Capacity | 999 parameter files, 65,535 points per file | 999 parameter files, 65,535 points per file | 999 parameter files, 65,535 points per file |
| Movement Pattern | 3-axis point-to-point, continuous line, arc | 3-axis point-to-point, continuous line, arc | 3-axis point-to-point, continuous line, arc |
| Power Supply | AC220V, 50/60Hz, 0.5kW | AC220V, 50/60Hz, 0.5kW | AC220V, 50/60Hz, 0.5kW |
| Weight | About 35 kg | About 45 kg | About 55 kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| PCBA Coating Line Equipment List
For this page, the related products follow I.C.T’s coating and dispensing production line. The line can include dispensing machines, conformal coating machines, curing ovens, PCB conveyors, AOI inspection systems, and PCBA depaneling machines. A dispensing machine controls solder paste, adhesive, thermal paste, or silicone. A coating machine protects PCB surfaces from moisture, dust, and contamination. A curing oven completes UV or thermal curing after coating or dispensing. AOI checks the process result, while depaneling equipment separates finished boards with less stress. These products can work together to build a more complete process around Inline Automatic soldering paste dispenser robot applications.
