I.C.T | ETA Max1500b LED SMT Pick and Place Machine With Intelligent Feeder

Share to:

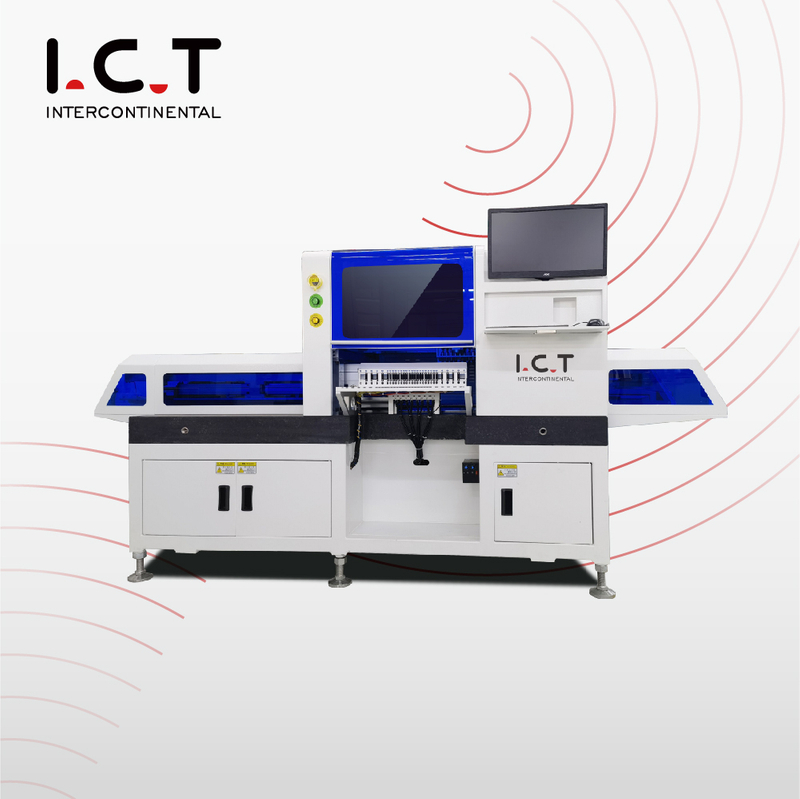

I.C.T | ETA Max1500b LED SMT Pick and Place Machine With Intelligent Feeder

Smart LED Placement Manufacturing Solution

a. Intelligent feeder component supply
b. Accurate LED PCB placement
c. Stable SMT production performance
d. Flexible product changeover support
e. Advanced vision placement control
f. Complete factory solution service
g. Global engineering support available

Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

Product Description

| Intelligent LED Placement Solution

LED manufacturing requires stable placement accuracy because component positioning directly affects product performance and production efficiency. The LED SMT Pick and Place Machine is designed for manufacturers who need reliable automation for LED boards, lighting products, and electronic modules. It combines intelligent feeding technology, vision recognition, and precise movement control to maintain consistent placement quality during continuous operation. With flexible production capability, the equipment can support different PCB designs and component requirements. I.C.T helps customers build practical manufacturing systems by combining suitable equipment selection, professional installation, and technical support according to their production goals.

Off-line

On-Line

| Product Features

Intelligent Feeder For Stable Supply

Component feeding stability is an important factor in maintaining continuous production. The Max1500b LED SMT Pick and Place Machine With Intelligent Feeder uses an optimized feeding system to provide accurate component delivery during placement operation. The intelligent feeder reduces material supply errors and helps operators manage production more efficiently. Combined with precise recognition technology, it allows the machine to handle different LED components with improved consistency. This design is suitable for factories that need reliable production performance while reducing manual intervention. Stable feeding helps maintain smooth workflow and improves overall equipment utilization.

High Precision Placement Control

LED products often require repeated placement operations with strict accuracy requirements. The machine uses a precise placement system to control component pickup and mounting positions during production. The SMT Pick and Place Head works together with vision recognition technology to improve placement consistency and reduce errors caused by component differences or PCB positioning variation. This allows manufacturers to maintain stable quality across different production batches. For LED lighting and electronic module production, accurate placement helps improve product reliability while reducing unnecessary adjustment time during daily manufacturing operations.

Flexible PCB Production Capability

Different customers may produce various LED boards, modules, and electronic products. A flexible production system allows factories to respond faster to product changes. The equipment supports different PCB applications through adjustable production settings and practical operation methods. Whether producing LED lighting boards or other electronic assemblies, manufacturers can benefit from improved adaptability. The machine can be integrated into different production environments and connected with other manufacturing equipment. This flexibility helps companies improve production planning and maintain better efficiency when handling multiple product models.

Vision system-PCB

Vision system-Component

Platform system-Transport

Driver system-Mount Head

Feeding system

Vacuum system

| Application

led Pick and place machine

LED chip mounter

Pick place machine for LED

| Specifications

Model	I.C.T-OFM8	I.C.T-OFM10	I.C.T-ONM8	I.C.T-ONM10	I.C.T-OIM8	I.C.T-OIM10
	Off-Line		On-Line		On-Line
Max.PCB Size	1500*420 mm		1200*400 mm		800*500 mm
Special PCB Size	Special PCB size can be customized (1800-2000mm length)
Placement speed	55,000CPH	60,000CPH	55,000CPH	60,000CPH	45,000CPH	55,000CPH
Component CCD	8	10	8	10	8	10
Weight	Approx.1600KG		Approx.1600KG		Approx.1400KG

* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

| SMT Line Equipment List

SMT LINE

I.C.T provides complete SMT, DIP, and coating production solutions instead of focusing on a single machine. Based on customer products and manufacturing requirements, the production system can include PCB loading equipment, printing machines, LED SMT Pick and Place Machine, reflow ovens, inspection equipment, DIP insertion systems, soldering machines, coating equipment, and automation solutions.

Each project is evaluated according to production capacity, factory layout, and future expansion plans. By connecting different processes together, I.C.T helps customers establish efficient manufacturing workflows and improve production stability.

1 SMT Line with SMT Machine 02

Product Name	Purpose in SMT Line
PCB loader unloader	Automatically loads bare PCBs to the line.
SMT stencil printing machine	Prints solder paste on PCB pads accurately.
Yamaha SMT machine	Mounts components onto PCBs precisely.
SMT Reflow Oven	Melts solder to form solid joints.
Automated optical inspection equipment	Inspects solder joints and placement defects.
Solder paste inspection machine	Checks solder paste height and quality.
Traceability Equipment	Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer

| Customer Success Video

A Kazakhstan Customer selected I.C.T to establish a new production capability for power supply products. The project required a complete manufacturing solution together with professional technical support.

The delivered SMT production line included PCB loader, full automatic printer, placement equipment, reflow oven, conveyor system, and offline AOI inspection equipment.

After delivery, I.C.T engineers Andy and Billy traveled to the Customer factory for installation, debugging, and operator training. They worked closely with the Customer team to ensure smooth production startup and proper equipment operation.

| Service & Training Support

A production line should support not only current manufacturing needs but also future business growth. I.C.T works with customers to understand product requirements, output targets, and factory conditions before designing suitable solutions.

Our engineering team provides support from equipment selection and production planning to installation guidance and technical training. The focus is creating a balanced manufacturing system where each process works efficiently together.

Through complete SMT, DIP, and coating solutions, I.C.T helps customers improve production organization, reduce process challenges, and build stronger manufacturing capability for long-term development.

SMT Solder Paste Printer 206

| Customer Praise

Equipment investment is closely connected with technical support. I.C.T provides assistance throughout the project process, including pre-shipment communication, installation preparation, onsite debugging, and operator training.

Engineers focus on helping Customer teams understand machine operation and production requirements. Instead of only solving immediate questions, the support process aims to improve customers’ ability to manage equipment independently.

With experience from international projects, I.C.T understands different factory environments and provides practical solutions based on real production conditions. This approach helps customers achieve stable operation after equipment installation.

好评1

| Our Certification

Equipment quality depends on every stage from design to delivery. I.C.T applies strict management procedures covering component inspection, mechanical assembly, electrical testing, software verification, and final performance checks.

Before shipment, each machine completes detailed inspection to confirm operational stability and production reliability.

I.C.T has obtained CE, RoHS, ISO9001 certifications and multiple technology patents. These standards represent the company’s commitment to continuous improvement and reliable manufacturing.

Through controlled production processes, I.C.T delivers equipment solutions designed for global electronics manufacturers.

证书1

| About I.C.T and Factory

I.C.T develops and manufactures electronics production equipment with independent R&D, production, and engineering teams. The company has supported more than 1,600 customers worldwide across LED lighting, consumer electronics, automotive electronics, and industrial control industries.

With complete capabilities covering equipment development, manufacturing, testing, and service support, I.C.T can provide solutions from individual machines to complete production lines.

The factory follows strict quality management procedures to ensure stable equipment performance. Through continuous innovation and international project experience, I.C.T helps manufacturers improve production efficiency and establish reliable manufacturing systems.
