I.C.T-W2
I.C.T
| Quantity: | |
|---|---|
| Wave Soldering Machine with Flux
– DIP Mini Wave Soldering Machine with Flux Factory Price
I.C.T W-series wave soldering machine with flux is the compact dip soldering machine mini wave designed for medium and small THT/DIP lines. This wave soldering machine with flux uses Japanese Kuroda precision nozzle for tiny flux dots, fully independent horizontal heating zones for even temperature, and smart power-saving design to keep daily consumption at only 7kW. Optional nitrogen system delivers oxide-free joints. Widely used in smart meters, automotive electronics and home appliances, this wave soldering machine with flux offers the most competitive wave soldering machine price for factories looking for reliable performance and fast ROI.
| Feature
Japanese Kuroda nozzle with adjustable atomizing area and pyramid filter create tiny, uniform flux dots every cycle. Digital flow meter and stable pressure tank keep flux stable without influence from remaining amount – a key advantage for wave soldering machine with flux in continuous DIP production.
Third-party independent over-temperature protection plus PLC+PID closed-loop control give multiple safety layers. Real-time monitoring and instant emergency stop protect operators and equipment during non-stop running.
Fully independent horizontal heating zones with closed hot-air path and rectifier plates deliver perfectly balanced temperature across the whole board. Warm-up takes only about 15 minutes and normal power stays at 7kW – the most efficient heating for dip soldering machine mini wave.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List

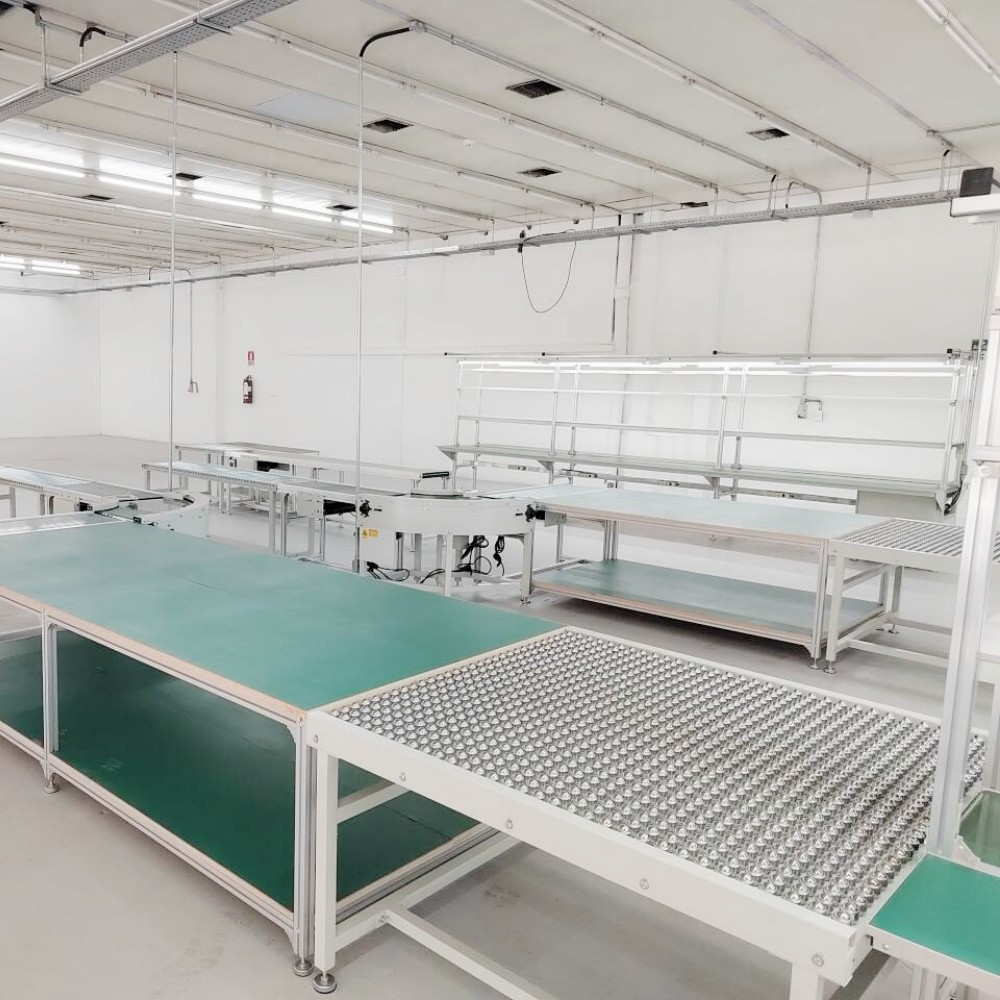

Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video
In Uruguay, a smart meter factory upgraded their DIP line with our W-series wave soldering machine with flux. Our engineers spent one week on-site for installation, programming and operator training. After start-up, the machine ran at full speed with only 7kW power and zero defects on complex boards. The factory manager recorded a short video showing the smooth flux coating and perfect solder joints, saying the low wave soldering machine price and excellent after-sales support made the investment pay back in just 8 months.
| Expert Services and Training
Every wave soldering machine with flux comes with I.C.T complete service package: free line layout design, on-site installation within 15 days worldwide, 3-day intensive operator training, 2-year warranty and lifetime spare parts at factory price. Our 20 engineers and 8 overseas offices guarantee response within 24 hours.
| Customer Praise
Thanks to I.C.T’s complete one-stop solution—from line planning, equipment delivery, on-site commissioning to long-term process optimization—customers worldwide enjoy seamless production upgrades. Our 8 overseas offices and 20 professional engineers provide 24-hour global technical support, ensuring every wave soldering machine with flux runs at highest efficiency. Factories repeatedly tell us that this full-chain service and factory-direct wave soldering machine price make them completely satisfied and willing to place repeat orders.
| Quality Certifications
I.C.T wave soldering machine with flux holds CE, RoHS, ISO9001, CCC and multiple invention patents. All electrical parts from Schneider, Delta, AIRTAC meet UL standard. Full compliance for export to Europe, America and Southeast Asia.
| About I.C.T Company and Factory
I.C.T owns 12,000㎡ modern factory in Dongguan with 89 staff and 20 engineers. We design and manufacture every key component in-house, control 100% quality and offer real DIP Mini Wave Soldering Machine with Flux Factory Price. Serving over 1600 customers in 72 countries with 8 overseas warehouses, we deliver machines within 20 days and provide lifetime technical support. Choose I.C.T – choose zero-risk investment.
