| I.C.T Acrab-Series Automatic DIP Soldering Machine
This Automatic DIP Soldering Machine is the core station of modern THT assembly lines and DIP production lines. Three models support 350 mm, 450 mm, or 615 mm PCB width. It receives boards from insertion machines, applies flux, preheats fully, solders with dual wave, and cools gently. Optional nitrogen, top preheat, electric width adjustment make it grow with your line. Operating power drops to 8-10 kW. Tool-free design keeps the DIP line running without long stops.
| Feature
The complete spray unit slides forward on smooth rails. Two Japanese Kuroda nozzles, moved by stepper motors, coat flux exactly as programmed. Flow, speed, angle, density — all data stays saved. Automatic cleaning cycle starts alone. 316 stainless steel keeps everything clean. The drawer closes and the Automatic DIP Soldering Machine waits for the next board from the insertion line.
Three independent zones add up to 1800 mm. Hot air and infrared work together. Temperature reaches 250 ℃ in fifteen minutes. High-temperature cotton holds every point within two degrees. Each zone pulls out like a drawer. Heaters change without tools. Optional top preheat installs in minutes when thicker boards come from the THT insertion line.
The chain moves without noise. Double-hook titanium fingers grip boards up to 615 mm wide. Patented entry device guides every board from the loader. Speed stays accurate within two millimeters per minute. Fingers clean themselves during production. Width changes manually or electrically. This conveyor keeps the entire DIP production line flowing smoothly.
Cast-iron pot with enamel coating holds 500-700 kg lead-free solder. Dual wave height varies less than 0.5 mm. Automatic dross channel removes waste continuously. Optional nitrogen protection reduces oxidation sharply. Joints come out bright and strong. The Automatic DIP Soldering Machine delivers perfect results for every PCB Wave Soldering Machine task in the THT assembly line.
High-power top fans begin the moment boards leave the wave. Optional bottom cooling activates for multi-layer boards. Temperature falls quickly. Components receive no heat stress. Solder surface hardens smooth. Boards exit cool and ready for the next station in the DIP line. The auto dip soldering machine finishes each cycle gently.
The touchscreen displays clear numbers. PC and PLC monitor temperature in real time. PID+SSR keeps curves exact. Standby mode starts during pauses and saves tin. Alarm records help solve problems fast. Emergency manual crank works without electricity. CE and UL certification is standard. Operators learn the Automatic DIP Soldering Machine quickly and trust it completely.
| DIP Line Equipment List
| Model | Acrab 350 | Acrab 450 |
| Dimension(mm) | 4420X1420X1750 | 4420X1520X1750 |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 33kw | 33kw |
| Operation Power | 8kw | 8kw |
| Control System | PC+PLC | PC+PLC |
| Preheating Zone | 3 | 3 |
| Preheating Length | 1800mm | 1800mm |
| Preheating Temp. | (Room Temperature)-250°C | (Room Temperature)-250°C |
| PCB Width(mm) | 50-350mm | 50-450mm |
| Finger | Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger | |
| Solder Pot Capacity | Lead-free 500kg | |
| Machine Weight(kg) | Approx.1600kg | Approx.1900kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| DIP Line Equipment List

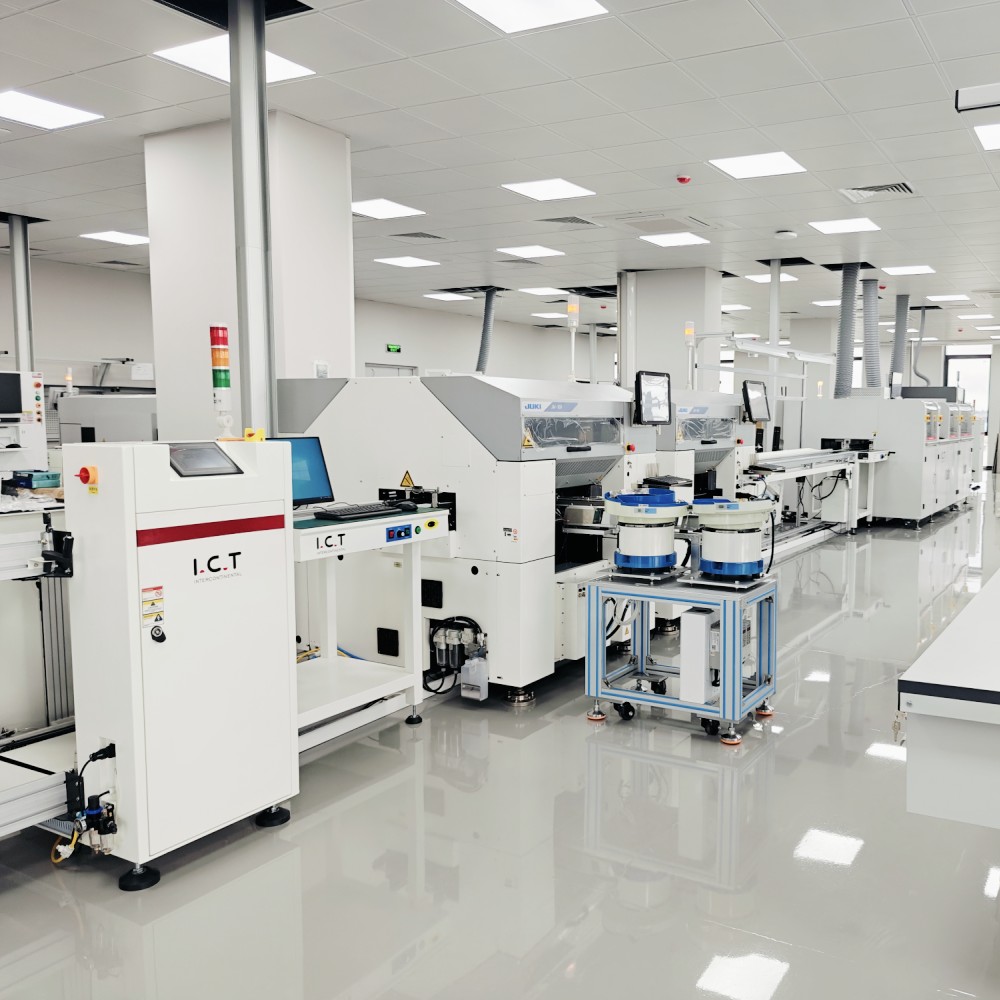

I.C.T provides a complete and flexible DIP production line for high-efficiency through-hole assembly. The system includes automatic insertion machine for precise component placement, wave loader and unloader for smooth PCB transfer, reliable wave soldering machine, and assembly belt line for final inspection and testing. Modular design allows easy layout changes and future upgrades. With stable performance, low failure rate, and full support from I.C.T global team, this DIP line helps factories reduce labor cost, improve yield, and meet different production demands quickly.
| Product Name | Purpose in DIP Line |
|---|---|
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Board input machine and board output machine | |
| DIP Peripheral | Peripheral products of DIP production line |
| Customer Success Video
I.C.T engineers arrived in Mexico to support multiple THT assembly lines. One automotive customer now runs two different PCBA types on the same Acrab Automatic DIP Soldering Machine by changing fixtures only. The complete DIP production line — insertion, loader, PCB Wave Soldering Machine, unloader, and inspection — works smoothly. The customer recorded a video showing full satisfaction with equipment performance and our rapid on-site service.
| Expert Services and Training
I.C.T delivers complete one-stop service for every DIP production line: planning, equipment supply, installation, training, process optimization, spare parts, and lifetime technical support. Twenty engineers stationed worldwide provide 24-hour response. Customers reach 99.5 % first-pass yield quickly and keep it for years with our continued help.
| Customer Testimonials
Customers worldwide express strong satisfaction with I.C.T one-stop service. They value our complete DIP line solutions, fast global technical support, reliable equipment performance, professional training, and long-term partnership. Many factories report higher yield, lower cost, and zero worries after choosing our auto dip soldering machine and full THT assembly line support.
| Quality Certifications
Every I.C.T Automatic DIP Soldering Machine carries CE, RoHS, ISO9001:2015 certification and multiple invention patents. Each unit completes 72-hour full-load testing and strict quality inspection in our Dongguan factory before shipment to any DIP production line.
| About I.C.T Company and Factory
Established in 2012 in Dongguan, China, I.C.T has grown into a leading full SMT & DIP factory solution partner. Nearly 90 employees and 20 engineers work in a 12,000 m² modern facility. We design and produce core equipment in-house, serve over 1,600 customers across 72 countries, and maintain eight overseas service centers. From THT insertion lines to complete DIP production lines, we help factories build, upgrade, and optimize with zero-risk partnership.
