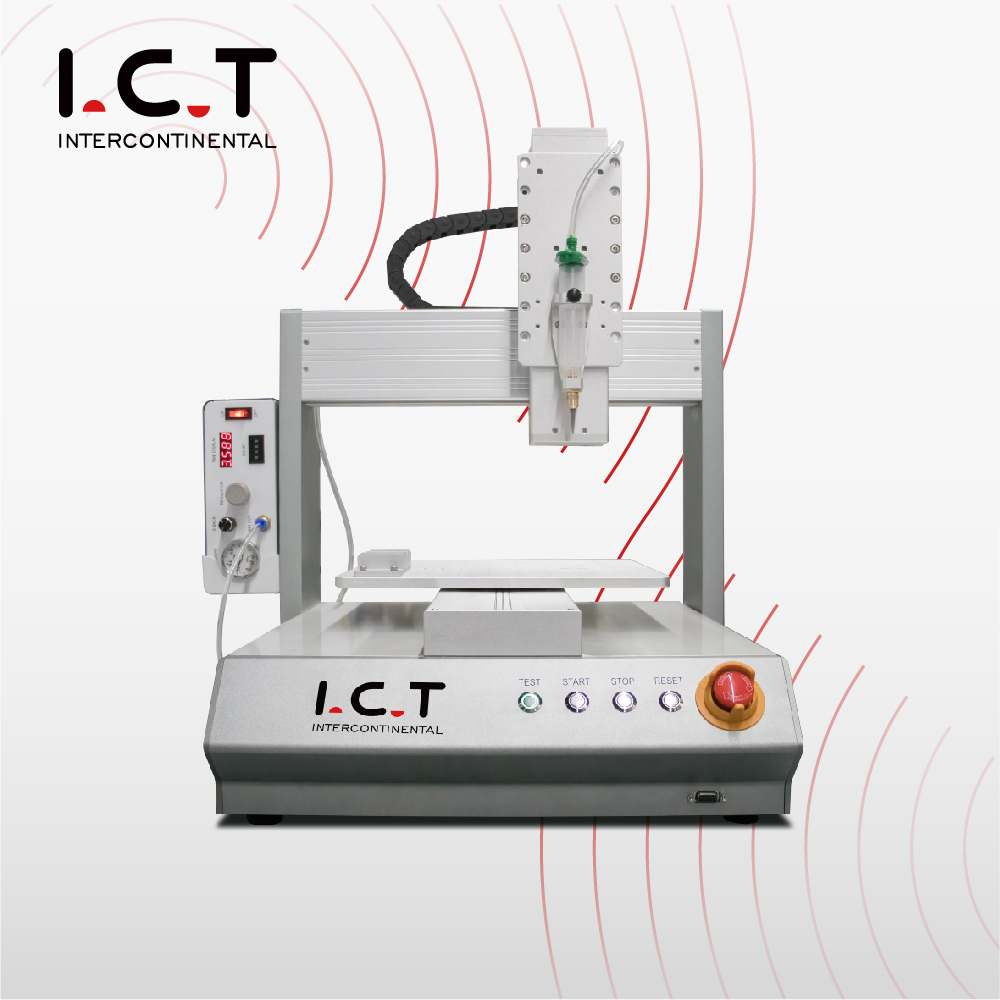

The I.C.T solder paste dispensing robot is a compact desktop system built for controlled fluid dispensing in electronics manufacturing. It can handle solder paste, UV glue, epoxy, red glue, silver glue, silicone, thermal paste, and other process materials. With a handheld LCD controller, operators can quickly program dispensing paths and adjust key parameters such as speed, dispensing time, stop time, and material thickness. The machine is suitable for PCB electronic parts fixation, semiconductor packaging, LED dispensing, optical lens bonding, chip bonding, and small parts coating. Its small footprint makes it useful for R&D, sample production, repair work, and flexible production cells.
This solder paste dispensing robot uses a handheld LCD programming device, so operators do not need complex computer skills to start basic production. The interface is direct and easy to learn, which is helpful for factories with frequent product changeovers or small-batch orders. Operators can create dispensing programs, adjust motion paths, set dispensing time, and fine-tune output parameters from the controller. For process engineers, this makes daily testing and production adjustment faster. For new operators, it reduces the learning curve and helps keep dispensing work more consistent from shift to shift.
The machine supports point, line, surface, arc, circle, irregular curve, and non-flat 3D trajectory dispensing. This gives engineers more freedom when working with different PCB shapes, bonding areas, or component layouts. It can also support array functions, graphical browsing, 3D ellipse paths, common graphics insertion, and group editing. For products that need controlled material around special positions, the machine can follow the actual process path instead of only simple straight lines. This is especially useful for LED modules, PCB assemblies, optical parts, small electronic parts, and other products that require stable dispensing accuracy.
A dedicated dispensing controller helps keep material output stable during production. This is important when working with solder paste, epoxy, UV glue, red glue, or other materials that require controlled volume. The machine is designed for clean cutoff, stable glue breaking, and reduced leakage, helping operators avoid common problems such as tailing, overflow, or uneven material dots. It also includes an automatic anti-curing function, which helps prevent needle blockage during use. For factories running repeated dispensing tasks, this can reduce downtime and make the process easier to manage.
This automatic precision solder paste dispensing robot can work with Logoshop software and import common file formats such as NC, AI, DXF, JPG, BMP, and scanned files. For engineering teams, this is useful because existing design files can be converted into dispensing paths more easily. Instead of building every path manually, operators can prepare programs from CAD or graphic data, then adjust them according to the real product. This saves time during product introduction and helps reduce programming mistakes. It is a practical function for companies handling many product models or custom dispensing jobs.
The system uses an imported photoelectric sensor for automatic XYZ coordinate teaching. This helps the machine find reference points accurately when changing needles or switching product types. The drive system uses a stepping motor, belt, and precise linear guide rail, with XYZ repeatability up to ±0.03mm. For PCB fixation, chip bonding, LED dispensing, and small-area material control, stable positioning is not optional; it directly affects process quality. This feature also makes the machine more reliable for repeated production, where each board or part needs the same dispensing result.
The I.C.T solder paste dispensing robot is available in different work areas, including 300×300mm, 400×400mm, and 500×500mm platforms. This gives customers more flexibility when choosing a model for different product sizes. Its desktop structure is easy to place in an engineering room, repair station, laboratory, or production area without taking too much floor space. For factories that do not need a full inline dispensing system, this type of desktop machine is often a practical starting point. It offers controlled dispensing without making the production layout too heavy or complicated.
| Solder Paste Dispensing Robot Specifications:
| Item | I.C.T-S300 | I.C.T-S300L | I.C.T-S500 |
|---|---|---|---|
| Work Area | 300(X) × 300(Y) × 95(Z) mm | 400(X) × 400(Y) × 95(Z) mm | 500(X) × 500(Y) × 95(Z) mm |
| Machine Size | 490(L) × 528(W) × 679(H) mm | 590(L) × 628(W) × 679(H) mm | 690(L) × 728(W) × 679(H) mm |
| Travel Speed | 400 mm/sec(XY), 200 mm/sec(Z) | 400 mm/sec(XY), 200 mm/sec(Z) | 400 mm/sec(XY), 200 mm/sec(Z) |
| Maximum Load | 8 kg | 8 kg | 8 kg |
| Drive Mode | Stepping motor + belt + precise linear guide rail | Stepping motor + belt + precise linear guide rail | Stepping motor + belt + precise linear guide rail |
| XYZ Repeatability | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Operating System | LCD panel / handheld programming device | LCD panel / handheld programming device | LCD panel / handheld programming device |
| Program Capacity | 999 parameter files, 65,535 points per file | 999 parameter files, 65,535 points per file | 999 parameter files, 65,535 points per file |
| Movement Pattern | 3-axis point-to-point, continuous line, arc | 3-axis point-to-point, continuous line, arc | 3-axis point-to-point, continuous line, arc |
| Power Supply | AC220V, 50/60Hz, 0.5kW | AC220V, 50/60Hz, 0.5kW | AC220V, 50/60Hz, 0.5kW |
| Weight | About 35 kg | About 45 kg | About 55 kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| PCBA Coating Line Equipment List
For this page, the related products can follow the third set: coating and dispensing production line. This line may include conformal coating machines, dispensing machines, curing ovens, PCB conveyors, AOI inspection systems, and PCBA depaneling machines. A dispensing machine can handle solder paste, adhesive, red glue, silicone, or thermal paste, while a coating machine protects PCB surfaces from moisture, dust, and contamination. A curing oven helps complete UV or thermal curing after coating or dispensing. AOI and depaneling machines support later inspection and board separation. Together, these products help customers build a more complete and stable coating and dispensing process.
| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
