I.C.T-SR300
I.C.T
| Quantity: | |
|---|---|
| Automatic Soldering Robot Overview
The Automatic Soldering Robot from I.C.T is engineered for precise, repeatable soldering of PCBs and electronic modules. Available in single head single platform or 5-axis configurations, it combines automated wire feeding, multi-axis motion, and rapid heating for uniform solder joints. Operators can program paths, adjust feed rates, and monitor quality with an optional camera system. Suitable for desktop setups or full SMT line integration, it improves production efficiency, reduces labor, and ensures consistent high-quality output.
| Feature of Automatic Soldering Robot
Easy Programming
Users can program up to 200 solder points per PCB in under 5 minutes. Paths, dwell times, and feed rates are adjustable, and up to 10 programs can be stored for rapid changeover between different PCB types.

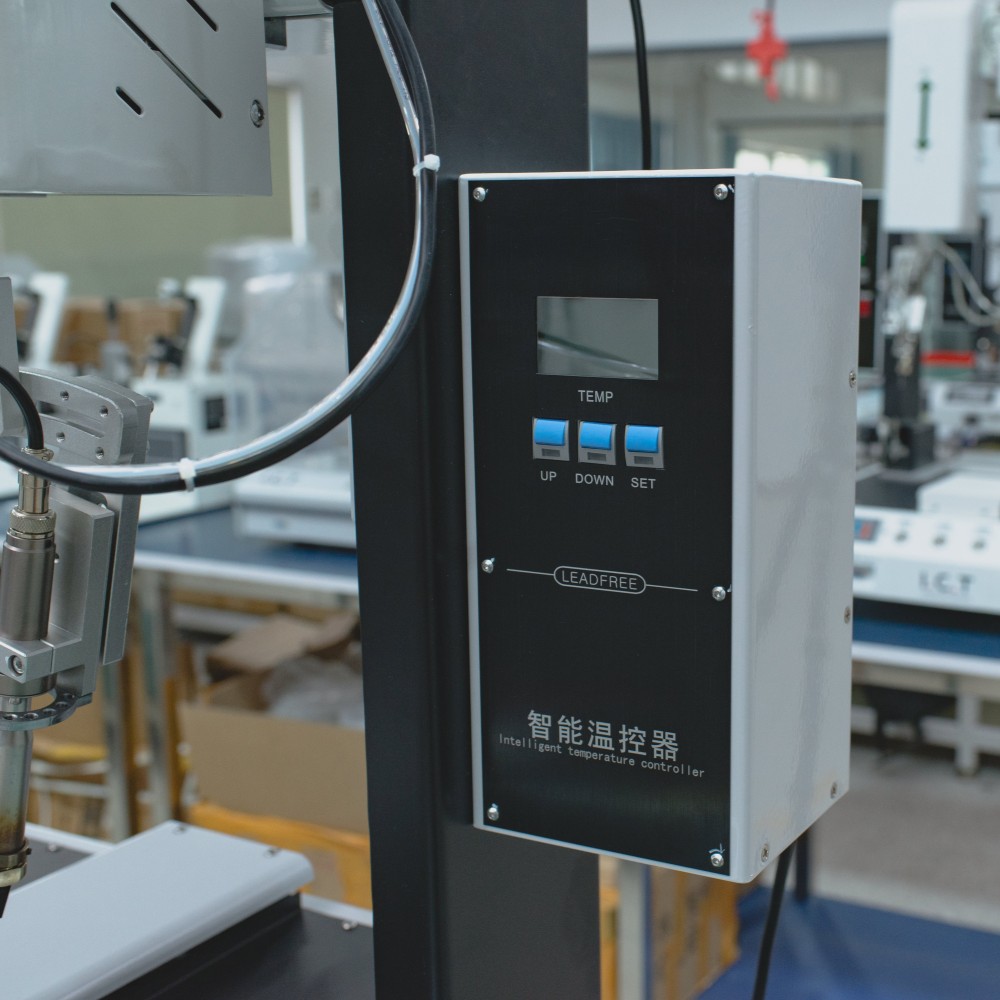

Stable Heat Reliable Soldering
High-frequency induction heating reaches operating temperature quickly and maintains ±1°C. Each cycle can solder 100+ points reliably, ensuring uniformity across dense PCB assemblies.
From Manual to Standardized
Manual soldering is converted into repeatable automated sequences. Digital coordinates with ±0.1mm accuracy reduce human error by over 90%, ensuring batch-to-batch consistency.

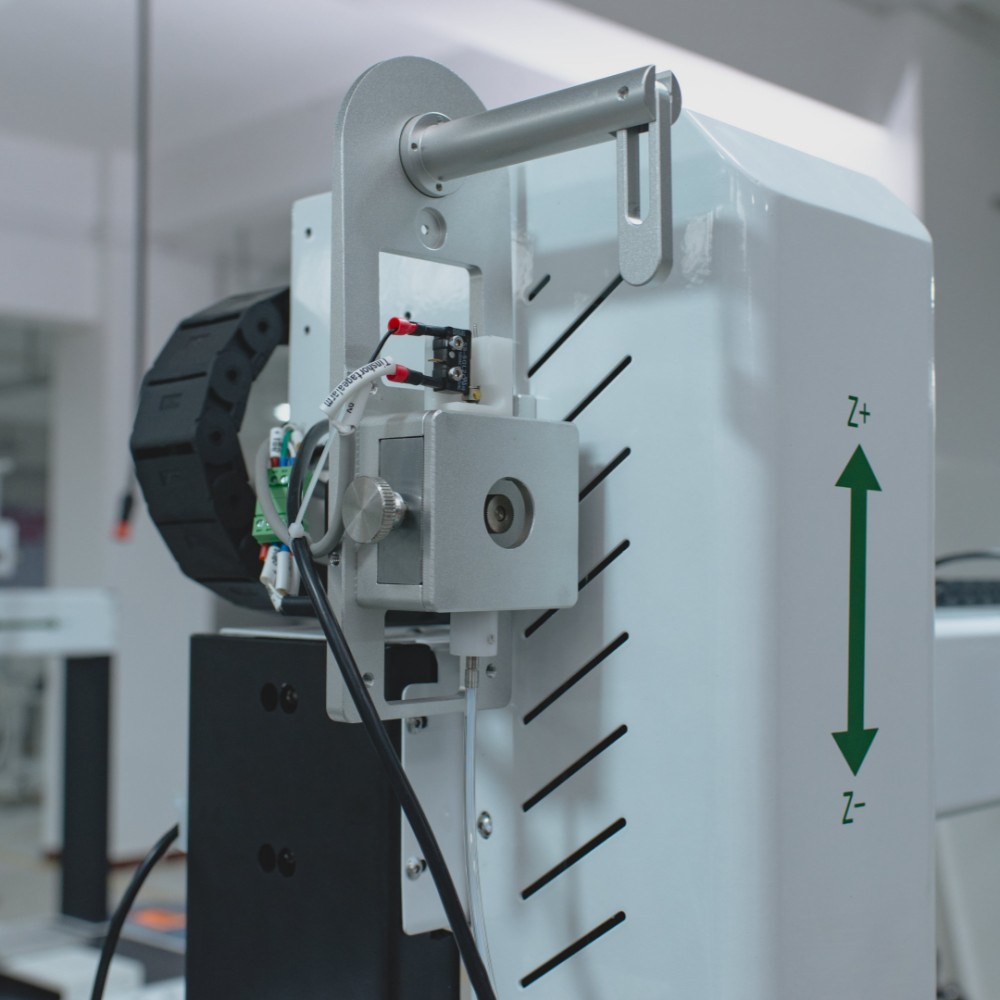

Precise Solder Feed Perfect Joints
Wire (0.6–1.2mm) feeds at 1–50mm/s with ±0.02mm accuracy. Flux residue and solder overflow are minimized. Each joint passes inspection, ensuring high yield for both desktop and SMT line PCBs.
Clean Tip Consistent Quality
Tips are cleaned automatically every 5 minutes or after 50 joints. Air and steel wire remove oxidation and residue, extending tip life by 50% and maintaining consistent soldering quality for high-volume production.
| Automatic Soldering Robot Specification
| Specification | I.C.T-SR300 | I.C.T-SR530 | I.C.T-SR250D | I.C.T-SR250DD |
|---|---|---|---|---|
| Platform Number | 1 | 1 | 2 | 2 |
| Head Number | 1 | 2 | 1 | 2 |
| Heating Power | 150w | 300w | 150w | 300w |
| Max. PCB Size | 300×300mm | 500×300mm | 250×250mm for each Platform | 250×250mm for each Platform |
| Max Move Speed | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s |
| Soldering Tip Clean | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) |
| Solder Wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire |
| Solder Feeding Speed | 1~50mm/s | 1~50mm/s | 1~50mm/s | 1~50mm/s |
| Repeated Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Temperature Range | Room temperature–500°C | Room temperature–500°C | Room temperature–500°C | Room temperature–500°C |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Driving Mode | Step Motor | Step Motor | Step Motor | Step Motor |
| Control Mode | Teach Pendant | Teach Pendant | Teach Pendant | Teach Pendant |
| Air Pressure | 4.5~6Kg/cm² | 4.5~6Kg/cm² | 4.5~6Kg/cm² | 4.5~6Kg/cm² |
| Power Supply | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ |
| Dimension | 750×650×880mm | 780×660×770mm | 930×650×880mm | 1280×750×950mm |
| Weight | Approx 60kg | Approx 70kg | Approx 80kg | Approx 85kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| Complete SMT Production Line Machine List
The SMT production line includes PCB loaders and unloaders, printing machines, pick-and-place systems, SPI, AOI, reflow ovens, conveyors, and depaneling equipment. All machines operate in coordination to ensure smooth workflow, consistent quality, and high efficiency. I.C.T engineers manage installation, calibration, and integration, making the line a cohesive, high-performance solution capable of handling PCB assemblies, electronic modules, and desktop applications.
| Customer Success Video
In April 2026, I.C.T engineers installed and trained operators on a full SMT line in Portugal for automotive electronics, including car lighting and control modules. Customers praised the smooth setup, efficient workflow, and clear guidance. The Automatic Soldering Robot integrated into the line delivered precise solder joints for both PCBs and wire connections. Feedback highlighted equipment reliability and expert support, enabling Customers to achieve high-quality production efficiently.
| Professional Training & Support
I.C.T provides comprehensive support for full SMT production lines. Engineers supervise installation, program calibration, and process alignment. Customers receive hands-on training covering programming, maintenance, and troubleshooting. Remote and rapid-response support ensures operational issues are resolved promptly, enabling Customers to operate the line independently while maintaining continuous high-quality soldering.
| Customer Praise
Customers consistently highlight the integrated SMT line for reliability and efficiency. Engineers provide clear guidance during installation and training. Secure packaging ensures safe delivery. Rapid technical support resolves issues promptly. The full line, including Automatic Soldering Robot systems, maintains smooth workflow and consistent output, earning trust and satisfaction from Customers worldwide.
| Our Certification
All I.C.T SMT line equipment, including Automatic Soldering Robots, holds CE, RoHS, and ISO9001 certifications. Patents cover innovations across the line. Certifications guarantee Customers receive safe, reliable, and compliant solutions for PCB production, ensuring consistent high-quality output across all integrated processes.
| About Us and Factory
I.C.T is a global electronics manufacturing solution provider with over 25 years of experience. Serving 1,600+ Customers in 72 countries, the company delivers complete SMT, DIP, coating, robotics, assembly, and PCBA solutions. Our 20 engineers provide installation, training, process optimization, and full lifecycle support. With multiple factories and branches worldwide, strict quality control, and certified equipment across all SMT lines, I.C.T ensures reliable, efficient, and consistent production solutions for PCBs, electronic modules, and desktop assemblies.
