I.C.T-910
I.C.T
IC Programming for PCB Assembly
| Quantity: | |
|---|---|
The exercise system provides a practical training environment for engineers and operators before entering mass production. It allows users to become familiar with programming procedures, parameter settings, and operation methods through simulation and testing. This helps reduce mistakes during production setup and shortens employee training time. For manufacturers handling different IC models and product changes, the exercise function provides a safer way to prepare production processes and improve programming reliability.
The feeder system manages IC input through an organized and stable material supply process. It helps maintain accurate positioning and smooth transfer of semiconductor components during programming operations. By reducing manual handling requirements, the system improves production consistency and minimizes interruptions caused by material preparation. The flexible feeding structure supports different IC package requirements and allows manufacturers to maintain stable operation during continuous production cycles.
The packaging system organizes programmed IC components after processing and ensures safe transfer for the next production stage. Automated handling reduces unnecessary human contact and lowers the risk of component damage. The system supports different packaging requirements and improves material organization, allowing factories to maintain better inventory control. This function helps manufacturers create a smoother connection between IC programming and PCB assembly processes.

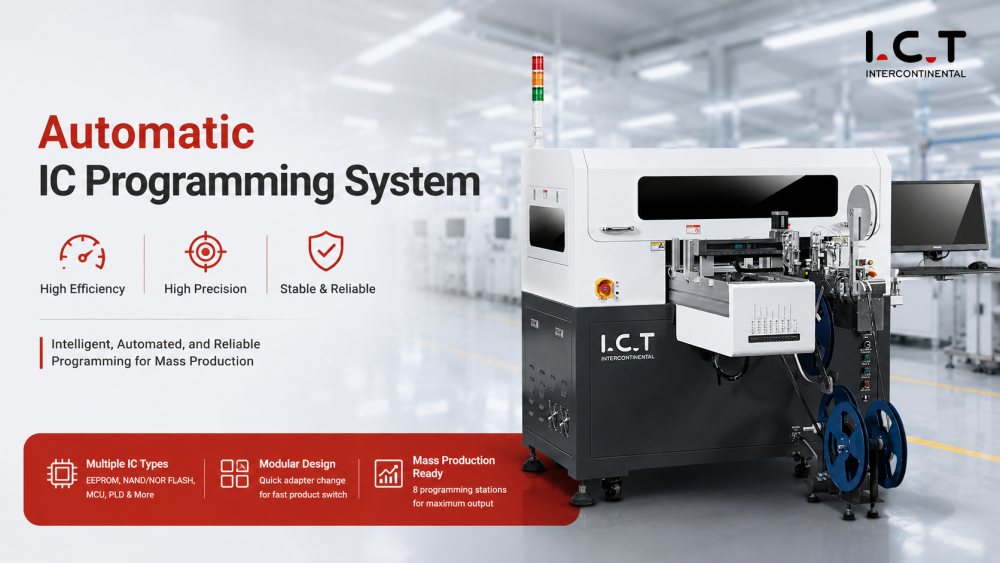

The IC Programming System provides automated programming, verification, and process management for semiconductor components. With intelligent software control and monitoring functions, it helps ensure accurate programming results and stable production performance. The system supports different IC devices and programming requirements while reducing operator dependency. By improving programming consistency and traceability, it helps electronics manufacturers achieve reliable production quality for high-volume PCB assembly applications.
| Item | Model | I.C.T-910 |
| Transmission system | Efficiency of the machine | Standard machine: Equipped with universal burner of Puro and other brands: 8 sets of 32-64sit burners: UPH 2000-3000PCS/H; Equipped with 204AP brand universal burner: 3 sets of 12sit burners: UPH1600-2200PCS/H |
| A small number of diverse modes: equipped with 3 sets of 204A burners, UPH 1600-1800PCS/H. | ||
| Packaging conversion mode: pallet to tape production capacity of 4000PCS/H (12mm tape products as an example) | ||
| Control precision | Precision servo screw drive, accuracy: X-axis ±0.015mm; Y-axis ±0.015mm; Z-axis ±0.03mm; P-axis ±0.03mm; U(θ)-axis ±0.15° | |
| Suitable package form | PLCC, JLCC , SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, BGA, CSP, SCSP, and so on. (Open Top adapters, some ICs need to be customized with special adapter consumables). | |
| Includes precision upper and bottom CCD positioning system. | ||
| Feeding and unloading device | Tray IN/ OUT | Supports automatic Tray feeding, can send 10 trays of JEDEC Tray products at the same time, and supports marking tray components after programming |
| Tube IN/ OUT | Support 4-tube IC electromagnetic vibration feeding | |
| Tape IN/ OUT | Electric feeder, supports 8-24mm self adhesive film or hot press packaging. | |
| Conversion of packaging methods | Different packages are converted to each other, Tray packed to Tape packed, Tape packed to Tray packed. | |
| Other | Nozzle | 4pcs |
| Camera | 2pcs (Component camera + Marking camera) | |
| Feeder station | 2pcs (8-24mm) | |
| Ion fan | 2pcs | |
| Power | Operating voltage: 190~240V/50Hz, 2.0KW | |
| Dimension | L1450*W860*H1450mm | |
| Weight | 700kg | |
* I.C.T keeps working on quality and performance,specifications and appearance may be updated without particular notice.
