I.C.T-910
I.C.T

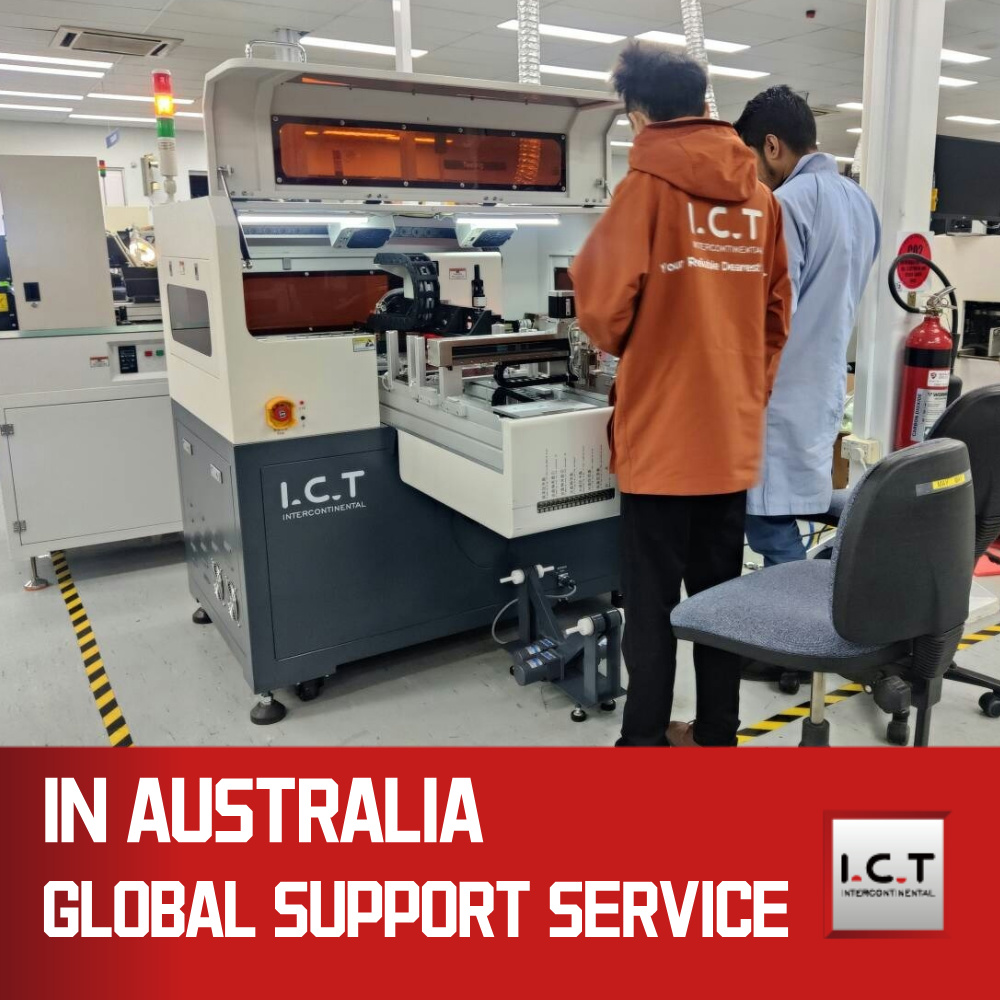

IC Autoamted Programming Machine
| Quantity: | |
|---|---|
The exercise system provides a dedicated environment for operator training, programming simulation, and process verification before production begins. Engineers can test different programming parameters and operation procedures without affecting actual manufacturing materials. This function helps shorten employee learning time, reduce setup errors, and improve production preparation efficiency. For semiconductor manufacturers handling multiple IC models, the exercise system provides a safer and more efficient way to establish stable programming procedures.
The feeder system automatically manages IC loading and transportation with accurate positioning control. It ensures a continuous supply of semiconductor components during programming operations while reducing manual handling requirements. The optimized feeding mechanism supports different IC package formats and improves production stability. By maintaining smooth material flow, the system helps manufacturers reduce interruptions, improve operating efficiency, and achieve consistent performance during long-duration automated programming processes.
The packaging system manages programmed IC components after completion of the programming process. Through automated transfer and organized packaging, it reduces unnecessary manual contact and protects components from handling damage. The flexible configuration supports different packaging requirements and production workflows. This allows semiconductor manufacturers to maintain better material organization, improve production efficiency, and ensure programmed components are ready for the next assembly stage.
The core programming system provides automated IC programming with intelligent software control and verification functions. It supports different semiconductor devices while maintaining stable communication and accurate programming results. Real-time monitoring allows operators to quickly identify abnormal conditions and adjust processes when needed. The Automated IC Programming Machine helps manufacturers improve programming reliability, reduce production errors, and maintain consistent quality during high-volume semiconductor processing.
| Item | Model | I.C.T-910 |
| Transmission system | Efficiency of the machine | Standard machine: Equipped with universal burner of Puro and other brands: 8 sets of 32-64sit burners: UPH 2000-3000PCS/H; Equipped with 204AP brand universal burner: 3 sets of 12sit burners: UPH1600-2200PCS/H |
| A small number of diverse modes: equipped with 3 sets of 204A burners, UPH 1600-1800PCS/H. | ||
| Packaging conversion mode: pallet to tape production capacity of 4000PCS/H (12mm tape products as an example) | ||
| Control precision | Precision servo screw drive, accuracy: X-axis ±0.015mm; Y-axis ±0.015mm; Z-axis ±0.03mm; P-axis ±0.03mm; U(θ)-axis ±0.15° | |
| Suitable package form | PLCC, JLCC , SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, BGA, CSP, SCSP, and so on. (Open Top adapters, some ICs need to be customized with special adapter consumables). | |
| Includes precision upper and bottom CCD positioning system. | ||
| Feeding and unloading device | Tray IN/ OUT | Supports automatic Tray feeding, can send 10 trays of JEDEC Tray products at the same time, and supports marking tray components after programming |
| Tube IN/ OUT | Support 4-tube IC electromagnetic vibration feeding | |
| Tape IN/ OUT | Electric feeder, supports 8-24mm self adhesive film or hot press packaging. | |
| Conversion of packaging methods | Different packages are converted to each other, Tray packed to Tape packed, Tape packed to Tray packed. | |
| Other | Nozzle | 4pcs |
| Camera | 2pcs (Component camera + Marking camera) | |
| Feeder station | 2pcs (8-24mm) | |
| Ion fan | 2pcs | |
| Power | Operating voltage: 190~240V/50Hz, 2.0KW | |
| Dimension | L1450*W860*H1450mm | |
| Weight | 700kg | |
* I.C.T keeps working on quality and performance,specifications and appearance may be updated without particular notice.
