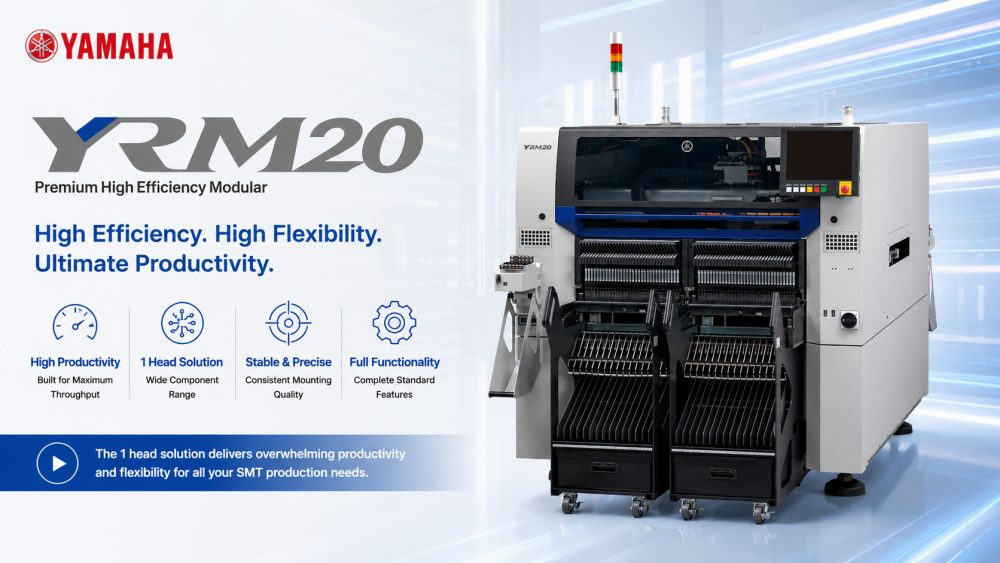

| Advanced High-Speed SMT Pick & Place
The Yamaha YRM20 is a full-automatic SMT pick and place machine built for modern electronics production. With dual-lane operation, flexible head options, and high-speed capabilities, it can handle a wide range of SMD components from 0201 chips up to larger connectors. Its modular design and integrated smart sensors enable high-precision mounting while maintaining exceptional production efficiency. YRM20 is ideal for manufacturers seeking a reliable, fast, and versatile solution for compact or large-scale PCB assembly lines.
| Product Features
High-Speed Dual-Lane Operation
YRM20 operates with dual-lane options, enabling simultaneous component placement on two boards for optimized productivity. High-speed multi-head configurations allow 200,000 CPH throughput, ensuring rapid completion even for complex boards while maintaining precise placement accuracy.
Versatile Component Handling
Equipped with flexible multi-head technology and advanced pickup systems, the machine accommodates components from 0201 to larger connectors. Integrated smart cameras and side-view vision verify placement in real-time, reducing errors and ensuring quality assembly.
Enhanced Productivity Tools
Super loading feeders minimize downtime during component replenishment. Adjustable lane widths and modular architecture provide adaptability to various PCB sizes and production formats, supporting continuous operation and rapid changeovers.
| Specification
| Model | YRM20 Pick and Place Machine | |
| High-speed general-purpose rotary RM head | IN-LINE HM head | |
| Nozzles (per 1 head unit) | 18 | 10 |
| Applicable components | 0201 to W12 x L12mm, Height 6.5mm or less | 0201 to W55 x L100mm, Height 15mm or less |
| Mounting capability (during high-production mode) | 115,000CPH | 98,000CPH |
| Mounting accuracy (during high-precision mode) | During use under in-house optimal conditions : ±0.025mm Cpk≧1.0 | |
| Number of component Types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) | |
| PCB dimensions | Dual-stage specifications 1PCB conveyance : L810 x W510mm to L50 x W50mm 2PCB conveyance : L380 x W510mm to L50 x W50mm | |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
| xternal dimension (excluding projections) | L1374 x W1948 x H1445mm | |
| Weight | Approx. 2,250kg (Main unit only) | |
* Specifications and appearance are subject to change without prior notice.
* Contact I.C.T for more details.
