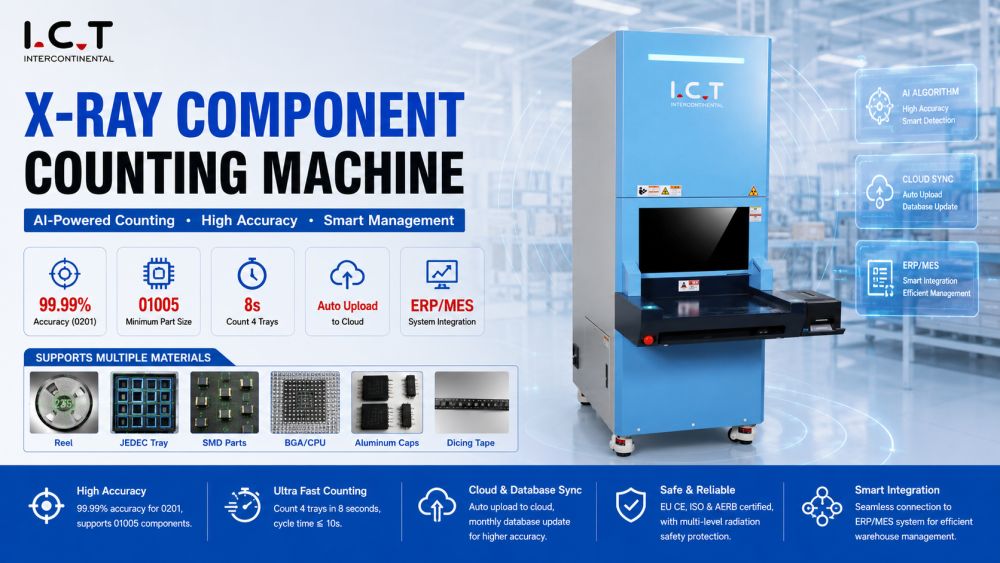

The device uses X-ray imaging combined with AI algorithms to detect each component accurately, including 0201 and 01005 parts. Real-time analysis prevents miscounts and ensures reliable feeding to pick and place machines, maintaining consistent production yield and material accuracy.
Equipped with four trays, the machine counts several reels at the same time, improving throughput and reducing operator intervention. Tray configuration is adjustable to accommodate various reel sizes and production line requirements, optimizing workflow efficiency.
The system supports both counting directions, allowing flexibility when reels are reloaded or repositioned. This maintains accurate inventory, prevents misplacement, and supports smooth SMT line operations, ensuring production continuity and minimal errors.
Counting speed and batch settings can be configured according to production requirements. Optional barcode and printer integration allows seamless connection to MES/ERP systems, providing traceable inventory and improving production planning for high-volume electronics assembly.
Component Counting System
Apply the AI-optimized counting algorithm to realize spot inspection of various materials: standard SMD, dicing tape, JEDEC/Matrix tray, MELF, Aluminum Caps, Soic, To, BGA/CPU, Tantal, filter and other parts. Four material pallets can be counted at the same time, and it only takes 8 seconds to complete, which shortens the counting time of parts pallets, automatically uploads data to the cloud, regularly updates the database, and links with the factory ERP/MES system, greatly saving time and cost. Easy to manage.
| Specifications
| Model | XC-3100 |
| Tube Type | Closed Tube |
| Spatial Resolution | 30μm |
| Tube Voltage | 50kv |
| Tube Current | 1000μA |
| Image Capture Method | Flat panel digital imaging |
| Imaging Accuracy | 139μm |
| Image Size | 430*430mm |
| Resolution | 3072*3072px |
| Pixel Accuracy | ≤2μm |
| Imaging Speed | 5 EDS/s |
| Reading Pixels | 20 million/inch |
| False Positive Rate (0201) | ≤0.01% |
| Accuracy | 99.99% (0201) |
| Power | AC110-220V, 50-60HZ, 1200W |
| Dimension (with printer) | 950*1460*1960mm |
| Weight | 450kg |
