| DIP Wave Soldering Machine
The I.C.T W-series DIP Wave Soldering Machine is a mature and widely trusted PCB Wave Solder System for DIP production lines and THT assembly lines. This SMT DIP Wave Soldering Machine combines Japanese Kuroda spray technology, horizontal independent heating and smart energy-saving design to deliver perfect wetting on through-hole components with minimum oxidation. Running power stays at just 7kW while optional nitrogen protection meets the highest quality requirements. After years of successful operation in thousands of factories worldwide, it has become the first choice for customers building efficient and reliable DIP lines.
| Feature
Japanese Kuroda nozzle with adjustable atomizing area and pyramid filter create uniform and economical flux coating every cycle. Digital flow meter and stable pressure valve reduce waste and keep the furnace clean – a key advantage for SMT DIP Wave Soldering Machine in high-volume DIP production lines.
Third-party independent over-temperature protection plus PLC+PID closed-loop control offer multiple safety barriers. Real-time monitoring and instant emergency stop safeguard operators and the entire PCB Wave Solder System during 24-hour operation.
Horizontal independent heating zones with closed hot-air path and rectifier plates ensure perfectly even temperature across the whole board. Warm-up time is only around 15 minutes and normal power consumption remains at 7kW – the most efficient heating among similar DIP Wave Soldering Machine.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List

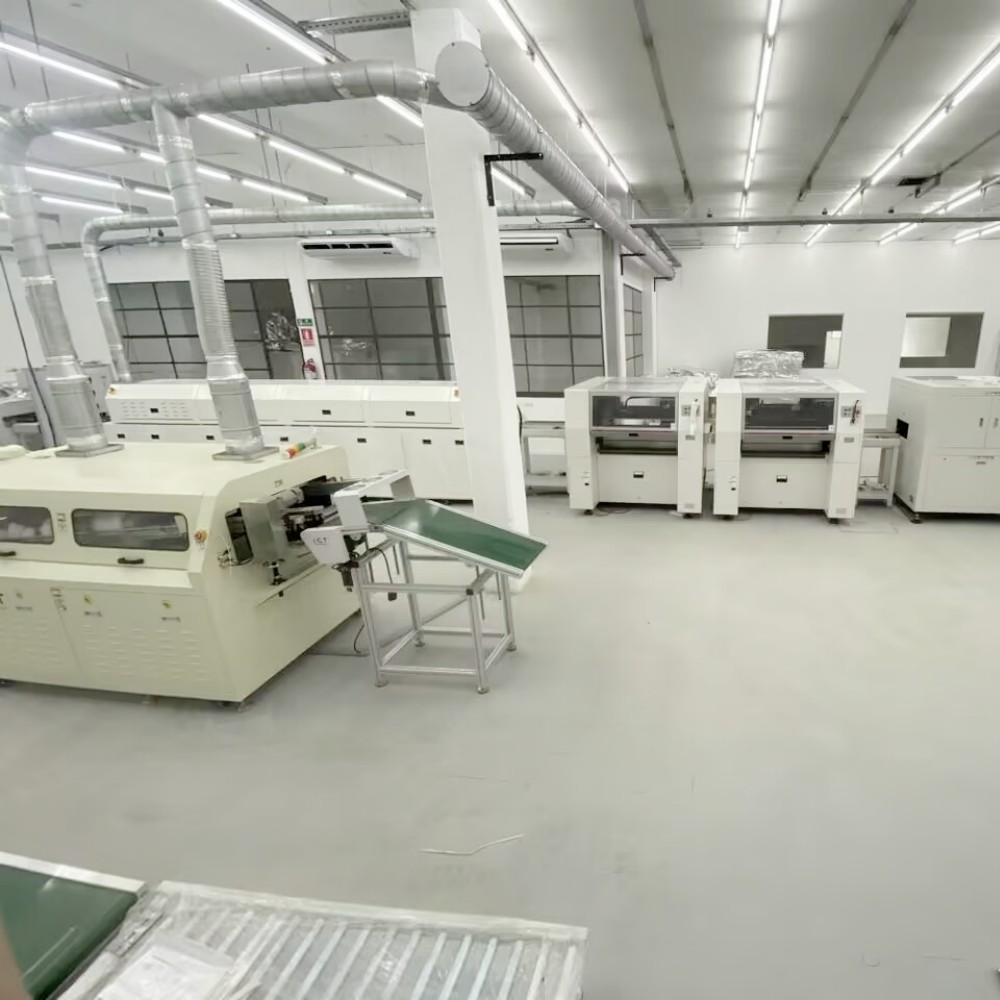

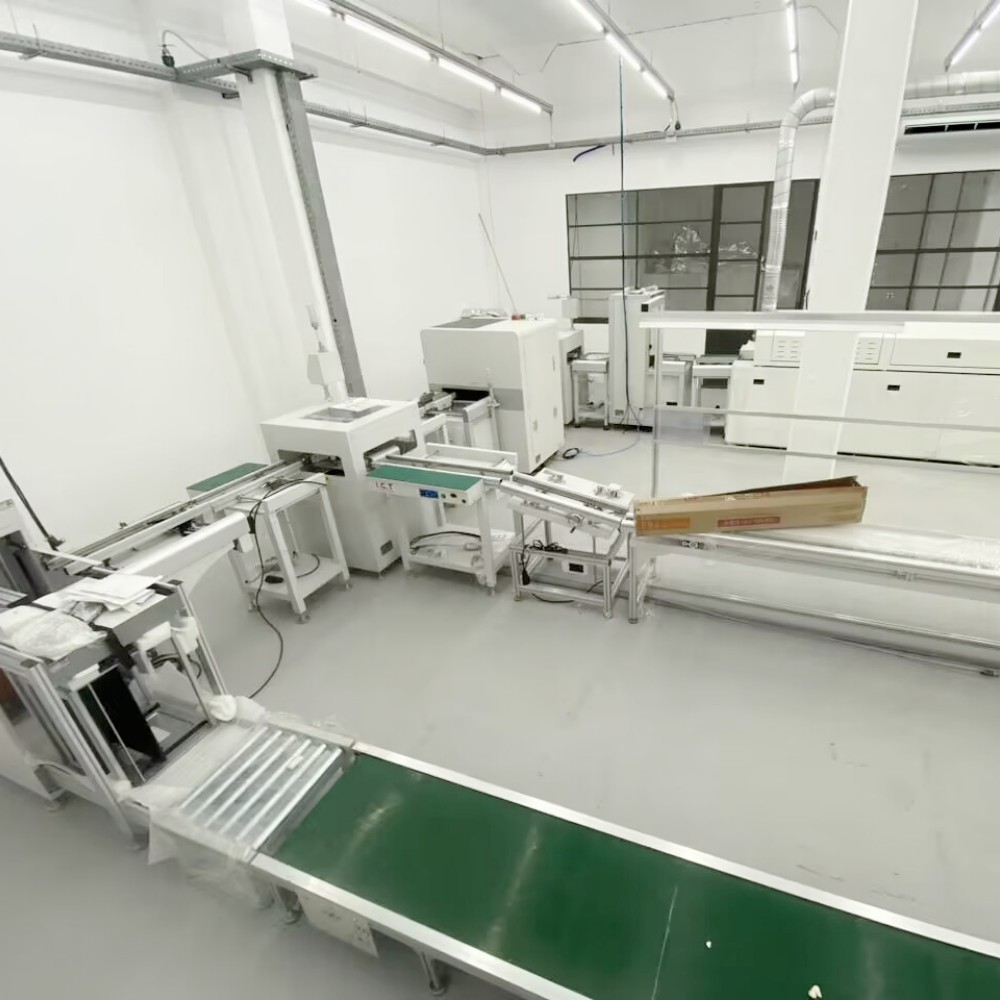

Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video

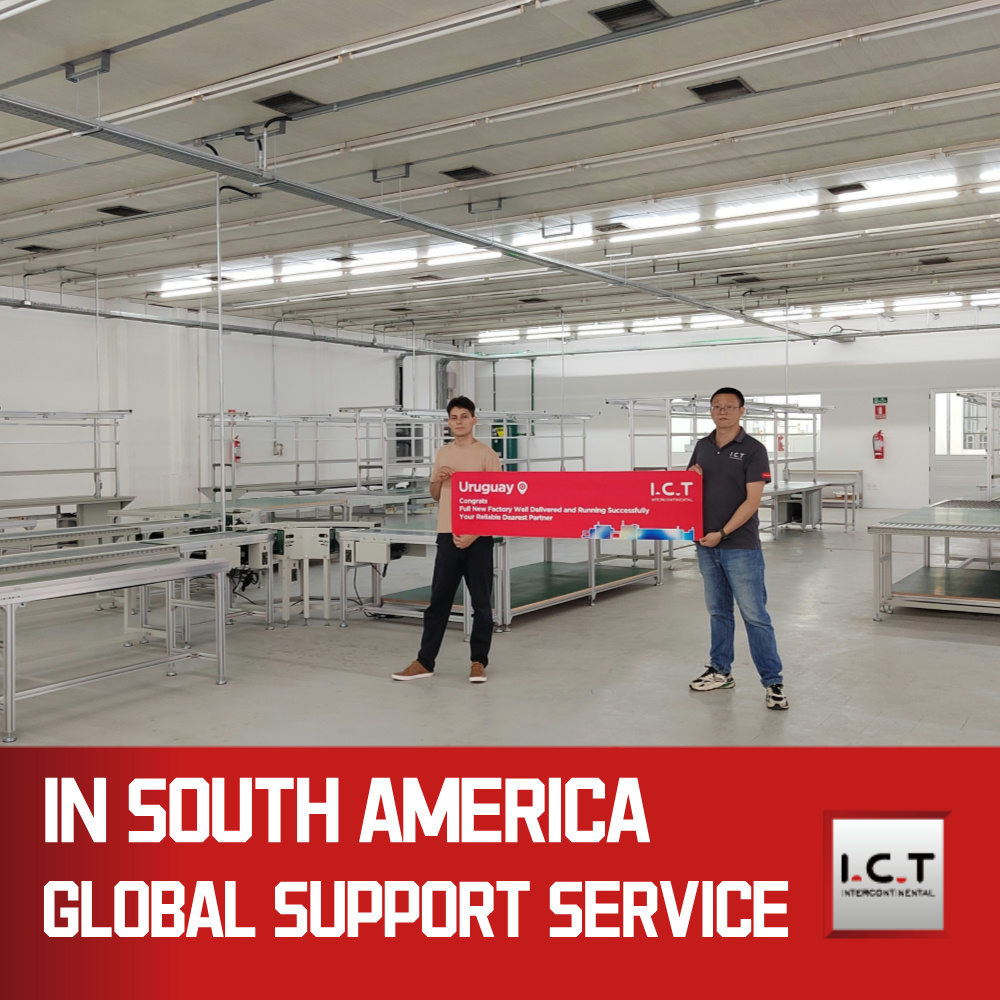

I.C.T engineers went to Uruguay to install and commission the W-series DIP Wave Soldering Machine for a smart meter manufacturer. The customer runs a high-volume DIP production line and needed stable lead-free soldering for complex PCBs with large parts. After our team completed the setup and operator training, the machine reached full speed with only 7kW running power and perfect joint quality. The customer shared a video showing the DIP Wave Soldering Machine running smoothly in their THT assembly line, praising the low energy cost, easy maintenance and excellent after-sales support. This Uruguay smart meter project has become a successful reference for many Latin American DIP lines.
| Expert Services and Training
I.C.T delivers complete support for every DIP Wave Soldering Machine – from line layout design and professional installation to detailed operator training and 7×24 global technical service. Our experienced engineers ensure your PCB Wave Solder System and whole THT line achieve maximum uptime and performance.
| Customer Praise

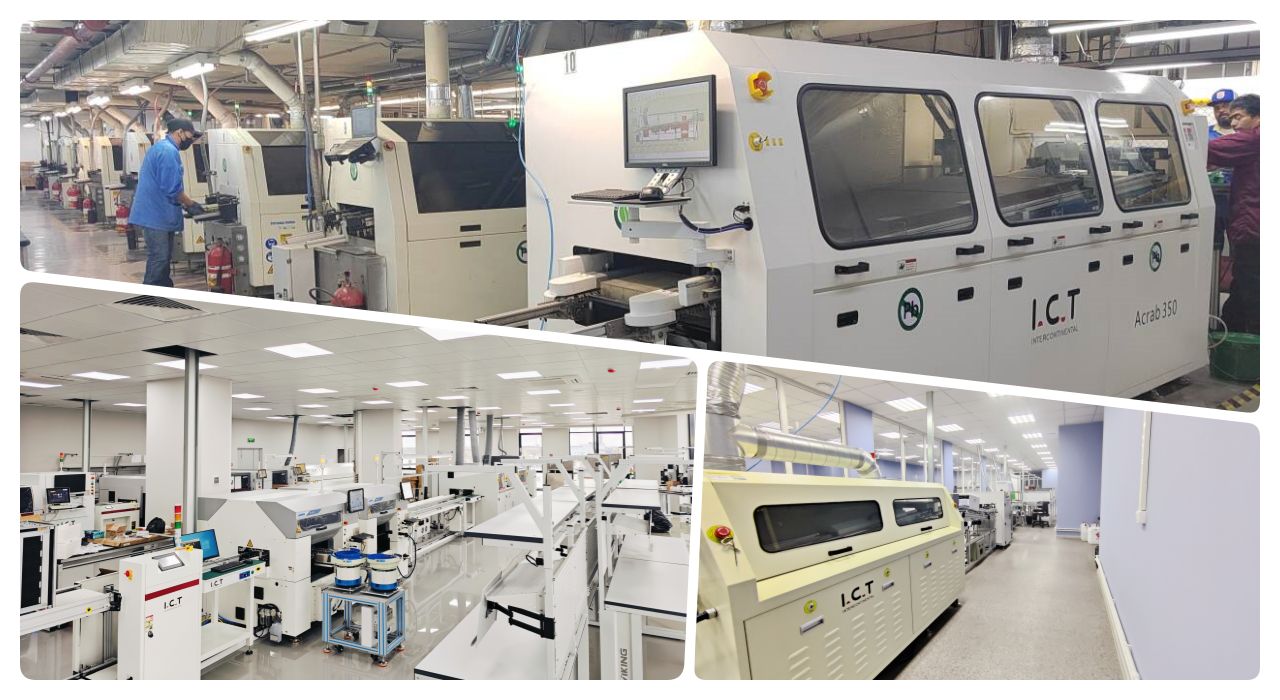

Customers worldwide praise our DIP Wave Soldering Machine for its excellent stability, extremely low running cost and clean soldering results on complex boards. They especially appreciate the rapid global response, robust export packaging and outstanding value among similar SMT DIP Wave Soldering Machine.
| Quality Certifications
Every I.C.T DIP Wave Soldering Machine holds CE, CCC, UL, RoHS and ISO9001 certifications plus several invention patents, fully satisfying the strictest international safety and environmental standards for modern DIP production lines.
| About I.C.T Company and Factory
I.C.T is a professional one-stop solution provider for SMT and DIP production lines with more than 25 years of experience. Our 12,000㎡ factory in Dongguan employs 89 staff including 20 engineers. We design and manufacture all core equipment in-house and serve over 1600 customers across 72 countries. Strict quality management and continuous innovation make us the most reliable partner for high-performance PCB Wave Solder System worldwide.
