| PCBA Assembly Line

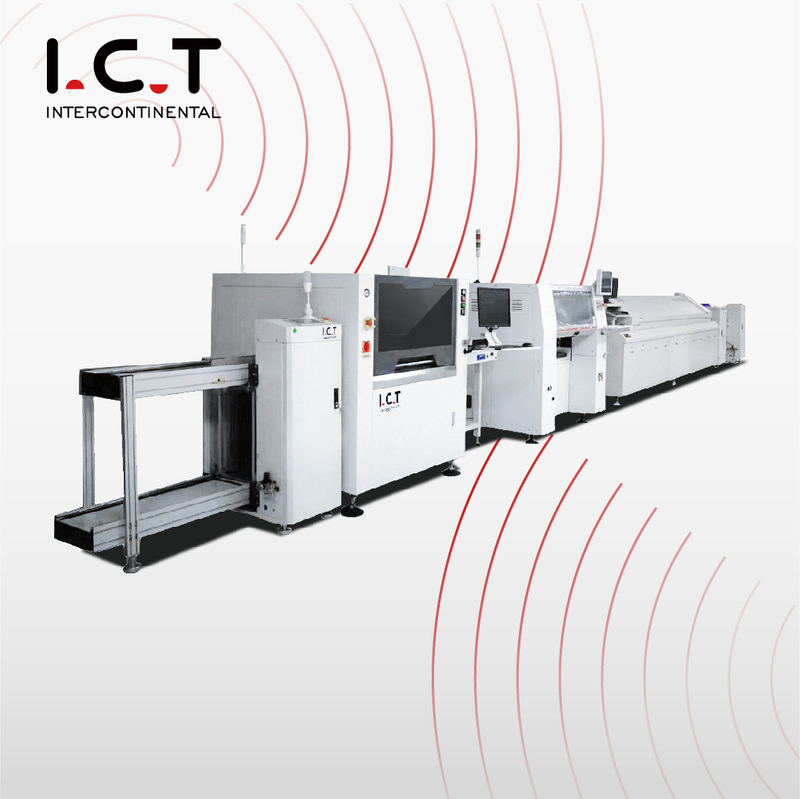

I.C.T offers a complete PCBa assembly line from three owned factories and over 22 years of SMT expertise. We provide full factory planning, custom layouts, labor estimates, and ROI forecasts for PCBA makers. Lines range from semi-auto to full-auto with loaders, printers, high-speed placers, reflow ovens, AOI, and unloaders. One operator per shift keeps costs low. Power stays at 18Kw/H. We serve electronics companies worldwide. Installation takes just 3 days including air, power, exhaust, lighting, and 23±0.9°C checks. Training runs 7-15 days on software, maintenance, safety, and troubleshooting. Our 15-year global service ensures smooth operation. This turnkey PCBa assembly line starts production fast, scales easily, and delivers high-quality PCBA boards with proven reliability and expert support.
| Feature
Automated PCBa assembly line Flow
The PCBa assembly line connects machines via MES for real-time data and higher yields on PCBA boards. Loaders handle various sizes. Printers apply paste with camera precision on chips and drivers. High-speed placers drop tiny parts perfectly. Reflow holds ±0.9°C for strong joints. AOI scans instantly. Unloaders sort boards. Yields rise over 25% in the automatic SMT assembly line. Buffers keep steady pace, remote monitoring works anywhere, auto recipes switch fast, and full traceability supports mixed board types with minimal downtime.
Paste Printing Precision
Printers in the PCBa assembly line lock stencils micron-accurate and fit frames for board sizes. Quick changeovers cut downtime. Auto dispense and cleaning keep prints flawless. 3D SPI verifies paste volume to prevent defects. This is essential for dense PCBA circuits. Multiple paste types work, including low-temp for sensitive chips. Squeegee pressure adjusts for even coverage on boards, boosting reliability, reducing rework, and enabling fast new board launches with stable results and higher daily output.
High-Speed Placement
Placers in the PCBa assembly line use JUKI technology for ultra-fast, spot-on chip mounting on PCBA boards. They handle 01005 to large parts non-stop. Vision systems guarantee zero offset. Multi-nozzle heads hit top speeds. Feeders auto-reload for continuous runs. Software adapts to board variations instantly. This eliminates errors in compact layouts, increases line speed, and supports mixed batches with seamless transitions and reliable repeatability for 24/7 high-volume PCBA production.
Reflow Oven Efficiency
Ovens feature 12+ zones with independent convection for uniform heating in the PCBa assembly line. Nitrogen creates bright, strong joints for long-life boards. Profiles auto-match board needs. Cooling prevents warping. Heat recovery achieves 18Kw/H efficiency. Conveyors sync with MES for perfect pacing, inline checks avoid stops during long runs, and energy-saving modes support non-stop high-output PCBA manufacturing.
Inspection and Testing
AOI captures 8K images at full speed, spotting misplacements or solder faults instantly. AI learns from every board. Feedback corrects placers immediately. This reduces defects in the PCBa assembly line. Auto-reject routing keeps the line flowing, logs data for traceability, and generates reports for quick improvements in varied board runs.
| Specification
| Category | Projects | Details |
|---|---|---|
| Factory Layout Requirements | Factory Air Circuit Layout | Use factory air source or separate oil-free compressed air machine. Pressure should be greater than 7kg/cm². |
| Factory Electrical Layout | Single-phase AC220 (220±10%, 50/60Hz) Three-phase AC 380V (380±10%, 50/60Hz) | |
| Factory Exhaust Layout | The minimum flow rate of the exhaust duct is 500 cubic feet per minute (14.15m³/min) | |
| Factory Lighting Layout | The ideal illumination in the factory is 800~1200LUX, at least not less than 300LUX. | |
| Factory Temperature Layout | The ambient temperature of the production workshop is 23±3°C, generally 17~28°C, and the relative humidity is 45%~70%RH. | |
| Material Preparation | BOM List | List all parts and quantities needed for PCBA Production Line assembly. |
| CAD File | Digital design file to plan PCB layout and machine setup. | |
| Gerber File | Standard file for PCB manufacturing and printing stencil. | |
| Solder Paste | Material applied on pads before placing components in printer. | |
| SMD Component Materials | Surface mount parts like chips and resistors for placement. | |
| Industrial Alcohol | Used to clean boards and stencils during setup process. | |
| Splice Belt | Tape to connect feeder reels without stopping the line. | |
| Stencil | Metal sheet with holes to print solder paste accurately. |
| SMT Line Equipment List
I.C.T make real High-Quality PCBA Production Line. Vacuum loader give board clean. Auto printer put paste right. Placer set chip true. Many zone reflow solder hard. Good AOI find all bad. Line stay tight. Yield high. Cost low. No play. Make for hard work car health light. Board come ready real world. We back full.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| Laser PCB Routing Machine | Cut the PCBA into the final product |
