I.C.T-910
I.C.T

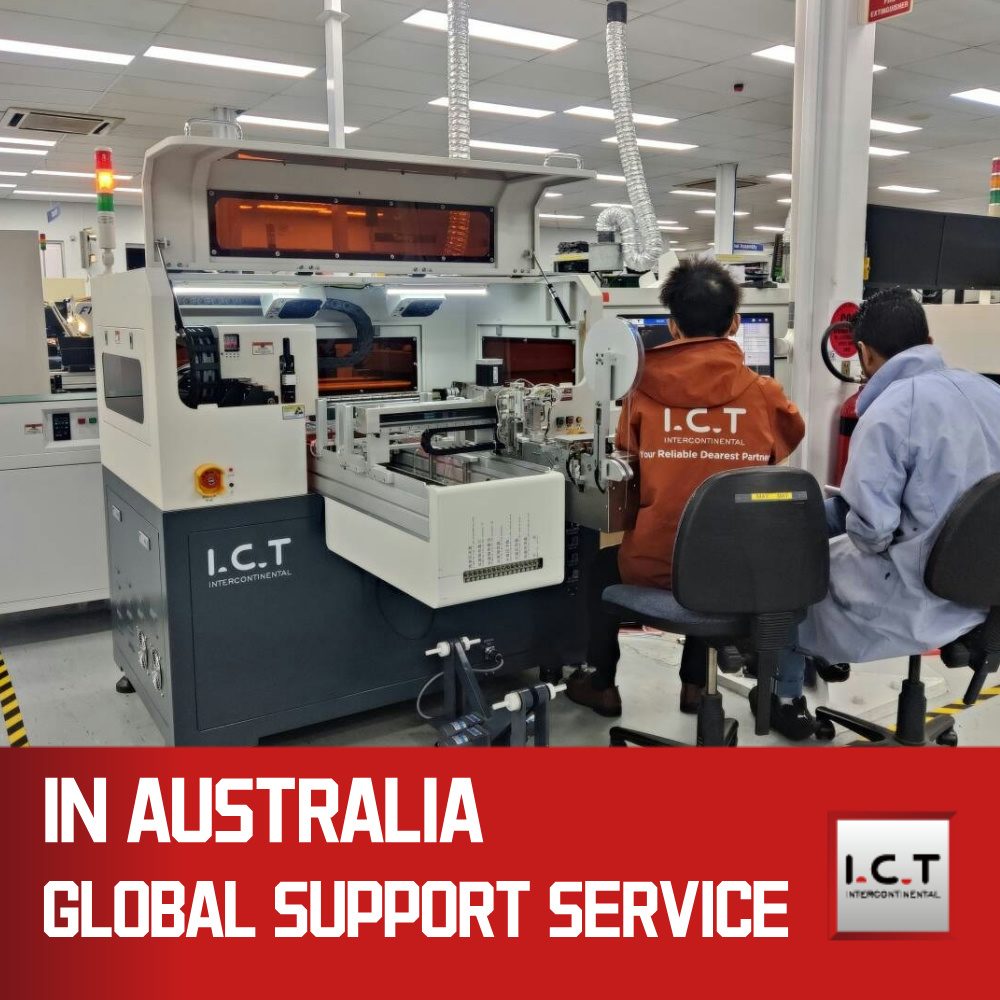

Automated Taping IC Programming Machine Factory
| Quantity: | |
|---|---|
The exercise system allows operators and engineers to complete programming practice, parameter verification, and operation training before official production. It creates a safe environment for testing different IC models and programming procedures without affecting production materials. This function helps factories reduce setup mistakes, shorten operator training periods, and improve production preparation efficiency when introducing new products or changing programming requirements.
The feeder system provides automatic IC loading and precise positioning before programming. It supports stable material supply and reduces dependency on manual placement operations. With optimized feeding control, different IC packages can be processed smoothly, improving production continuity and reducing interruptions caused by material handling. This design allows manufacturers to maintain efficient programming workflows during continuous production.
After programming completion, the packaging system automatically manages IC output and taping processes to maintain organized material handling. The controlled transfer process reduces component damage and improves packaging consistency. Flexible settings allow manufacturers to adapt to different production requirements, helping maintain accurate IC management and preparing programmed components for further assembly processes.
The programming system provides automated IC programming with intelligent control, verification functions, and stable communication. It supports different IC programming requirements while maintaining accuracy throughout production. Real-time monitoring allows operators to quickly identify abnormal conditions and improve process control. The system helps manufacturers achieve reliable programming quality and consistent output for high-volume electronics production.
| Item | Model | I.C.T-910 |
| Transmission system | Efficiency of the machine | Standard machine: Equipped with universal burner of Puro and other brands: 8 sets of 32-64sit burners: UPH 2000-3000PCS/H; Equipped with 204AP brand universal burner: 3 sets of 12sit burners: UPH1600-2200PCS/H |
| A small number of diverse modes: equipped with 3 sets of 204A burners, UPH 1600-1800PCS/H. | ||
| Packaging conversion mode: pallet to tape production capacity of 4000PCS/H (12mm tape products as an example) | ||
| Control precision | Precision servo screw drive, accuracy: X-axis ±0.015mm; Y-axis ±0.015mm; Z-axis ±0.03mm; P-axis ±0.03mm; U(θ)-axis ±0.15° | |
| Suitable package form | PLCC, JLCC , SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, BGA, CSP, SCSP, and so on. (Open Top adapters, some ICs need to be customized with special adapter consumables). | |
| Includes precision upper and bottom CCD positioning system. | ||
| Feeding and unloading device | Tray IN/ OUT | Supports automatic Tray feeding, can send 10 trays of JEDEC Tray products at the same time, and supports marking tray components after programming |
| Tube IN/ OUT | Support 4-tube IC electromagnetic vibration feeding | |
| Tape IN/ OUT | Electric feeder, supports 8-24mm self adhesive film or hot press packaging. | |
| Conversion of packaging methods | Different packages are converted to each other, Tray packed to Tape packed, Tape packed to Tray packed. | |
| Other | Nozzle | 4pcs |
| Camera | 2pcs (Component camera + Marking camera) | |
| Feeder station | 2pcs (8-24mm) | |
| Ion fan | 2pcs | |
| Power | Operating voltage: 190~240V/50Hz, 2.0KW | |
| Dimension | L1450*W860*H1450mm | |
| Weight | 700kg | |
* I.C.T keeps working on quality and performance,specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
A complete electronics manufacturing system requires effective coordination between different production processes. I.C.T provides full SMT, DIP, and coating line solutions that connect PCB assembly, soldering, inspection, and protective coating processes into one complete workflow. Through professional factory planning, equipment matching, and process optimization, manufacturers can improve production efficiency, reduce operational risks, and create flexible manufacturing systems suitable for different electronic products and industries.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| Laser PCB Routing Machine | Cut the PCBA into the final product |
