YSM10
Yamaha
| Quantity: | |
|---|---|

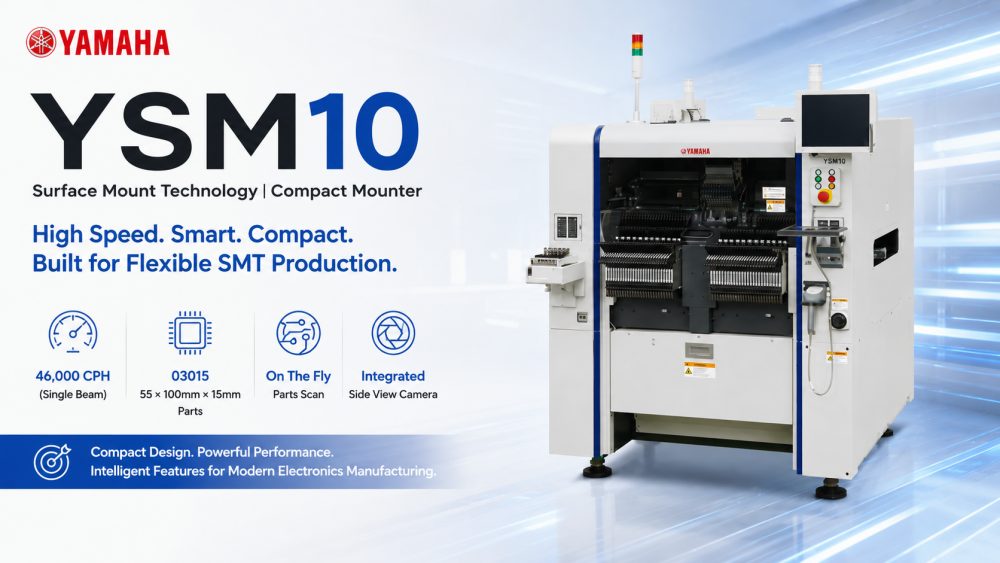

| Compact High-Speed SMT Mounter
YSM10 from Yamaha combines speed, accuracy, and compactness in one SMT pick-and-place solution. Designed for small to medium PCB sizes, it efficiently handles components ranging from 0201 chips to larger parts. The machine offers flexible multi-head configurations and integrated vision systems, ensuring high productivity with minimal setup time. YSM10 is ideal for factories needing reliable SMT assembly without occupying large production space.
| Product Features
High-Speed One-by-One Mounting
YSM10’s single-beam heads pick and place components at high speed, achieving up to 46,000 CPH under optimal conditions. Its rotary drive ensures consistent accuracy while reducing downtime during nozzle changes.
Integrated Side View Camera
Equipped with an onboard side-view camera, YSM10 automatically detects part heights and positions, ensuring precise placement. The camera supports on-the-fly component inspection for high-quality assembly.
Super Loading Feeder
The super loading feeder innovation eliminates downtime for feeder replenishment. Operators can rapidly load components without interrupting production, improving overall line efficiency.
| Specification
| Model | YSM10 | |
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm * Consult us for board sizes exceeding dimensions L510 | |
| Mounting capability | HM Head (10 Nozzle) Spec. | HM5 Head (5 Nozzle) Spec. |
| 46,000CPH (The Company's optimum conditions) | 31,000CPH (The Company's optimum conditions) | |
| Applicable components | 03015-W 55 x L 100mm (divided recognition for over W 45mm), H: 15mm or less * Multi camera requirement (optional) for components over 6.5mm in height, or over 12mm square in size | |
| Mounting accuracy | ±0.035 mm (±0.025 mm) Cpk≧1.0 (3σ) | |
| Number of component types | Setting Plate : Max 96 types (8mm width tape feeder conversion) Tray : 15 types (sATS 15 equipment, Max, JEDEC) | |
| Power supply | 3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz | |
| Air supply source | 0.45MPa or more, clean and dry state | |
| External dimension | L 1,254 x W 1,440 x H 1,445mm (excluding protrusions) | |
| Weight | 1,270kg | |
* Specifications and appearance are subject to change without prior notice.
* Contact I.C.T for more details.
