T550
I.C.T
smt pcb metal coating machines
| Quantity: | |
|---|---|
| I.C.T PCBA Coating Line Machine
The I.C.T PCBA coating line machine excels in simple, efficient assembly protection with selective application. It features easy programming and rapid line changes for superior results. Operators customize trajectories; interface displays paths clearly. Multi-board mirroring, arraying, or copying requires one edit. Auto-tracking shows output, times, metrics. Applied in drive power, industrial controls, LED, automotive, communications, consumer devices, military, medical fields, the PCBA coating line machine meets diverse needs with high productivity. It minimizes waste, enhances safety via air curtains, integrates into SMT lines. As an SMT conformal coating spray machine, it delivers uniform coverage.
| Feature
Transmission System
The transmission system in the PCBA coating line machine uses high-strength platform for stability. Imported servo motors/drivers provide power. Servo-slide rail ensures X/Y/Z repeatability/accuracy. Dust cover safeguards screw/rails, simplifying maintenance. Tank chains organize pipelines neatly. This cuts downtime, enables 24/7 operation, reduces costs. In automatic SMT selective coating machine setups, it supports uniform layers, boosting yields 15%. Reliable for demanding environments.
Transport System
The transport system of the PCBA coating line machine features unique chain to avoid sticking. Motor regulates speed/stopping accurately. Cylinder clamping holds boards secure. Semi-auto rail width eases entry/exit. Reinforced chains/profiles bear heavy loads without deform. Increases throughput 25%, lowers defects. Links with loaders/unloaders in SMT conformal coating spray machine. Tool-free, jam-free for high-mix. Safety sensors prevent accidents.
Coating System
The control system for the PCBA coating line machine has logical layout/labels for quick checks. High-precision servos deliver stable runs. Convection cooling avoids heat buildup. PC-board mode boosts reliability. Real-time monitoring connects MES. Limits errors under 0.5% in automatic SMT selective coating machine. Remote fixes save time. Syncs lamps/valves for IP67. Cuts power 20%.
Control System
The operator system makes new programs in under 10 minutes and changes in less than 2 on Windows 10. Friendly software teaches and shows paths live. CCD vision adds as option. Platform adjusts for all users. This eases daily use of the coating spraying gluing machine for PCB.
Operator System
The operator system in the PCBA coating line machine programs <10 min, changes <2 min on Windows 10. Software guides beginners. Real-time path display eases control. Optional CCD enhances precision. Adjustable platform cuts fatigue 30%. Reduces training to one shift in SMT conformal coating spray machine. Multi-language, tutorials aid global teams. Touchscreen reduces mistakes.
Advanced Dual Valve Coating System
The valve system in the PCBA coating line machine employs dual valves for complex tasks. Modular swaps <2 min. H-808 atomizes fine dots (<50 microns) for LED/low overspray. H-818 fans 200mm at 500mm/s for automotive. H-828 flows 10ml/min thick for power. U-axis 360°/45° tilt reaches shadows. UV lamp checks; CCD ±0.05mm. Reduces waste 20-30%, low-VOC. IP67 in SMT conformal coating spray machine.
| Specification
| Selective Conformal Coating Machines | ||||
| Model | I.C.T-T550 | I.C.T-T550U | I.C.T-T600 | I.C.T-T650 |
| Number of valves | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 2 head) | 4 (atomization valve 2 head, precision valve 2 head) |
| Control method | PC + Motion Control Card | |||
| Number of spindles | X, Y, Z | X, Y, Z,U | X, Y, Z | X, Y, Z |
| PCB size | 50*50~450*460mm | |||
| Spindle drive | Imported servo motor+ball screw module | |||
| Automatic cleaning of valves | with 5L Pressure Tank | |||
| Power supply | AC 220V±10%, 50/60HZ, 2.2KW | |||
| Dimension | L910*W1600*H1700mm | |||
| Net weight | 1000KG | |||

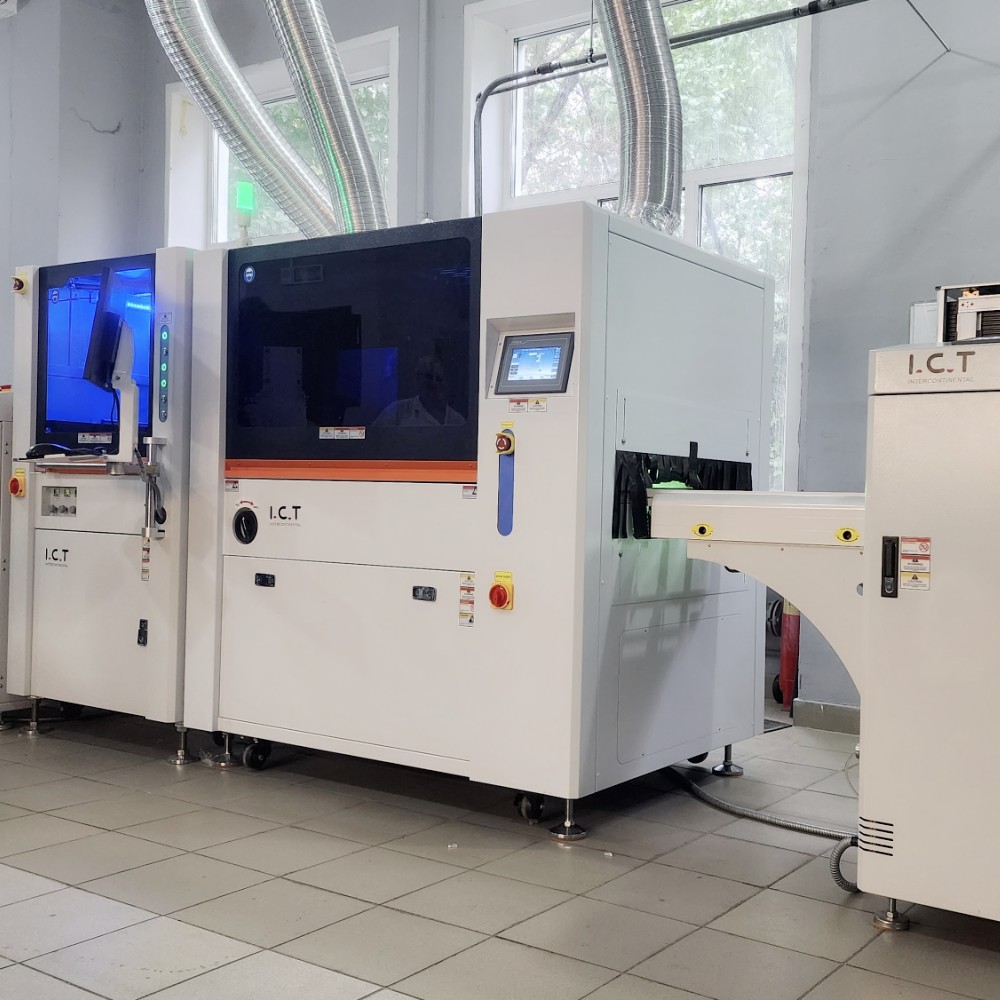

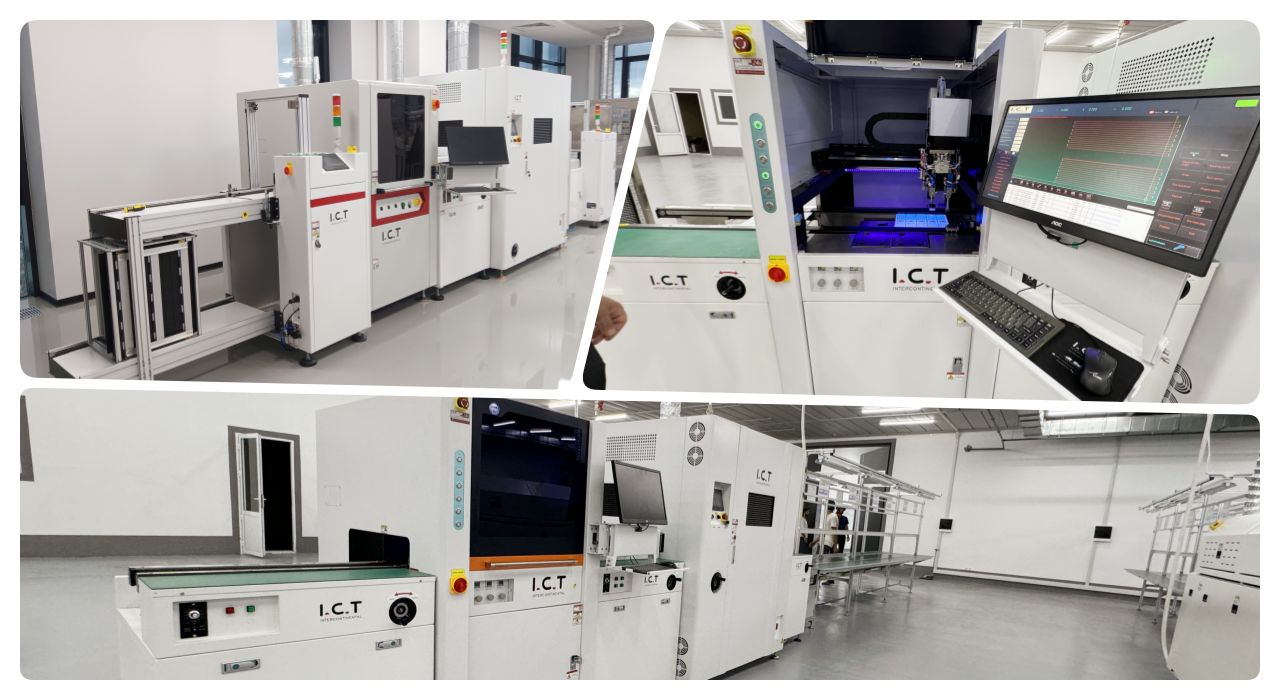

| Coating Line Equipment List
Our PCBA Coating Line offers advanced tools for efficient and precise circuit board protection. The fully automated coating line includes a selective coating machine for accurate application, a curing oven for durable finishes, AOI for quality checks, a lift and flipper for smooth handling, and a conveyor system for seamless production.
This high-quality PCBA Coating Line ensures stable operation, reliable dustproof, waterproof, and explosion-proof coating, meeting diverse industry needs. With modular designs and global support from I.C.T, it enhances productivity for protective coating tasks.

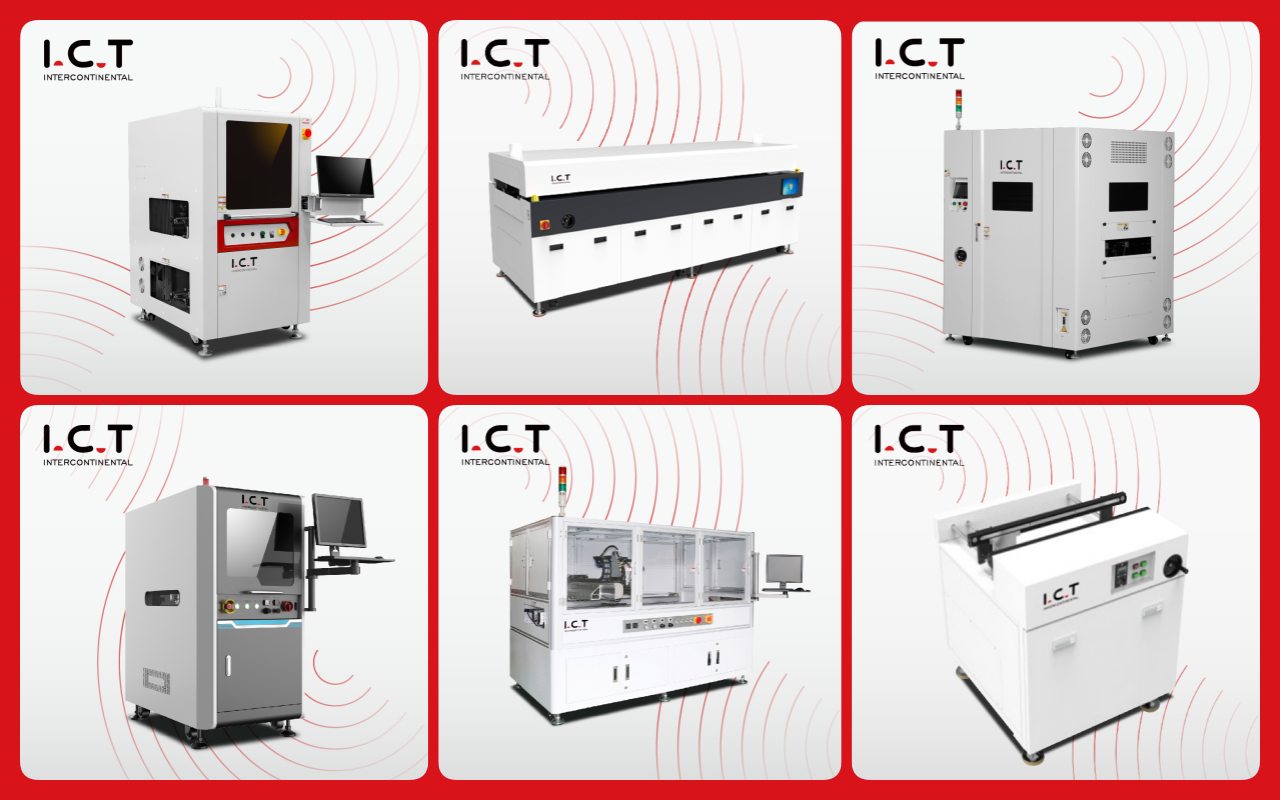

| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
| Customer Success Video
In the video, our engineer visits European dashboard producer. They acquired full line with PCBA coating line machine, loader, UV oven, unloader, wave soldering, AOI. He installs, debugs optimally. Trains on operation/maintenance. Trials fix issues, improve efficiency 25%. Achieves defect-free launch. Demonstrates selective spray, UV validation, integration in automatic SMT selective coating machine for automotive.
| Services and Training
I.C.T handles installation/commission/maintenance for PCBA coating line machine. Provides training on programming/UV/upkeep—onsite/virtual. 24/7 remote with AR. Parts <48h globally. Audits enhance automatic SMT selective coating machine. Refreshers certify staff. Material upgrades. Ensures <1% downtime, high ROI. Supports 72 countries.

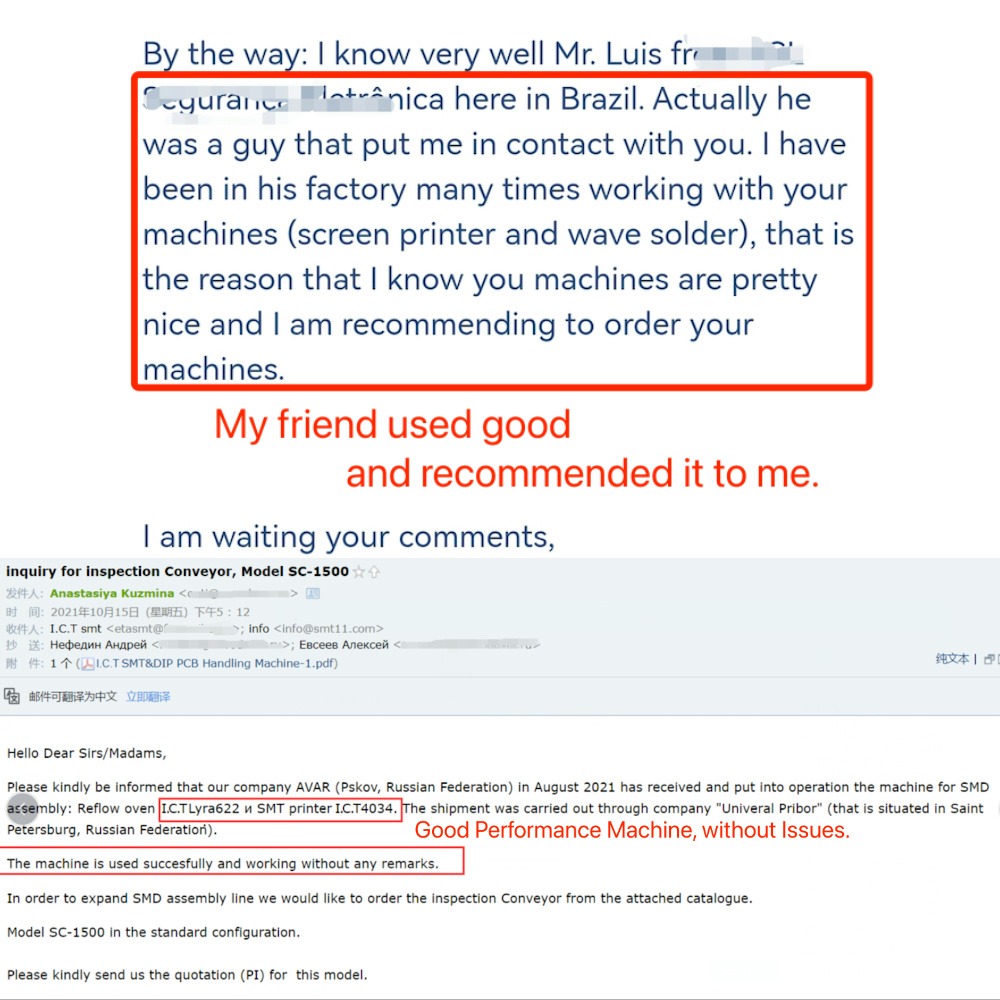

| What Clients Say
Clients commend engineer's UV expertise/quick resolutions in Europe. PCBA coating line machine provides uniform layers on dashboards, 99.9% yield. Packing withstands shipping. <12h responses avoid stops. Modularity reduces change 80%, raises output. "Top SMT conformal coating spray machine—dependable," notes leader. Prolongs life amid vibrations.
| Certifications and Standards
PCBA coating line machine holds CE, RoHS, ISO9001. Patents for valves/editing. 72h burn-in, tests, checks. IPC-A-610, traceability. Audits <0.1% defects. Guarantees safe, eco-friendly for automatic SMT selective coating machine in auto/medical. Minimizes risks.
| About I.C.T Company and Factory
I.C.T manages R&D/production 12,000m² since 2012. 89 staff/20 engineers, $30M, 8 branches. 1,600+ clients/72 countries, full SMT solutions. ISO standards, 100% inspection, cleanroom. Globalization/localization for service. Cross-value, 98% uptime in SMT conformal coating spray machine.
