I.C.T PCB UV coating machine delivers precise UV-cured protection for boards.
a. Precision regulator maintains stable air pressure.
b. Intuitive panel improves operator daily tasks.
c. Reinforced rails with steel extend durability.
d. Synchronous belt enables accurate width adjustment.
e. Robust gantry supports overall machine steadiness.
f. Air curtains effectively contain exhaust gases.
g. I.C.T delivers comprehensive installation training.
T550U
I.C.T
smt pcb metal coating machines
| Quantity: | |
|---|---|
| I.C.T PCB UV Coating Machine
The I.C.T PCB UV coating machine excels as the leading solution for simple and efficient PCBA protection with UV curing. It provides easy programming and rapid line changeovers to deliver superior results across industries.
Ideal for drive power, industrial controls, LED lighting, automotive electronics, communications, instrumentation, consumer devices, appliances, military, and medical applications, the PCB UV coating machine meets diverse needs with unmatched productivity. It reduces material waste, enhances safety through entry/exit air curtains, and integrates seamlessly into SMT lines for complete workflow optimization.
| Feature
Transmission System
The transmission system in the PCB UV coating machine features a high-strength platform ensuring unwavering stability during intensive operations. Imported servo motors and drivers provide consistent power delivery. The servo-slide rail module guarantees exceptional repeatability and accuracy across X/Y/Z axes.
A proprietary dust cover safeguards the lead screw and rails from contaminants, streamlining maintenance and extending lifespan. Flexible tank chains neatly route all pipelines and wiring, avoiding interference and maintaining a tidy appearance. This robust design minimizes unplanned downtime, supports 24/7 high-volume runs, and lowers total ownership costs.
In automatic PCB coating machine environments, it enables flawless precision for uniform UV-cured layers, boosting yield rates by up to 15%. Factories achieve reliable performance in demanding conditions without frequent interventions.
Transport System
The transport system of the PCB UV coating machine employs a unique chain conveyor that prevents PCB sticking or misalignment. Precision motor controls deliver exact speed regulation and stopping accuracy. Cylinder clamping secures boards firmly, eliminating shifts during coating.
Semi-automatic guide rail width adjustment facilitates seamless board entry/exit for varied sizes. Reinforced chains and profiles withstand heavy loads without deformation, supporting robust automotive PCBs. This system enhances line throughput by 25% while reducing defects.
It connects effortlessly with loaders and unloaders in automatic PCB coating machine setups. Operators benefit from tool-free adjustments and jam-free operation, ensuring consistent flow in high-mix production. Safety features include emergency stops and sensors for zero accidents.
Coating System
The control system for the PCB UV coating machine uses a logical layout with standardized labels for effortless inspection and maintenance. High-precision servo components ensure stable, vibration-free operation.
Advanced heat dissipation via convection air cooling prevents thermal issues in prolonged runs. The PC-control board hybrid mode enhances reliability and diagnostics. Real-time monitoring integrates with MES for data-driven insights. This setup reduces error rates to under 0.5% in automatic PCB coating machine applications.
Users access remote troubleshooting via Ethernet, cutting response times. It coordinates UV lamp timing with spray valves for optimal curing, achieving IP67 protection standards. Energy-efficient design saves 20% power compared to competitors.
Control System
The operator system in the PCB UV coating machine creates new programs in under 10 minutes and switches lines in less than 2 minutes on Windows 10.
Intuitive software offers step-by-step teaching and navigation for beginners. Real-time path visualization simplifies adjustments and verification. Optional CCD vision provides sub-millimeter accuracy. Ergonomic, adjustable platform accommodates all user heights, reducing fatigue by 30%.
In automatic PCB coating machine workflows, it shortens training to one shift. Multi-language support and video tutorials ensure global usability. Touchscreen interface minimizes errors, while auto-backup protects recipes. This empowers teams to handle complex UV curing tasks confidently and efficiently.
Operator System
General features of the PCB UV coating machine include a precision air regulator with digital gauge for consistent spray. Humanized panel with icons accelerates workflows. Hardened conveyor rails with stainless steel strips resist wear for 50,000+ hours.
Synchronous belt drives precise adjustments. Independent steel gantry withstands vibrations. Air curtains seal exhaust, improving air quality by 40%. Programming supports unlimited trajectories with visual previews.
Multi-board tools (mirror/array/copy) save 70% setup time. Auto-data logging tracks OEE metrics. These innovations make the automatic PCB coating machine versatile for high-precision UV applications in electronics manufacturing.
Advanced Dual Valve Coating System
The valve coating system in the PCB UV coating machine features dual valves for complex PCBA scenarios. Modular design allows valve swaps in under 2 minutes.
H-808 precision atomization valve delivers fine dots/lines (<50 microns) for LED/consumer parts with minimal overspray.
H-818 wide fan valve covers 200mm areas at 500mm/s for automotive boards.
H-828 high-flow valve handles 10ml/min thick coatings for power modules.
Optional U-axis (360° rotation) and 45° tilt access under-components. Built-in UV lamp verifies curing instantly; CCD ensures ±0.05mm alignment. Waste reduction reaches 20-30% with low-VOC support. This delivers uniform IP67 protection in automatic PCB coating machine lines, enhancing durability in harsh environments
| Specification
| Selective Conformal Coating Machines | ||||
| Model | I.C.T-T550 | I.C.T-T550U | I.C.T-T600 | I.C.T-T650 |
| Number of valves | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 2 head) | 4 (atomization valve 2 head, precision valve 2 head) |
| Control method | PC + Motion Control Card | |||
| Number of spindles | X, Y, Z | X, Y, Z,U | X, Y, Z | X, Y, Z |
| PCB size | 50*50~450*460mm | |||
| Spindle drive | Imported servo motor+ball screw module | |||
| Automatic cleaning of valves | with 5L Pressure Tank | |||
| Power supply | AC 220V±10%, 50/60HZ, 2.2KW | |||
| Dimension | L910*W1600*H1700mm | |||
| Net weight | 1000KG | |||

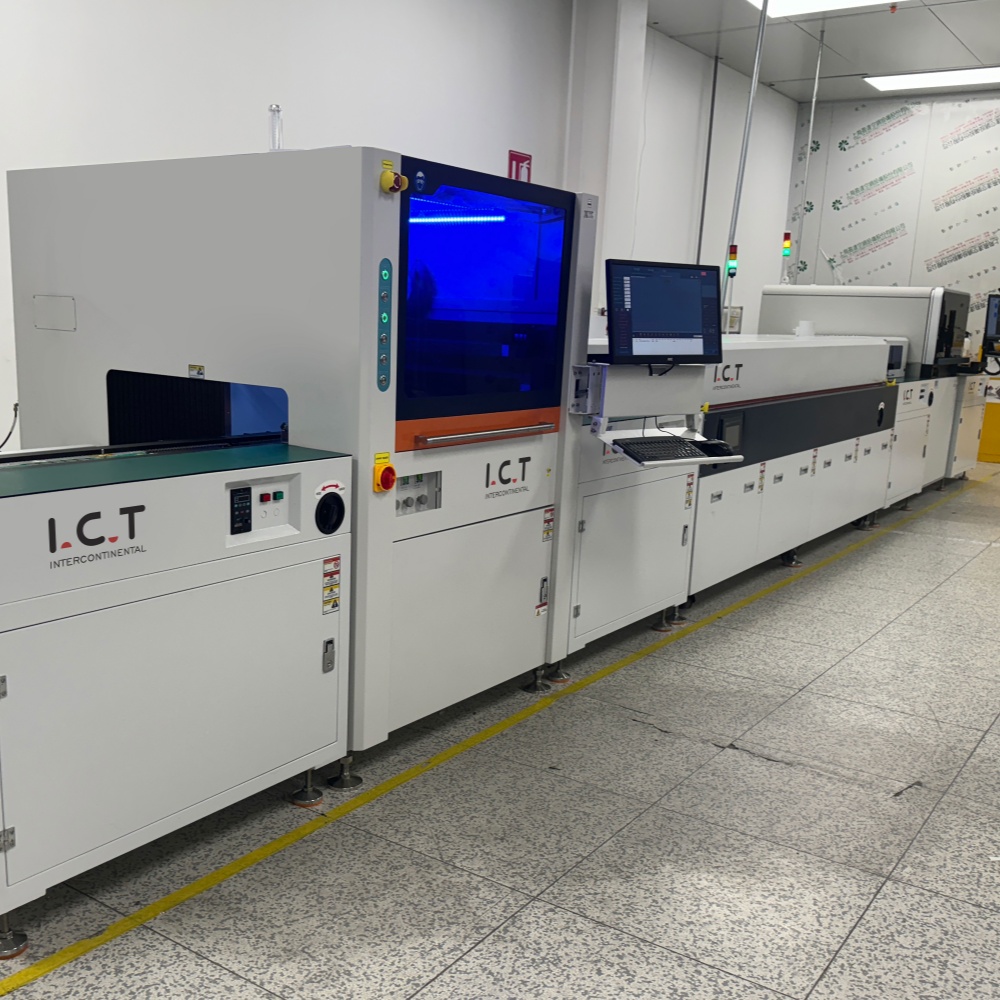

| Coating Line Equipment List
Our PCBA Coating Line offers advanced tools for efficient and precise circuit board protection. The fully automated coating line includes a selective coating machine for accurate application, a curing oven for durable finishes, AOI for quality checks, a lift and flipper for smooth handling, and a conveyor system for seamless production.
This high-quality PCBA Coating Line ensures stable operation, reliable dustproof, waterproof, and explosion-proof coating, meeting diverse industry needs. With modular designs and global support from I.C.T, it enhances productivity for protective coating tasks.
| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
| Customer Success Video
In the video "The European Journey of I.C.T Engineer - SMT Solution for Automotive Electronics," our engineer visits a top European car dashboard manufacturer.
They acquired a full PCBA coating line with the PCB UV coating machine, including loader, selective coater, UV oven, and unloader, plus wave soldering and AOI (buffer + NG/OK unloader).
On-site, he handles installation, debugging, and optimization for peak performance. Comprehensive training covers operation, maintenance, and troubleshooting. During trials, he resolves bottlenecks, fine-tunes UV curing for flawless adhesion, and boosts efficiency by 25%.
The client achieves zero-defect production swiftly. Footage showcases precise spraying, real-time UV verification, and seamless integration in automatic PCB coating machine operations for automotive reliability.
| Services and Training
I.C.T provides complete installation, commissioning, and lifecycle maintenance for the PCB UV coating machine. Engineers deliver hands-on training for programming, UV curing optimization, and daily upkeep—onsite or virtual. 24/7 remote support resolves issues in hours via AR diagnostics. Global spare parts inventory ensures <48-hour delivery. Customized audits optimize processes for automatic PCB coating machine efficiency. Annual refresher courses keep teams certified. We offer upgrades for new UV materials. This zero-risk approach minimizes downtime to <1% and maximizes ROI through performance guarantees. Clients in 72 countries rely on our proactive partnership.
| What Clients Say
European automotive clients rave about our engineer's expertise in UV curing setup and rapid issue resolution during visits. The PCB UV coating machine earns praise for uniform, bubble-free layers on dashboards, achieving 99.9% yield. Robust packing survives transatlantic shipping unscathed. Support teams respond in <12 hours, preventing delays. Valve modularity cuts changeover time by 80%, boosting throughput. "Best automatic PCB coating machine investment—reliable and future-proof," says a dashboard leader. Durability exceeds specs, extending board life in vibrations. Overall, it transforms production reliability.
| Certifications and Standards
I.C.T's PCB UV coating machine complies with CE safety standards, RoHS for eco-friendliness, and ISO9001 quality management. Patents cover UV integration and valve tech. Every unit endures 72-hour burn-in, leak tests, and accuracy validation. Factory protocols include IPC-A-610 compliance and traceability via QR codes. Third-party audits confirm <0.1% defect rates. These certifications ensure safe, sustainable operation worldwide. For automatic PCB coating machine users, they guarantee regulatory adherence in automotive/medical sectors, reducing liability risks.
| About I.C.T Company and Factory
I.C.T pioneers electronics manufacturing with in-house R&D and 12,000m² production since 2012. Our 89 staff, including 20 engineers, drive innovation on $30M capital across 8 branches. Serving 1,600+ clients in 72 countries, we deliver 0-1 factory solutions in SMT, coating, and assembly. Strict ISO processes include 100% inspection, SPC monitoring, and cleanroom assembly. Globalization pairs with localization for tailored support. As a cross-value platform, we optimize from analysis to upgrades, ensuring 98% uptime. Join our trusted network for UV coating excellence.
