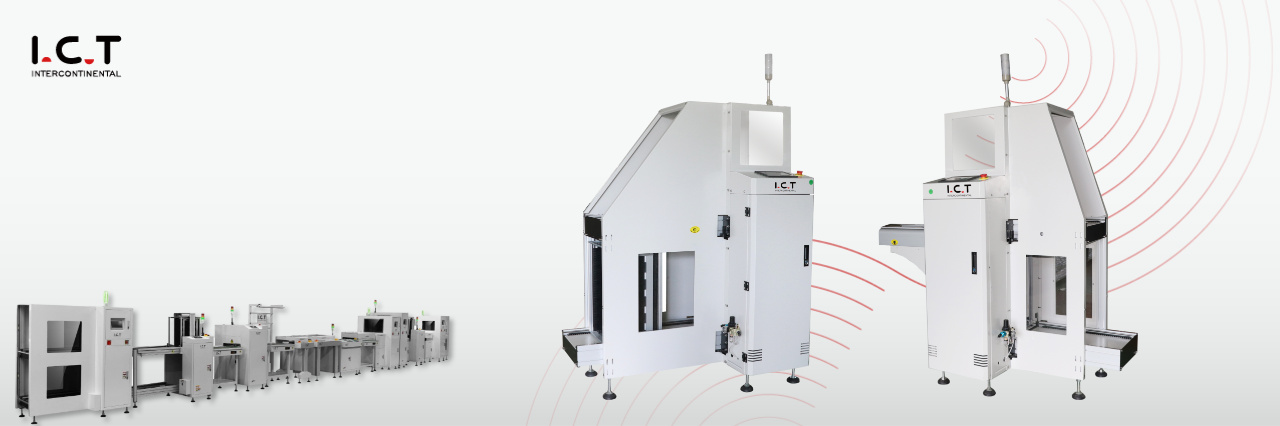

| Efficient PCB Multi Rack Loader SMT Unloading Machine
SMT production lines run best when every station handles boards quickly and safely. The PCB Multi Rack Loader SMT Unloading Machine takes finished PCBs from the line and loads them into magazines with care. Its multi-rack system works on two lanes at once, so output doubles without extra floor space. Sensors watch every move. Controls follow Industry 4.0 standards and connect easily to other equipment. Factories choose it because it lowers manual work and protects delicate boards. Built with upgraded hardware and tested under real production conditions, this unloader supports both standard and high-mix lines.
| Detailed Product Features
Precise Multi-Rack Handling
Multi-rack magazines slide smoothly on reinforced aluminum rails. The heavier base stays firm even at full speed. Stainless steel screws let operators set width in seconds. These details stop PCBs from sticking or shifting. Daily checks stay simple because access points sit at ergonomic height. The design follows strict CE and ISO rules so the machine keeps working through long shifts.
Stable Electrical Operation
Electrical parts send clear signals for exact movements. High-frequency buttons respond instantly. Visible indicators show status from across the floor. Variable speed control lets the operator match any line pace. The system runs quietly and stays cool, giving consistent results hour after hour.
Industry 4.0 Control Ready
Control software connects to IPC-CFX, Hermes, or SEMI SMT-ELS protocols. Upgrades take minutes when the line grows. Touchscreen settings record data automatically for later review. Operators adjust everything without stopping production. Future expansion stays open because the platform is built to expand.
Practical Detail Upgrades
LED inspection lights, metal chain conveyors, and ionizer fans are ready options. Segment transport control and auto-width motors fit special needs. Every extra part is tested before shipment. These choices let factories match the unloader exactly to their SMT layout.
Choose from LED inspection lights, metal chain conveyors, PLC touchscreens, or full auto-width adjustment. Segment transport control and ionizer fans are also available. These options let you tailor the Dual-rails SMT Magazine Unloader exactly to your SMT line needs.
Full SMT Line Solutions
The PCB Multi Rack Loader SMT Unloading Machine forms a natural part of complete SMT production lines. Typical lines include magazine loaders, solder paste printers, inspection conveyors, pick-and-place machines, SPI and AOI systems, reflow ovens, cooling conveyors, and depaneling stations. All I.C.T equipment shares the same SMEMA communication and quality standards. One supplier covers the entire line, so integration stays simple and support remains fast.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
We deliver Smart SMT Assembly Line that provide fully automatic, high-speed, and ultra-reliable PCBA manufacturing. Our proven setup starts with the PCB Loader Unloader, moves to a precision automatic printer for perfect solder paste application, continues with LED SMT machines for accurate component placement, passes through a Vacuum Reflow Soldering for strong solder joints, and finishes with AOI Testing Machine to catch any defect. Every machine communicates seamlessly, reducing labor and boosting first-pass yield. This complete solution meets automotive, medical, consumer, and LED industry standards while keeping operating costs low and uptime extremely high
| Customer Success Story-Successful SMT Line Delivery in Germany
I.C.T shipped a full automatic SMT production line to a major LED maker in Germany. The line featured the PCB Multi Rack Loader SMT Unloading Machine plus printer, conveyors, mounter, reflow oven, and cooling stations. In April 2026 our engineers flew to the customer site. They completed installation and gave full training on site. Production started on schedule. The customer reported higher throughput and smoother operation from day one.
| Professional Training & Support
I.C.T stands behind every machine with complete on-site service that covers the whole SMT line. Engineers arrive ready to install, commission, and train operators in English or the local language. Training includes daily operation, troubleshooting, and process tips. Remote support stays available 24 hours a day. The same team that built the line also helps with upgrades and optimization years later. With over 25 years of experience and 1,600 customers in 72 countries, I.C.T turns equipment delivery into long-term factory success. Factories receive everything from initial planning to daily production support so they never face problems alone.
| Customer Praise
Production managers tell us the PCB Multi Rack Loader SMT Unloading Machine runs more stably than older equipment. They praise the careful packing that protects every part during ocean shipping. Engineers highlight the fast response when questions arise. Many customers note how our on-site team finished installation ahead of schedule and trained operators thoroughly. One German client said the entire SMT line felt reliable from the first board. Another mentioned the clear manuals and quick spare-part delivery. Across LED and electronics plants worldwide, customers repeat the same point: I.C.T equipment and support help them meet tight deadlines and keep quality high.
| Our Certification
Every I.C.T machine carries CE, RoHS, and ISO9001 certification. Multiple patents protect the rail system and control software. These documents confirm safe operation, low environmental impact, and consistent performance. Factories use the certificates to meet buyer audits and government rules. The same standards apply to the full SMT line, so customers receive one reliable quality promise from loader to reflow oven. Regular third-party audits keep the factory processes sharp. This level of certification gives plant managers confidence that the equipment will perform as promised year after year.
| About Us and Factory
I.C.T runs its own 12,000-square-meter factory and R&D center in Dongguan. Eighty-nine staff members and twenty engineers design, test, and build every piece of equipment under strict quality checks. Since 2012 the company has grown steadily and now serves more than 1,600 customers in 72 countries. Eight branch offices and a global service network provide fast support anywhere. I.C.T supplies full 0-to-1 factory solutions that include planning, equipment, installation, training, and ongoing optimization. The same team that manufactures the PCB Multi Rack Loader SMT Unloading Machine also helps customers expand lines and improve processes long after startup. This end-to-end approach lets factories focus on output while we handle the details.
