I.C.T-IR350
I.C.T
| Quantity: | |
|---|---|
| Powerful PCB Router for Precise Curve Depaneling
The PCB router handles the critical task of separating individual boards from PCBA panels along complex curves. Manufacturers turn to this machine when they need clean edges without damaging sensitive components. It works reliably in automotive electronics, medical equipment, and consumer device production. Its servo-driven system and smart controls make it a practical choice for factories that demand both speed and quality. The machine integrates easily into automated lines and supports consistent results across different board designs.
| Feature
Advanced Vision Alignment Technology

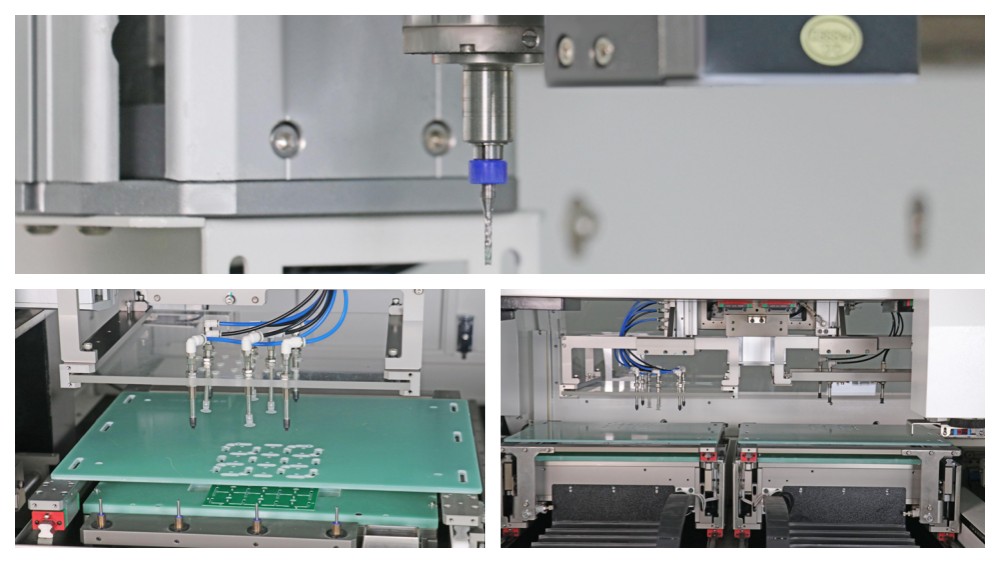

High-definition cameras work directly with the milling cutter to ensure accurate calibration and positioning. The system reads various PCB marks and corrects alignment automatically. Operators can import CAD files, scan entire boards, and optimize cutting paths quickly. These capabilities help the PCB router machine maintain precision even with challenging panel layouts.
Strong and Stable Mechanical Foundation

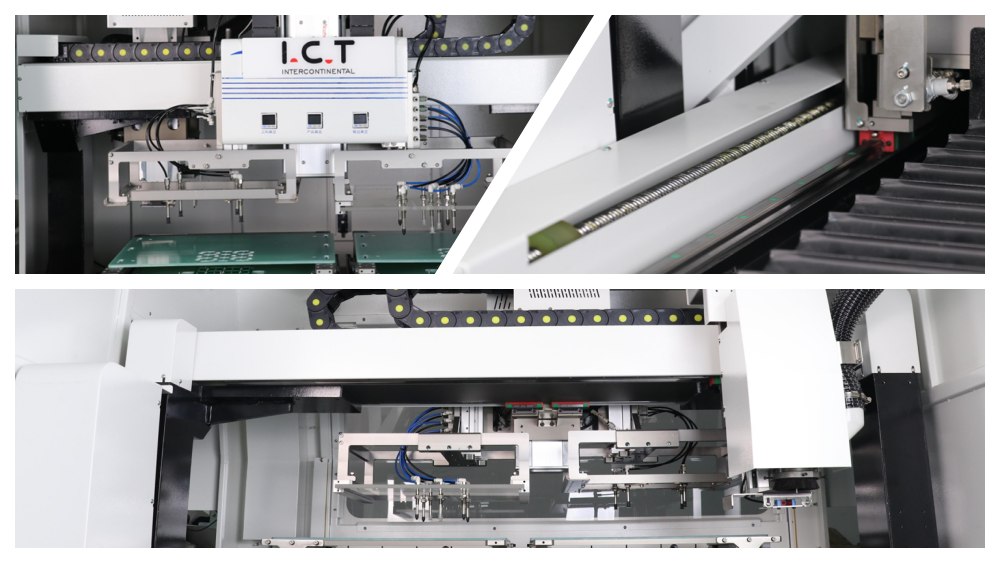

The machine uses imported Panasonic servo motors and high-precision screw rods that drive smooth motion across all axes. A thicker reinforced frame adds stability during continuous high-speed operation. This solid construction keeps vibration low and holds tight tolerances throughout long production shifts, giving factories the reliability they need from their PCB router.
Smart Tool Protection and Automation

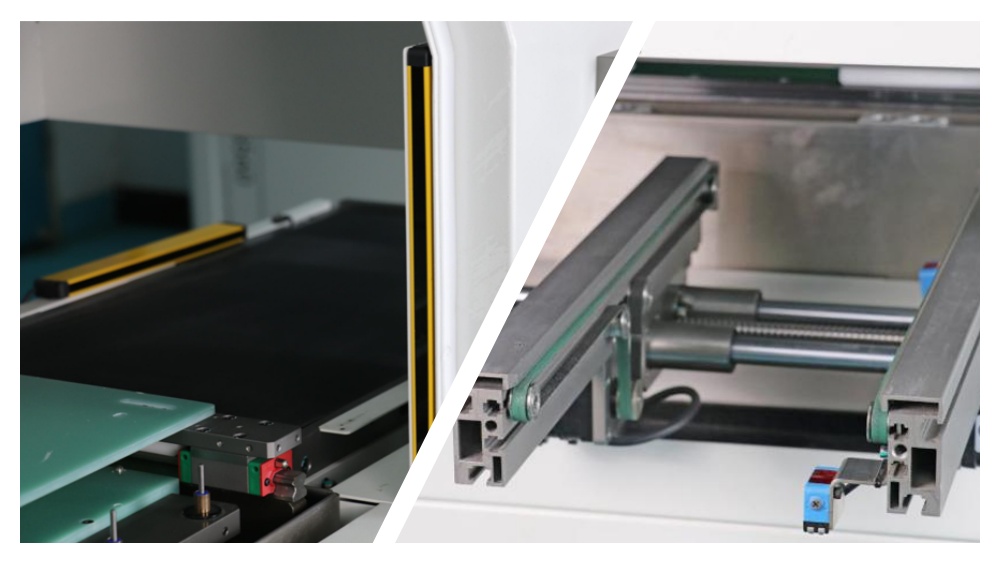

Sensors watch the milling cutter in real time and alert operators to any breakage or wear. Automatic tool changing keeps the line moving without unnecessary pauses. Safety features such as access controls and optional light curtains protect both people and equipment. These practical functions reduce downtime and help maintain high daily output.
Efficient Dual Platform and Clean Environment

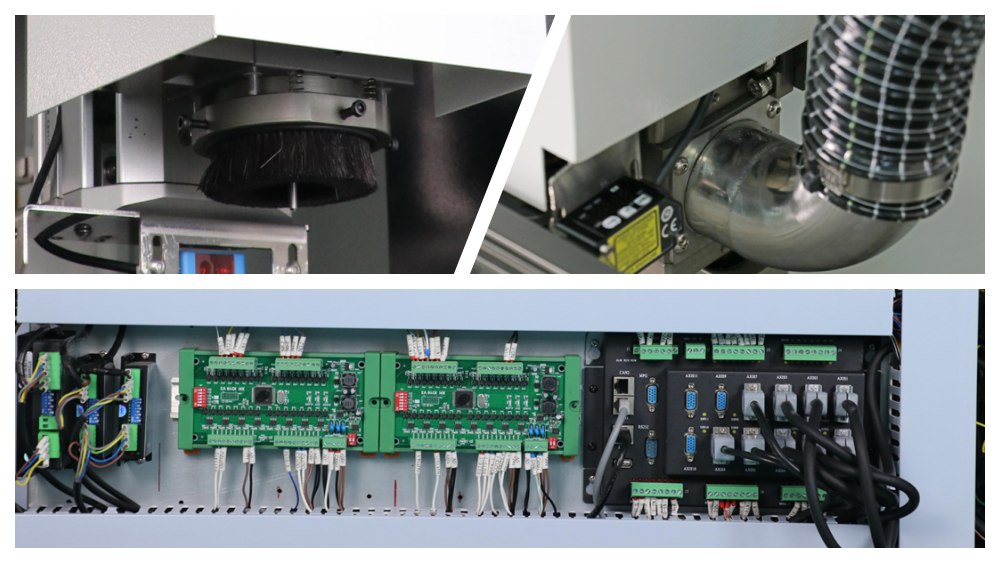

Two independent platforms allow loading on one side while cutting continues on the other. Quick-release fixtures make adjustments fast and simple. The separated vacuum collector removes dust with high suction but low noise. Ion air guns and vortex static eliminators keep each board clean and free from static during the entire routing process.
Process:
| Specification
| Parameter | Specification |
|---|---|
| Model | I.C.T-IR350 |
| PCB Size | 350 × 310 mm |
| Platform Number | Double Platforms |
| PCB Thickness | 0.5 ~ 4.0 mm |
| PCB Support Mode | Multifunctional fixture, Special fixture |
| X,Y Cutting Speed | 0 ~ 100 mm/s |
| Repeat Precision | ± 0.01 mm |
| Cut Precision | ± 0.05 mm |
| X,Y,Z Driving Method | AC Servo Motor |
| X,Y,Z Control Mode | CNC Controller |
| Milling Cutter Size | 0.8 ~ 3.0 mm |
| Spindle Speed | Max 80,000 rpm |
| Operation & Data Storage | Industrial PC System |
| Voltage (Main Machine) | 220V, 50/60 Hz |
| Power Supply (Main Machine) | 1.5 kW |
| Air Pressure Supply | 4.5 kg/cm² |
| Dimension (L×W×H) | 1450 × 1330 × 1641 mm |
| Weight (with Vacuum Cleaner) | Approx. 1000 kg |
| Dust Collection Method | Vacuum Cleaning |
| Vacuum Cleaner Air Volume | 28 ~ 35 m³/min |
| Vacuum Cleaner Dimension | 650 × 750 × 1500 mm |
| Vacuum Cleaner Voltage | 380V, 50/60 Hz, 3 kW |
*I.C.Tkeepsworkingonqualityandperformance,specificationsandappearancemaybeupdatedwithoutparticularnotice.
| SMT Line Equipment List
I.C.T delivers end-to-end SMT production line solutions designed to help manufacturers build efficient and competitive facilities. From board loading and solder paste printing through high-speed component placement, inspection, reflow, and final separation with the PCB router, we provide integrated systems that work together seamlessly. Our team supports customers with factory planning, equipment selection, installation, and ongoing optimization. This comprehensive approach allows electronics producers in automotive, industrial, and consumer sectors to achieve higher throughput, better quality, and strong long-term performance across their entire manufacturing operation.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
Successful Project in Portugal
In April 2026, I.C.T engineers completed full on-site installation and training for a complete SMT production line in Portugal serving automotive lighting and control systems. The customer was pleased with the smooth setup and the clear, hands-on training that helped their team master daily operations quickly. They reported strong performance from the entire line, including precise curve separation. This successful collaboration demonstrates our ability to support international customers with reliable full-factory solutions and responsive technical service.
| Service and Training Support
I.C.T stands behind every SMT factory solution with full-range services that include detailed line design, professional installation, operator training, process optimization, and continuous technical assistance. Our experienced engineers work closely with customers both on-site and remotely to solve challenges quickly and improve efficiency over time. We focus on building long-term partnerships that help manufacturers reduce downtime, maintain high quality standards, and scale their production successfully in competitive global markets. Our goal is to ensure your complete SMT line performs reliably for years to come.
| What Our Customers Say
Customers regularly praise the expertise of our engineers, the dependable quality of our equipment, and the careful packaging that protects machines during shipping. They also value our fast response to technical questions and service requests. Many have noted excellent results after adding the PCB router to their SMT production lines.
| Certifications and Standards
I.C.T equipment meets major international standards including CE, RoHS, and ISO9001, along with multiple patents for advanced technologies. These certifications reflect our ongoing commitment to safety, reliability, and innovation that customers can trust in their production environments.
| About I.C.T Company and Factory
I.C.T combines in-house research and development, modern manufacturing facilities, and strict quality control systems to deliver reliable electronics production solutions. With more than 25 years of experience and steady growth, we have supported over 1,600 customers across 72 countries. Our large engineering team and global support network enable us to provide complete SMT factory solutions from initial planning to long-term operation. We continue to help manufacturers worldwide build efficient, high-quality production lines that meet today’s demanding industry requirements.
