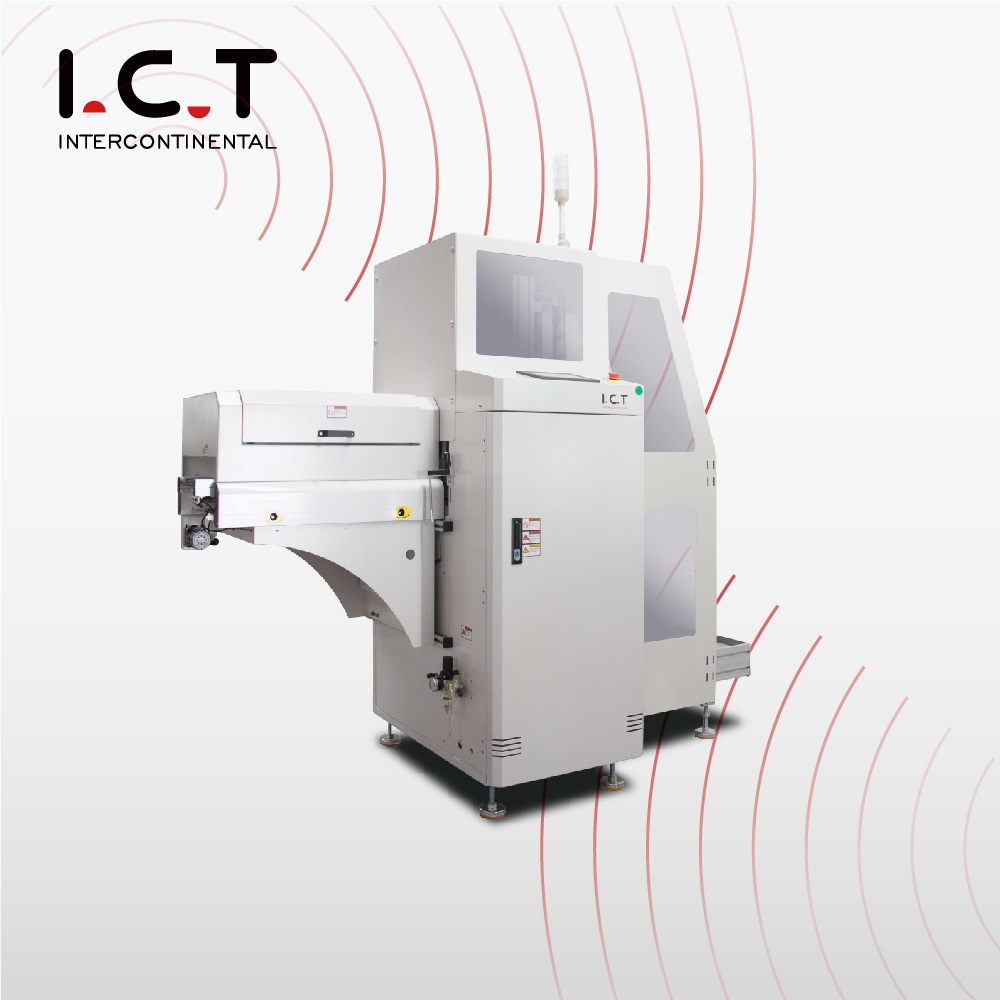

| Your All-in-One SMT Magazine PCB Loader Unloader
With your new SMT Magazine PCB Loader Unloader, you load bare boards at the start and collect finished ones at the end—using just one compact machine. This SMT PCB Unloader machine smoothly lifts PCBs from magazines, feeds them perfectly aligned to the printer, then stacks finished boards back into magazines with zero damage. You choose standard or full CE version; either way you get upgraded hardware, smarter electrics, and future-proof controls that cut labor and boost output. You plug it into any line and it talks perfectly to every brand while running 24/7.
| Detailed Product Features
Your SMT Magazine PCB Loader Unloader is built with upgraded high-grade rails, lifts, and frames that meet strict ISO and CE standards. You feel the reinforced base and ergonomic design that keep everything rock-stable and make daily operation and maintenance dead simple.
Your machine comes with premium sensors, bright tower lights, and high-frequency buttons so you see every board instantly and get crystal-clear feedback. You stay in total control even at full speed—no errors, no slowdowns, just smooth production.
Your SMT Magazine PCB Loader Unloader supports IPC-CFX, Hermes, and SEMI SMT-ELS right out of the box (optional). You connect to your MES or add new features in minutes and watch your line become a true smart factory.
Your precision lifters and pushers handle every magazine size quietly and perfectly. You get flawless board alignment from the first bare board to the last finished one—zero scratches, zero misalignment, total quality protection.
Your SMT Magazine PCB Loader Unloader talks directly to printers, placement machines, reflow ovens, and AOI. You switch between loading and unloading modes instantly and save floor space, labor, and extra equipment.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Your turnkey High-Quality SMT Production Line gives you fully automatic, high-speed, ultra-reliable PCBA manufacturing from bare board to final inspection. You start with the flawless SMT Magazine PCB Loader Unloader, move through precision printing and high-speed placement, continue with stable reflow, and finish with advanced AOI—all linked perfectly. You keep labor low, first-pass yield sky-high, and uptime exceptional while meeting automotive, medical, consumer, and LED standards at the lowest possible cost.
| Customer Success Story
In 2024 our engineers flew to Finland and set up a complete LED panel line for one of Europe’s biggest lighting manufacturers. Your turnkey package included the SMT Magazine PCB Loader Unloader, 1.5 m auto printer, SM482PLUS mounter, L8 reflow, buffers, conveyors, and more. You watched us finish installation, debugging, and full operator training in only five days. On day one of official production you hit target speed with zero defects. You told us the SMT Magazine PCB Loader Unloader ran perfectly and communication between machines was flawless. You passed the tough European audit first time and ordered another line the same week.
| Professional Training & Support
You get remote pre-checks, on-site commissioning, free hands-on training for your operators and technicians, a real 24/7 global hotline, spare-parts warehouses worldwide, and scheduled preventive visits—so your SMT Magazine PCB Loader Unloader keeps running at peak performance with almost zero unexpected stops.
| Customer Praise
“Your engineer jumped on a plane at midnight and fixed it before breakfast—unreal response!” “Forty-five days at sea and the crate arrived perfect—not a scratch.” “My SMT Magazine PCB Loader Unloader has run three shifts for 20 straight months—no failures.” “After one day of training our brand-new operators ran the whole line alone.”
| Our Certification
Your SMT Magazine PCB Loader Unloader comes with CE, RoHS, ISO9001 marks and several exclusive patents. Before it leaves our factory you know it has passed a full 72-hour loaded burn-in test and detailed quality inspection—so you get proven reliability and full compliance from day one.
| About Us and Factory
Since 2012 we’ve grown into a 12,000 m² modern factory with nearly 90 team members and our own R&D center. You benefit from everything designed, built, and tested under one roof with strict quality systems. You join over 1,600 customers in 72 countries who trust us—from one SMT Magazine PCB Loader Unloader to complete turnkey lines.
