SMT PCB Loader / Unloader
I.C.T
| Quantity: | |
|---|---|

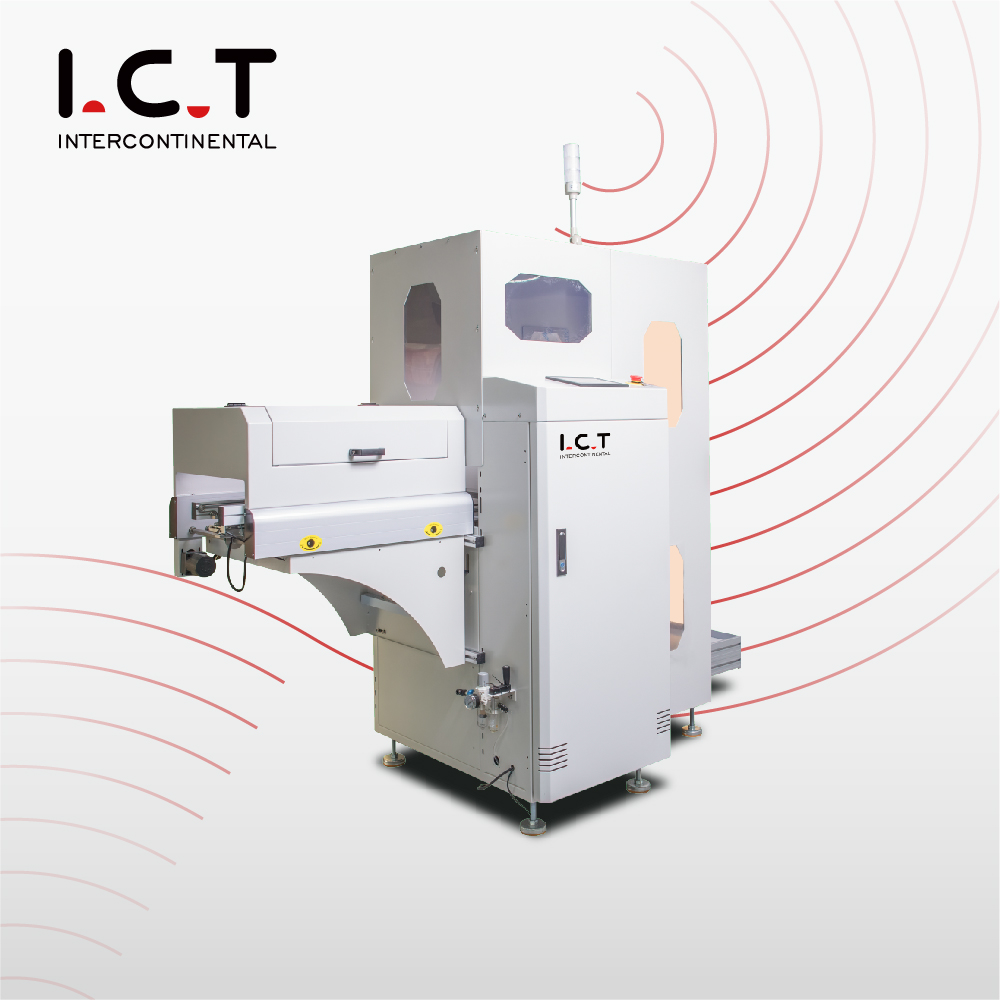

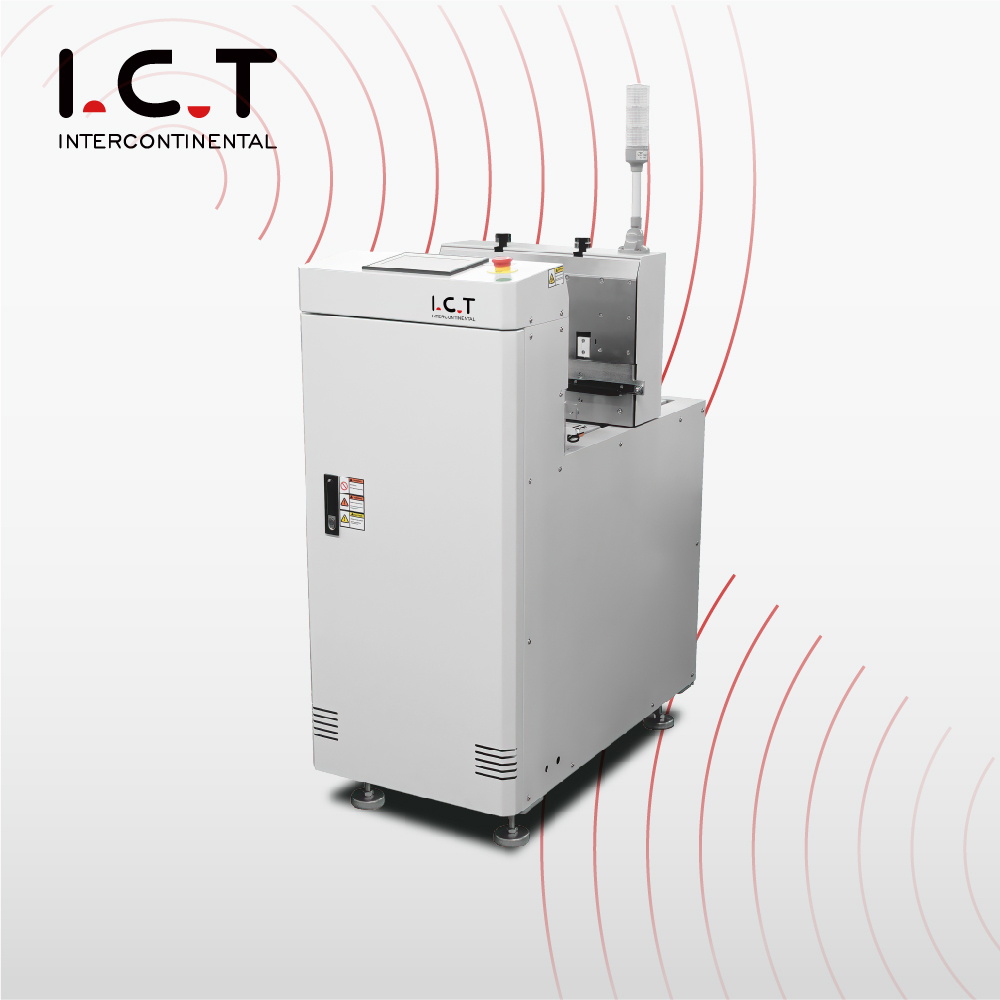

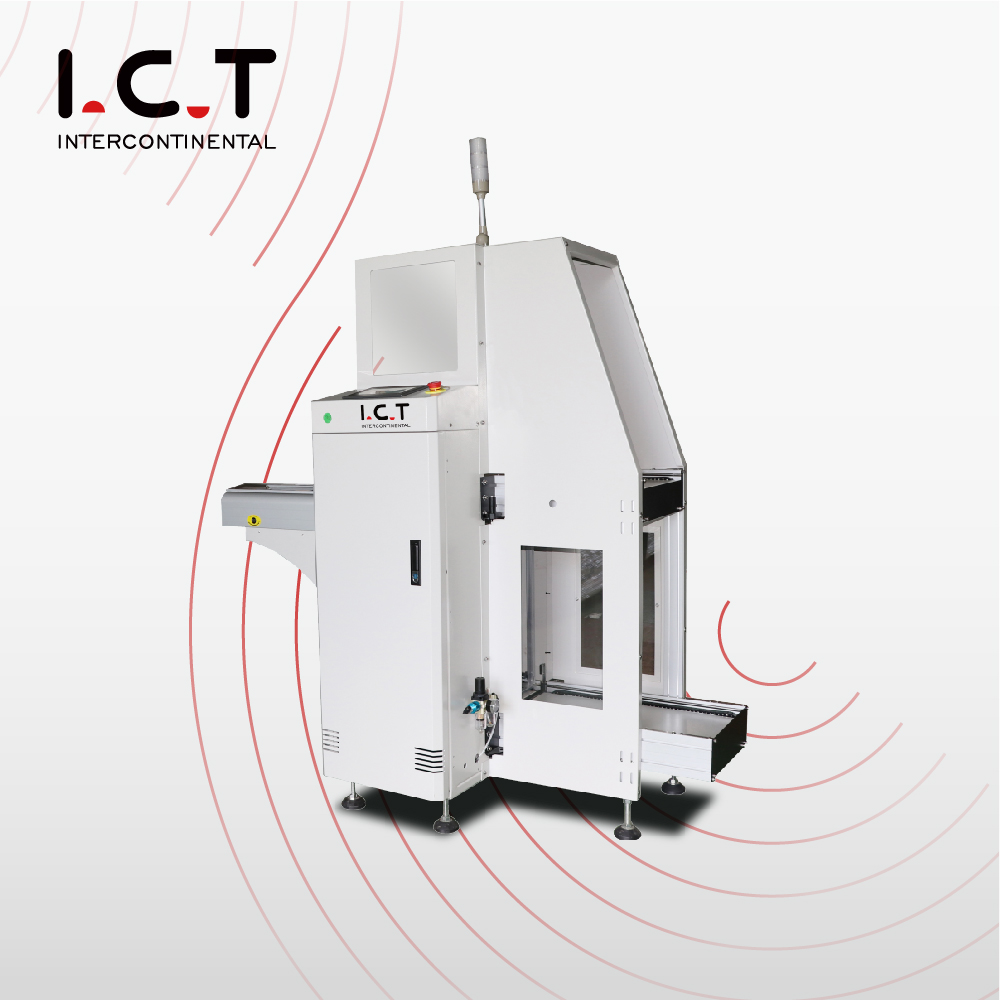

| Reliable SMT PCB Loader Unloader for High-Volume SMT Lines
At I.C.T we proudly offer the SMT PCB Loader Unloader as an upgraded automatic handling solution that combines strong vacuum suction with traditional magazine feeding in one robust machine. We designed it to safely pick bare PCBs from racks and transfer them smoothly to the next station with zero damage and maximum efficiency. Available in standard or full CE versions, our SMT PCB Loader Unloader delivers outstanding stability, longer service life, and lower maintenance costs. We built it to integrate perfectly with any SMT brand and support future smart factory upgrades.
| Detailed Product Features
We use premium-grade materials throughout the entire structure of our SMT PCB Loader Unloader. Every installation and assembly process strictly follows international ISO and CE quality standards. Our team added a reinforced base and smart ergonomic improvements so the machine remains extremely stable even after years of continuous operation. Technicians love how easy it is to maintain and operate daily. These upgrades may increase our initial cost slightly, but they give our customers peace of mind and significantly longer machine lifetime in real production environments.
We equip the SMT PCB Loader Unloader with high-quality sensors and top-tier electrical components that ensure ultra-precise board detection and movement. Clear status indicators and reliable high-frequency buttons allow operators to monitor and control the machine instantly at any production speed. This advanced electrical design dramatically reduces errors and helps maintain consistently high output. Our customers frequently tell us how these improvements make a real difference in their daily operation and overall line efficiency.
We built the SMT PCB Loader Unloader with a fully upgradable Industry 4.0 control platform that can easily expand as your factory grows. Optional support for IPC-CFX, Hermes, and SEMI SMT-ELS protocols allows seamless communication with other machines on the line. Our customers appreciate how this smart system turns their production floor into a modern connected factory with minimal effort. The control architecture is designed to meet both current needs and future automation goals.
We developed a strong yet gentle vacuum system in the SMT PCB Loader Unloader that safely lifts thin or large PCBs without any bending or surface marks. Combined with smooth translational movement, it guarantees perfect board positioning every single cycle. Our engineers focused on protecting product quality right from the first step of the production process. Customers running sensitive boards especially value this careful handling capability.
We offer multiple smart communication modules so our SMT PCB Loader Unloader can connect instantly with printers, pick-and-place machines, and MES systems. This flexibility eliminates unnecessary manual work and greatly reduces changeover time between jobs. Many of our customers have successfully built fully automatic lines using this capability. The modular design makes it simple to add new functions whenever production requirements change.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
We design our Turnkey PCBA Production Line to deliver fully automatic, high-speed, and ultra-reliable PCBA manufacturing. The proven setup starts with our SMT PCB Loader Unloader, moves to a precision automatic printer for perfect solder paste application, continues with pick and place PCB machine for accurate component placement, passes through a stable 8 zone reflow oven for strong solder joints, and finishes with PCB inspection equipment to catch any defect. Every machine communicates seamlessly, reducing labor and boosting first-pass yield. This complete solution meets automotive, medical, consumer, and LED industry standards while keeping operating costs low and uptime extremely high.
| Customer Success Story
In 2024, our overseas engineers traveled to Finland to install a complete fully automatic LED Panel production line for a major European lighting manufacturer. The turnkey solution featured our SMT PCB Loader Unloader together with a 1.5 m automatic printer, SM482PLUS placement machine, L8 reflow oven, vertical cooling buffer, linking conveyors, board splitter, and solder paste mixer. We completed installation, debugging, and hands-on operator training in only five days. The customer reached target speed on the very first production day and passed their strict European audit immediately. They were particularly impressed with the reliable performance of our SMT PCB Loader Unloader.
| Professional Training & Support
We provide true one-stop support for every SMT PCB Loader Unloader we deliver. This includes on-site or remote installation, free operator and engineer training, 24/7 technical hotline access, worldwide spare-parts stock, and preventive maintenance programs. Our experienced international team makes sure the machine runs at peak performance for many years with almost zero unplanned stops. We are committed to keeping your production running smoothly long after the sale.
| Customer Praise
Our customers consistently praise us for excellent service and equipment quality. One client told us, “Your engineer solved our issue in under 30 minutes even at 2 a.m. — incredible response time.” Another shared, “The packing was so secure that the machine arrived in perfect condition after long ocean shipping.” Many also highlight the outstanding reliability, saying their SMT PCB Loader Unloader has run 24/7 for over 18 months with zero failures. They appreciate how quickly our team responds and how practical the training is for new operators.
| Our Certification
We ensure every SMT PCB Loader Unloader meets the highest international standards. Each machine carries CE, RoHS, and ISO9001 certifications along with several technical patents. Before shipment, our team performs rigorous 72-hour full-load testing and multiple quality inspections. This strict process guarantees customers receive proven, reliable equipment that complies with global requirements right out of the box. We take great pride in delivering machines our customers can trust completely.
| About Us and Factory
We established I.C.T in 2012 and have grown rapidly into a modern manufacturer with a 12,000 m² factory and nearly 90 dedicated employees. Our own R&D team designs, builds, and tests everything in-house under strict quality systems. Today we proudly serve over 1,600 customers across 72 countries. Whether you need a single SMT PCB Loader Unloader or a complete turnkey line, we are the long-term partner factories trust worldwide.
