SMT PCB Loader / Unloader
I.C.T
| Quantity: | |
|---|---|

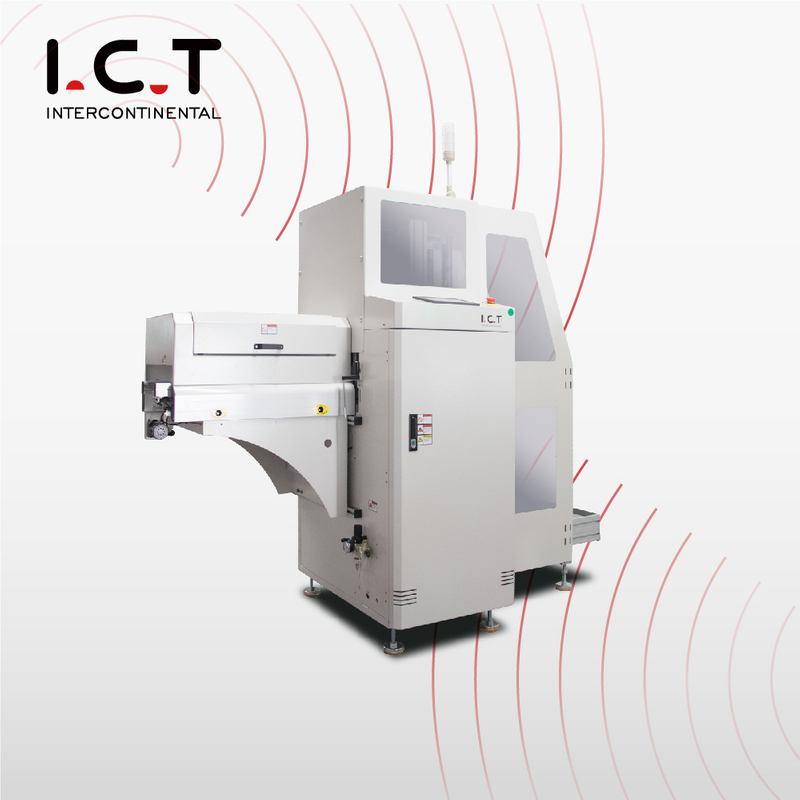

| Your High-Performance SMT Mini PCB Loader
With the SMT mini PCB loader you get an upgraded solution that combines powerful vacuum suction and traditional magazine feeding in one compact reliable machine. You can gently pick bare PCBs from racks and smoothly transfer them to the next station with zero damage and maximum speed. Whether you choose the standard or full CE version this SMT mini PCB loader brings you better stability longer lifetime and much lower maintenance costs. Advanced hardware electrical systems and smart controls keep your line running 24/7 while cutting downtime dramatically. It integrates easily with any brand and supports smart-factory upgrades so you stay ahead in high-mix or high-volume production.
| Detailed Product Features
You benefit from top-grade materials and strict ISO and CE installation rules in every mechanical part of the SMT mini PCB loader. The reinforced base and ergonomic upgrades may add a little to the cost but they deliver years of rock-solid stability and super-easy operation for technicians of any experience level. You get a machine that stays aligned and performs consistently even under continuous heavy use so your team can focus on output instead of constant adjustments.
High-quality sensors and components give the SMT mini PCB loader ultra-precise board detection and movement control that you can count on shift after shift. Bright status lights and high-frequency buttons let your operators see and react instantly no matter how fast the line runs. This electrical upgrade means fewer errors higher daily output and peace of mind because you know every board is handled exactly right every time.
The built-in Industry 4.0 control platform is fully upgradable and expandable so you can add new capabilities whenever your factory grows. Optional IPC-CFX Hermes and SEMI SMT-ELS protocols let the SMT mini PCB loader talk seamlessly with upstream and downstream machines turning your line into a true smart factory with minimum effort. You stay flexible and ready for Industry 4.0 demands without replacing equipment.
Strong stable vacuum suction safely lifts even thin or large PCBs without bending or scratching so you protect product quality from the very first step. Combined with smooth translational conveyor motion the SMT mini PCB loader guarantees perfect board positioning every cycle. You avoid costly rework and keep your downstream processes running at peak efficiency because every board arrives exactly where and how your line expects it.
Choose optional communication modules and the SMT mini PCB loader connects instantly to your printers placement machines and MES systems. This flexibility removes manual intervention reduces changeover time and helps you build a completely automatic SMT line today. You gain full traceability faster throughput and lower labor costs while keeping the simple reliable operation you expect from a Mini SMT PCB Magazine Loader And Unloader.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
You get a JUKI PCB Assembly Line that delivers fully automatic high-speed and ultra-reliable PCBA manufacturing. The proven setup starts with your SMT mini PCB loader moves to a precision automatic printer for perfect solder paste application continues with best SMT placement machine for accurate component placement passes through a 10 zone reflow oven for strong solder joints and finishes with AOI PCB machine to catch any defect. Every machine communicates seamlessly reducing your labor and boosting first-pass yield. This complete solution meets automotive medical consumer and LED industry standards while keeping your operating costs low and uptime extremely high.
| Customer Success Story
In 2024 you could have seen I.C.T overseas engineers fly to Finland to install and commission a fully automatic LED Panel production line for a leading European lighting manufacturer. The turnkey solution included your SMT mini PCB loader 1.5 m fully automatic printer SM482PLUS placement machine L8 reflow oven vertical cooling buffer linking conveyors board splitter and solder paste mixer. Our team finished installation debugging and hands-on operator training in just five days. On the first official production day your line already hit target speed with zero defects. You would have passed the strict European audit on the first try and immediately placed a repeat order for another complete line.
| Professional Training & Support
You receive true one-stop support with the SMT mini PCB loader: on-site or remote installation free operator and engineer training 24/7 technical hotline worldwide spare-parts stock and preventive maintenance programs. Our experienced international team makes sure your machine runs at peak performance for many years with almost zero unplanned stops. You gain confidence knowing expert help is always just a call away so you can focus on growing your business instead of worrying about equipment uptime.
| Customer Praise
You will hear stories like “Best packing I’ve ever seen—no damage even after ocean shipping!” and “Your engineer solved our problem in 30 minutes at 2 a.m.—unbelievable response speed.” Customers also say “The SMT mini PCB loader has been running 24/7 for 18 months with zero failure” and “Training was clear and practical; new operators were ready in one day.” These real experiences show why factories worldwide trust I.C.T for reliable performance and outstanding support.
| Our Certification
Every SMT mini PCB loader carries CE RoHS and ISO9001 certifications plus multiple technical patents. Before leaving our factory each machine goes through 72-hour full-load testing and strict quality checks so you receive proven reliability and full compliance right out of the crate. You can install with complete confidence knowing the equipment meets the highest international safety and performance standards demanded by today’s electronics manufacturers.
| About Us and Factory
Since 2012 you have been able to partner with I.C.T a company that now runs a modern 12,000 m² factory with nearly 90 employees and its own R&D center. We design build and test everything in-house under strict quality systems. Serving over 1,600 customers across 72 countries we have grown fast by always putting your success first. From a single SMT mini PCB loader to complete turnkey lines I.C.T is the long-term partner you can trust worldwide.
