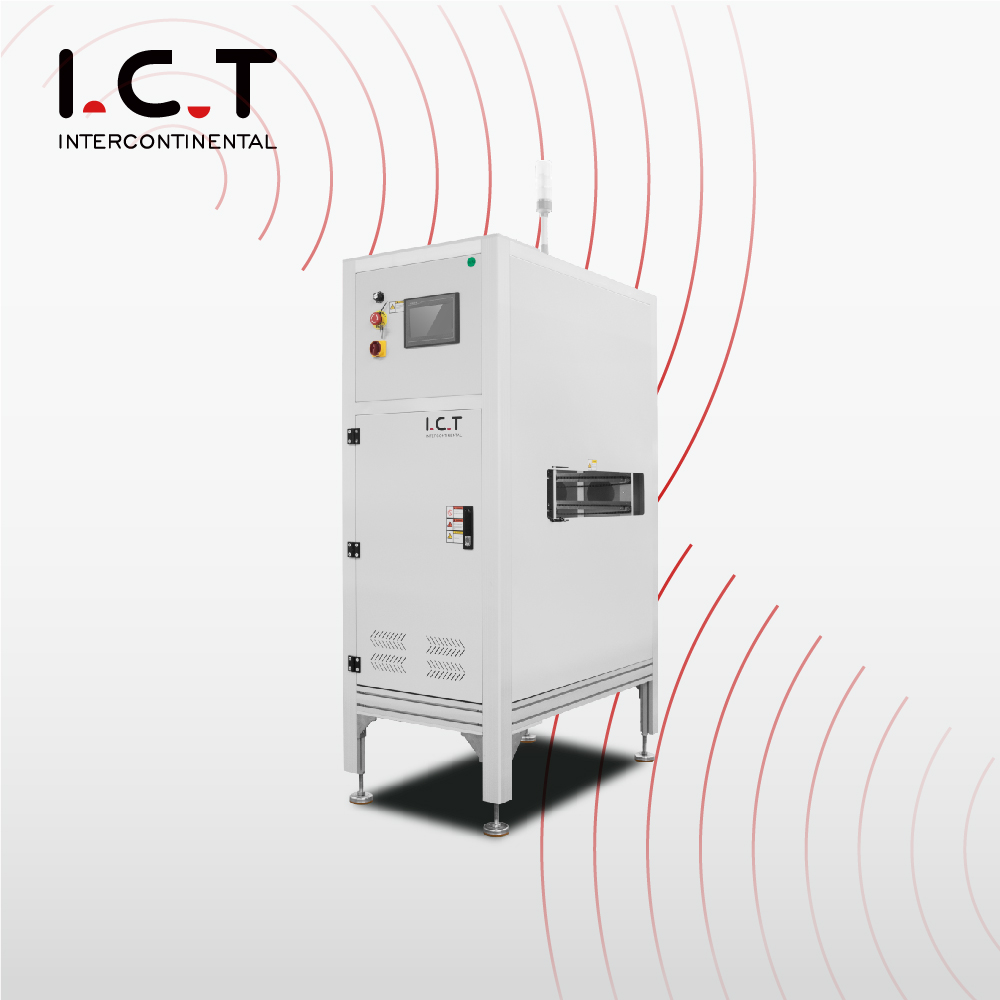

| Multi Function Vertical Buffer – Essential Handling Equipment
In SMT production lines, boards must move steadily between machines. The Multi Function Vertical Buffer serves as a key handling device that stores and releases PCBs at the right moment. It prevents bottlenecks and helps maintain constant flow across the entire line. Factories use it to balance speed and control during high-volume or mixed production runs.

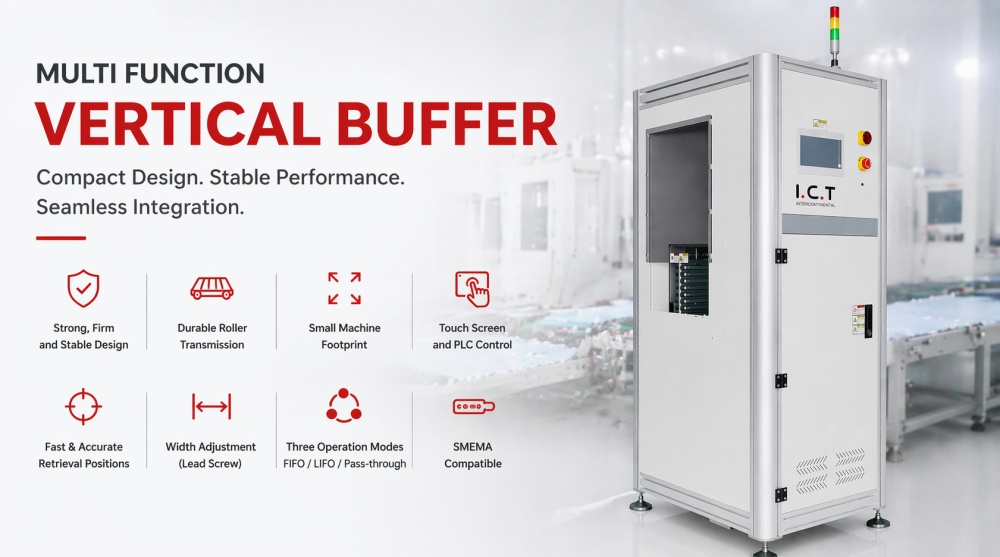

| Advanced Features for Multi Function Vertical Buffer Reliable Performance
Built for Daily SMT Operation
Engineers designed this unit with a firm structure and durable rollers. No belts mean less maintenance and fewer stops. The compact vertical shape saves floor space while holding up to 25 boards. Operators adjust width quickly with a lead screw and control everything through a clear PLC touch screen.
Flexible Modes for Real Production Needs
Choose FIFO, LIFO, or pass-through depending on your process. The unit connects easily with other machines through SMEMA. Fast 10-second cycles and accurate retrieval keep the line running without delay. This makes the Multi Function Vertical Buffer a practical choice for busy SMT environments.
Multi Function Vertical Buffer For SMT Line
When placed between key stations like reflow and AOI, it cools boards and manages flow. Its reliable performance supports stable output day after day.
| Specification
| Model | VB350 | VB460 |
|---|---|---|
| Dimension (mm) | 5008001650 | 6009001650 |
| PCB Size (mm) | 5050 - 445350 | 5050 - 530460 |
| Cycle Time | Approx. 10 Seconds | Approx. 10 Seconds |
| PCB Capacity | 25 pcs (or Specify) | 25 pcs (or Specify) |
| Control System | PLC | PLC |
| Power | Max 250 VA | Max 250 VA |
| Transport Height | 900 ± 20 mm (or Customer Specified) | 900 ± 20 mm (or Customer Specified) |
| PCB Direction | L to R or R to L | L to R or R to L |
| Communication | SMEMA for Both In & Out | SMEMA for Both In & Out |
| Power Supply | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) |
| Weight | 200 Kg | 260 Kg |
| Option: | Automatic width adjustment | |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
We design our Turnkey PCBA Production Line to deliver fully automatic, high-speed, and ultra-reliable PCBA manufacturing. The proven setup starts with our SMT PCB Loader Unloader, moves to a precision automatic printer for perfect solder paste application, continues with pick and place PCB machine for accurate component placement, passes through a stable 8 zone reflow oven for strong solder joints, and finishes with PCB inspection equipment to catch any defect. Every machine communicates seamlessly, reducing labor and boosting first-pass yield. This complete solution meets automotive, medical, consumer, and LED industry standards while keeping operating costs low and uptime extremely high.
| Customer Success Story - Successful Project in Finland
I.C.T recently completed a full automatic SMT line for an LED manufacturer in Finland. The solution featured a vacuum loader, 1.5-meter printer, SM482 PLUS, L8 reflow oven, cooling vertical buffer, conveyors, router, and solder paste mixer. Our service engineer traveled on site to handle installation, testing, and full operator training. The customer started production quickly and reported stable performance from the first day. This project shows how our handling equipment and on-site support help international clients reach their targets.
| Professional Service and Training Support
Installation, Training, and Ongoing Support
I.C.T stands behind every line we deliver. Our engineers provide complete installation, clear training sessions, and continued technical help. We work closely with your team to optimize processes and solve any issues that appear during daily operation. This full support approach gives customers confidence to focus on their core business while we handle the equipment details. Long-term partnership remains our goal.
| What Our Customers Say
Factory managers often mention how our engineers solve problems quickly and professionally. They praise the steady performance of our machines and the careful packing that protects equipment during shipping. Many also note our fast replies to questions and reliable after-sales service. These experiences build lasting trust with teams around the world.
| Certified Quality You Can Trust
All I.C.T equipment meets strict international standards. We hold CE, RoHS, and ISO9001 certificates plus several patents. These confirm our focus on safety, quality, and environmental responsibility in every unit we produce.
| About I.C.T – Your Reliable SMT Partner
I.C.T owns its research and production facilities with a large team of skilled people. We have grown steadily while serving over 1,600 customers in 72 countries. Our modern factory follows detailed testing steps and a full quality system. From initial planning to final operation, we deliver complete solutions that help manufacturers build, upgrade, and improve their lines with confidence.
