I.C.T-5600
I.C.T
PCB Cleaning Machine
| Quantity: | |
|---|---|

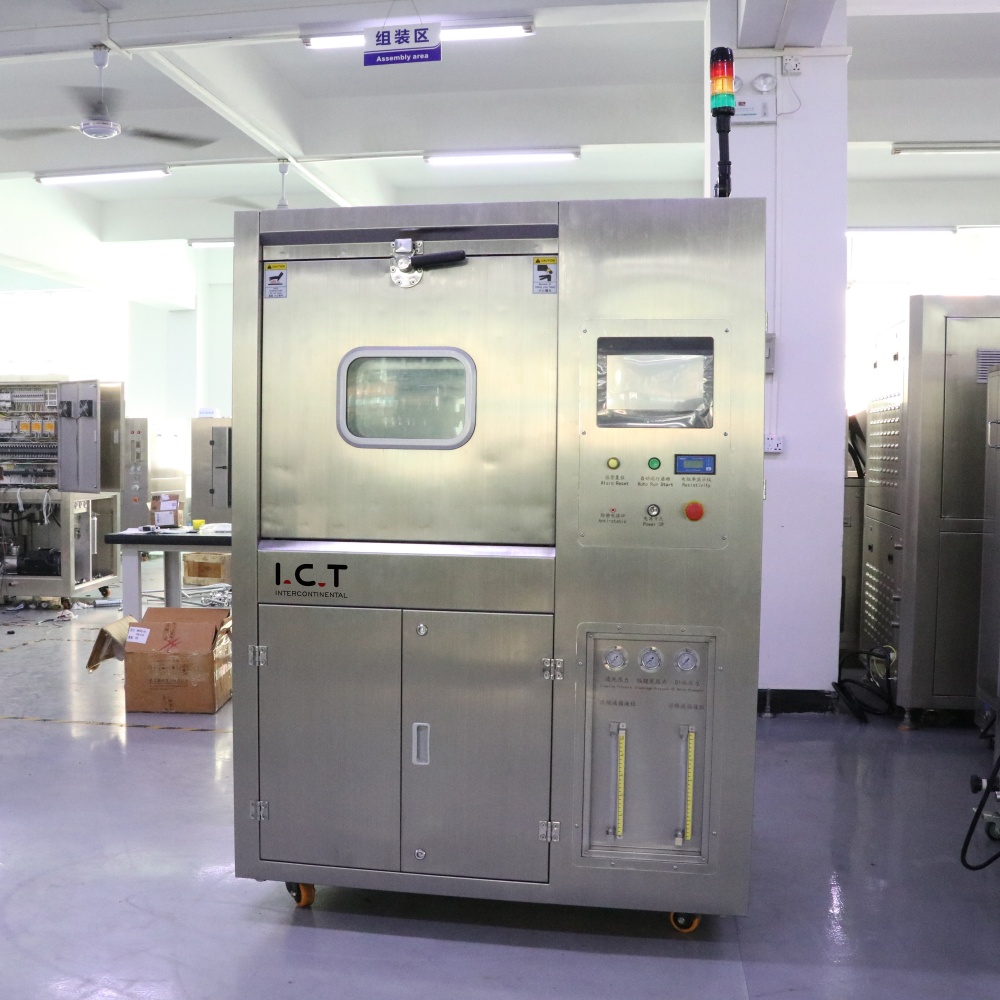

| I.C.T-5600 Offline PCB Board Cleaner
The I.C.T-5600 serves as a practical offline PCB board cleaner built for batch cleaning in electronics production environments. It removes rosin flux, water-soluble flux, no-clean flux, solder paste residues, and other organic or inorganic contaminants from both SMT and THT boards. This unit fits well in sectors like aerospace, medical devices, automotive electronics, new energy, and precision instrumentation, particularly for facilities running small batches or frequent product variations. A large observation window lets operators watch the entire cleaning cycle clearly. The heated detergent, combined with multi-channel sprays, delivers thorough coverage, while efficient recycling reduces waste. User-friendly controls include password protection for secure parameter settings. Compared to the online I.C.T-6300, which uses a belt conveyor and high-pressure sprays for continuous high-volume work, the 5600 prioritizes flexibility and a smaller footprint.
| Feature

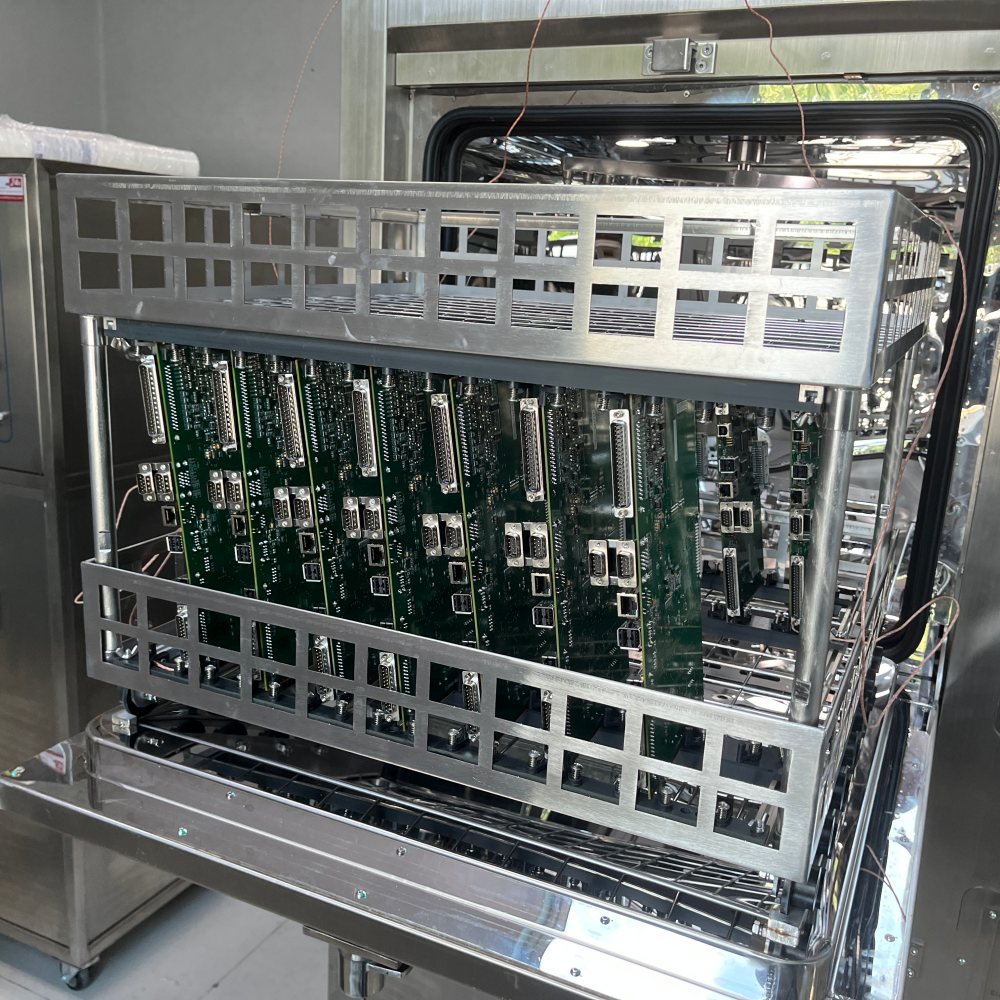

SUS304 stainless steel forms the entire cleaning room, ensuring durability against chemicals and a tight seal that lasts for years. Uniform liquid distribution comes from multiple spray channels working across the chamber. The double-layer basket design raises loading capacity, while universal fixtures feature protective plastic sleeves to avoid damaging PCBA surfaces. Opening the door creates a temporary loading platform supported by slides and small wheels for convenient board placement. A tilted floor with dense filter nets directs liquid flow and prevents pooling in the tank. During cycles, a magnetic push rod moves the basket gently forward and back, helping sprays reach every area. Nozzle arrangement guarantees coverage of all corners without leaving residues behind. This setup combines protection for boards with maximum cleaning effectiveness.
An in-house developed circulation pipe layout keeps the system efficient and compact at the same time. The high-power diaphragm pump generates strong, steady flow needed for consistent results. Liquid moves through optimized routes that support repeated use while saving valuable space inside the unit. Internal filters remove particles, allowing detergent to stay effective over multiple batches. Corrosion-resistant materials maintain performance during long operation periods. The air blow feature returns leftover liquid from pipes and pumps to the tank, cutting fluid loss significantly. This design lowers running expenses and supports sustainable practices. For production with changing board types, the circulation system delivers predictable, high-quality cleaning every time.
The washer fluid system includes a 60L diluent tank and 30L concentrate tank to maintain steady supply levels. Quick heating raises detergent temperature rapidly, shortening overall cycle times and boosting efficiency. Filtration inside permits reuse of cleaning solution without performance decline. Continuous monitoring of DI water resistivity provides immediate feedback on cleaning quality. Compressed air clears residual detergent from lines and pumps after each run, returning it to the tank and saving up to 50% of fluid. All tank components use SUS304 stainless steel for resistance to chemicals and easy cleaning. This reliable setup supports stable operation across demanding schedules. The I.C.T-6300, by contrast, features larger tanks suited to inline continuous processing.
The I.C.T-5600 focuses mainly on effective spray cleaning, yet it manages residual moisture well through integrated air blow and rinsing steps. Boards leave the process clean and sufficiently dry for immediate follow-up tasks like inspection or coating. The design prevents water marks and trapped contaminants that might affect later assembly stages. In batch operation, natural drying after thorough rinsing meets quality needs without extra equipment. Ionic contamination stays below IPC Class I limits, ensuring compliance in sensitive applications. Users gain confidence from consistent preparation of boards for downstream processes. While the online I.C.T-6300 includes dedicated multi-stage hot air drying zones for faster throughput, the 5600 achieves dependable drying within its efficient offline format.
Operators use a clear touch interface to adjust settings quickly and without difficulty. Parameters such as temperature, duration, and cycle count change easily, with password protection preventing unauthorized modifications. The display shows live resistivity values and process progress for straightforward oversight. Alarms signal conditions like low fluid levels promptly to maintain safety. This simple yet effective control layout reduces training requirements and minimizes operational mistakes. Electronics provide reliable, repeatable performance over many production runs. Traceability options support quality records when required. In high-standard environments, these controls offer dependable management and peace of mind throughout daily use.
| Comparison Before and After
| Specification

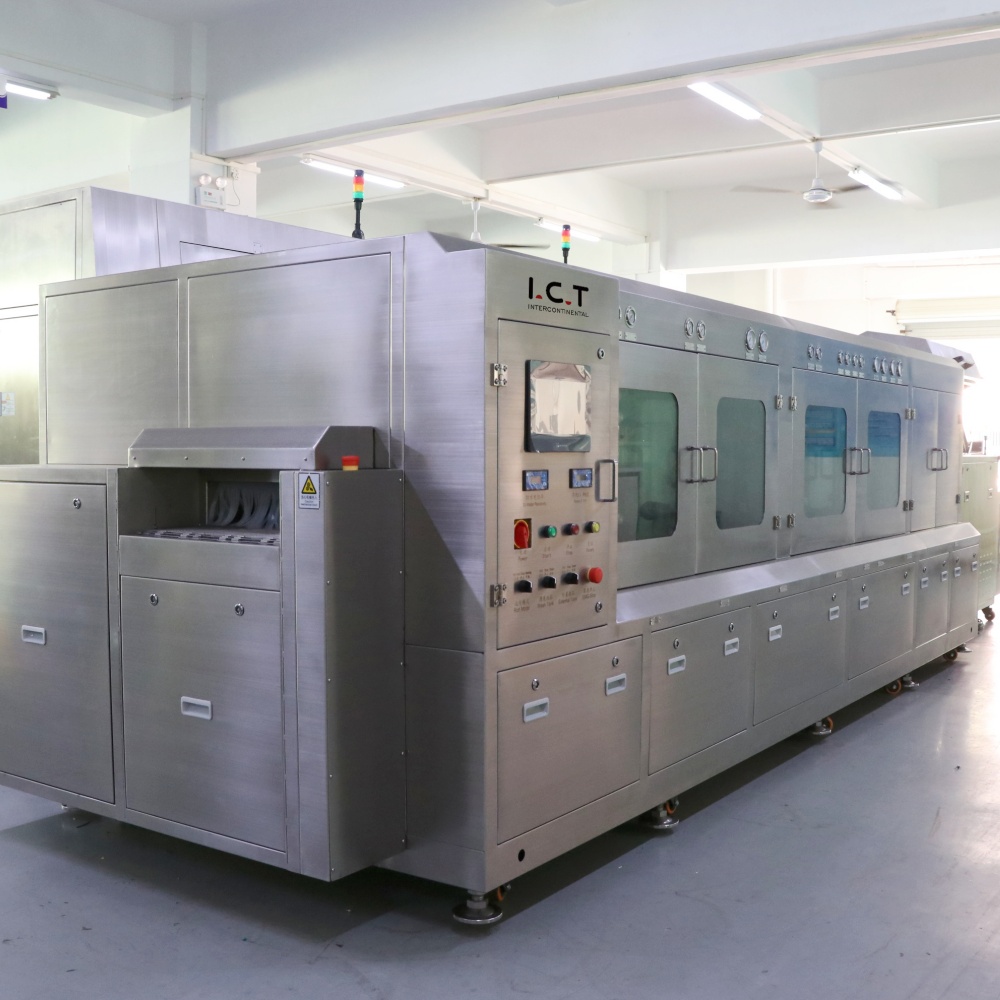

| Parameter | I.C.T-5600 (Offline) | I.C.T-6300 (Online) |
|---|---|---|
| Cleaning Type | Offline batch, basket loading | Online continuous, belt conveyor |
| PCBA/Basket Size | 610 × 560 × 100 mm × 2 layers | Up to 600 × 400 × 100 mm (max conveyor width) |
| Cleaning Method | Multi-spray with heating, rinse, hot air dry | High-pressure spray, chemical + DI rinse + hot air dry |
| Tank Capacity (Diluent/Clean) | 60L (dilution) / 17L (spray tank) | 240L (clean liquid tank) |
| Concentrate Tank | 30-32L | Equipped with concentrated tank + auto add/discharge |
| Power Supply | Not specified (typically lower, ~30-50 kW est.) | 380V 3P 50/60Hz, 110-122 kW |
| Machine Dimensions | Compact (exact not listed, smaller footprint) | 5200 × 1750 × 1650-1700 mm |
| Drying | Hot air dry 10-30 min | Multi-stage hot air dry (dry 1 & dry 2) |
| Control System | Touch screen, easy parameters, password | PC + PLC, English software, adjustable pressures |
| DI Water Resistivity Monitoring | Yes, real-time | Yes, monitoring system |
| Typical Use | Small-multi variety, high-mix batches | High-volume batch, inline SMT lines |
| SMT Line Equipment List
I.C.T assembles complete SMT SMD Production Line that pair naturally with the PCB board cleaner. Common configurations include PCB Laser Marking for identification, solder paste printer with SPI machine for precise solder application, JUKI mounters for fast component placement, reflow soldering oven for secure soldering, AOI optical inspection for defect checking, and PCB conveyors for steady material movement. Automatic solder paste storage and thawing units keep material in optimal condition. For boards with through-hole components, Selective Wave Solder and double wave soldering machine provide additional capability. These elements integrate smoothly to create efficient, high-output lines customized to specific needs. I.C.T assists with selection and setup to ensure reliable performance from start to finish.
| Customer Success Video
I.C.T carried out full overseas installation and Factory Acceptance Testing for two SMT production lines at a North American beauty instrument manufacturer. The scope included laser marking machines, SMT printers with SPI, Panasonic mounters, Heller reflow ovens, AOI inspection equipment, PCB conveyors, PCBA cleaning machines, and automatic solder paste storage thaw boxes. Our team managed on-site assembly, debugging, training, and verification processes. The customer completed acceptance without issues and moved directly into production. This project demonstrates I.C.T’s capability to execute turnkey deliveries, manage international logistics, and deliver dependable support for clients in competitive industries.
| Service and Training
I.C.T supplies thorough service and training programs to help customers start using equipment effectively right away. Skilled engineers perform on-site installation, accurate commissioning, and detailed operator training. Instruction covers setting parameters, performing maintenance, handling basic troubleshooting, and following safety guidelines. Remote support resolves questions or concerns quickly. We supply clear manuals, video guides, and continued technical advice for ongoing success. Process optimization suggestions help improve efficiency over time. This complete package reduces startup delays, lowers downtime, and extends equipment life. Customers count on our responsive worldwide team to keep operations running smoothly and productively.
| Customer Reviews
Many customers speak highly of our engineers’ expertise, patience during training, and fast response to any questions or adjustments needed on site. The PCB board cleaner earns praise for its reliable cleaning performance and robust build that stands up to regular use. Features like significant detergent savings receive positive feedback for cutting operational expenses. Packaging and shipping get compliments for secure delivery with no damage, even across long distances. Rapid support through email and remote diagnostics strengthens confidence in our commitment. Clients consistently describe I.C.T as a trustworthy partner offering quality machines and strong after-sales care.
| Our Certification
I.C.T products hold key international certifications that verify safety, environmental standards, and manufacturing quality. CE certification confirms compliance with European safety rules, RoHS restricts harmful substances, and ISO9001 proves an effective quality management system. Multiple patents cover advanced cleaning methods and designs. These approvals give confidence for applications in regulated fields such as medical, automotive, and aerospace industries. Customers select our PCB board cleaner knowing it passes strict evaluations and meets global requirements. Our certifications underline a strong focus on safe, responsible, and high-quality production practices.
| About Us and Factory
I.C.T operates its own R&D and production facilities in Dongguan, China, ensuring direct oversight of design and build quality. Established in 2012, the company has expanded steadily, now with 89 employees, including 20 dedicated engineers, across 12,000 square meters. We support over 1,600 customers in 72 countries through comprehensive SMT, DIP, and coating solutions. Rigorous testing occurs at every stage, backed by a solid quality management system that guarantees consistent product performance. Eight branch offices extend our global reach and service capability. I.C.T prioritizes innovation and customer needs to assist manufacturers in developing and improving their production systems effectively.
