NXTR
FUJI
| Quantity: | |
|---|---|
| NXTR Smart SMT Platform

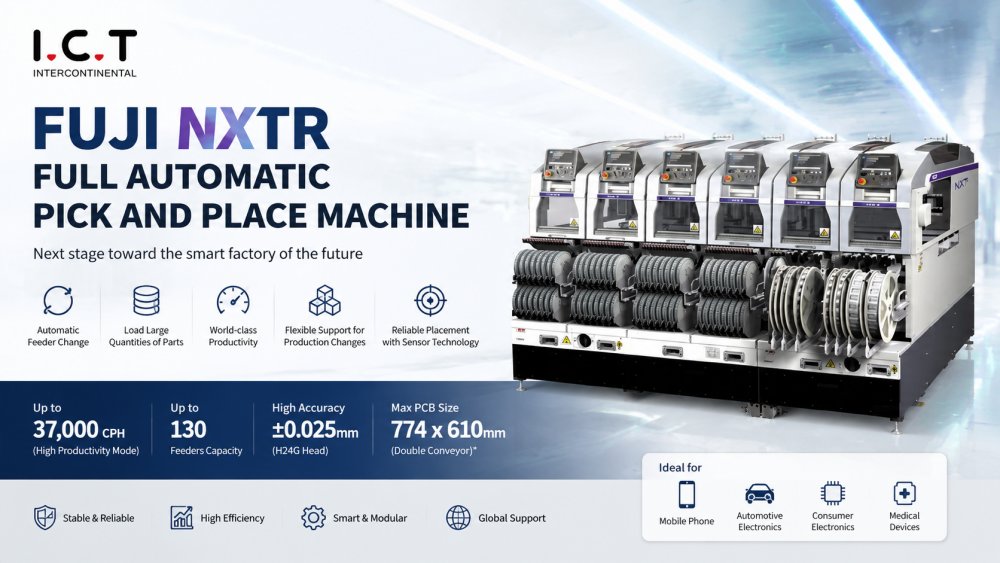

The FUJI Pick and Place Machine NXTR series is a next-generation SMT placement solution designed for smart factories and high-volume electronics production. It features a modular structure that allows flexible line configuration based on different manufacturing needs. This system is widely used in mobile phone, consumer electronics, automotive electronics, and high-density PCB assembly.
As a core FUJI SMT Pick and Place Machine, it delivers high-speed and high-accuracy component placement with advanced sensor-based control and intelligent feeder management. Integrated into a full SMT Production Line, it works together with printers, SPI systems, reflow ovens, and AOI inspection systems. I.C.T provides full installation, training, and global technical support to ensure stable production and fast ramp-up.
| Product Features
The FUJI Pick and Place Machine NXTR is built with a modular architecture that allows flexible SMT line configuration. Manufacturers can easily expand or adjust production capacity based on product demand. This structure reduces downtime and improves factory scalability. Each module works independently but integrates seamlessly into the full SMT production line. This makes it suitable for smart factories that require fast adaptation and high efficiency in modern electronics manufacturing environments.
The FUJI SMT Pick and Place Machine uses an advanced automatic feeder exchange system that significantly reduces manual intervention. It enables continuous production by minimizing changeover time between different product models. The system can handle up to 130 tape feeders, supporting high-mix production environments. This feature improves productivity and reduces operator workload. It ensures stable material supply and helps maintain consistent SMT production performance across long manufacturing cycles.
The automatic pick and place machine delivers extremely high-speed performance, reaching up to 37,000 cph in high productivity mode. Different head types such as H24G, H08M, and H02F provide flexible production capacity for various component sizes. This high-speed capability makes it ideal for mobile phone PCB assembly and large-scale electronics manufacturing. It maintains stable accuracy even under continuous operation, ensuring high output with low defect rates.
The FUJI SMT Machine integrates advanced sensor technology for real-time placement monitoring. From component pickup to placement, every step is checked to ensure accuracy and stability. The system supports high-precision placement with ±0.025 mm accuracy in optimized modes. This reduces placement errors and improves product yield. It is especially important for high-density PCB designs used in modern smartphones and advanced electronic devices.
The NXTR system supports a wide range of component sizes, from ultra-small chips to larger IC and board-level components. Different head configurations allow optimized production for mixed product types. This flexibility makes it suitable for EMS factories with frequent product changes. It ensures stable performance across different production requirements while maintaining high speed and accuracy, making it a strong solution for dynamic manufacturing environments.
| Specification
Basic Specifications | |
PCB size(LXW) | 48 x 48 mm to 774 x 610 mm (double conveyor)* |
Feeder capacity | Up to 130 (8 mm tape) |
Placing accuracy | H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00 |
Machine dimensions | L: 1280mm, W: 2656mm, H: 1556mm |
Placing heads | |||||
H24G | H08M | H02F | H01 | OF | |
Nozzle quantity | 24 | 8 | 2 | 1 | 1 |
Throughput(cph) | 37,000 cph (Productivity priority mode, under development) | 13000 | 7300 | 4200 | 3000 |
Part size (mm) | 03015 mm to 5 x 5 | 0603 (0201")to45 x 45 | 1608 (0603")to 74 x 74 (32 x 180) | 1608 (0603")to 74 x 74 (32 x 180) | |
Part presence check | ○ | ○ (H08MQ) | ○ | x | |
Parts supply Tape | ○ | ○ | ○ | ○ | |
Stick | x | ○ | ○ | ○ | |
Tray | x | ○ | ○ | ○ | |
DynaHead(DX) | ||||
Nozzle quantity | 12 | 4 | 1 | |
Throughput(cph) | 27,000 | 12000 | 5800 | |
Part size (mm) | 0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less | 1608 (0603")to 15 x 15 | 1608 (0603")to 74 x 74 (32 x 100) | |
Placing accuracy | +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00 | +/-0.040 mm (3σ) cpk≥1.00 | +/-0.030 mm (3σ) cpk≥1.00 | |
Part presence check | o | x | o | |
Parts supply | Tape | o | o | o |
Stick | x | o | o | |
Tray | x | o | o | |
*Contact I.C.T for specific operating conditions and detailed specifications.
| SMT Line Equipment List
Our SMT assembly line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
The FUJI Pick and Place Machine is part of a complete SMT production ecosystem. It works seamlessly with solder paste printers, SPI inspection systems, reflow ovens, AOI inspection machines, and PCB handling equipment. This integration ensures a fully automated production process from PCB loading to final inspection. I.C.T provides turnkey SMT solutions that help factories build efficient, stable, and intelligent production lines for global electronics manufacturing.
| Customer Success Video
I.C.T successfully delivered a full SMT production line installation and training project in Algeria for mobile phone manufacturing. The system includes SMT loader, I.C.T-4034 stencil printer, SPI system, FUJI Pick and Place Machine solution, Lyra 733 reflow oven, AOI inspection system, and PCB handling equipment.
During one month of on-site support, our engineers completed installation, debugging, and operator training. The FUJI SMT Pick and Place Machine played a key role in achieving stable high-speed production with consistent accuracy. The customer successfully started mass production and provided positive feedback on equipment stability and I.C.T technical support.
| Service & Training Support
I.C.T provides full global technical support for SMT production lines, including installation, programming, debugging, and operator training. Our engineers support customers on-site and online, ensuring fast production startup and stable operation. Training covers machine operation, maintenance, and production optimization. This helps customers quickly master the FUJI Pick and Place Machine and achieve efficient SMT manufacturing with reduced downtime and improved productivity.
| Customer Praise
Customers highly recognize the performance of the FUJI Pick and Place Machine for its stability and high-speed production capability. They appreciate the professional installation and training provided by I.C.T engineers. The smart feeder system and accurate placement control are often highlighted as key advantages. Customers also value our fast response service, safe packaging, and reliable global shipping support, which ensure smooth project execution from delivery to production.
| Our Certification
I.C.T equipment complies with global standards including CE, RoHS, ISO9001, and multiple patented technologies. These certifications ensure safety, reliability, and stable performance in industrial environments. Every FUJI SMT Pick and Place Machine system is strictly tested before delivery. Our quality control process ensures consistent performance and long-term reliability for global SMT manufacturing applications.
| About I.C.T and Factory
I.C.T is a leading SMT solution provider with over 20 years of experience in electronics manufacturing equipment. We have served more than 1,700 customers across 80+ countries worldwide. Our company integrates R&D, production, sales, and technical service to deliver complete SMT factory solutions. With strong engineering capability and strict quality control, we help customers build efficient, smart, and scalable SMT factories from start to mass production.
