I.C.T | Pick and Place LED Strip Mounting Machine SMT Small Strip Light Production Machine

Share to:

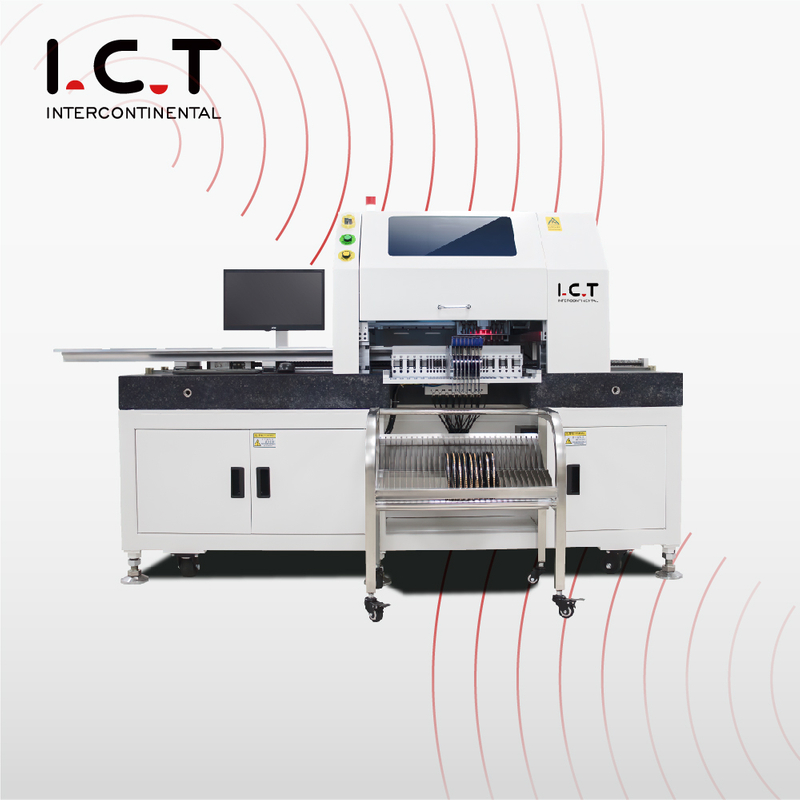

I.C.T | Pick and Place LED Strip Mounting Machine SMT Small Strip Light Production Machine

Professional LED Strip Production Solution

a. Accurate LED strip component placement
b. Stable flexible PCB mounting
c. Supports small component production
d. Reliable vision positioning control
e. Flexible manufacturing integration
f. Complete factory solution support
g. Global engineering service available

Model:
I.C.T-M6
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

Product Description

| LED Strip Mounting Solution For Modern Manufacturing

LED strip products require consistent component placement because small positioning differences can influence product appearance, electrical performance, and production efficiency. An LED Strip Mounting Machine is designed to help manufacturers automate the placement process for LED strips, flexible PCBs, and related electronic products.

By combining vision recognition, automatic feeding, and precise movement control, the equipment improves placement consistency while reducing manual operation. It is suitable for LED lighting manufacturers, electronic module producers, and factories upgrading from manual assembly methods. I.C.T provides production solutions based on customer products, capacity requirements, and manufacturing goals, helping companies build more efficient production processes.

Off-line

On-Line

| Product Features

Accurate LED Strip Component Placement

LED strip manufacturing often requires thousands of repeated placement operations with consistent results. The LED Strip Light Pick and Place Machine helps manufacturers achieve stable component mounting through accurate positioning and controlled movement. The system recognizes PCB positions and component locations before placement, reducing errors caused by manual operation or product variation.

For LED strip manufacturers, accuracy is not only related to production quality but also affects final product appearance and reliability. By improving placement consistency, the equipment helps factories reduce production waste, maintain stable output, and achieve better control over daily manufacturing processes.

Flexible Production For Different LED Products

Different LED products have different structures, lengths, and component arrangements. The Pick and Place LED Strip Mounting Machine provides flexible operation capability for various LED strip and PCB applications.

The equipment can support different production requirements through adjustable settings, allowing manufacturers to handle product changes more efficiently. This flexibility is especially valuable for companies producing multiple LED models or customized lighting products.

Instead of designing production around one fixed product, manufacturers can use a more adaptable system that supports future product development. This helps factories improve equipment utilization and respond faster to changing market requirements.

Compact Design For Small Production Needs

Not every manufacturer requires a large-scale production system. Many LED factories need automation equipment that provides reliable performance while maintaining reasonable investment costs.

The SMT Small Pick and Place Machine is suitable for small and medium production environments where space efficiency and operational simplicity are important. It helps manufacturers reduce manual placement work while improving production consistency.

With practical automation functions, the equipment provides an effective solution for factories entering automated production or expanding their existing manufacturing capability. It balances production performance, equipment flexibility, and factory investment requirements.

Complete Placement Process Control

A stable production process requires more than placement speed. Component feeding, recognition accuracy, machine movement, and process coordination all influence final results.

The SMT Pick and Place Production Machine integrates multiple control systems to maintain stable operation during continuous production. Through coordinated feeding, vision recognition, and placement control, manufacturers can achieve better process repeatability.

This integrated approach helps factories reduce production interruptions and improve manufacturing efficiency. I.C.T focuses on helping customers build practical production systems that match real factory conditions instead of providing only individual equipment.

Vision system-PCB

Vision system-Component

Platform system-Transport

Driver system-Mount Head

Feeding system

Vacuum system

| Application

led Pick and place machine

LED chip mounter

Pick place machine for LED

| Specifications

Model	I.C.T-OFM8	I.C.T-OFM10	I.C.T-ONM8	I.C.T-ONM10	I.C.T-OIM8	I.C.T-OIM10
	Off-Line		On-Line		On-Line
Max.PCB Size	1500*420 mm		1200*400 mm		800*500 mm
Special PCB Size	Special PCB size can be customized (1800-2000mm length)
Placement speed	55,000CPH	60,000CPH	55,000CPH	60,000CPH	45,000CPH	55,000CPH
Component CCD	8	10	8	10	8	10
Weight	Approx.1600KG		Approx.1600KG		Approx.1400KG

* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

| SMT Line Equipment List

SMT LINE

Building LED production capability requires coordination between different manufacturing stages. A placement machine is only one part of the complete manufacturing process.

I.C.T provides complete production solutions covering SMT, DIP, and coating processes. According to customer requirements, the production system can include PCB loading equipment, printing machines, placement equipment, reflow ovens, inspection systems, DIP production equipment, soldering equipment, coating machines, and automation solutions.

Each production line is planned based on product type, production capacity, factory layout, and future expansion needs. By connecting different processes together, I.C.T helps customers create efficient manufacturing environments with better workflow control and stable production performance.

1 SMT Line with SMT Machine 02

Product Name	Purpose in SMT Line
PCB loader unloader	Automatically loads bare PCBs to the line.
SMT stencil printing machine	Prints solder paste on PCB pads accurately.
Yamaha SMT machine	Mounts components onto PCBs precisely.
SMT Reflow Oven	Melts solder to form solid joints.
Automated optical inspection equipment	Inspects solder joints and placement defects.
Solder paste inspection machine	Checks solder paste height and quality.
Traceability Equipment	Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer

| Customer Success Video

When the Kazakhstan Customer prepared to expand power supply manufacturing, they needed a production partner who could support both equipment supply and factory operation preparation.

I.C.T delivered a complete SMT and DIP production solution according to the Customer’s requirements. The SMT production line included PCB loader, full automatic printer, placement equipment, reflow oven, conveyor system, and offline AOI inspection equipment.

After the equipment arrived, engineers Andy and Billy joined the Customer team onsite. Their work focused on machine installation, process adjustment, and production training. Instead of only explaining machine functions, the engineers helped the Customer understand the complete production workflow.

| Service & Training Support

A factory’s production capability depends on how well equipment matches business development goals. Choosing the right production system requires understanding current products while considering future growth.

I.C.T works with customers to analyze product requirements, production volume, factory space, and expansion plans before developing suitable solutions.

Support includes production planning, equipment matching, line configuration, installation guidance, and technical training. By considering the complete manufacturing process, I.C.T helps customers avoid unnecessary investment and build production systems that can grow with their business.

The goal is not only equipment installation but creating a manufacturing foundation that supports long-term development.

SMT Solder Paste Printer 206

| Customer Praise

Successful production depends on how quickly customers can operate equipment confidently after installation.

I.C.T provides technical support throughout the project process, including pre-delivery communication, equipment preparation, onsite installation, debugging, and operator training.

During overseas projects, engineers focus on solving real production questions instead of only providing standard instructions. They work with Customer teams to understand factory conditions and improve daily operation.

Through practical engineering support, customers can shorten the learning period and achieve more stable production after equipment startup. I.C.T values long-term cooperation by supporting customers beyond the initial delivery stage.

好评1

| Our Certification

Equipment reliability is built through every manufacturing step. I.C.T manages quality control from component inspection and mechanical assembly to software testing, machine verification, and final shipment preparation.

Each production system follows controlled inspection procedures to ensure stable performance before reaching customer factories.

I.C.T has obtained international certifications including CE, RoHS, ISO9001, and technology patents. These certifications reflect the company’s commitment to manufacturing quality and continuous improvement.

Through strict production management and engineering experience, I.C.T provides equipment solutions designed for reliable operation in global electronics manufacturing environments.

证书1

| About I.C.T and Factory

I.C.T has developed strong capabilities in electronics manufacturing equipment through years of international project experience.

The company owns independent R&D, production, and engineering teams, allowing complete control from equipment development to customer support. More than 1,600 customers worldwide have worked with I.C.T across industries including LED lighting, consumer electronics, automotive electronics, and industrial control.

The factory follows strict manufacturing procedures covering assembly, testing, inspection, and delivery preparation.

With experience in SMT, DIP, and coating production solutions, I.C.T helps manufacturers improve production efficiency, strengthen quality control, and build reliable manufacturing capabilities for future growth.
