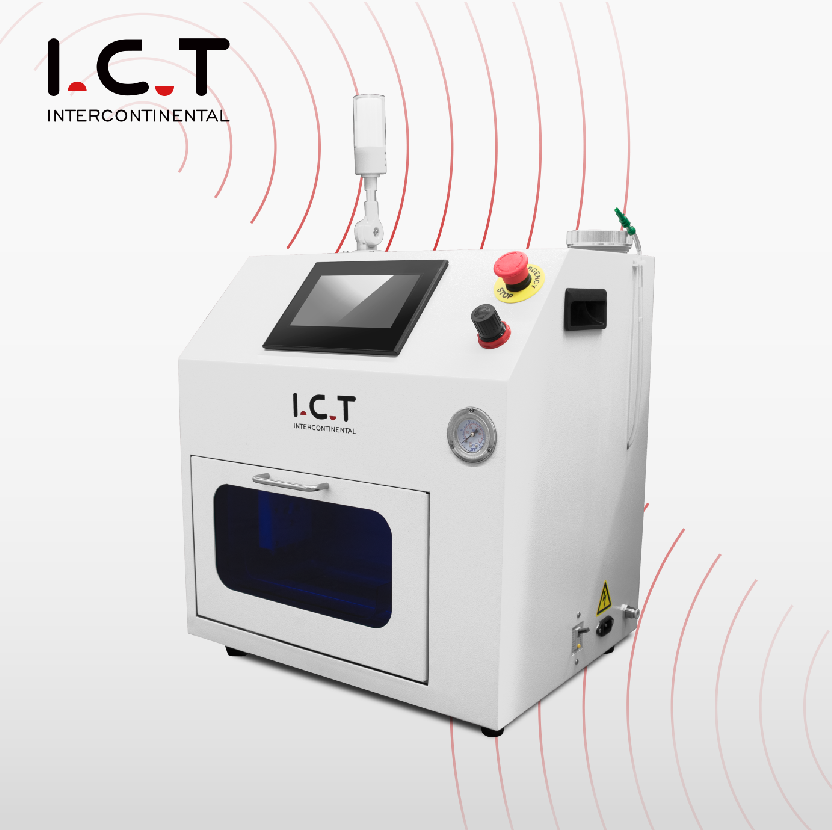

Nozzle Cleaning Machine
| Quantity: | |
|---|---|
In SMT production, dirty nozzles directly affect component pickup accuracy and placement stability. The nozzle cleaning machine is designed to solve this problem with a fully automatic high-pressure cleaning process.
Using hydrodynamic water fragmentation technology, the machine generates a strong cleaning jet to remove internal contamination from pick-and-place nozzles. Unlike traditional ultrasonic systems, this high pressure cleaner nozzle system can clean tiny internal areas more effectively without damaging the nozzle structure.
The machine supports multiple nozzle types and improves long-term placement consistency in modern SMT lines.

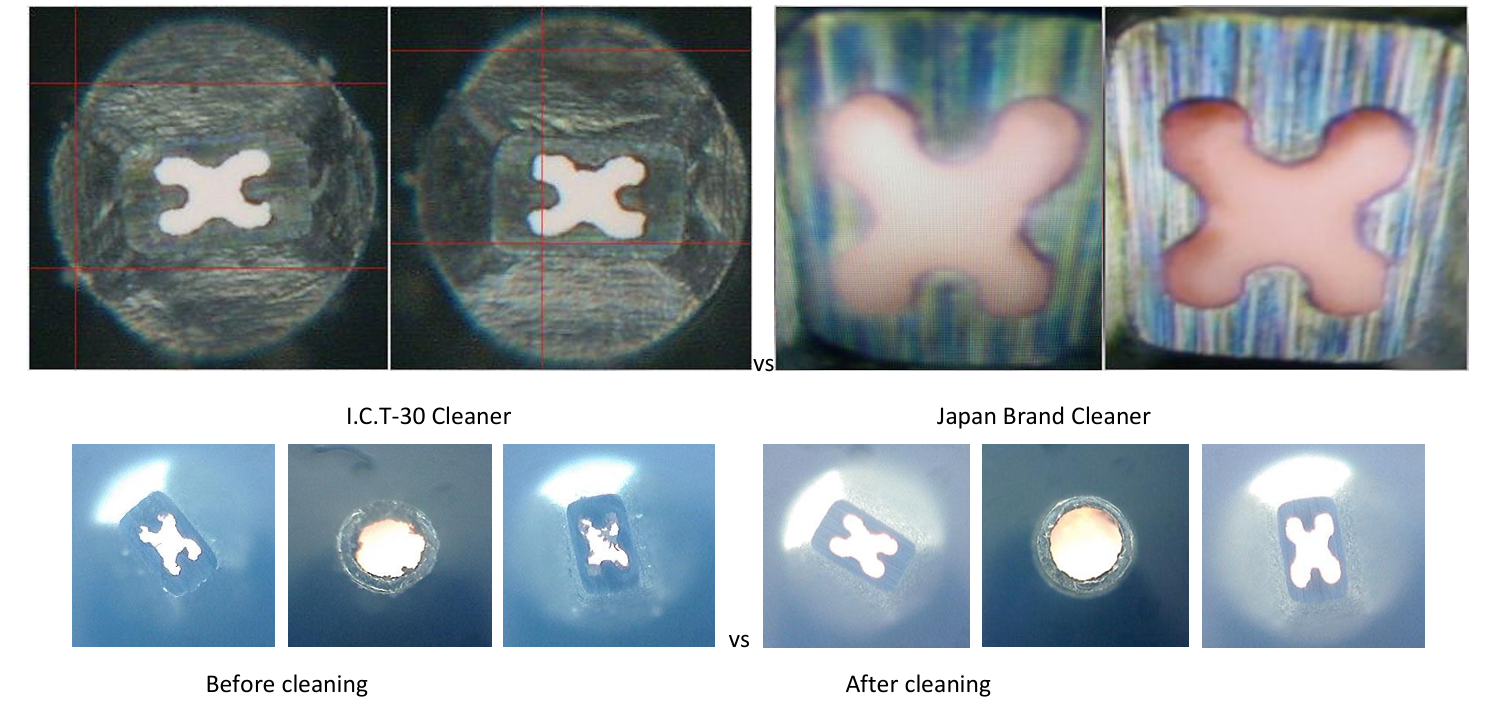

The machine creates ultra-fine water mist with strong momentum pressure to clean nozzle interiors thoroughly. Even small solder particles and dust inside narrow nozzle openings can be removed efficiently. This cleaning method improves nozzle vacuum performance and placement precision.
The nozzle cleaning machine supports standard nozzles, cross nozzles, I-shape nozzles, and irregular nozzle structures commonly used in SMT assembly. Cleaning quality remains stable regardless of nozzle size changes.
The system only requires DI water or purified water. No solvent or chemical cleaner is necessary. This reduces operating cost while keeping the cleaning process safer for electronics manufacturing environments.
Blocked or contaminated nozzles often lead to pickup failure, component shift, or placement deviation. The high pressure cleaner nozzle system helps stabilize production by maintaining nozzle cleanliness and reducing machine stoppage caused by nozzle issues.
| Specification:
| Item | I.C.T-30 |
|---|---|
| Air Supply | 0.5~0.7 Mpa |
| Power Supply | AC 220V, 1A |
| Power | 250W |
| Clean Liquid | Purified water or DI water |
| Clean Time | 2~3 minutes |
| Dry Time | 1~3 minutes |
| Jet Pressure | ≤0.4 Mpa |
| Water Consumption | ≤280cc/hour |
| Storage Tank Capacity | 800cc |
| Nozzle Range | Min 01005 ~ Max inner diameter Ø 2.0mm |
| Jig Spec | Small nozzle 30 holes / Big nozzle 15 holes |
| Machine Size | L530W460H630mm |
| Machine Weight | 40KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| SMT Line Equipment List
I.C.T provides comprehensive SMT production line solutions that cover the full electronics manufacturing process from beginning to end. Our systems integrate board handling, solder paste printing, high-speed component placement, inspection, reflow soldering, and flexible depaneling options including the PCB Manual Depaneling Router Machine for smaller production needs. We support customers with complete factory planning, equipment selection, professional installation, operator training, and continuous optimization. This end-to-end approach helps manufacturers in smartphone, automotive, medical, and consumer electronics industries achieve higher efficiency, consistent quality, and strong competitive advantage in today’s market.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
In 2026, I.C.T completed the installation of a complete SMT production line for a drone electronics manufacturer in Europe. The project included PCB Loader, SMT Printer, SPI, Pick and Place Machine, Reflow Oven, AOI, X-ray inspection system, PCB Buffer Conveyor, NG/OK Unloader, and PCBA Cleaning Machine.
During the project, the nozzle cleaning machine played an important role in maintaining placement stability during continuous production. I.C.T engineers provided on-site installation, production training, and process optimization support. After mass production started, the customer achieved more stable placement accuracy and lower nozzle maintenance frequency.
| Service and Training Support
I.C.T does not only supply single machines. We provide complete SMT factory planning solutions including SMT, DIP, and conformal coating production systems.
From PCB loading, solder paste printing, placement, reflow soldering, AOI inspection, X-ray analysis, cleaning, testing, and final unloading, every machine is designed to operate together efficiently. The nozzle cleaning machine is integrated into preventive maintenance workflows to reduce unexpected placement problems and improve long-term line stability.
Our engineering team supports layout design, installation, debugging, operator training, and production startup support for global customers.
| What Our Customers Say
Modern SMT factories require stable equipment operation over long production cycles. Many manufacturers now pay more attention to maintenance equipment because nozzle contamination directly affects placement quality.
The high pressure cleaner nozzle solution helps factories reduce pickup failure rates, minimize nozzle replacement frequency, and maintain stable machine performance. This becomes especially important in automotive electronics, drone PCBA, industrial control boards, and high-density SMT production environments.
With cleaner nozzles, factories can reduce downtime and improve overall production consistency.
| Certifications and Standards
All I.C.T equipment is designed according to international manufacturing standards. Our SMT solutions comply with CE, ISO9001, and RoHS requirements.
For global customers, I.C.T provides remote technical support, English operation manuals, video training, and overseas engineer installation service. The nozzle cleaning machine is designed with simple operation logic so operators can quickly learn maintenance procedures without complicated training.
Fast-response after-sales service helps factories maintain continuous production efficiency.
