I.C.T-5151
I.C.T
| Quantity: | |
|---|---|
| I.C.T Full-auto SMT PCB Screen Printing Machine
The I.C.T Full-auto SMT PCB Screen Printing Machine is a high-precision smt stencil printer automatic designed for modern electronics assembly. It solves manual paste issues with full automation, achieving a quick 7-second cycle and top repeatability. This smt pcb printing machine supports glue printing and controls costs through efficient processes. Integrated with Industry 4.0 and MES, it tracks real-time data from machines to cut cycle times and improve output. Ideal for consumer electronics, automotive, and LED fields, it handles PCBs from 50x50mm to 900x600mm. Automatic calibration, adjustable pressure, and stencil cleaning ensure quality. I.C.T's full factory expertise makes this Full-auto SMT PCB Screen Printing Machine easy to set up and operate safely.
| Feature
The Full-auto SMT PCB Screen Printing Machine uses an arch bridge squeegee with two stepping motors for stable pressure. Double slide rails keep movement accurate before and after prints. Real-time feedback adjusts pressure automatically for perfect paste forming. Positioning accuracy hits ±0.01mm, with printing at ±0.025mm. Vision system with coaxial lights detects marks on various PCBs like tin or copper plated. Programmable separation controls speed and distance for multi-methods. This setup supports high-volume runs in smt pcb printing machine applications, reducing defects and ensuring even deposits every time.
Transport in this smt stencil printer automatic uses a unique belt to avoid PCB stuck issues. Motor drives speed precisely up to 1500mm/s, with flexible directions: left-right or right-left. Side clamps and vacuum hold boards firmly for smooth stencil contact. Platform adjusts in three axes with direct motors for fast, high-precision alignment. Magnetic pins and blocks manage warpage under 1%. SMEMA standard allows easy line connection. This system handles thicknesses from 0.4mm to 6mm, keeping Full-auto SMT PCB Screen Printing Machine flows reliable and quick.
Cleaning options include dry, wet, and vacuum, plus manual if needed. Spray system cleans evenly from top to bottom, controlled by software to save materials. Separate CCD and cleaning parts ease access, with strong exhaust for effective vacuum. Optional stencil check uses light to spot dirty holes and auto-clean. This prevents paste buildup in the Full-auto SMT PCB Screen Printing Machine, maintaining quality over long runs. Low-maintenance design with imported parts cuts downtime for busy lines.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

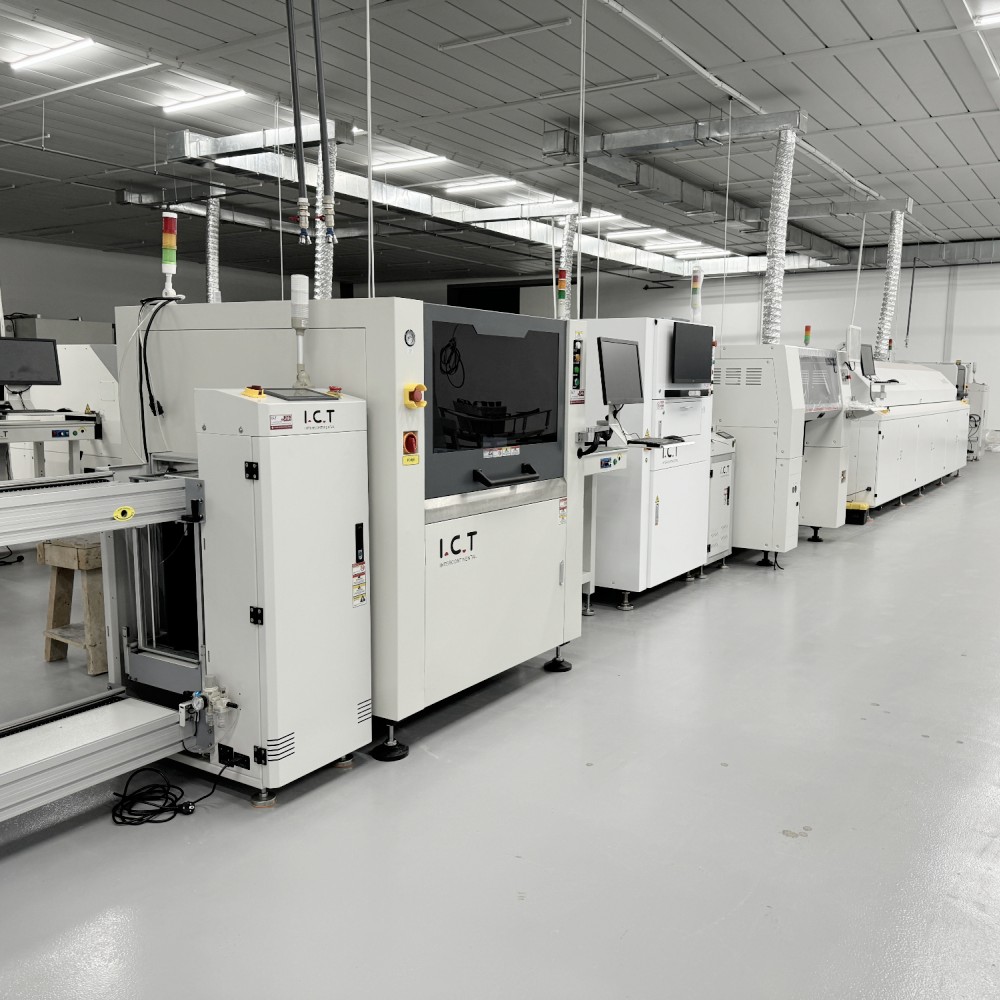

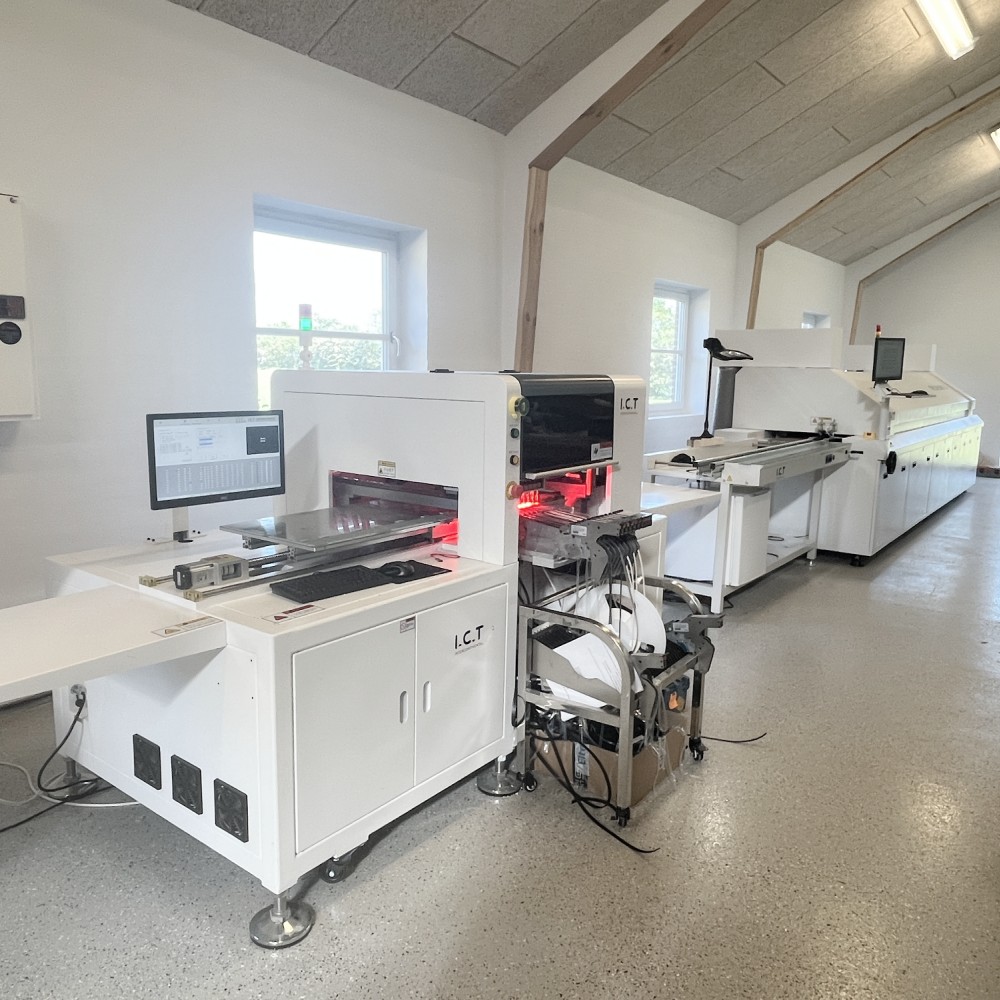

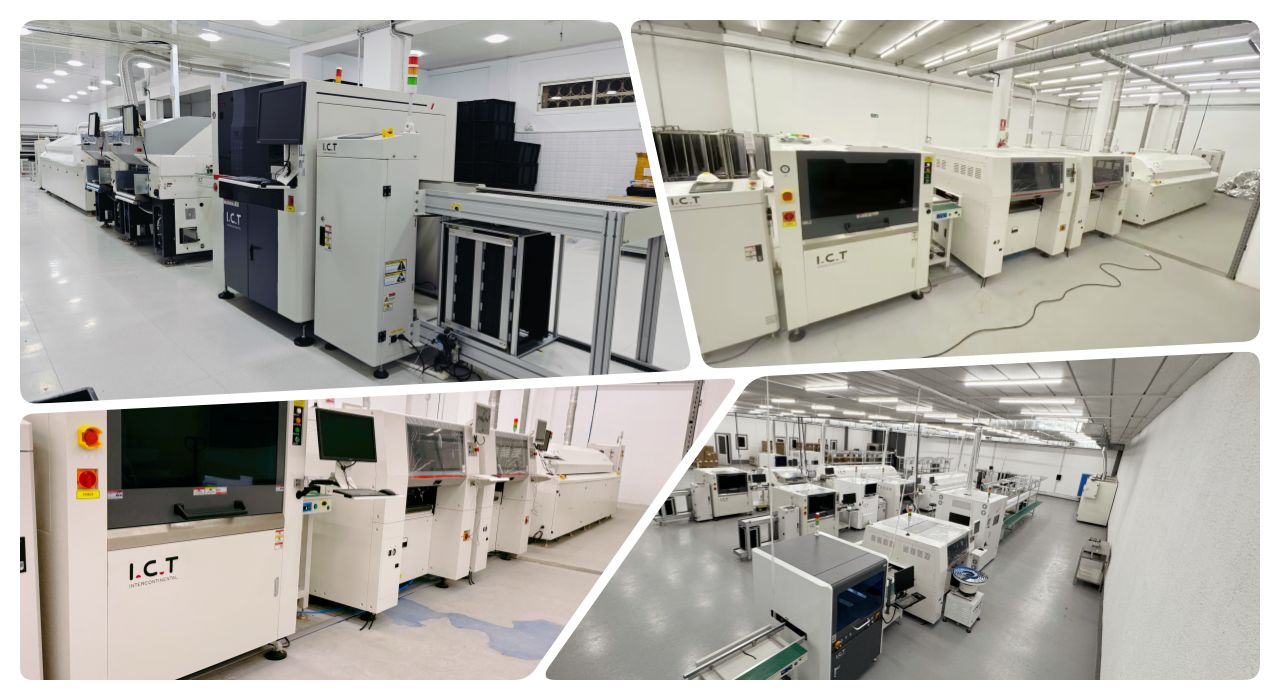

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Case Video
In 2025, I.C.T successfully delivered a complete SMT production line and a DIP line to an ODM company in Saudi Arabia. Two experienced technical engineers traveled to the Middle East site to provide full installation and training support. The video shows the team setting up the Full-auto SMT PCB Screen Printing Machine alongside other equipment, ensuring seamless integration. They guided local staff through operation, troubleshooting, and maintenance, covering everything from paste loading to cleaning cycles. This hands-on service helped the client launch production quickly, achieving high yields in consumer electronics assembly. The engineers' expertise resolved setup challenges on-site, building trust and enabling the factory to meet tight deadlines. I.C.T's global commitment turned a complex project into a smooth success, proving our dedication to overseas partners.
| Service and Training Support
I.C.T provides end-to-end services for your Full-auto SMT PCB Screen Printing Machine, starting with demand analysis and planning. On-site installation by experts ensures quick startup, like in our Saudi project. Training includes hands-on operation, optimization, and safety for your team. We offer 24/7 remote help and fast issue response, plus upgrades such as auto paste supply or SPI links. With 8 global offices, localized support reaches you anywhere. Maintenance programs extend machine life using quality parts. This full approach minimizes risks, cuts costs, and helps build efficient factories from scratch.

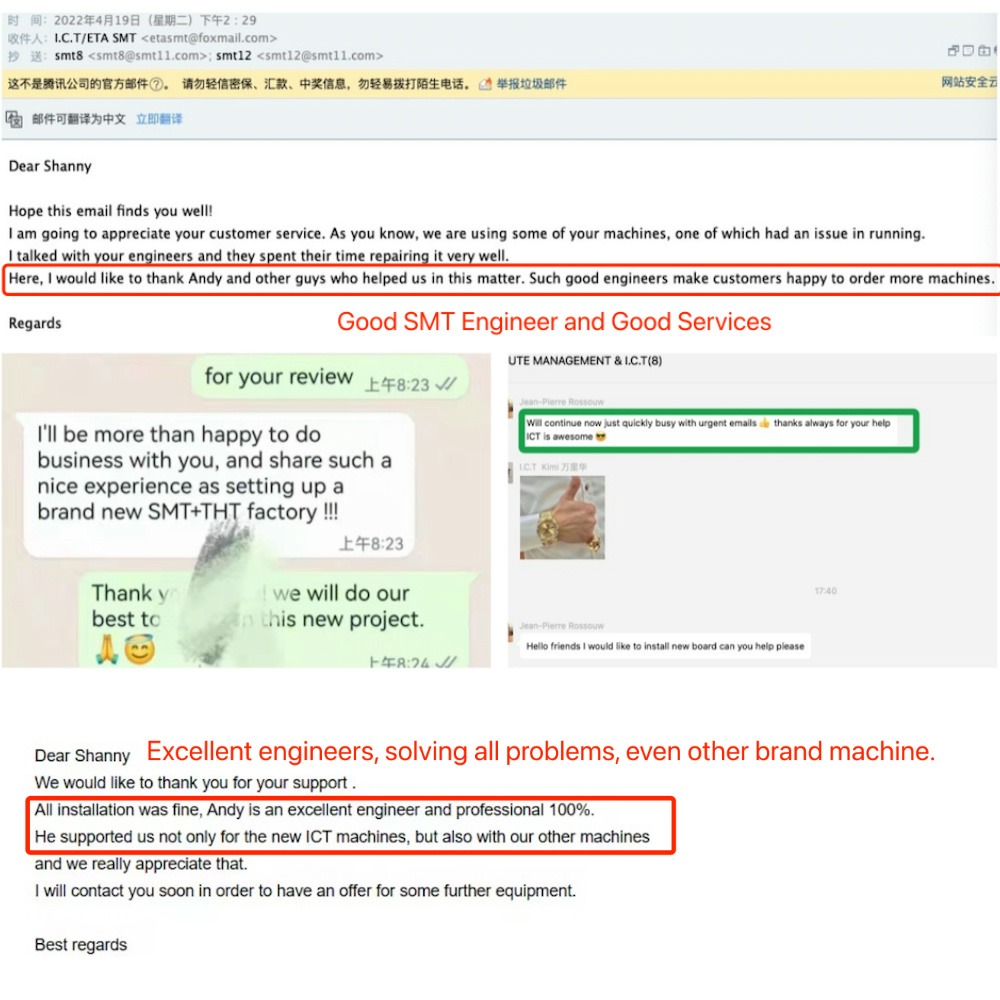

| Customer Reviews
"Our engineers praised I.C.T's quick on-site fixes during Middle East training." – Saudi ODM Manager. "The smt stencil printer automatic delivers flawless prints, boosting our line speed." – Automotive Client, Europe. "Secure packing protected gear through long shipping—no damage." – LED Manufacturer, Asia. "Fast responses to queries kept us on schedule—great partners." – Electronics Firm, USA. Clients value our skilled engineers, reliable machines, careful transport, and prompt support.
| Certifications & Standards
I.C.T holds CE, RoHS, and ISO9001 to meet safety and eco standards for the Full-auto SMT PCB Screen Printing Machine. Patents cover key tech like cleaning and transport systems. Imported brands like Panasonic ensure low failures. Rigorous factory tests guarantee performance. These marks give confidence in durable, compliant equipment.
| About I.C.T Company and Our SMT Factory
Founded in 2012, I.C.T has over 25 years in electronics, with 89 staff and 20 engineers in 12,000m² Dongguan facilities. We serve 1600+ clients across 72 countries via 8 offices. In-house R&D and production deliver full SMT solutions, growing fast through strict quality systems. We focus on integrity, open sharing, and Industry 4.0 integration. This supports reliable products like our smt pcb printing machine, with global localized service for your success.
