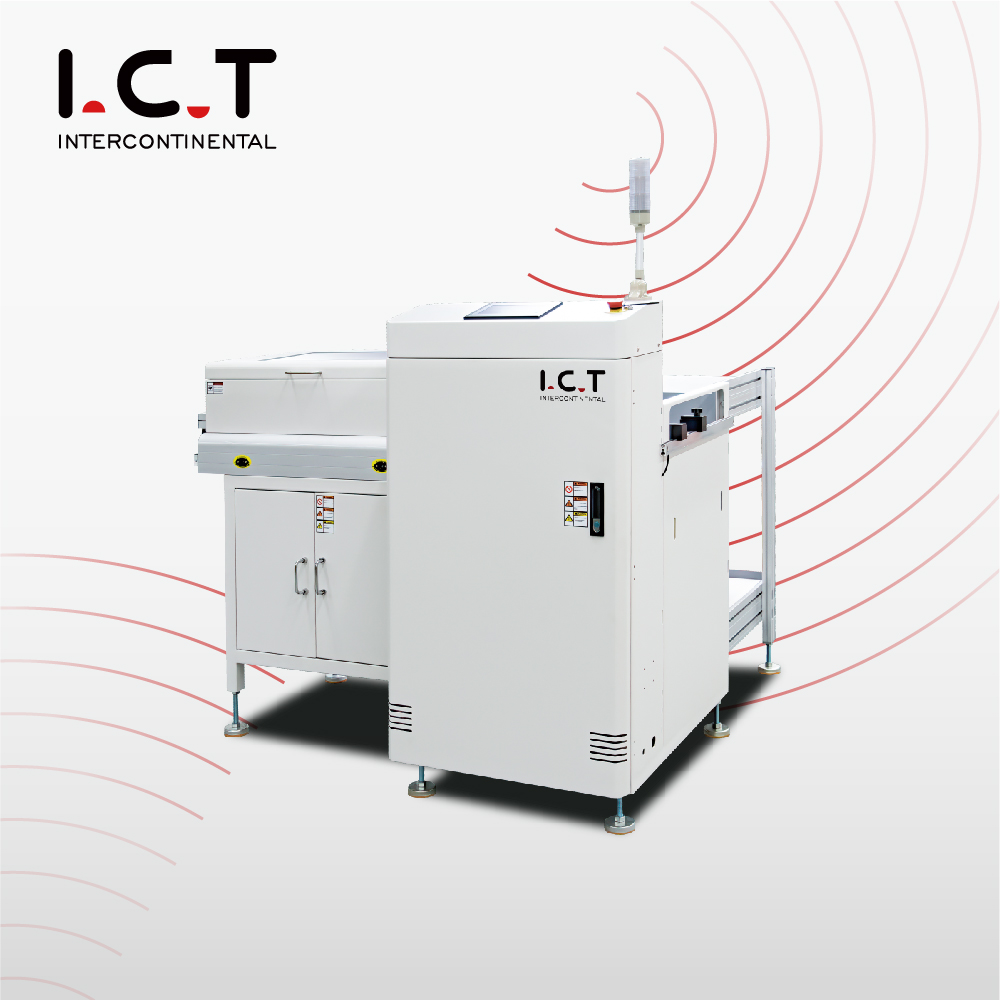

| Reliable PCB Magazine Type Buffer for SMT Lines
In busy SMT production lines engineers need steady board flow. The PCB Magazine Type Buffer sits right in the middle and holds boards until the next station is ready. Factories use it to balance speed and protect every sensitive board. With this machine lines run smoother and output grows. The SMT Magazine Buffer gives clear control even when NG boards appear.

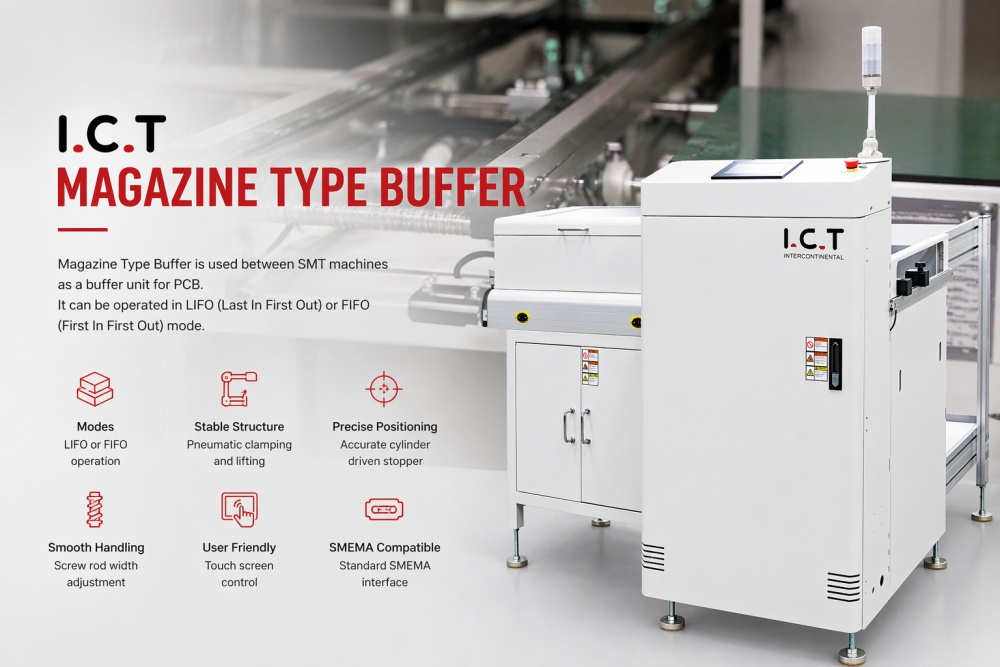

| Key Features of SMT PCB Buffer
Advanced Design Ensures Safe and Efficient Handling
Engineers built the PCB Magazine Type Buffer with care. Top and bottom pneumatic clamps lock the magazine rack firmly. A special gas circuit removes any risk of damage. Operators simply touch the screen or use PLC controls. Six operation modes let the machine switch tasks fast. SMEMA compatibility joins it to the full line without delay. This design fits real factory needs and keeps boards safe every shift.
Flexible Operation Modes Meet Diverse Needs
Production never stays the same. The PCB Magazine Type Buffer changes with it. Choose FIFO to move boards in order or LIFO when you need the last board first. Load and unload modes speed up manual work. NG cache separates bad boards quickly. Pass-through mode sends good boards straight ahead. The machine works with many PCB sizes and keeps SMT lines balanced without extra stops.
| Specification
| Model | B250 | B330 | B390 | B460 |
|---|---|---|---|---|
| Dimension (mm) | 1150x1150x1250 | 1350x1350x1250 | 1550x1550x1250 | 1550x1780x1250 |
| PCB Size (mm) | 50x80-330x250 | 50x80-445x330 | 50x80-530x390 | 50x80-530x460 |
| Rack Size (mm) | 355x320x563 | 460x400x563 | 535x460x570 | 535x530x570 |
| Indexing Pitch | 10, 20, 30, 40mm or Specify | 10, 20, 30, 40mm or Specify | 10, 20, 30, 40mm or Specify | 10, 20, 30, 40mm or Specify |
| Control System | PLC | PLC | PLC | PLC |
| Power | Max 250 VA | Max 250 VA | Max 250 VA | Max 250 VA |
| Air Supply | 4-6 bar, 10 Ltr/Min Max | 4-6 bar, 10 Ltr/Min Max | 4-6 bar, 10 Ltr/Min Max | 4-6 bar, 10 Ltr/Min Max |
| Transport Height | 900±20mm (or Customer Specified) | 900±20mm (or Customer Specified) | 900±20mm (or Customer Specified) | 900±20mm (or Customer Specified) |
| Weight (kg) | 160 | 240 | 300 | 320 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
We design our Turnkey PCBA Production Line to deliver fully automatic, high-speed, and ultra-reliable PCBA manufacturing. The proven setup starts with our SMT PCB Loader Unloader, moves to a precision automatic printer for perfect solder paste application, continues with pick and place PCB machine for accurate component placement, passes through a stable 8 zone reflow oven for strong solder joints, and finishes with PCB inspection equipment to catch any defect. Every machine communicates seamlessly, reducing labor and boosting first-pass yield. This complete solution meets automotive, medical, consumer, and LED industry standards while keeping operating costs low and uptime extremely high.
| Customer Success Story
A manufacturer in Singapore wanted higher output from several SMT lines. They chose I.C.T handling equipment including loaders, buffers, NG buffers, and conveyors. Our engineers flew there, installed every machine, trained the team, and solved every question on site. The full delivery finished smoothly. Today those lines run faster and more reliably, showing how I.C.T turns whole-factory plans into real results.
| Professional Service and Training Support
I.C.T does more than sell machines. We deliver complete factory solutions from planning to daily operation. Our engineers install equipment, train operators, and stay ready for quick support. When lines change or capacity must grow, we help adjust the full system. Customers focus on making products while we handle the technical side. This full support keeps factories running strong year after year.
| What Our Customers Say
Customers tell us the same thing after working with I.C.T. Our engineers arrive on time and explain every step clearly. The equipment runs steadily and needs little maintenance. Packing and shipping protect every part perfectly. When questions come up, responses arrive fast. One Singapore team said the new handling system helped them expand output exactly as planned. They now trust I.C.T for future upgrades across their whole factory.
| Certified Quality You Can Trust
Every I.C.T machine meets strict international standards. The PCB Magazine Type Buffer carries CE, RoHS, and ISO9001 certifications. We also hold multiple patents for key design features. Before any machine leaves our factory it passes detailed tests and quality checks. These steps guarantee safe, reliable performance in real production environments. Global customers choose I.C.T because they know the certificates and our process stand behind every unit.
| About I.C.T – Your Reliable SMT Partner
I.C.T builds complete SMT and DIP factory solutions. We handle everything from initial planning and equipment selection to installation, training, and long-term optimization. With our own R&D team, modern production workshops, and over 89 experienced staff, we grow quickly while keeping quality high. More than 1,600 customers in 72 countries already use our systems. Our factory follows tight testing procedures and a full quality management system. This approach helps manufacturers move from 0 to 1 or upgrade existing lines with confidence.
