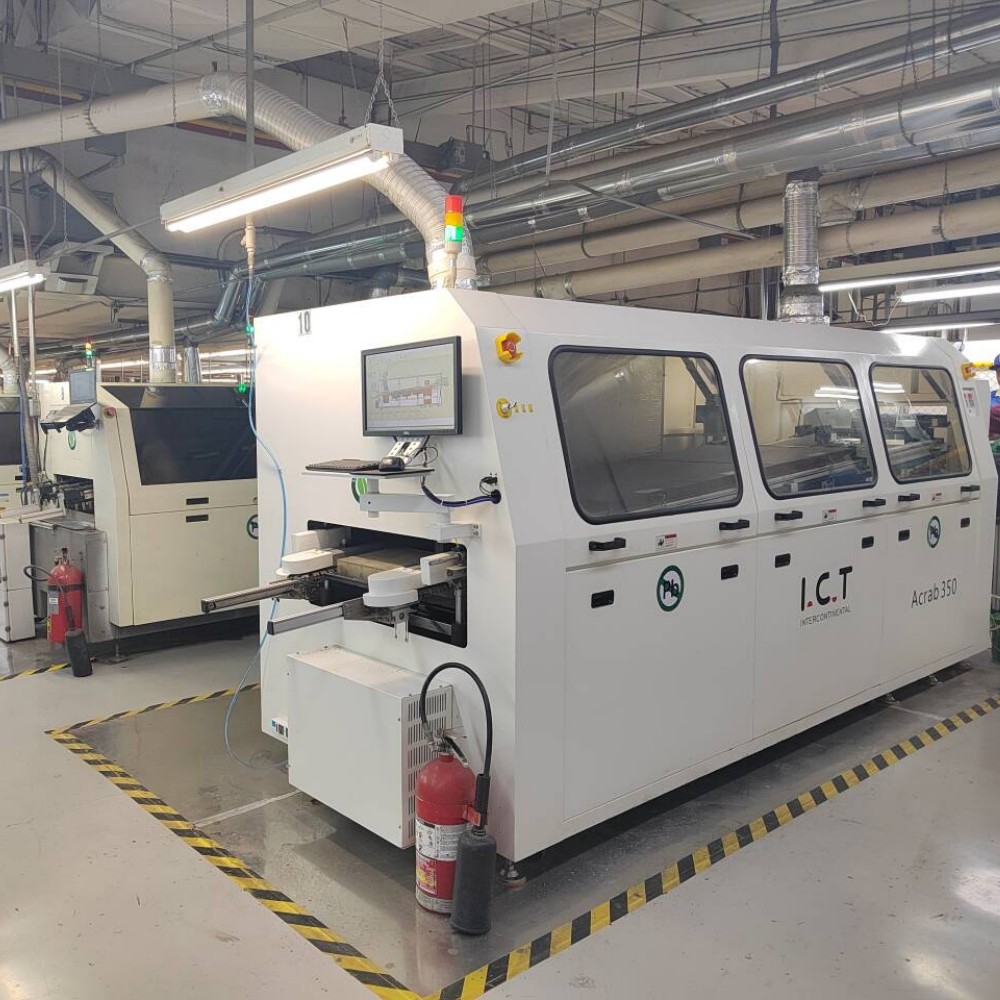

| I.C.T Acrab-Series Dual Wave Soldering Machine
This dual wave soldering machine has been quietly dominating DIP lines for years (350 / 450 / 615 mm versions, choose your fighter). Dual spray, massive preheat, rock-steady waves, touchscreen simple enough that the night-shift rookie masters it before lunch. Optional nitrogen turns it into a fully automatic dual wave soldering machine that drops dross 90 % and makes joints look factory-new. Operating power settles at 8-10 kW. Tool-free maintenance. Customers in 72 countries keep ordering more because the numbers don’t lie.
| Feature

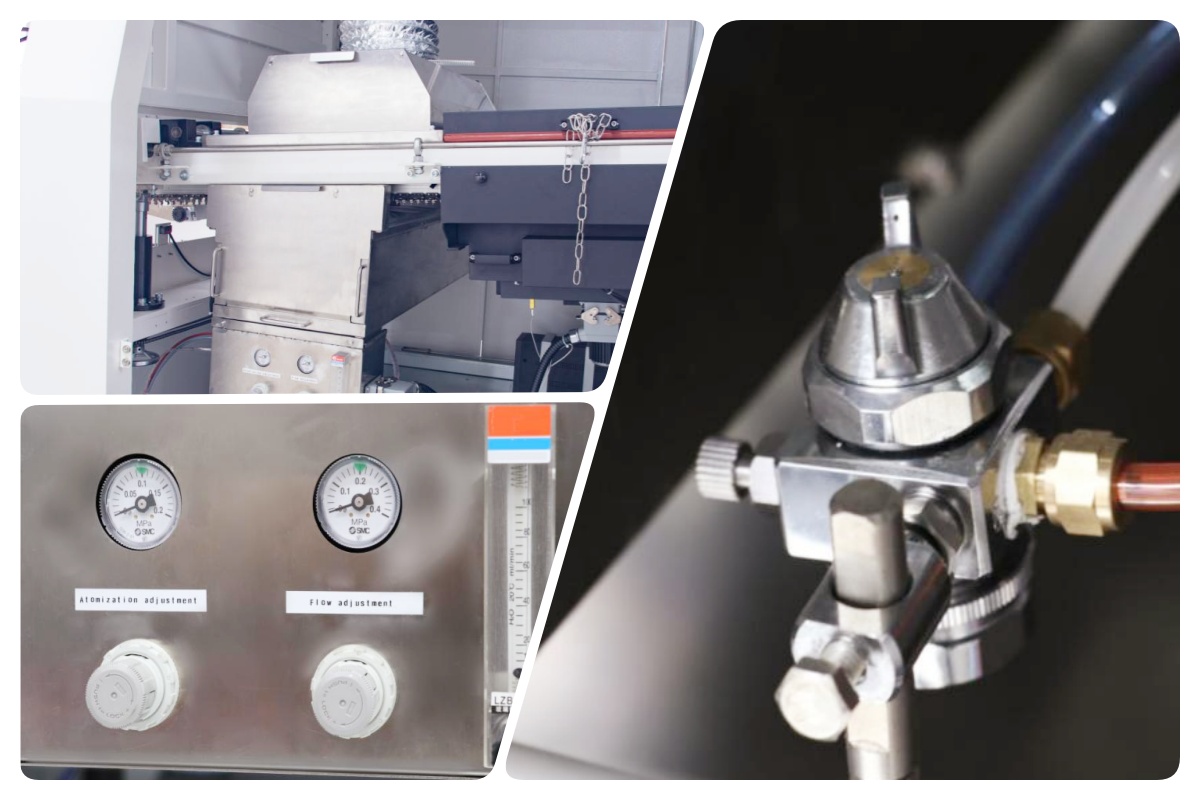

The entire spray module (yes, the whole thing) slides out on smooth rails. Inside: two Japanese Kuroda nozzles driven by stepper motors so precise you could set your watch to them. Flux lands exactly where you told it to, every single board. Auto-clean cycle runs itself, 316 stainless steel shrugs off acid, exhaust stays trapped. Push it back in and the dual wave soldering machine is already impatient for the next run.

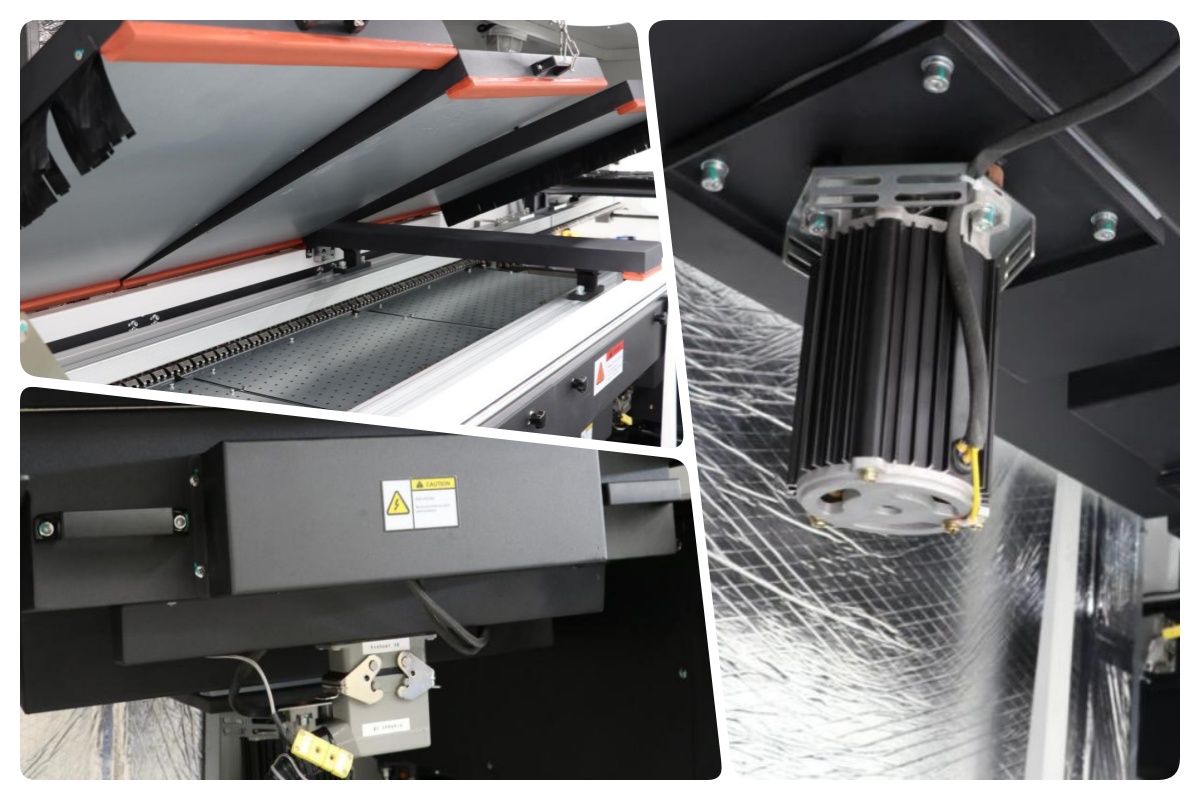

Three independent zones stretching 1800 mm total (hot air + infrared working in perfect sync) reach 250 ℃ in fifteen minutes flat. Thick high-temperature cotton locks temperature within ±2 ℃ across the whole panel (no hot spots, no cold corners). Each zone pulls out like a giant file drawer — swap a heater before your coffee gets cold. Optional top preheat waits quietly for those really thick boards.

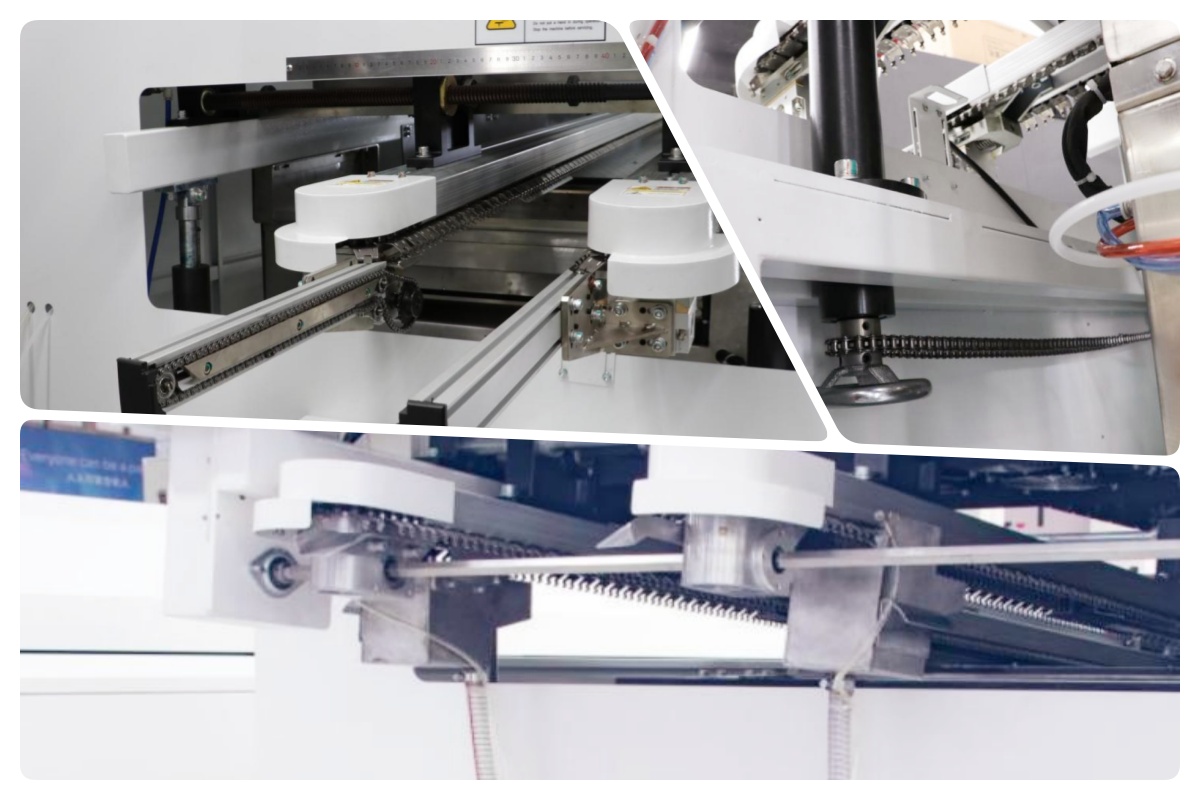

Chain runs dead straight. Heavy-duty double-hook titanium fingers clamp down on 615 mm automotive monsters without a tremble. Patented synchronous entry device (the one nobody else has) guarantees zero drops. Speed locked at ±2 mm/min. Fingers scrub themselves while the line is running. Width changes manual or electric — your choice. The conveyor turns this dual wave soldering machine into a production machine that never blinks.

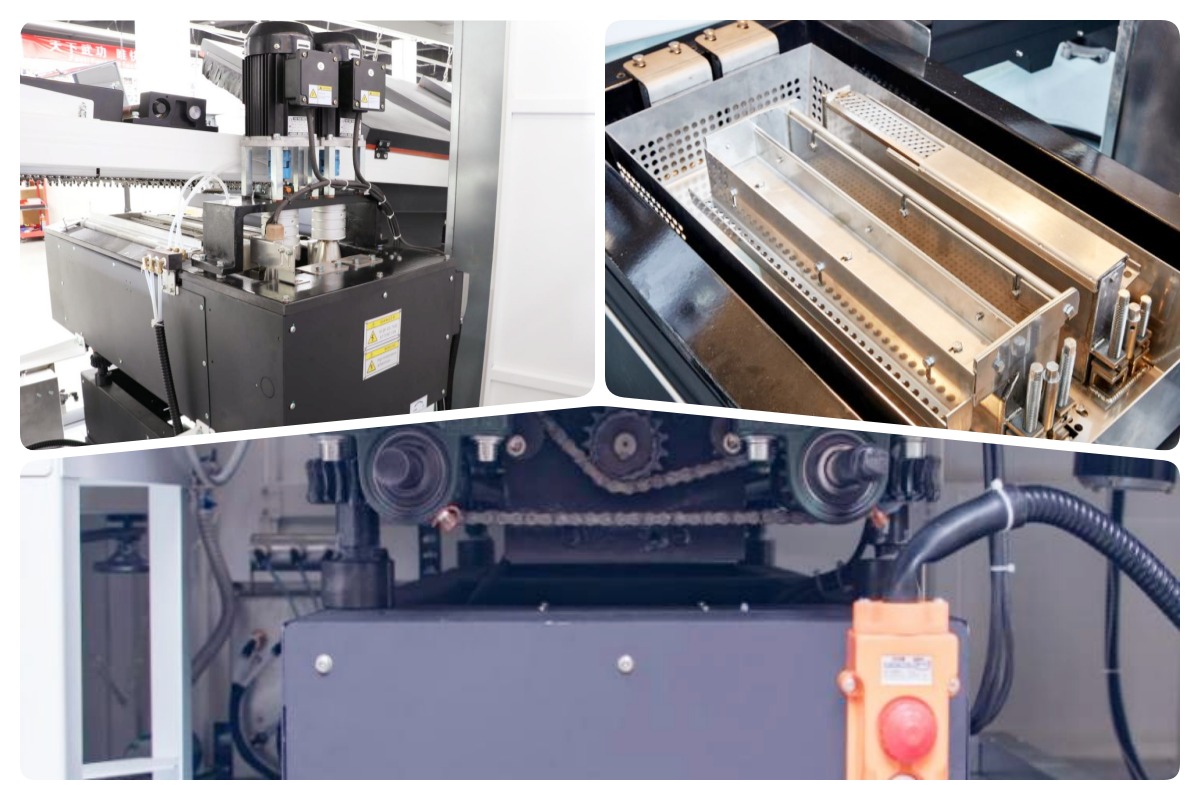

One-piece cast-iron pot with enamel coating holds 500-700 kg of lead-free tin and refuses to deform (ever). Dual wave height variation under 0.5 mm. Automatic dross-return channel pulls waste away like clockwork. Optional nitrogen blanket slashes oxidation. Joints come out mirror-bright, tin consumption crashes, and the accountant sends thank-you cards. This is what a fully automatic dual wave soldering machine is supposed to do.

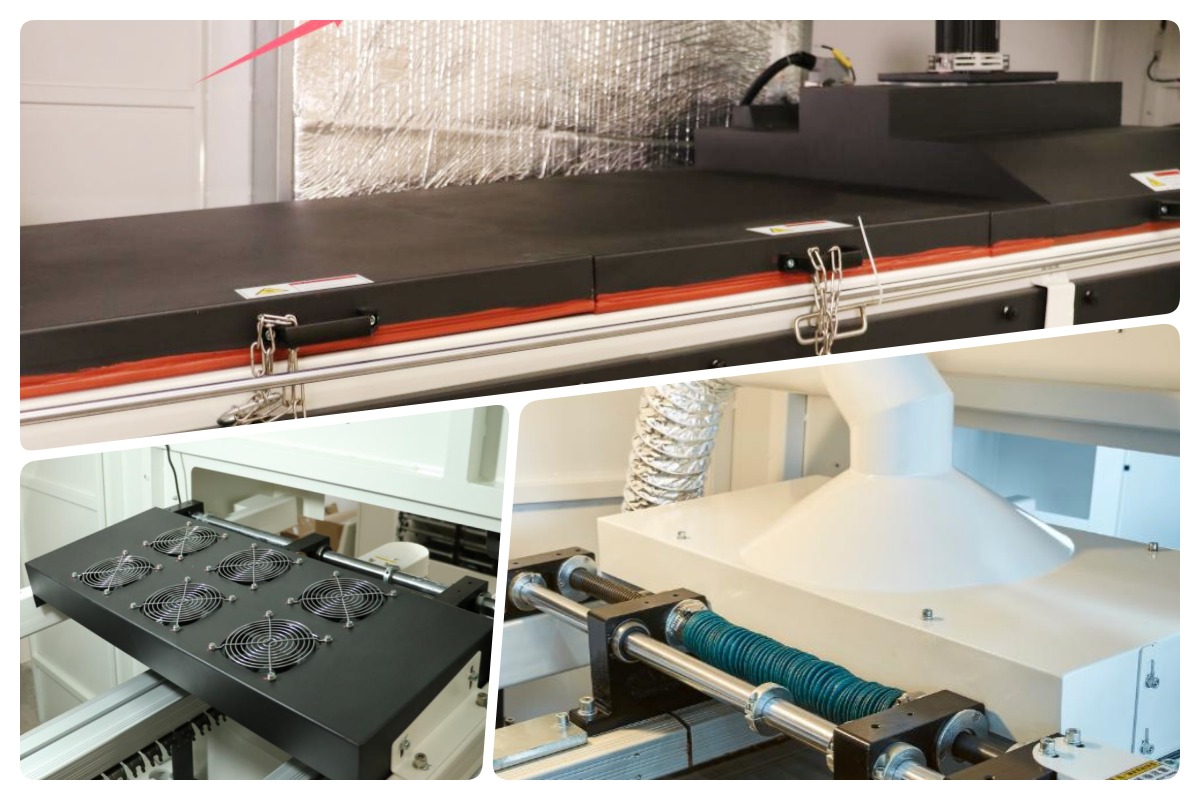

High-power top convection fans (optional bottom set for thick multi-layer boards) start the instant the board clears the wave. Temperature drops fast enough to keep sensitive components happy. Solder freezes shiny and smooth. Board exits cool to the touch. No thermal shock, no cracked joints, no customer complaints. The dual wave soldering machine finishes the job the way it started — perfectly.

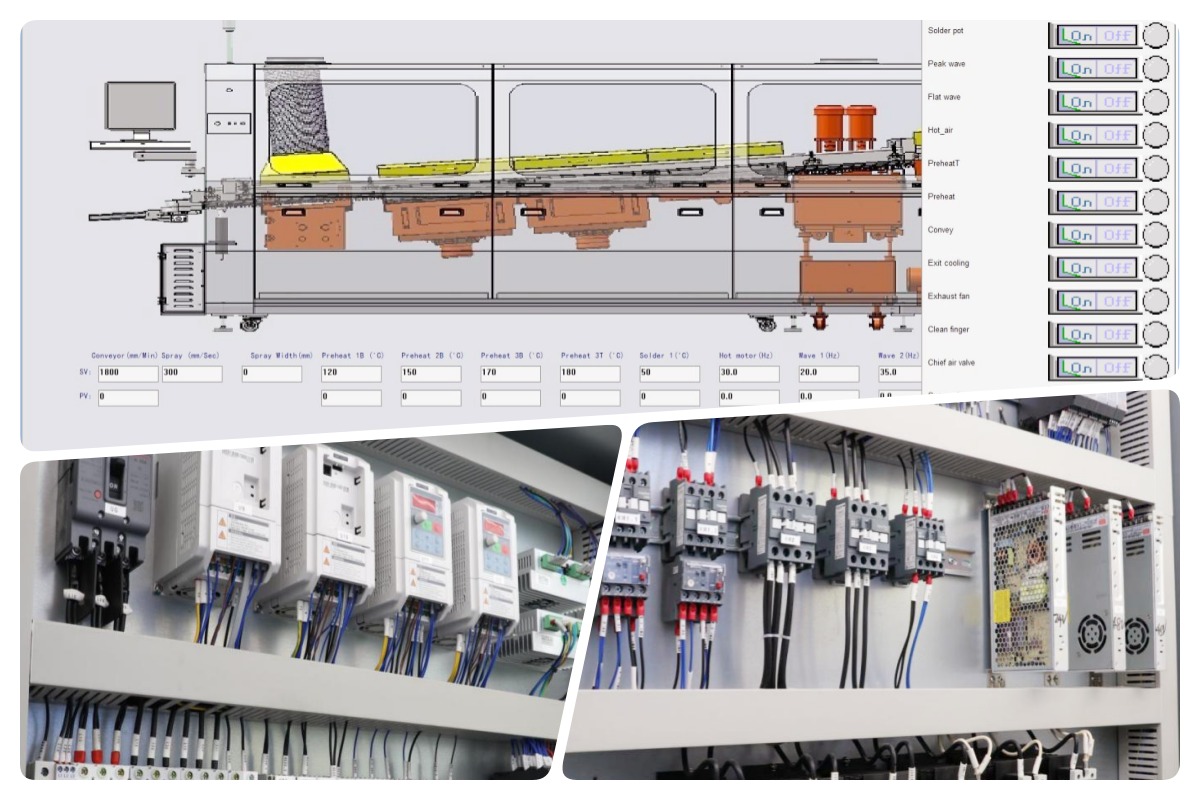

Touchscreen big, bright, and honest. PC+PLC brain watches every degree in real time. PID+SSR keeps curves exactly where you drew them. Line slows — machine goes into standby and saves tin automatically. Full alarm history you can actually read. Emergency manual crank works when power dies. CE/UL certified. New operator runs the fully automatic dual wave soldering machine like he’s done it for years.
| DIP Line Equipment List
| Model | Acrab 350 | Acrab 450 |
| Dimension(mm) | 4420X1420X1750 | 4420X1520X1750 |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 33kw | 33kw |
| Operation Power | 8kw | 8kw |
| Control System | PC+PLC | PC+PLC |
| Preheating Zone | 3 | 3 |
| Preheating Length | 1800mm | 1800mm |
| Preheating Temp. | (Room Temperature)-250°C | (Room Temperature)-250°C |
| PCB Width(mm) | 50-350mm | 50-450mm |
| Finger | Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger | |
| Solder Pot Capacity | Lead-free 500kg | |
| Machine Weight(kg) | Approx.1600kg | Approx.1900kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| DIP Line Equipment List
Complete Fully Automatic Dual Wave Soldering Machine Solution High-speed insertion → wave loader → Acrab dual wave soldering machine → wave unloader → inspection belt. Everything talks to everything else. Boards flow smooth and fast clean. Add nitrogen or extra cooling tomorrow — the line is ready. Global service keeps the entire fully automatic dual wave soldering machine line running near 100 % uptime.
| Product Name | Purpose in DIP Line |
|---|---|
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Board input machine and board output machine | |
| DIP Peripheral | Peripheral products of DIP production line |
| Customer Success Video
Our engineers boarded a plane to Mexico with tool bags and coffee. One automotive customer now runs two completely different PCBA layouts on the same Acrab dual wave soldering machine — just swap fixtures, zero bridges, perfect fillets every cycle. Same factory runs our coating line and SS-540 selective without a hiccup. They shot a video testimonial so happy we still play it at company parties.
| Expert Services and Training
We land, install, train your entire crew, leave the line screaming at 99.5 % first-pass yield. Twenty engineers scattered across the globe. 24-hour hotline that actually answers. Parts overnight. We keep returning until the fully automatic dual wave soldering machine feels like it grew there.
| Customer Testimonials
“Packing is very safe and professional.” “Your engineers are patient and skilled; they solved all problems in two days.” “The wave soldering machine runs stably with almost no dross – real energy saving!” “Response speed is amazing; questions answered within one hour anytime.”
| Quality Certifications
CE. RoHS. ISO9001:2015. Multiple invention patents. Every dual wave soldering machine runs 72 hours full load in Dongguan before it ever sees your floor.
| About I.C.T Company and Factory
Since 2012. Nearly ninety people inside a 12,000 m² factory in Dongguan. We design and manufacture the critical parts ourselves. More than 1,600 customers across 72 countries. Eight overseas offices. Twenty field engineers with passports always current. We are here for the long game.
