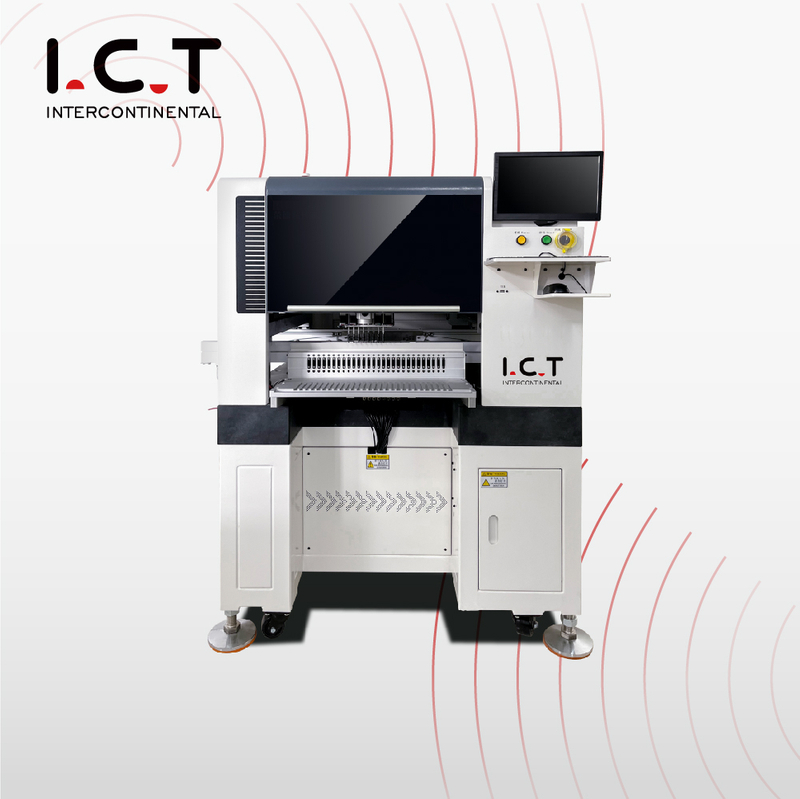

I.C.T | Cheapest Proto Type Pick and Place LED Light Making Machine SMD Wafer Chip XY Machine

Share to:

I.C.T | Cheapest Proto Type Pick and Place LED Light Making Machine SMD Wafer Chip XY Machine

Name: I.C.T | Cheapest Proto Type Pick and Place LED Light Making Machine SMD Wafer Chip XY Machine
Brand: I.C.T
Rating: 5.0 (79 reviews)

I.C.T Best Vacuum Smt Pick And Place Machine Manufacturers For Pcb Assembly. Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Model:
I.C.T-M6
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T | Cheapest Proto Type Pick and Place LED Light Making Machine SMD Wafer Chip XY Machine

Introduction

1.English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator. 2.I.C.T unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy .

3.I.C.T exclusive image recognition system uses digital identification and equips with new industrial cameras.

4. Machine with vacuum pump, provide stable gas source, improve production quality.

5.The first domestically servo motor controlled independently arm with six heads to achieve a maximum speed 30,000 CPH,optimum placement speed and accuracy.

6.High precision hardware,imported top brands core parts to ensure placement precision,communication systems and so on.

7.Industrial-grade computer control and windows operating system.

8.Standard feeder with sensor to prevent components hip up to ensure safe operation.

9. Y-axis is driven by double servo motors to ensure long-term stability and high accuracy of the machine.

10. The longest can correspond to 1200 mm PCB.

11. High-speed flight vision system, 0 second recognition, improve production efficiency.

Driver system

Feeding system

Mount system

Table system

Transport system

Vision system

Application

Specifications	I.C.T-M6	I.C.T-M6L	I.C.T-M8	I.C.T-M8L	I.C.T-M10	I.C.T-M10L
Model	Off-Line	On-Line	Off-Line	On-Line	Off-Line	On-Line
Max.PCB Size	1200x360mm(1200x460 Option)		1500x360mm(1500x460 Option)			1500x400mm(1500x460 Option)
Placement speed	38,000CPH		46,000CPH		55,000CPH
Head Number	1		1		1
Nozzle Number	6		8		10
Placement Accuracy	+/-50 μm		+/-50 μm		+/-50 μm
Component Range	0603~8520 chip,led chip		0603~8520 chip,led chip		0603~8520 chip,led chip
Component Height	≤10mm		≤10mm		≤10mm
Feeder Inputs	20PCS		20PCS		20PCS
Dimension (LWH)	2000x1100x1500mm		2000x1100x1500mm		2000x1100x1500mm
Weight	Approx.950KG		Approx.950KG		Approx.980KG
Electric Supply	2phase,AC200 ~ 415 V 50/60Hz		2phase,AC200 ~ 415 V 50/60Hz		2phase,AC200 ~ 415 V 50/60Hz
Power Consumption	2KW		2KW		2KW
