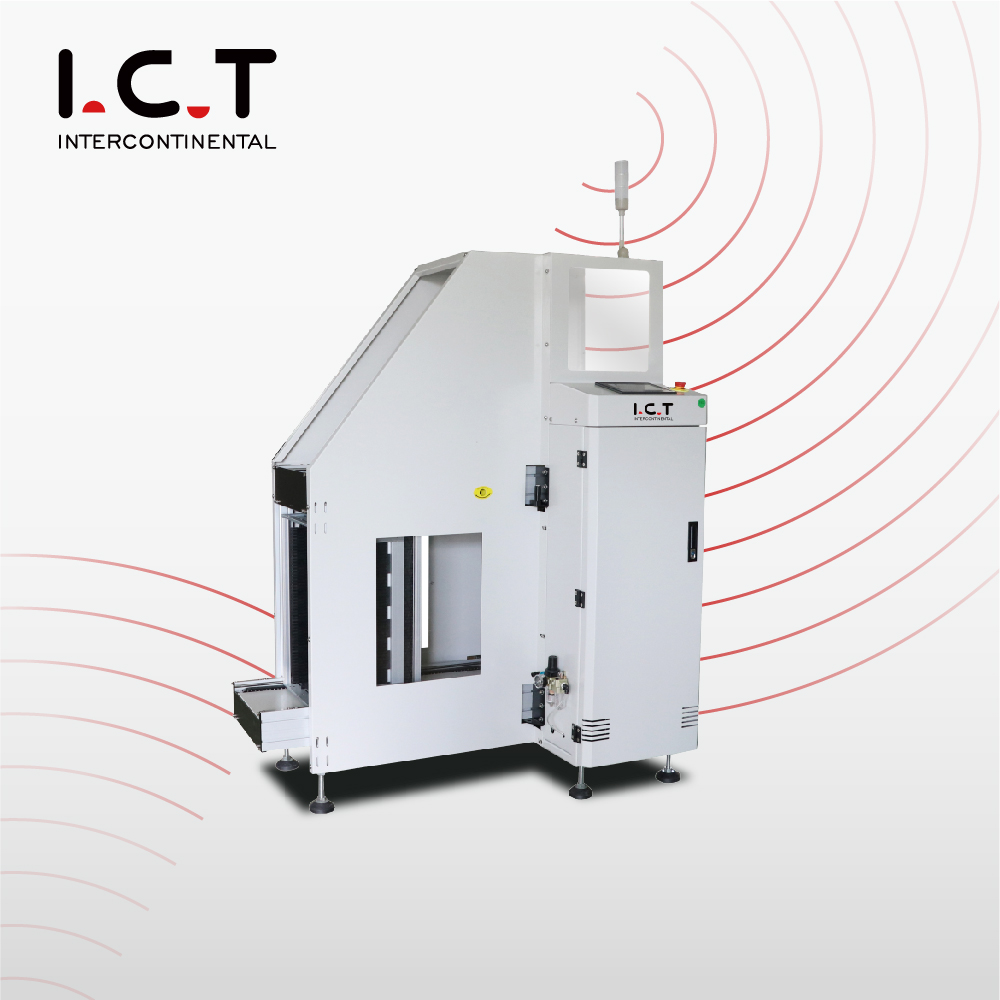

| High-Performance SMT Unloading Machine for SMT Lines
The I.C.T PCB Multi Rack Loader is a high-performance, reliable solution that combines strong vacuum suction with traditional magazine feeding, ensuring smooth and safe PCB handling. It seamlessly picks up bare PCBs from racks and transfers them to the next station quickly, without causing any damage. Available in standard or CE-certified versions, it improves stability, extends machine lifespan, and reduces maintenance costs. Featuring advanced hardware, electrical systems, and smart controls, this loader ensures minimal downtime, keeping production lines running at optimal efficiency for long periods.
| Detailed Product Features
Every mechanical component of the SMT Unloading Machine uses premium materials and follows strict ISO and CE installation procedures. The reinforced base and ergonomic improvements raise initial costs slightly yet guarantee years of steady operation and effortless daily use for technicians at any skill level. Rugged steel construction prevents shifting during fast cycles, while smooth stainless-steel width adjustment keeps boards aligned perfectly. Heavier bottom design adds extra stability so the machine stays firmly in place even under continuous 24-hour production. These upgrades make the SMT Unloading Machine one of the most dependable choices for modern SMT factories worldwide.
High-grade sensors and top-tier electrical parts give the SMT Unloading Machine accurate board detection and ultra-smooth motion control at every step. Bright status indicators and high-frequency buttons allow operators to monitor and adjust the line instantly, regardless of production speed. This electrical upgrade reduces errors dramatically and boosts overall daily output. Sensitive signal transmission ensures precise movements that protect delicate PCBs from scratches or misalignment. The system meets the demands of different process levels, making the SMT Unloading Machine ideal for both standard and high-end electronics manufacturing environments.
The built-in Industry 4.0 control platform on the SMT Unloading Machine is fully expandable and easy to upgrade as needs change. Optional IPC-CFX, Hermes, and SEMI SMT-ELS protocols enable seamless communication with upstream and downstream equipment, creating a true smart-factory environment with almost no extra effort. Operators benefit from intuitive interfaces that simplify setup and troubleshooting. This flexible control system adapts quickly to new production requirements and different communication standards. As a result, the SMT Unloading Machine supports long-term growth and keeps factories competitive in fast-evolving electronics markets.
Strong yet gentle translational motion safely guides finished PCBs from the line into magazines without bending or surface marks. The SMT Unloading Machine combines precise vacuum assistance with smooth conveyor action to maintain perfect board positioning throughout every cycle. Variable speed control and dedicated aluminum slots prevent jams even at high throughput. This technology protects product quality from the final production stage onward. Factories appreciate how the system handles different PCB sizes and thicknesses reliably, reducing manual handling and minimizing defects in the unloading process.
Optional smart modules let the SMT Unloading Machine connect instantly to printers, placement machines, and full MES systems. This flexibility eliminates manual steps, shortens changeover times, and builds a completely automated SMT line with minimal operator intervention. The system works smoothly with existing equipment from any major brand. Customers gain real-time data exchange and improved traceability across the entire production flow. These advanced options turn the SMT Unloading Machine into a key part of efficient, future-proof manufacturing setups that deliver higher yields and lower operating costs.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
The turnkey Multiple SMT Production Line from I.C.T delivers fully automatic, high-speed, and highly reliable PCBA manufacturing. It begins with precise component placement, moves through stable reflow soldering, and finishes with the SMT Unloading Machine that safely transfers boards into magazines. Advanced 3d AOI machine ensures every defect is caught early. All machines communicate seamlessly, reducing labor costs and raising first-pass yield. The line meets strict requirements in automotive, medical, consumer electronics, and LED industries while keeping operating expenses low and uptime extremely high.
| Customer Success Story
I.C.T overseas engineers traveled to Finland to commission a fully automatic LED Panel production line for a leading European lighting manufacturer. The complete turnkey solution featured the SMT Unloading Machine, 1.5 m fully automatic printer, SM482PLUS placement machine, L8 reflow oven, vertical cooling buffer, linking conveyors, board splitter, and solder paste mixer. The team completed installation, debugging, and hands-on operator training in just five days. On the very first official production day the line reached target speed with zero defects. The customer especially praised the rock-solid performance of the SMT Unloading Machine and the flawless machine-to-machine communication throughout the line. They passed the strict European audit on the first attempt and quickly ordered a second complete line.
| Professional Training & Support
I.C.T delivers full one-stop support for the SMT Unloading Machine, including on-site or remote installation, free operator and engineer training programs, a 24/7 technical hotline, worldwide spare-parts availability, and customized preventive maintenance schedules. The experienced international team ensures the machine operates at maximum efficiency for many years with almost no unplanned downtime. Customers receive clear documentation and ongoing guidance that matches their specific production needs. This comprehensive approach helps factories maximize uptime and quickly resolve any questions that arise during daily operation.
| Customer Praise
“Best packing I’ve ever seen—no damage even after long ocean shipping!” “Your engineer solved our problem in 30 minutes at 2 a.m.—unbelievable response speed.” “The SMT Unloading Machine has been running 24/7 for 18 months with zero failure.” “Training was clear and practical; new operators were ready in one day.”
| Our Certification
Every SMT Unloading Machine carries CE, RoHS, and ISO9001 certifications along with several technical patents. Before shipment, each unit undergoes a full 72-hour load test and rigorous quality inspections at the factory. These strict procedures guarantee proven reliability and complete regulatory compliance the moment the machine arrives. Customers worldwide receive equipment that meets the highest international safety and performance standards right out of the box. This commitment to quality gives factories confidence that the SMT Unloading Machine will perform consistently from day one.
| About Us and Factory
Founded in 2012, I.C.T operates a modern 12,000 m² factory with nearly 90 employees and its own dedicated R&D center. The company designs, manufactures, and tests every machine in-house under strict quality management systems. With more than 1,600 customers across 72 countries, I.C.T has grown rapidly by focusing on real customer success. From a single SMT Unloading Machine to complete turnkey production lines, the company serves as a trusted long-term partner that factories around the world rely on for consistent results and outstanding support.
