I.C.T-210
I.C.T

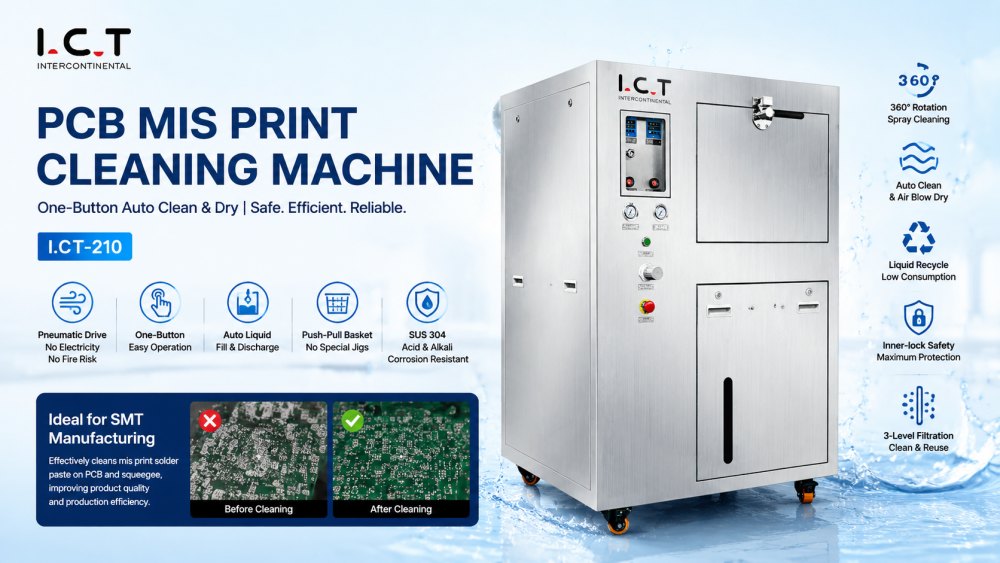

PCB Cleaning Machine
| Quantity: | |
|---|---|
The Mis Print Cleaning Machine for PCBA Solder Paste is an essential tool for cleaning PCBs with misprinted solder paste or flux. Using a combination of cleaning fluid and pressure, it removes contaminants from PCB surfaces without causing damage. This automated process helps to improve PCB cleanliness, reducing defects caused by solder paste misprints. The PCB Mis Print Cleaning Machine ensures better placement accuracy and enhances the quality of the final product, optimizing the efficiency of SMT production lines.
a. Advanced Cleaning Technology
The PCB Mis Print Cleaner uses a combination of high-pressure air and cleaning solutions to effectively remove solder paste, flux, and dust. This advanced cleaning technology ensures that PCBs are thoroughly cleaned, preventing misprints from affecting the placement process. It efficiently cleans both sides of the PCB, ensuring contamination-free surfaces for subsequent assembly stages.
b. Fully Automated Operation
The cleaning process is fully automated, reducing the need for manual intervention. Once the PCB is placed in the system, the machine automatically cleans it using the designated settings. This eliminates human error and ensures consistent cleaning results, allowing for increased throughput and improved operational efficiency in high-speed production lines.
c. Versatility for Different PCB Types
The Mis Print Cleaning Machine is compatible with a wide range of PCB sizes and types, from standard single-layer boards to complex multi-layer designs. This versatility makes the machine suitable for a variety of electronic applications, ensuring thorough cleaning for all types of PCBs used in SMT production.
d. Low-Maintenance Design
With its durable construction and minimal moving parts, the SMT PCB Cleaner is designed for easy maintenance. Regular maintenance tasks are simple and quick, and the machine's robust build ensures long-term reliability, reducing the frequency of repairs and downtime in production.
| Specification:
| Item | I.C.T-210 |
|---|---|
| Clean Basket Size | L420 x W420 x H200 (mm) |
| Clean Tank Capacity | 50L |
| Clean Time | 4~10 min |
| Dry Time | 4~10 min |
| Air Supply | 0.5~0.7 Mpa |
| Air Consumption | 200~600 L/min |
| Clean Method | 360° rotation spray solvent clean + air blow dry |
| Filter System | 20um/5um/1um 3-level filter |
| Machine Size | L1060 x W800 x H1600 (mm) |
| Machine Weight | 210KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| SMT Line Equipment List
I.C.T provides comprehensive SMT production line solutions that cover the full electronics manufacturing process from beginning to end. Our systems integrate board handling, solder paste printing, high-speed component placement, inspection, reflow soldering, and flexible depaneling options including the PCB Manual Depaneling Router Machine for smaller production needs. We support customers with complete factory planning, equipment selection, professional installation, operator training, and continuous optimization. This end-to-end approach helps manufacturers in smartphone, automotive, medical, and consumer electronics industries achieve higher efficiency, consistent quality, and strong competitive advantage in today’s market.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
In 2026, I.C.T successfully delivered a fully integrated SMT production line to a drone manufacturer in Europe. The production line included equipment like pick-and-place machines, SMT printers, and the Mis Print Cleaning Machine for effective cleaning of misprinted PCBs. I.C.T engineers provided on-site technical support and training to ensure the system was up and running smoothly. The customer saw significant improvements in production efficiency, fewer misprints, and enhanced quality control after the line was fully operational.
| Service and Training Support
I.C.T offers full SMT factory solutions, including the integration of the Mis Print Cleaning Machine into your existing production line. Our engineers provide on-site installation and assist with system optimization to improve production efficiency. We also offer extensive training on machine operation, maintenance, and troubleshooting, ensuring smooth operation and minimal downtime. With ongoing remote support, we ensure that your production line continues to perform at its best.
| What Our Customers Say
Customers appreciate the Mis Print Cleaning Machine for its ability to efficiently clean PCBs, reducing defects and improving placement accuracy. By automating the cleaning process, manufacturers can eliminate the variability caused by manual cleaning and reduce production downtime. The machine’s simple integration into existing SMT lines and its reliable performance make it a valuable asset for factories aiming to improve their overall production efficiency.
| Certifications and Standards
I.C.T’s PCB Mis Print Cleaning Machine meets global safety and performance standards, including CE, RoHS, and ISO9001 certifications. These certifications ensure that our equipment is safe, reliable, and compliant with industry regulations. By choosing certified equipment, manufacturers can maintain the highest levels of quality and operational efficiency while meeting international compliance requirements.
| About I.C.T Company and Factory
I.C.T is a leading provider of SMT, DIP, and Coating solutions for electronics manufacturers worldwide. With over 20 years of experience, we specialize in delivering complete production line systems that improve efficiency and product quality. Our engineering teams support layout design, machine integration, operator training, and process optimization. I.C.T’s solutions are trusted by manufacturers in over 70 countries, helping them build reliable, scalable production lines for long-term success.
