I.C.T | Smt Vacuum Magazine Loader

SMT PCB Loader Unloader & Smt Vacuum Magazine Loader
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

  • SMT PCB Loader / Unloader

  • I.C.T

Availability:
Quantity:
Inquire Add to Basket

I.C.T | Smt Vacuum Magazine Loader



Introduction

1.Strong,firm and stable design.

2. Touch screen and PLC control.

3.Top&bottom pneumatic clamps to secure magazine rack.

4.No PCB breakage guaranty because of special gas circuit design.

5.Automatical diagnosing fault code display function.

6.Wear-resistant cable and have long service life.

7.Compatible SMEMA interface.


PCB Handling Equipment

Magazine Loader

PCB Handling Equipment

Magazine Unloader


PCB Loader & Unloader

Modular design, optional assembly as per client's requipment.

Rugged steel design, improves equipment stability.

Top & Bottom pneumatic clamps to secure magazine rack.

Soft touch LED control panel or touch screen can be selected.


Model（Loader) LD-M LD-L LD-LL
 LD-XL
Dimension(mm)
 1330*765*1250
 1650*845*1250
 1800*909*1250
 1800*970*1250
PCB Size(mm)
 50*50-330*250
 50*50-445*330
 50*50-530*390
 50*50-530*460
Rack Size(mm)
 355*320*563
 460*400*563
 535*460*563
 535*530*563
Control System
 PLC
Power Supply
 1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight
 160 Kg
 220 Kg
 280 Kg
 340 Kg


Model （Unloader) UL-M UL-L UL-LL
 UL-XL
Dimension(mm)
 1730*765*1250
 2065*845*1250
 2660*909*1250
 2660*970*1250
PCB Size(mm)
 50*50-330*250
 50*50-445*330
 50*50-530*390
 50*50-530*460
Rack Size(mm)
 355*320*563
 460*400*563
 535*460*563
 535*530*563
Control System
 PLC
Power Supply
 1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight
 180 Kg
 240 Kg
 300 Kg
 360 Kg


FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.



Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.



Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.



Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.



Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.



Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.


I.C.T - Our Company

SMT PCB Magazine Loader and Unloader

About I.C.T:

I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy.

SMT Stencil printer


Exhibition

SMT PCB Magazine Loader and Unloader

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT


SMT PCB Magazine Loader and Unloader


SMT PCB Magazine Loader and Unloader


Previous:
Next:
SMT PCB Loader SMT board loading machine unloader machine SMT pcb smt bareboard loader wave soldering pcb unloader ng ok pcb unloader conveyor pcb magazine unloader mini size smt loader single magazine loader smt SMT Vacuum Loader

Related Products

I.C.T | Fully Automatied SMT SMD Line Machine
I.C.T | Fully Automatied SMT SMD Line Machine
Nitrogen PCB Reflow Oven for SMT Solder Reflow Machine
Nitrogen PCB Reflow Oven for SMT Solder Reflow Machine
I.C.T SMT Semi Automatic Stencil Printer Solder Paste Printing Machine
I.C.T SMT Semi Automatic Stencil Printer Solder Paste Printing Machine
SM481 Plus | Used SAMSUNG Low Cost Smd Pcb Pick And Place Machine SMT
SM481 Plus | Used SAMSUNG Low Cost Smd Pcb Pick And Place Machine SMT
I.C.T | Double Platform Nitrogen Wave Soldering Machine Acrab450
I.C.T | Double Platform Nitrogen Wave Soldering Machine Acrab450
I.C.T-V5200H | DIP Inverted Camera Online AOI Machine
I.C.T-V5200H | DIP Inverted Camera Online AOI Machine
I.C.T-S400 | 3D SPI SMT Solder Paste Inspection Machine
I.C.T-S400 | 3D SPI SMT Solder Paste Inspection Machine
SMT PCB Coating line with of New Designed and and High Efficiency
SMT PCB Coating line with of New Designed and and High Efficiency

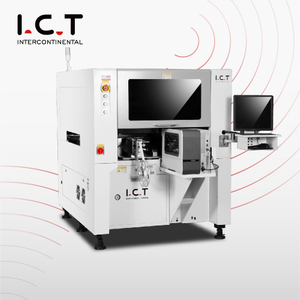

High Accuracy On-line SMT Label Mounter Machine in SMT Production Line
