I.C.T-C800
I.C.T
| Quantity: | |
|---|---|

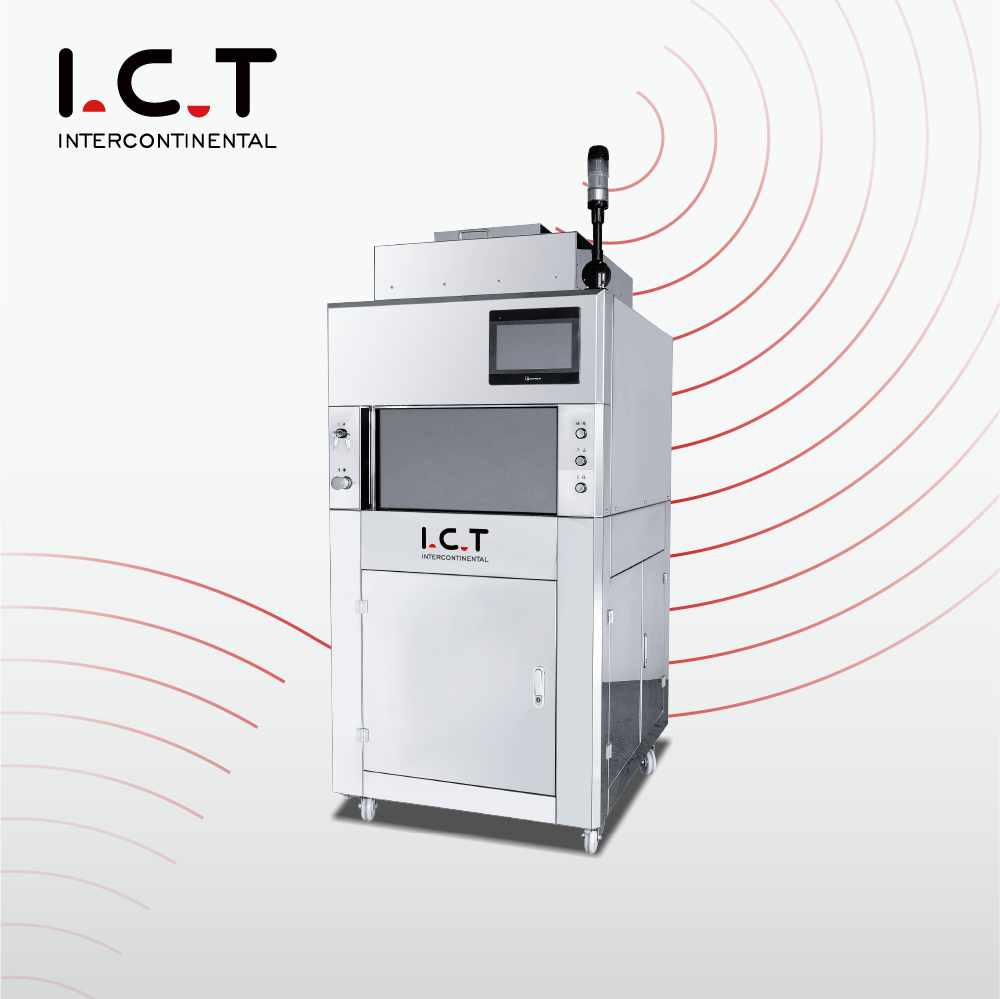

The Smt Camera Module Cleaning Machine is a specialized high-precision cleaning system designed for camera modules, wafers, CMOS sensors, holders, and other sensitive optical components. Using advanced two-fluid cleaning and high-speed centrifugal drying, it effectively removes dust and impurities without damaging delicate surfaces. The fully enclosed mirror stainless steel design meets strict clean room requirements while preventing secondary contamination. With PLC automatic control and real-time monitoring, this machine delivers consistent, reliable cleaning results. It is the ideal smt cleaning system for electronics manufacturers who demand the highest cleanliness standards in camera module production.
Advanced Two-Fluid Cleaning Technology
The I.C.T-C800 uses two-fluid cleaning that combines liquid and air for gentle yet powerful removal of fine particles. This method achieves high cleaning precision while ensuring zero damage to sensitive camera modules and optical surfaces. The rotating spray bar covers all areas evenly and prevents secondary pollution. Combined with static elimination and cavity wall heating, it delivers superior cleaning performance for high-end camera products.
High-Speed Centrifugal Drying System
After cleaning, the machine uses high-speed centrifugal drying (100-1500 RPM) to quickly remove all moisture. This efficient drying method ensures components are completely dry and ready for immediate use or further assembly. The system is highly effective while keeping pure water consumption very low, making it both productive and cost-efficient.
Clean Room Compatible Design
Built with mirror-finish SUS 304 stainless steel and a fully enclosed structure, the machine creates no pollution to the working environment. It features a transparent explosion-proof front door for safe operation and easy observation. Equipped with 2-class air filtration and ultra-pure water system, it fully meets strict clean room requirements for precision camera module manufacturing.
User-Friendly PLC Control
The Smt Camera Module Cleaning Machine is equipped with PLC automatic control and instrument displays for real-time monitoring. Operators can easily set parameters and observe the entire cleaning process. Custom cleaning plates are available to fit different product sizes, making the machine flexible for various camera module types.
| Specification:
| Item | I.C.T-C800 |
|---|---|
| Cleaning Plate Size | Custom (cleaning disc diameter < φ550mm) |
| Cleaning Method | Two fluid cleansing |
| Dry Way | High-speed centrifugal drying |
| Environmental Filtering | 0.3μm; 99.999% |
| Air Filter | 1μm×1 + 0.01μm×1 |
| Centrifugal Speed | 100-1500 RPM |
| Pure Water Consumption | 0-7 L/Min |
| Gas Consumption | 10-30 m³/H |
| Cleaning Pressure | Liquid: 3-8 kgf/cm² Air: 0.2-0.5 Mpa |
| DI Water Supply | Flow: >7 LPM Resistivity: >17 MΩ |
| Pure Water Inlet Diameter | Ø12mm hose or PT1/2" internal thread |
| Air Inlet Diameter | Ø12mm trachea |
| Drain Outlet Diameter | PT1" internal thread |
| Outlet Diameter | 4"×2 (ventilation required, wind speed >3m/sec) |
| DI Water Supply | 30~65 L/Min |
| DI Water Pressure | 0.2~0.4 Mpa |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| SMT Line Equipment List
We provide full SMT production lines including loader, printer, conveyor, pick and place machine, reflow oven, and more. The Smt Camera Module Cleaning Machine serves as an important supporting smt cleaning system in modern SMT factories. It ensures camera modules and other precision components stay clean throughout the production process, helping customers achieve higher quality and reliability in their final products.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
In April 2026, I.C.T successfully delivered a complete SMT production line to a customer in Germany. Our experienced engineers traveled to the customer’s factory to provide full on-site installation, commissioning, and operator training. The line includes loader, printer, conveyor, pick and place machine, reflow oven, and cooling conveyor. During the project, we also introduced our precision cleaning solutions to help maintain the highest quality standards for sensitive components. The customer was highly satisfied with both the equipment and our professional technical support.
| Service and Training Support
We provide complete on-site installation, commissioning, and hands-on training for your team. Our engineers will teach your operators how to properly run and maintain the Smt Camera Module Cleaning Machine. We also offer long-term technical support, spare parts supply, and regular maintenance guidance to ensure your production runs smoothly with maximum efficiency and reliability.
| What Our Customers Say
Customers highly praise our engineers for their expertise and fast response. Many appreciate the excellent cleaning performance on delicate components, the sturdy and safe packaging, and our quick support whenever issues arise. “The machine delivers outstanding results and the I.C.T team is always ready to help,” is a common feedback from our satisfied global partners.
| Certifications and Standards
Our Smt Camera Module Cleaning Machine meets international standards including CE, RoHS, and ISO9001. We also hold multiple patents for our cleaning technology. These certifications demonstrate our strong commitment to quality, safety, environmental protection, and precision engineering.
| About I.C.T Company and Factory
I.C.T is a professional electronics equipment solution provider with our own R&D team, modern production facilities, and over 89 staff members including 20 experienced engineers. Since 2012, we have grown rapidly and now serve more than 1,600 customers across 72 countries. We maintain strict quality control at every production stage. With strong innovation and customer focus, I.C.T delivers reliable full-line solutions and excellent after-sales support worldwide.
