| I.C.T-1500 PCB Stencil Printer Machine Overview
The I.C.T-1500 PCB Stencil Printer Machine is a high-precision automatic printer designed for PCB manufacturing, especially long boards like LED and vehicle electronics. With over 25 years of industry experience, I.C.T provides complete SMT solutions, aligning with Industry 4.0 and MES systems for flawless production. This Automatic PCB Stencil Printer features auto stencil cleaning, PCB calibration, and adjustable squeegee pressure for excellent results. In 2021, we sold over 1900 units, ranking No.2 in the SMT market. Built with top imported components, it ensures durability and low failure rates. Its user-friendly Windows 10 interface allows new setups in under 10 minutes, making it ideal for modern factories.
| Feature
The I.C.T-1500 PCB Stencil Printer Machine offers ±0.015mm repeated positioning and 0.03mm printing accuracy. This precision reduces errors on long PCBs, ensuring consistent solder paste application. The vision system uses uniform ring lights to detect various marks, supporting tin and copper plating. With reliable parts like KURODA ball screws, it maintains stability for SMT Solder Paste Printing on LED or vehicle boards. This feature helps factories achieve high-quality output with less rework, improving overall productivity.
This smt stencil printer machine includes an automatic PCB calibration system for fast, precise alignment. The three-axis linkage, driven by a direct motor, adjusts long boards quickly, ensuring smooth stencil contact. It’s perfect for thin or warped PCBs, reducing manual effort. As a Full-auto PCB Printing Machine, it boosts efficiency in LED and electronics production, offering a stable base for high-volume runs with minimal adjustments.
The I.C.T-1500 features a unique cleaning system with dry, wet, and manual options. Separated CCD and cleaning parts ensure effective paste removal, while software controls alcohol and paper use to save costs. The top-to-bottom spray design cleans evenly, supported by a strong exhaust motor. This makes it an excellent choice for SMT Solder Paste Printing, maintaining quality on long boards and reducing downtime in automated lines.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video

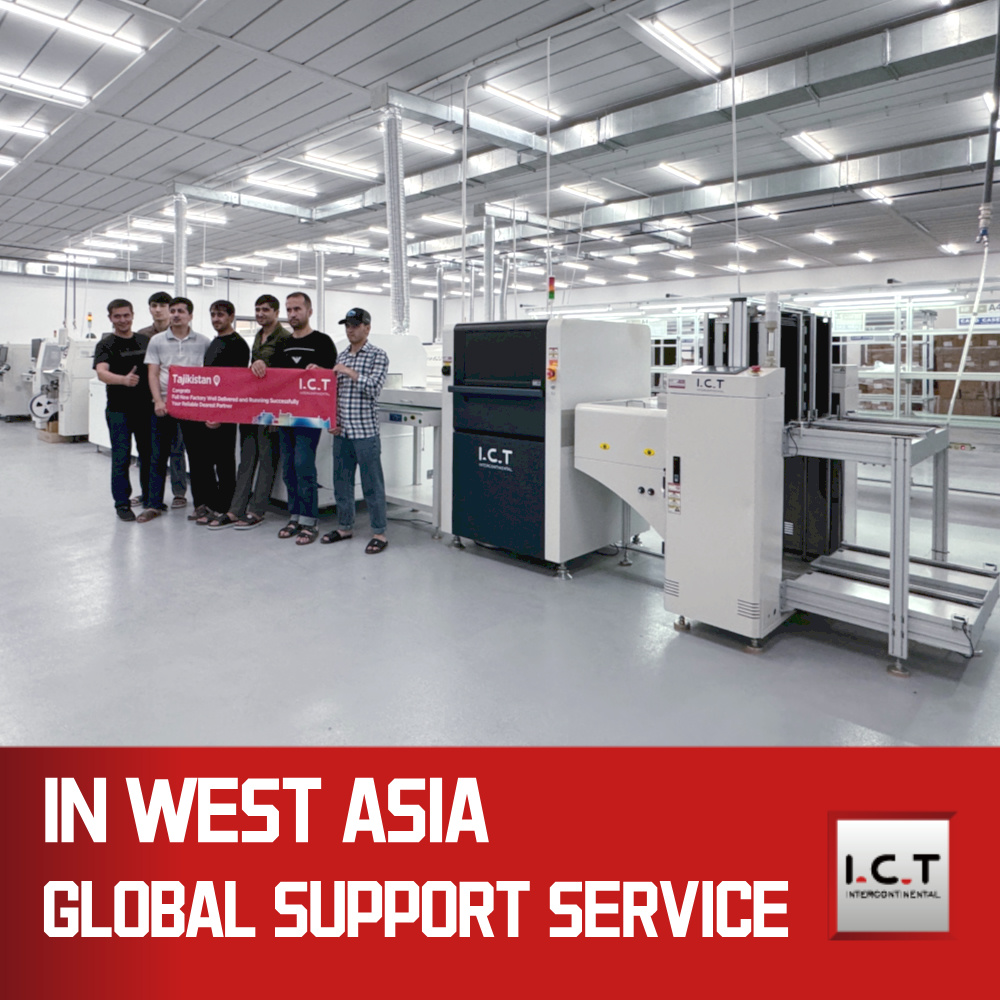

In 2025, I.C.T engineers traveled to an LED lighting factory in Asia for installation and training. The client needed a 29-meter SMT line with 13 machines but had a 21m x 5m space. We designed a U-shaped layout, fitting it into 16m x 2.7m. After two days of setup and debugging, plus six days of training and support, the project was completed successfully. This demonstrated our ability to tailor PCB Stencil Printer Machine solutions to specific needs.
| Service and Training Support
I.C.T delivers comprehensive service and training for the PCB Stencil Printer Machine. Our team provides on-site installation, maintenance, and quick technical support. Training covers operation, troubleshooting, and process optimization, tailored to your setup. With 25+ years of expertise, we offer fast responses to issues, minimizing downtime and ensuring your production runs smoothly with confidence.
| Customer Reviews
Customers appreciate our engineers’ skilled and friendly assistance during installations. They admire the PCB Stencil Printer Machine for its precision and reliability. Our secure packaging and timely delivery receive high marks, and many value our rapid problem-solving, keeping production on track and earning trust.
| Certifications and Standards
I.C.T holds CE, RoHS, and ISO9001 certifications, ensuring the PCB Stencil Printer Machine meets global standards. We also have patents for innovations like the cleaning and transport systems. These credentials guarantee safe, high-quality equipment, giving customers assurance in every project.
| About I.C.T Company and Our Factory
I.C.T is a leading electronics solution provider with in-house research, development, and production. We employ 89 staff across a 12,000m² facility, growing rapidly with a $30 million fund. Serving over 1600 customers in 72 countries, our factory uses strict testing and quality controls. This supports global delivery of advanced products like the I.C.T-1500 PCB Stencil Printer Machine.
