I.C.T-1200
I.C.T
| Quantity: | |
|---|---|
| Advanced 1.2m Solder Paste Printer
The I.C.T-1200 Solder Paste Stencil Printing Machine is a high-precision automatic printer tailored for LED and large-size PCBs up to 1200mm. Launched with over 1900 units sold in 2021, ranking No.2 in the SMT industry, it aligns with Industrial 4.0 standards. This machine ensures flawless printing through advanced automation and a robust design with top-brand components. Its user-friendly Windows 10 interface and quick setup time of 10 minutes make it ideal for electronics manufacturing, including LCD TVs and vehicle electronics.
| Feature
The machine offers exceptional printing accuracy of ±0.03mm, supported by a vision system with uniform ring and coaxial light sources. This ensures precise alignment for various PCB surfaces like tin plating and FPC, delivering consistent results for LED production and reducing errors effectively.
The suspended print head with automatic pressure adjustment offers real-time feedback, ensuring perfect paste formation. This feature allows fine-tuning for different PCB types, improving quality control and efficiency in high-speed SMT lines.
Equipped with a unique spray cleaning system, it provides dry, wet, and manual cleaning options. The separate CCD and cleaning design, controlled by software, minimizes alcohol and paper use while a strong exhaust motor ensures thorough cleaning, enhancing long-term reliability.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

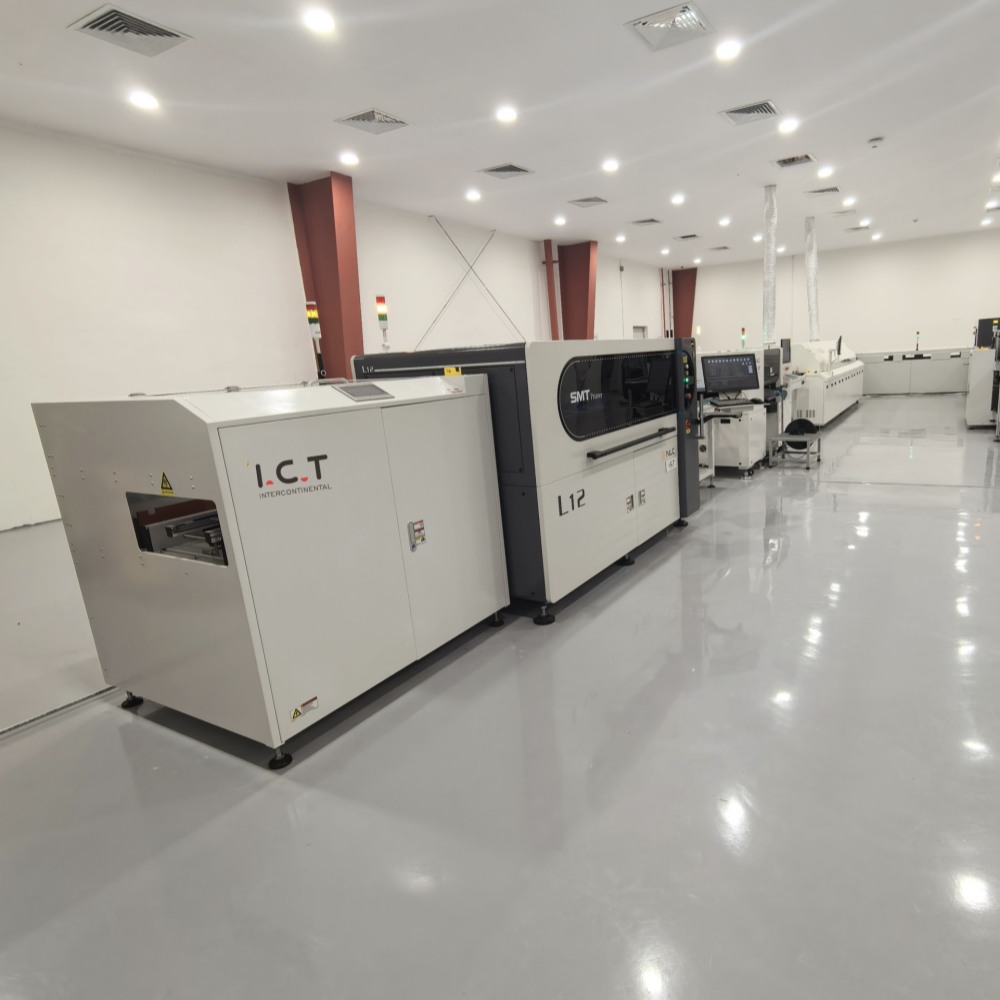

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Case Study

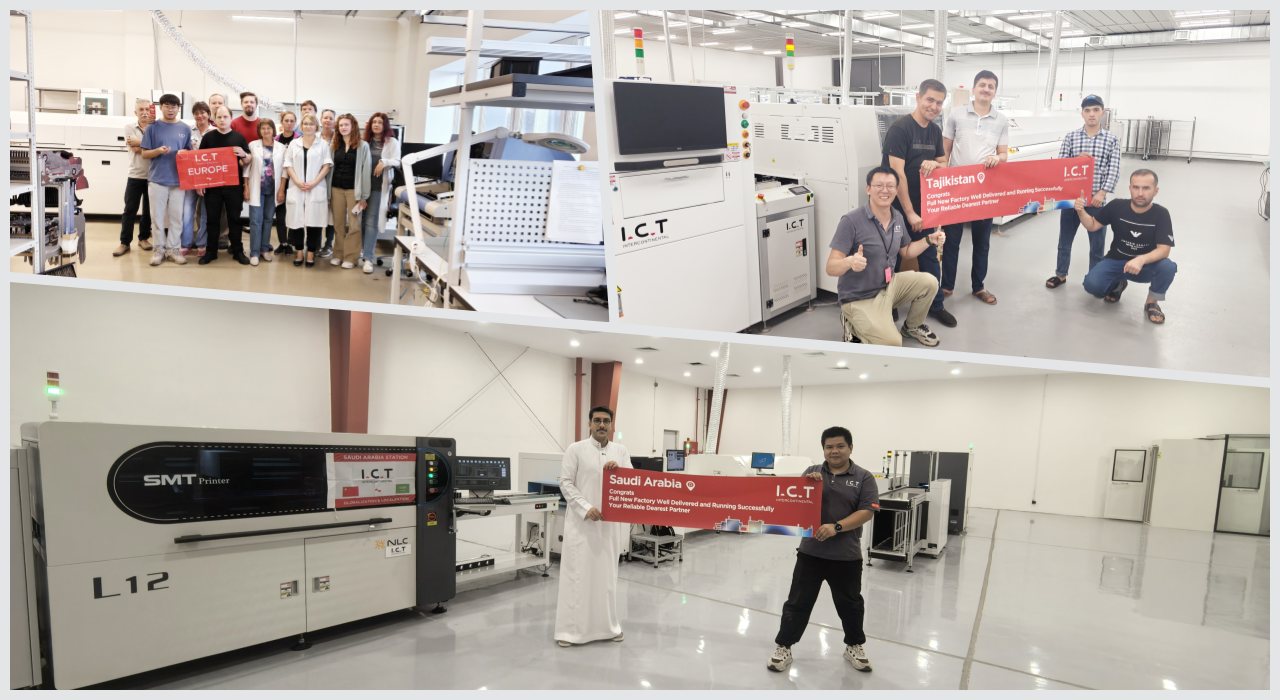

In 2025, I.C.T engineers visited a home LED lighting factory to install and train on an automatic solder paste printing machine. The client required a compact setup within a 16m x 2.7m space. After 2 days of installation and 6 days of training, the U-shaped SMT line was successfully implemented, meeting the client’s needs with expert support and technical guidance.
| Service and Training Support

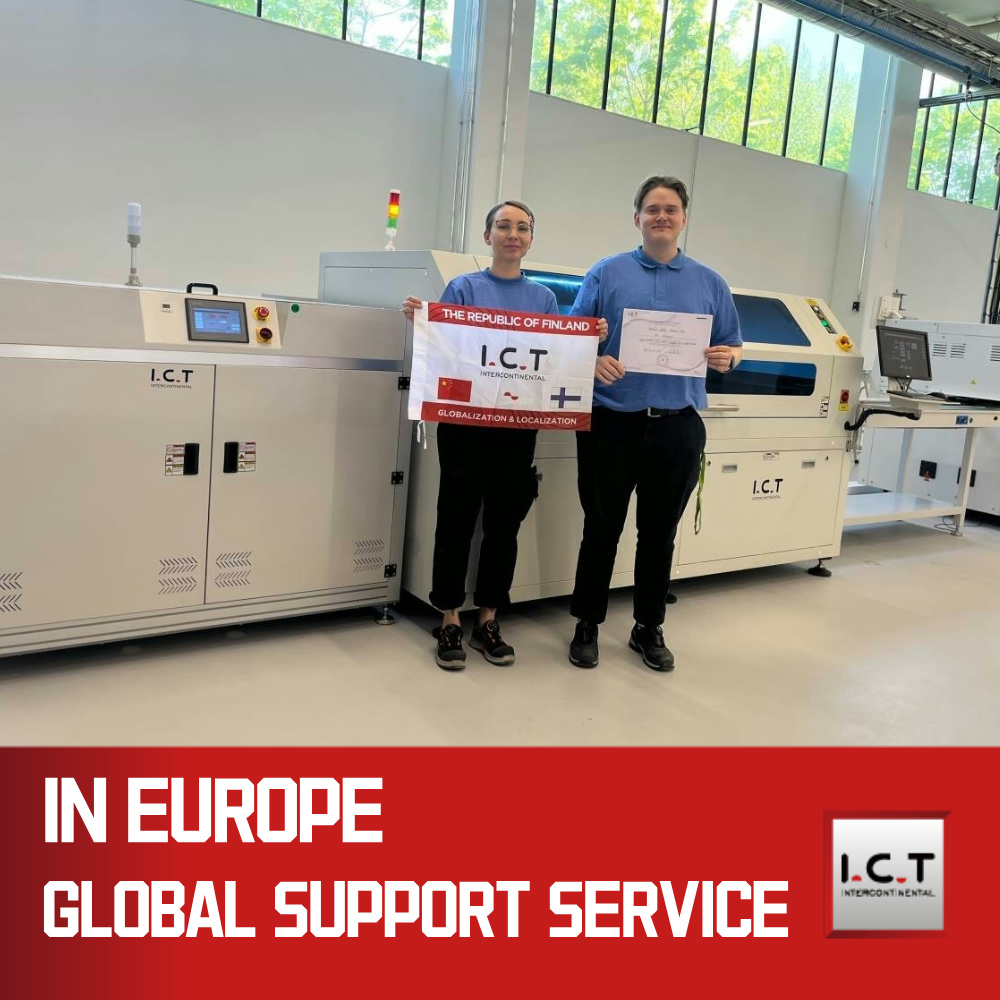

I.C.T offers expert installation, maintenance, and training services. Our skilled team ensures seamless operation, providing ongoing support to optimize your production process and address any technical needs efficiently.
| Customer Reviews
Clients commend our engineers for their professional installation support. They appreciate the stencil printer solder’s durability and top performance. Fast responses to queries and secure packaging also earn high praise, building strong customer trust.
| Certifications and Standards
I.C.T holds top certifications like CE, RoHS, and ISO9001, ensuring safety and quality. We also have patents for our innovative designs. These certificates prove our commitment to high standards and reliable performance in every PCB Printer.
| About I.C.T Company and Our Factory
Founded in 2012, I.C.T is a global electronics solution provider with over 25 years of experience. With 89 staff, 20 engineers, and a 12000m² facility, we handle in-house R&D and production. Serving 1600+ customers across 72 countries, our factory maintains strict quality checks and a robust management system, ensuring rapid growth and worldwide reach.
