I.C.T-5134
I.C.T
| Quantity: | |
|---|---|

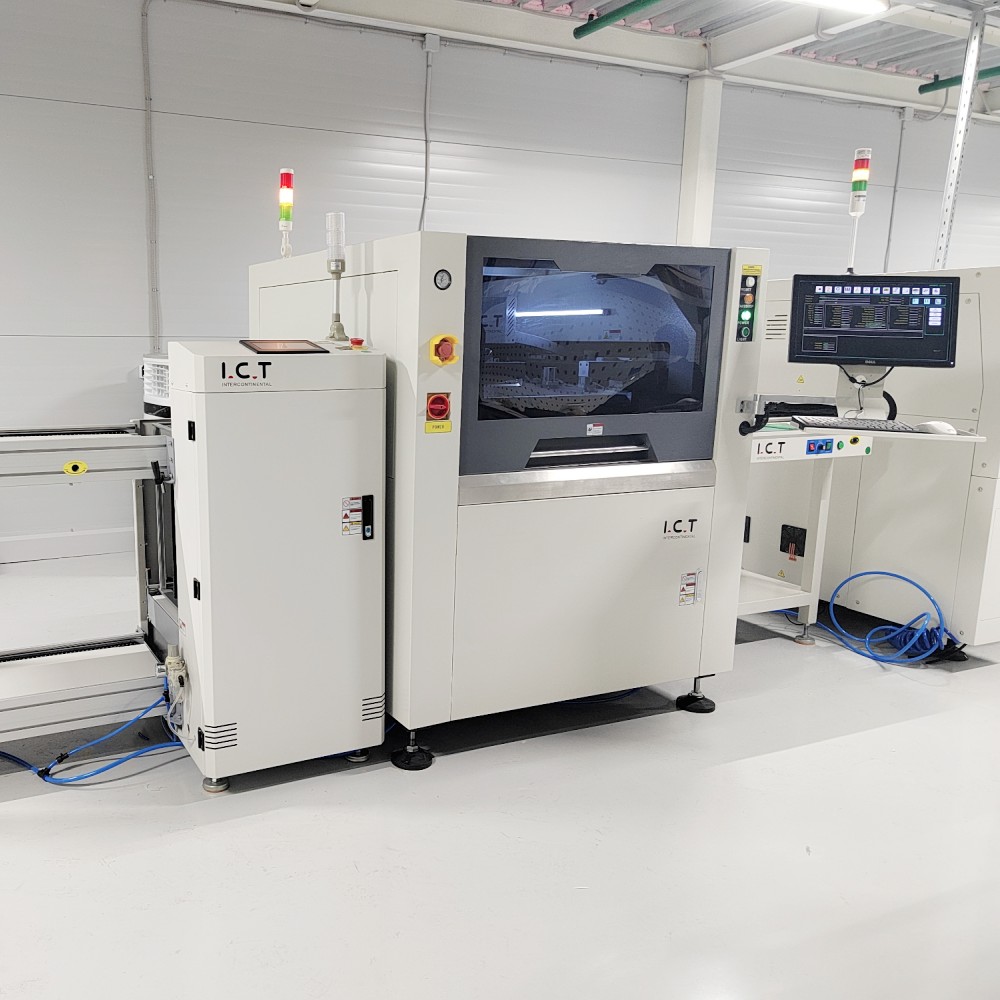

| Explore the SMT Screen Printing Machine
Tired of uneven solder paste causing rework headaches? The SMT Screen Printing Machine changes that with smooth, automated application every cycle. It fits boards in a wide range, ideal for LED displays, auto modules, or home appliances. Auto calibration and pressure tweaks happen without lifting a finger, while glue mode adds versatility. As a Full-auto PCB Printing Machine, it ties into your systems for instant updates. Touch controls make switching jobs a breeze. I.C.T walks you through from needs assessment to peak performance. This Full-auto PCB Stencil Printer eliminates manual guesswork, turning the Stencil Paste Printer into a reliable workhorse. The Full-auto SMT PCB Printer brings smart factory benefits right to your line.
| Feature
At the core of the SMT Screen Printing Machine lies a clever suspended squeegee head. Two independent motors drive it directly, adjusting speed and lift in smart ways to suit your needs. Sturdy rails hold everything steady, and instant feedback fine-tunes paste shape for spot-on results. Glue or standard solder – it handles both effortlessly. Premium imported parts mean rare breakdowns and long-lasting dependability. In a Full-auto PCB Printing Machine setup, this system slashes defects and material loss, keeping your Full-auto PCB Stencil Printer humming along productively.
Boards move in seamlessly on a jam-proof belt powered by a precise motor. Flip directions to match your layout – no hassle. Side holders and soft vacuum grip even slightly warped panels securely. The platform adjusts height automatically for ideal stencil touch every time. Job changes fly by in minutes. This transport excels in the Stencil Paste Printer, ensuring reliable flow for the Full-auto SMT PCB Printer in busy environments.
Stencils stay pristine with dry wipes, wet sprays, vacuum pulls, or quick manual touches. The camera stays protected while spray covers every inch evenly. Built-in smarts track usage to cut down on supplies. A robust fan whisks away residue in seconds. No more mid-shift clogs slowing you down. For the SMT Screen Printing Machine, this keeps prints perfect run after run, boosting the overall edge of your Full-auto PCB Printing Machine.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

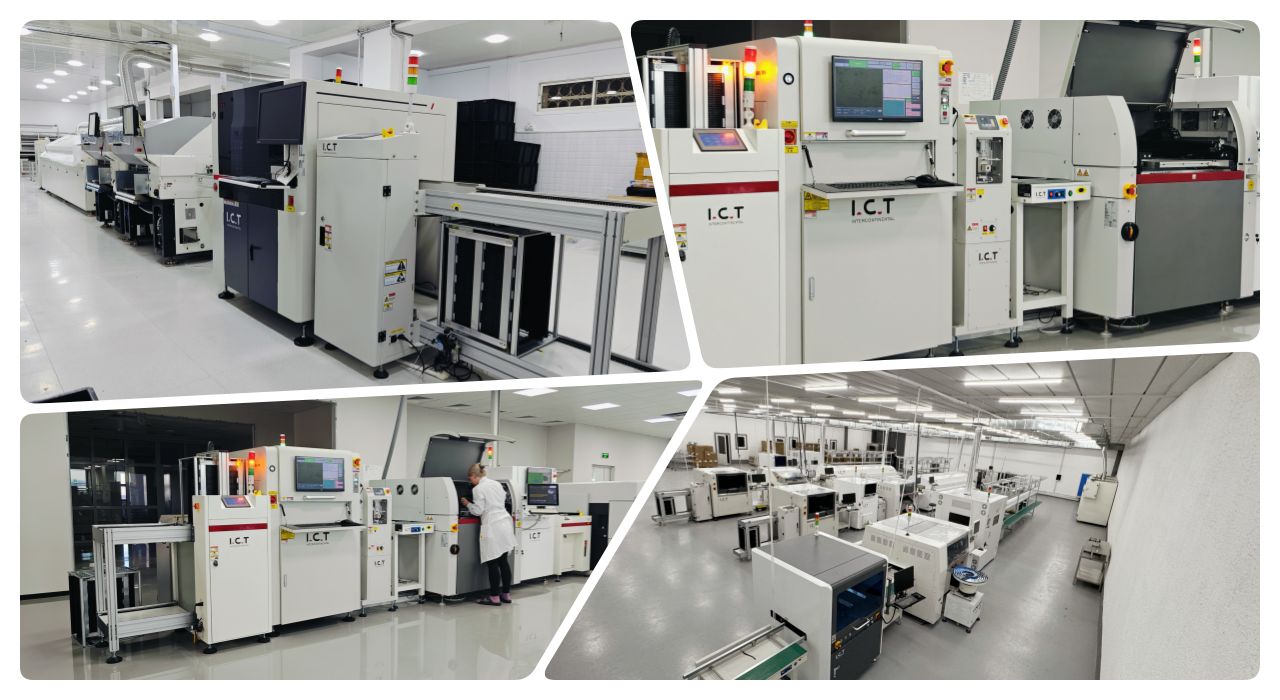

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Case Video
A North American beauty gadget maker faced tight deadlines for new lines. I.C.T jumped in, deploying two setups featuring the SMT Screen Printing Machine. They kicked off with a thorough site review, dialed in calibrations, and ran exhaustive trials. Hands-on sessions covered vision tweaks, pressure balance, and data syncing. Production sign-off happened swiftly, nailing fine details on compact beauty circuits. The team raved about proactive fixes and yield-boosting advice. Cases like this showcase I.C.T's global reach, making the Full-auto PCB Stencil Printer a standout for international growth.
| Service and Training Support
I.C.T partners from the start with your SMT Screen Printing Machine. Experts manage install, fine-tuning, and tailored training no matter the location. Hit a snag? Remote tools diagnose and resolve fast. Short modules teach screen basics, error logs, and fresh programs in minutes. We map your processes to trim expenses and amp throughput. Spare parts ship swiftly from nearby hubs. Ongoing check-ups foster lasting success. This support transforms the Stencil Paste Printer into an effortless asset for your team.
| Customer Reviews
Real User Stories"Overseas install was seamless – production started same week!" shares one. Another: "The Full-auto SMT PCB Printer slashed our rework by half." Praise flows for tough packing that survives travel, speedy answers, and intuitive sessions. "Like a trusted partner in every shift," notes an LED producer.
| Certifications and Standards
I.C.T Proven StandardsCertified CE, RoHS, ISO9001 for eco-safety and excellence. Numerous patents on smart cleaning, anti-collision, transport innovations, and more. These back the reliability you expect from the SMT Screen Printing Machine.
| About I.C.T Company and Our SMT Factory
Rooted in our own R&D and spacious factory with 89 dedicated folks including 20 engineers, I.C.T thrives serving over 1600 partners in 72 countries. Rigorous checks and quality focus span from SMT beginnings to full coatings. Branches and stocks worldwide mean prompt local aid. Team up for holistic plans that elevate your Full-auto PCB Printing Machine and beyond.
