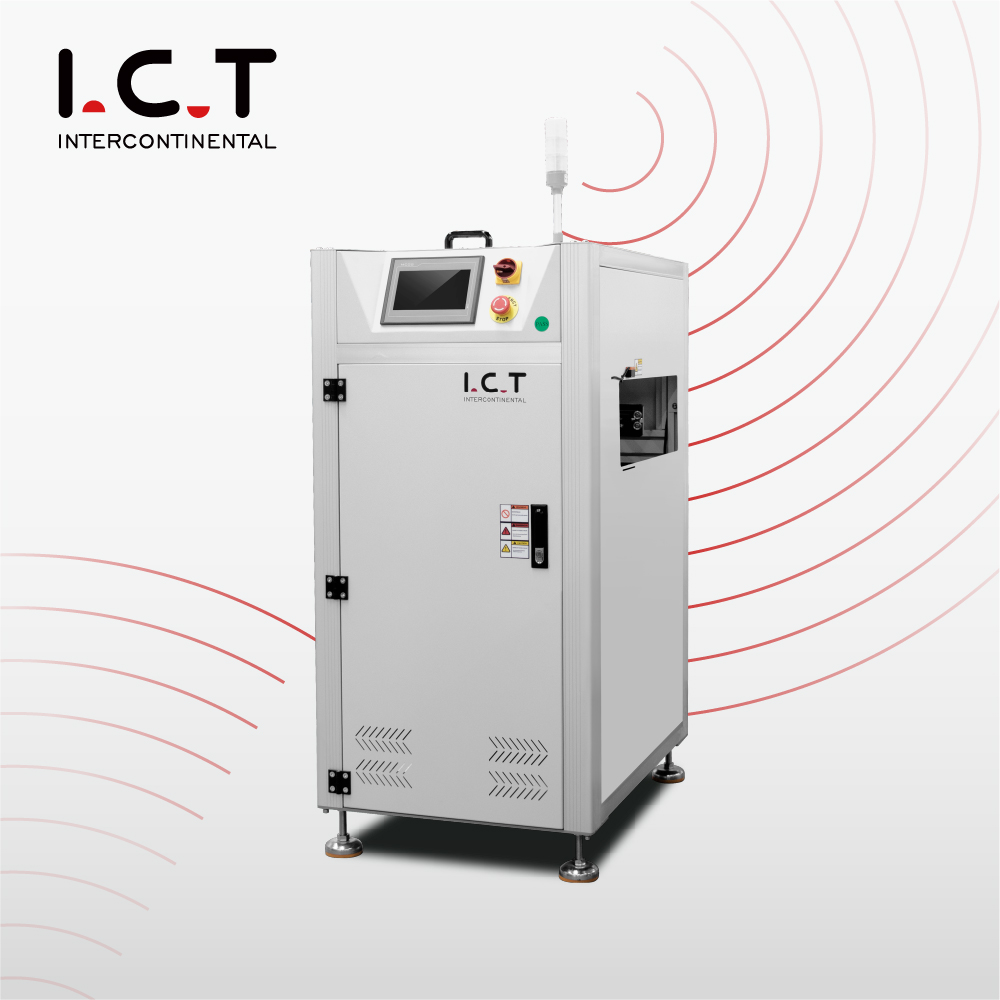

| 90 Degrees SMT PCB Board Turning Conveyor
The 90 Degrees SMT PCB Board Turning Conveyor is designed to redirect PCBs seamlessly within an SMT production line. Whether rotating PCBs by 90, 180, or 270 degrees, it offers smooth transitions between different production channels. Equipped with adjustable width control, it can handle a variety of PCB sizes. With a robust steel construction and SMEMA compatibility, it integrates easily into automated production lines, reducing downtime and enhancing overall efficiency.
| Detailed Product Features
a. Directional Flexibility for Efficient PCB Flow
This conveyor allows for the precise redirection of PCBs, facilitating smooth transitions between different channels in your production line. It can rotate PCBs at 90, 180, or 270 degrees, offering flexibility to adapt to your production setup. This directional flexibility is essential for optimizing the layout of your SMT line and improving overall throughput.
b. Adjustable Width for Versatility
The 90 Degrees SMT PCB Board Turning Conveyor is equipped with adjustable width control, making it versatile enough to handle various PCB sizes. Whether your production line requires handling narrow or wide PCBs, the conveyor can be adjusted to ensure smooth and efficient operation, providing optimal performance for different production runs.
c. Seamless SMEMA Compatibility
This machine is fully compatible with SMEMA standards, ensuring smooth communication and integration with other machines in your SMT production line. Whether working with PCB loaders, pick-and-place machines, or reflow ovens, the conveyor seamlessly fits into your automated system, helping to streamline the entire production process.
d. Reliable Performance with Low Maintenance
The 90 Degrees SMT PCB Board Turning Conveyor is designed for continuous, high-performance operation in demanding environments. Its robust design ensures stable performance, while its low-maintenance features minimize downtime. With wear-resistant components and an easy-to-maintain construction, it ensures long-term reliability, keeping your production line running smoothly.
LED inspection lights, metal chain conveyors, and ionizer fans stand ready. Automatic width motors and segment transport control handle special requirements. Every option arrives fully tested. These choices let the smt mini pcb magazine loader match any SMT layout precisely.
| Specification
| Specification | Model TC350 | Model TC460 |
|---|---|---|
| Dimension (mm) | 7007301200 | 8008001200 |
| PCB Size (mm) | 5050400*350 | 5050530*460 |
| Cycle Time | Approx. 15 Seconds | Approx. 15 Seconds |
| Belt Type | Round Belt or Oblate Belt | Round Belt or Oblate Belt |
| Control System | PLC | PLC |
| Power | Max 250 VA | Max 250 VA |
| Transport Height | 900±20mm (or Customer Specified) | 900±20mm (or Customer Specified) |
| PCB Direction | L to R or R to L | L to R or R to L |
| Communication | SMEMA for Both In & Out | SMEMA for Both In & Out |
| Power Supply | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) |
| Weight | 170 Kg | 220 Kg |
| Option | Automatic width adjustment | Automatic width adjustment |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
