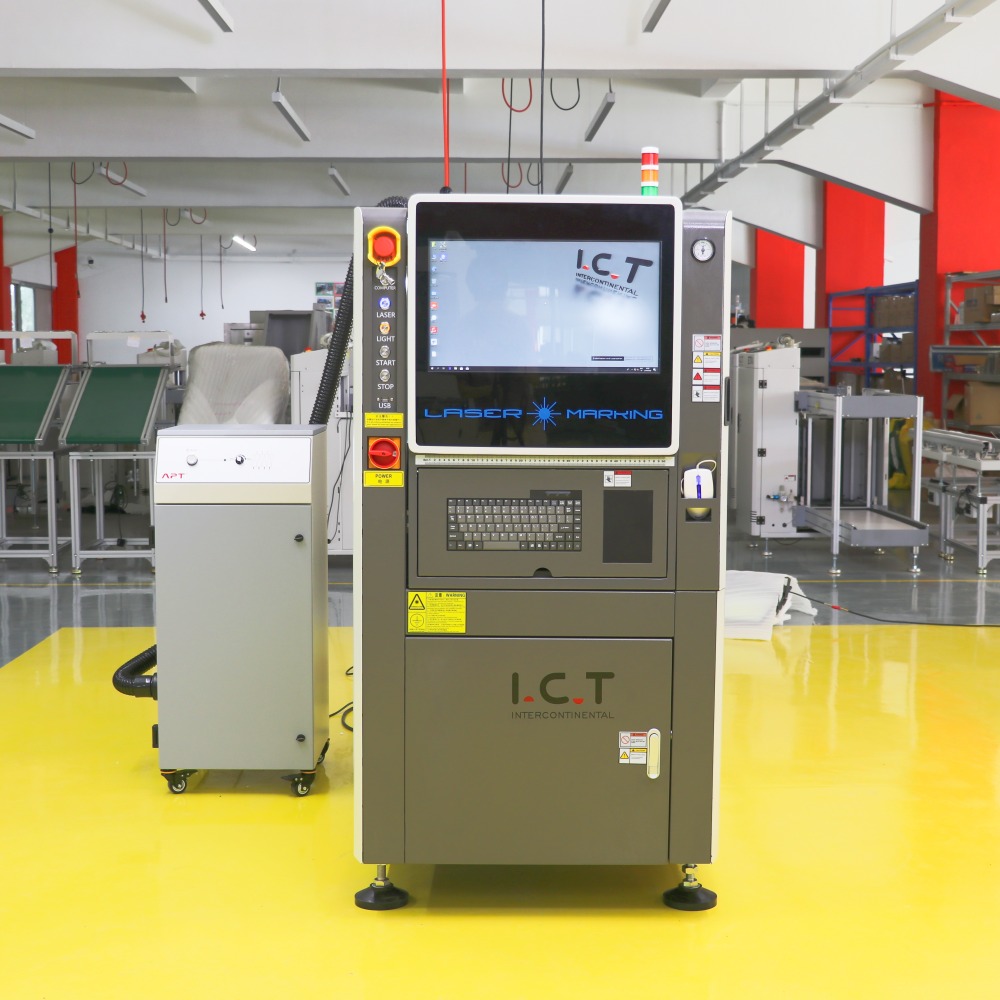

| High-Performance Laser Marking Machine for PCB Traceability
The laser marking machine serves as a key tool in modern SMT lines by applying clear, durable text, barcodes, 2D codes, and graphics directly onto PCBs. With marking precision of ±0.05 mm, it handles board sizes up to 510×460 mm across four models (I.C.T-400, 460, 510, 510L). Supported laser types include UV for sensitive surfaces, Green for plastics and ceramics, Fiber for metals, and CO₂ for standard FR4. The system connects seamlessly to assembly lines, enables real-time MES data exchange, and works in both online and offline modes. Unlike traditional printing, it uses no inks or labels, eliminates waste, prevents reprint mistakes, and supports high-speed operation up to 7000 mm/s. This approach delivers consistent, professional results that improve traceability and efficiency for electronics manufacturers facing strict quality and environmental requirements.
| Feature
Strong Driving System for Consistent Motion
I.C.T engineers designed the driving system with an arch bridge suspension structure that works together with reliable ball screws and linear guides supplied by TBI and HIWIN/PMI. Two separate high-precision servo motors handle X and Y axis control, providing stable positioning even when handling larger or heavier boards. Flexible closed tank chains, supported by auxiliary profiles, maintain smooth travel without sudden jerks or vibrations. A dedicated dust cover protects moving parts from contaminants, which helps reduce cleaning time and extends component life. This solid mechanical foundation allows the laser marking machine to perform reliably during long production shifts, supporting accurate marking and minimizing interruptions in busy SMT facilities.
Versatile Marking System for Material Flexibility
The marking system gives users the freedom to select UV, Green, Fiber, or CO₂ lasers depending on the exact PCB material and application needs. Each laser option delivers stable wavelength, high beam quality, and a long working life for dependable performance over years. Factory-set focal length eliminates manual adjustments, and the Z-axis automatically adapts to board thickness variations. Cooling methods are carefully matched to each laser type to keep everything running cool and stable during extended use. Different beam delivery configurations handle complex layouts and challenging surfaces effectively. This adaptable setup ensures the laser marking machine produces sharp, uniform marks that meet traceability standards across a wide range of electronics production scenarios.
Protective Transport System for Safe Board Handling
Certain models come with a built-in flip mechanism that processes both sides of a PCB in a single cycle, simplifying double-sided marking jobs. Segmented guide rails feature ESD anti-static belts that safeguard sensitive components from static discharge. High-strength synchronous belts allow speed adjustments to match the line flow, and special tensioning devices keep belts in optimal condition at all times. Ball screws paired with rigid shafts enable precise, synchronous width adjustment, maintaining perfect parallelism between front and rear rails to prevent board skew. Cylinder baffles provide fine stopping control for accurate placement. These elements combine to move PCBs gently and reliably, helping maintain high yield and smooth operation throughout the process.
Secure and Service-Friendly Control System
The control system features a logical, well-organized layout with standardized connections that make routine inspections and repairs straightforward for maintenance teams. High-precision servo drives and motors ensure smooth, repeatable movement with minimal vibration. Effective air convection cooling keeps electronic components at safe temperatures even in demanding factory conditions. I.C.T’s own integrated control board operates stably with simple wiring and easy troubleshooting steps. An independent leakage protection switch provides additional electrical safety, and the entire design complies with international CE and UL standards. This thoughtful engineering keeps the laser marking machine running safely and dependably, giving operators peace of mind during daily production.
Practical Operator Interface for Fast Learning
The operator interface presents a clean, guided design that allows new users to become productive with short training. Based on a genuine Windows operating system, it stores many product programs for one-click changeovers when switching jobs. Full-frame scanning shows alignment patterns clearly on the screen, speeding up setup and programming. The coaxial camera arrangement removes the need for extra calibration routines. Standard MES docking ports support direct integration with factory systems, and custom protocols remain available when needed. These user-focused features cut down on learning curves, reduce input errors, and help teams incorporate the machine quickly into existing SMT workflows.
| Specification
| Parameter | I.C.T-400 | I.C.T-460 | I.C.T-510 | I.C.T-510L |
|---|---|---|---|---|
| Max PCB Size | 380 × 380 mm | 510 × 450 mm | 510 × 400 mm | 510 × 460 mm |
| Marking Range | 280 × 380 mm | 460 × 450 mm | 430 × 400 mm | 510 × 460 mm |
| PCB Flip Function | Yes (built-in flipper) | Yes (built-in flipper) | No | No |
| Machine Dimension | 835 × 1488 × 1566 mm | 974 × 1528 × 1616 mm | 1054 × 1568 × 1523 mm | 1054 × 1470 × 1523 mm |
| Machine Weight | 700 kg | 800 kg | 750 kg | 800 kg |
| Marking Precision | ±0.05 mm (same for all) | ±0.05 mm (same for all) | ±0.05 mm (same for all) | ±0.05 mm (same for all) |
| PCB Thickness | 0.5–5 mm (same for all) | 0.5–5 mm (same for all) | 0.5–5 mm (same for all) | 0.5–5 mm (same for all) |
| Marking Speed | <7000 mm/s (same for all) | <7000 mm/s (same for all) | <7000 mm/s (same for all) | <7000 mm/s (same for all) |
| Laser Types Supported | UV, Green, Fiber, CO₂ (same for all) | UV, Green, Fiber, CO₂ (same for all) | UV, Green, Fiber, CO₂ (same for all) | UV, Green, Fiber, CO₂ (same for all) |
| PCB Safety Height | Top <25 mm, Bottom <20 mm (same for all) | Top <25 mm, Bottom <20 mm (same for all) | Top <25 mm, Bottom <20 mm (same for all) | Top <25 mm, Bottom <20 mm (same for all) |
How to choose the Laser：
UV laser (355nm): Best for heat-sensitive PCBs, FR4 solder mask, flexible circuits. Cold marking, minimal damage, high contrast.
Green laser (532nm): Ideal for plastics, silicon wafers, ceramics, reflective coatings. Excellent absorption, ultra-fine marks, low heat impact.
Fiber laser (1064nm): Perfect for metals, copper/aluminum traces, metallic PCBs. Deep, permanent, fast, high-contrast marks.
CO₂ laser (10600nm): Suitable for standard FR4, solder mask, organic coatings. Stable, good contrast, cost-effective for rigid boards.
| Integrated SMT Production Line Solution
I.C.T delivers complete high-quality SMT production lines for automotive, healthcare, and lighting electronics. The line starts with a SMT loader for clean board entry, followed by an auto SMT printer for precise solder paste deposit. JUKI SMT mounters place components accurately at high speed. Lyra reflow ovens create strong, reliable solder joints across multiple zones. AOI inspection machine detect defects early for high yield. PCB conveyors keep everything moving smoothly and tightly connected. PCBA cleaning machines remove residues for better reliability. A fully automatic solder paste storage and warming cabinet maintains paste quality. This setup ensures high yield, low cost, and consistent results, with full I.C.T support from installation to ongoing service.
| Customer Project Case
I.C.T completed overseas installation and full Factory Acceptance Testing (FAT) support for two complete SMT production lines at a North American beauty instrument manufacturer. Both lines successfully passed production acceptance checks. Each line included our laser marking machine for permanent traceability, an SMT printer with SPI inspection, Panasonic component mounter, Heller reflow oven, AOI system, PCB transfer conveyors, PCBA cleaning machine, and automatic solder paste storage and warming cabinet. Our engineers managed on-site assembly, delivered detailed operator training, and optimized processes to match specific production goals. The customer now runs stable, efficient lines capable of high-quality output for growing demand in personal-care electronics.
| Global Service and Training Support
I.C.T offers full-cycle technical support, beginning with expert on-site installation and commissioning to start production without delays. Training sessions teach machine operation, software programming, code design, daily maintenance, and basic fault diagnosis. Engineers share practical advice to improve marking quality and overall line performance. Post-installation, customers benefit from rapid remote support, prompt spare parts delivery, and regular follow-up checks. This structured service approach minimizes unexpected downtime, prolongs equipment reliability, and ensures the laser marking machine continues to deliver strong value throughout its service life. Partners gain ongoing confidence from a responsive team committed to long-term success.
| Customer Experience and Operational Benefits
Customers often highlight our engineers’ expertise, clear communication, and fast resolution of installation or setup issues. Many express appreciation for the laser marking machine due to its stable operation, sharp readable marks, and seamless line integration. Positive comments frequently mention the secure packaging and careful global shipping that deliver equipment in excellent condition. Quick responses to technical questions—via phone, email, or remote access—strengthen trust and satisfaction. In summary, clients value the combination of dependable machine performance and attentive, professional support that helps them maintain consistent, high-quality production results.
| Standards, Control and Production Discipline
I.C.T equipment meets important global standards through certifications that verify safety, environmental compliance, and quality control. These include CE for electrical and mechanical safety, RoHS to limit hazardous materials, and ISO9001 for a systematic quality management process. Multiple patents protect innovative features in laser technology, motion control, and system connectivity. These recognitions confirm that the laser marking machine operates safely, supports responsible manufacturing practices, and earns confidence from electronics producers operating under strict international regulations.
| About I.C.T Company and Factory
I.C.T runs its own research, development, and manufacturing operations at a modern facility in Dongguan, China, covering 12,000 square meters with a team of 89 employees, including 20 dedicated engineers. Established in 2012, the company has expanded rapidly and now supports more than 1,600 customers across 72 countries. The factory implements strict inspection procedures at every stage, backed by a complete quality management system that guarantees consistent product performance. We provide end-to-end SMT solutions, from initial planning and equipment supply to installation, training, and process improvement, helping clients worldwide create efficient, reliable manufacturing systems.
