I.C.T-1200
I.C.T
| Quantity: | |
|---|---|
| High-Precision LED Solder Printer
The LED Solder Printing Machine is a top-choice automatic solder paste printer designed for LED and large-size products. With over 1900 units sold in 2021, ranking No.2 in the SMT industry, this machine supports Industrial 4.0 and MES systems. It ensures zero defects through advanced automation, featuring high accuracy of ±0.03mm and a robust build with imported top-brand components. Suitable for LCD TVs, vehicle electronics, and more, it offers a simple Oriental-designed operating system that’s easy to learn. The machine’s mature software and hardware provide stability and a service life of over a decade.
| Feature
This machine delivers high positional accuracy with a repeated positioning accuracy of ±0.015mm and printing accuracy of ±0.03mm. It uses advanced vision systems with uniform ring light and coaxial light sources to identify various PCB marks, ensuring precise alignment for tin plating, copper plating, and other surfaces. The result is consistent, high-quality printing every time.
The automatic PCB calibration system adjusts squeegee pressure and ensures smooth contact between the PCB and stencil. With a programmable lifting platform, it lifts the PCB to the perfect height, reducing errors and improving production efficiency while saving costs.
Featuring a unique spray cleaning system, this machine offers dry, wet, and manual cleaning options. The separate CCD and cleaning design, controlled by software, saves alcohol and paper usage. A special exhaust motor provides strong vacuum power, ensuring effective and efficient cleaning.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

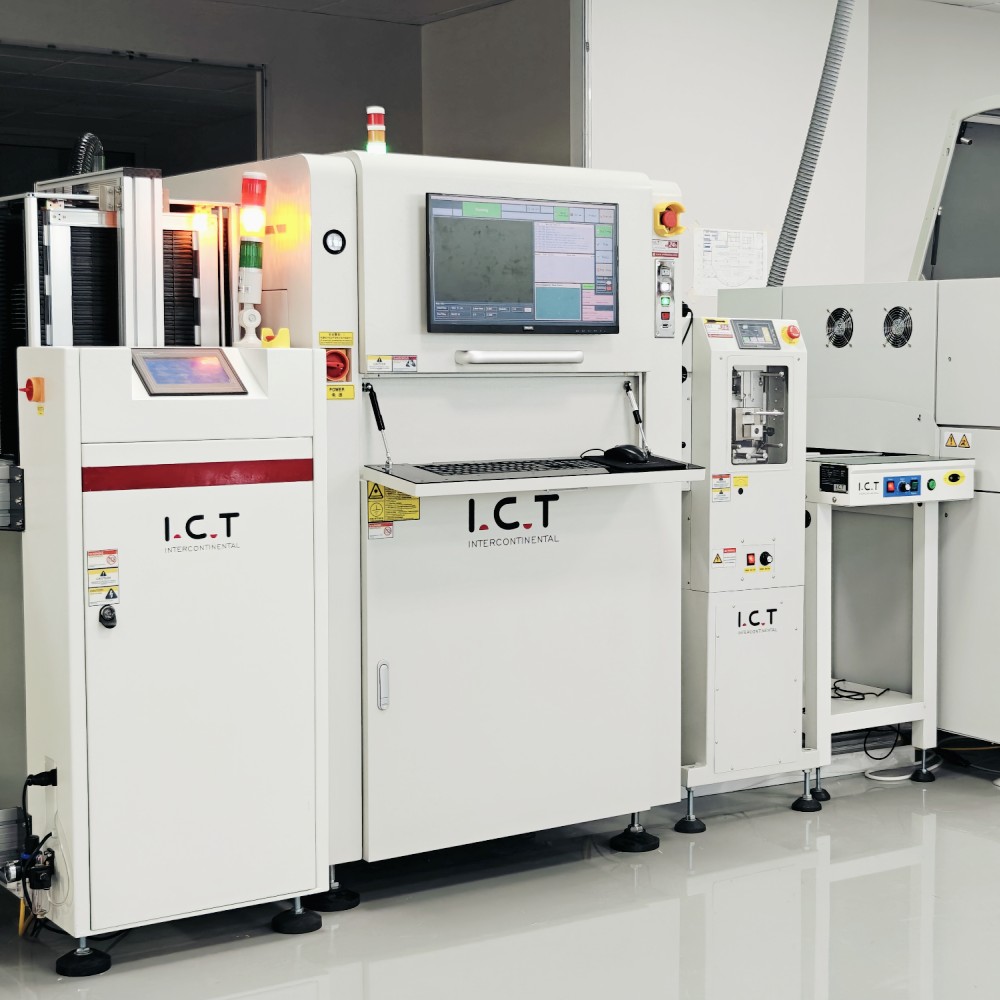

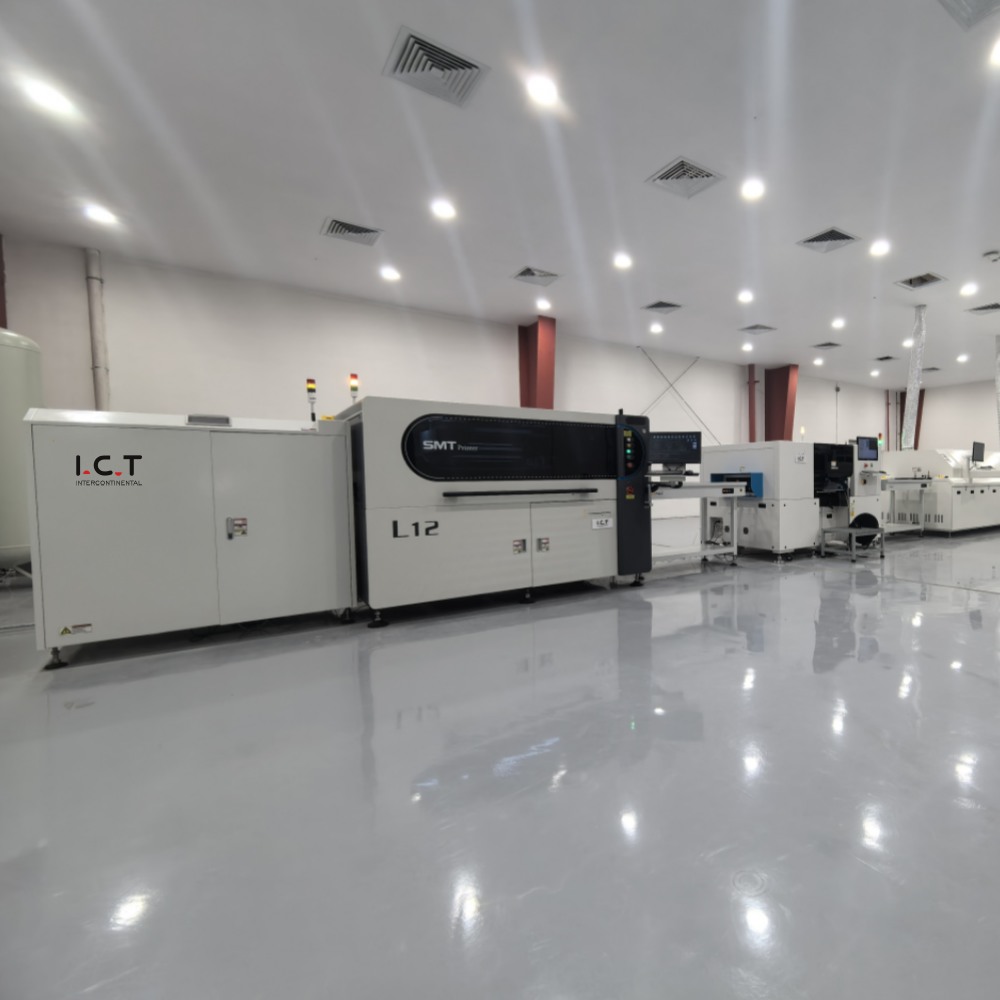

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Case Study
In 2025, I.C.T engineers traveled to an LED lighting factory in Asia for installation and training. The client needed a 29-meter SMT line with 13 machines but had a 21m x 5m space. We designed a U-shaped layout, fitting it into 16m x 2.7m. After two days of setup and debugging, plus six days of training and support, the project was completed successfully. This demonstrated our ability to tailor PCB Stencil Printer Machine solutions to specific needs.
| Service and Training Support

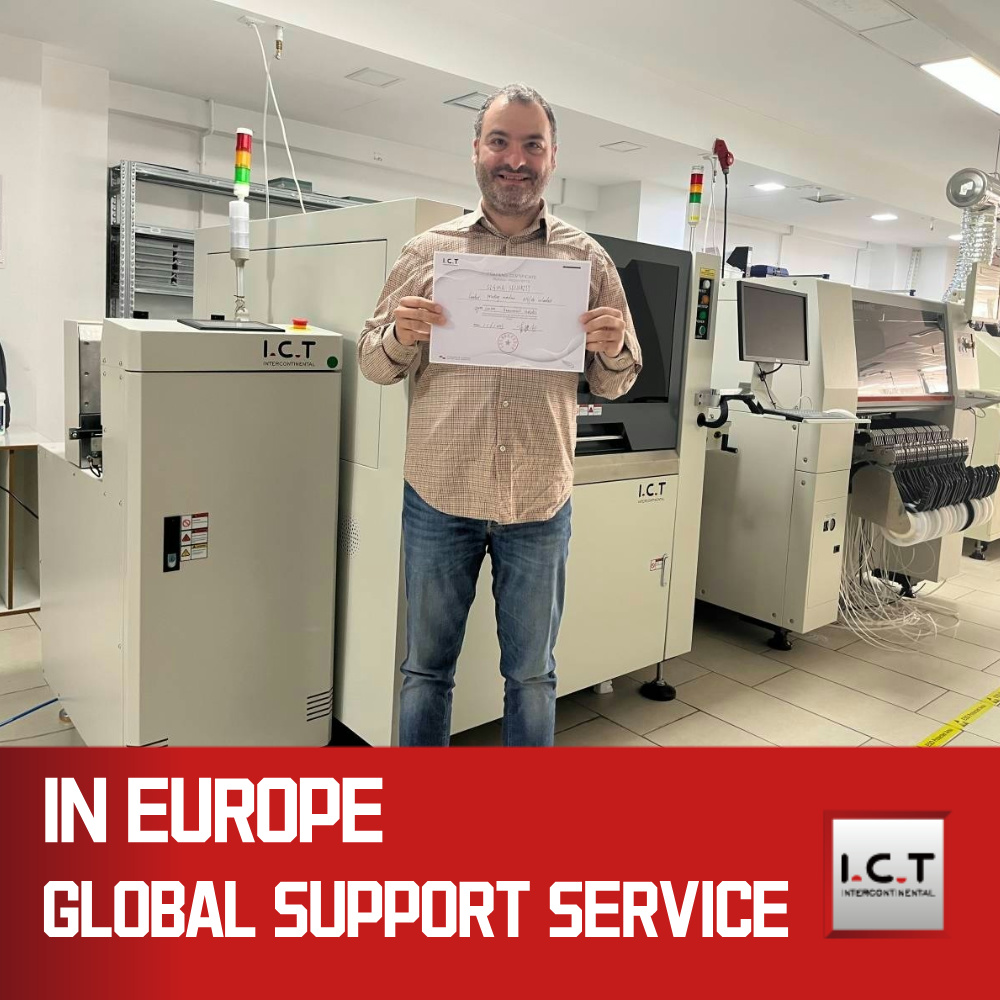

I.C.T provides comprehensive services including installation, maintenance, and training. Our expert team ensures smooth setup and operation, offering technical support to help customers maximize efficiency and reduce downtime.
| Customer Reviews
Customers praise our engineers for their skilled support during installation. They love the machine’s reliability and high-quality output. The safe packaging and fast response to issues also receive high marks, ensuring trust and satisfaction.
| Certifications and Standards
I.C.T holds CE, RoHS, ISO9001, and multiple patents, confirming our commitment to quality and innovation. These certifications guarantee safe, reliable, and high-standard equipment.
| About I.C.T Company and Our Factory
I.C.T, established in 2012, is a global leader in electronics manufacturing solutions with over 25 years of experience. With 89 staff, 20 engineers, and 12000m² of space, we offer in-house R&D and production. Serving over 1600 customers in 72 countries, our factory features strict testing and a strong quality management system, ensuring rapid growth and top products worldwide.
