I.C.T-6561
I.C.T
| Quantity: | |
|---|---|
| Advanced Auto Stencil Printer
The SMT Fully Automatic Stencil Printer by I.C.T is a top choice for modern PCB assembly. This machine offers high precision and speed, with a 7-second printing cycle and accuracy of ±0.025mm. It automates solder paste application, reducing manual errors and waste while improving quality. Designed for industries like consumer electronics, LED, and automotive, it features automatic PCB calibration, adjustable squeegee pressure, and stencil cleaning. I.C.T integrates Industry 4.0 and MES systems for smart factory solutions. With easy operation on Windows 10 and durable materials from top brands, it ensures long-term reliability. This printer helps factories increase productivity and meet diverse needs with efficient, stable performance.
| Feature
This screen printer SMD delivers a printing accuracy of ±0.03mm, thanks to its advanced vision system with uniform ring and coaxial light sources. It accurately identifies various PCB marks, ensuring perfect alignment for tin plating and FPC, which enhances overall production quality.
The auto stencil printer includes an advanced up-and-down matching system that adjusts to different PCB types. This feature ensures precise stencil placement, reducing errors and improving efficiency in high-speed electronics manufacturing processes.
Equipped with a unique spray cleaning system, it offers dry, wet, and manual cleaning options. The separate CCD and cleaning design, controlled by software, saves consumables and maintains a clean stencil, ensuring consistent printing quality over time.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

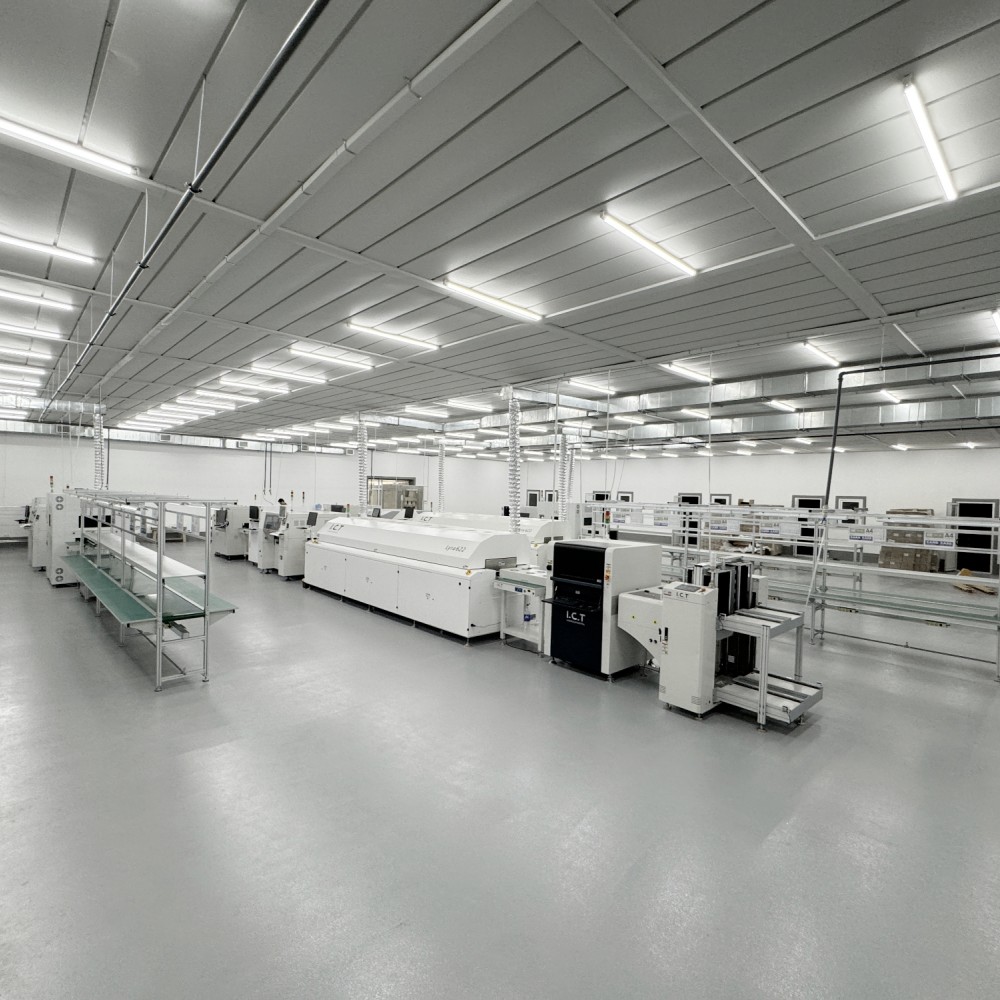

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Case Study
In 2025, I.C.T engineers visited a home LED lighting factory to install an automatic stencil printers system. The client required a compact 16m x 2.7m U-shaped setup within a 21m x 5m space. After 2 days of installation and 6 days of training, the project was completed successfully, meeting the client’s production needs with expert support.
| Service and Training Support
I.C.T provides professional installation, maintenance, and training services. Our team ensures seamless operation and offers ongoing technical assistance to help customers optimize their electronics screen stencil printer usage.
| Customer Reviews
Customers value our engineers’ expertise during setup and the screen stencil printer’s reliable performance. They also commend the secure packaging and quick responses to technical queries, building lasting trust in our solutions.
| Certifications and Standards
I.C.T holds CE, RoHS, ISO9001, and multiple patents, demonstrating our focus on safety and innovation. These certifications ensure that our electronics stencil printer meets global quality standards.
| About I.C.T Company and Our Factory
Founded in 2012, I.C.T is a trusted electronics solution provider with over 25 years of experience. With 89 staff, 20 engineers, and a 12000m² facility, we conduct in-house R&D and production. Serving 1600+ customers in 72 countries, our factory upholds strict quality controls and a robust management system, driving rapid growth worldwide.
