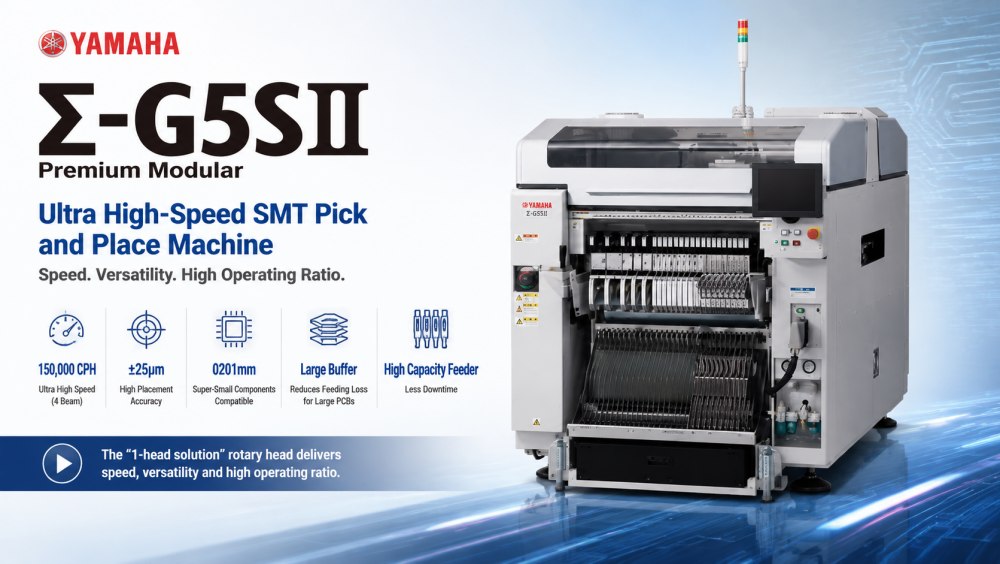

The Yamaha Σ-G5SⅡ is engineered for ultra high-speed PCB assembly production lines where efficiency and accuracy are critical. It uses a 1-head rotary direct drive structure combined with multi-beam architecture to achieve extremely high throughput while maintaining placement stability. With support for both single and dual lane configurations, it adapts to different factory layouts easily.

This machine is suitable for consumer electronics, LED lighting, automotive modules, and industrial control PCB production. It handles components from ultra-small 0201 chips to larger IC and connectors. With advanced feeder capacity and intelligent motion control, the Σ-G5SⅡ ensures stable long-hour production with minimal downtime.

| Product Features

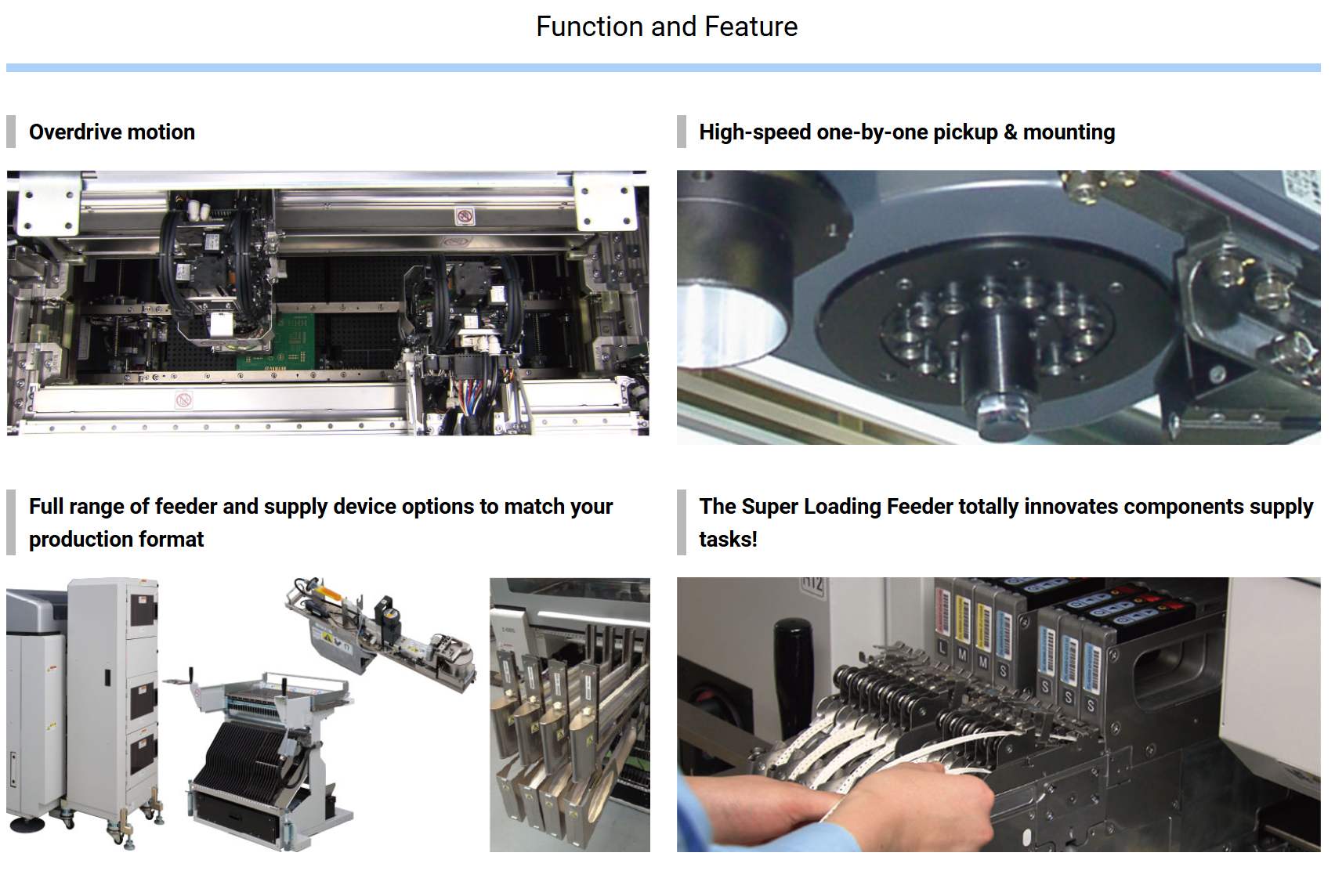

Ultra High-Speed Output System

The Σ-G5SⅡ achieves up to 150,000 CPH using a 4-beam high-speed architecture. This allows simultaneous multi-position mounting, significantly improving throughput for mass production environments. It is designed for factories that require continuous high-volume PCB assembly with stable output performance.

Rotary Direct Drive Head

The rotary head system eliminates complex mechanical transmission structures. This improves response speed and reduces vibration during operation. The result is higher accuracy, smoother motion control, and lower maintenance requirements over long production cycles.

Wide Component Compatibility

The machine supports a broad range of components including 0201 chips, 03015 micro components, and larger IC packages. This flexibility allows manufacturers to produce mixed-product PCBs without changing equipment, improving production efficiency and reducing line changeover time.

High Precision Placement Control

With ±25μm placement accuracy under optimized conditions, the Σ-G5SⅡ ensures reliable mounting quality even at high speeds. Advanced vision alignment and real-time correction systems maintain consistent precision for sensitive electronic assemblies.

High Capacity Feeder System

The system supports up to 180 feeder lanes, enabling large-scale component supply without frequent refilling. This reduces downtime and supports long uninterrupted production runs, especially for high-mix manufacturing environments.

| Specification

*Specifications and appearance are subject to change without prior notice.
