T650
I.C.T
SMT Coating Spraying Gluing Machine for PCB LED
| Quantity: | |
|---|---|
| I.C.T SMT Coating Machine for PCB LED
The I.C.T smt coating machine for pcb led sets the benchmark for simple, efficient PCBA coating in LED fields. It offers easy program making and fast line change settings for best results in all directions. Users edit any spraying path, and the main interface displays it beautifully. Running tracks can be mirrored, arrayed, and copied—for multiple boards, edit one for quick convenience.
It automatically counts and displays production data, output, single product working time, etc. Widely used in drive power, industrial control, LED, automotive electronics, communication, instrumentation, consumer electronics, electronic appliances, military, medical boil, the smt coating machine for pcb led meets various needs. As a selective conformal coating machine, it ensures accurate rail transportation.
| Feature
Transmission System
The transmission system in the smt coating machine for pcb led features high-strength working platform for machine stability. It uses imported servo motors and drivers. Servo motor + slide rail design module ensures repeatability and accuracy of X/Y/Z. Unique dust cover keeps screw rod and slide rail clean, reducing maintenance. Highly flexible tank chain organizes each pipeline neatly and beautifully. This lowers downtime, supports continuous runs, cuts costs. In coating spraying gluing machine for pcb led, it delivers uniform layers, raising yields 15%. Suits LED demanding setups.
Transport System
The transport system of the smt coating machine for pcb led uses unique chain conveying to prevent PCB sticking. Motor controls speed and stops precisely. Cylinder clamping ensures PCB will not shift during operation. Guide rail width adjusts semi-automatically for easy entry/exit. Rail with chains and profiles bears heavy PCB without deformation. Boosts throughput 25%, reduces defects. Integrates with loaders/unloaders in selective conformal coating machine. Tool-free changes, jam-free for high-mix LED production. Safety sensors guarantee zero accidents.
Coating System
The control system for the smt coating machine for pcb led adopts reasonable layout with standardized labeling for easy inspection and maintenance. High-precision servo control components ensure stable operation. Heat dissipation design uses convection cooling of air. PC+control board mode greatly improves stability. Real-time monitoring links MES. Keeps errors under 0.5% in coating spraying gluing machine for pcb led. Remote troubleshooting saves time. Coordinates lamps/valves for IP67 protection. Saves 20% power.
Control System
The operator system makes new programs in under 10 minutes and changes in less than 2 on Windows 10. Friendly software teaches and shows paths live. CCD vision adds as option. Platform adjusts for all users. This eases daily use of the coating spraying gluing machine for PCB.
Operator System
The operator system in the smt coating machine for pcb led creates new program <10 minutes, change over <2 minutes, Windows 10. User friendly software includes teaching and navigation function. Real-time display of working path makes operation simple and intuitive. CCD vision is an option. Operating platform is adjustable to adapt different operators flexibly. Cuts training to one shift in selective conformal coating machine. Multi-language support, tutorials for global LED teams. Touchscreen minimizes errors.
Advanced Dual Valve Coating System
The coating system in the smt coating machine for pcb led uses dual valve design for more complex PCBA and application scenarios. Modular design allows quick replacement of different valve bodies for different products. Optional U-axis and tilt, easy coating even for complex PCBA. Built-in UV lamp for intuitive visual working status. CCD vision is an option. H-808 for fine dots (<50 microns) in LED/low overspray. H-818 fans 200mm at 500mm/s. H-828 flows 10ml/min thick. Reduces waste 20-30%, low-VOC. IP67 in selective conformal coating machine.
| Specification
| Selective Conformal Coating Machines | ||||
| Model | I.C.T-T550 | I.C.T-T550U | I.C.T-T600 | I.C.T-T650 |
| Number of valves | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 1 head, precision valve 1 head) | 2 (atomization valve 2 head) | 4 (atomization valve 2 head, precision valve 2 head) |
| Control method | PC + Motion Control Card | |||
| Number of spindles | X, Y, Z | X, Y, Z,U | X, Y, Z | X, Y, Z |
| PCB size | 50*50~450*460mm | |||
| Spindle drive | Imported servo motor+ball screw module | |||
| Automatic cleaning of valves | with 5L Pressure Tank | |||
| Power supply | AC 220V±10%, 50/60HZ, 2.2KW | |||
| Dimension | L910*W1600*H1700mm | |||
| Net weight | 1000KG | |||

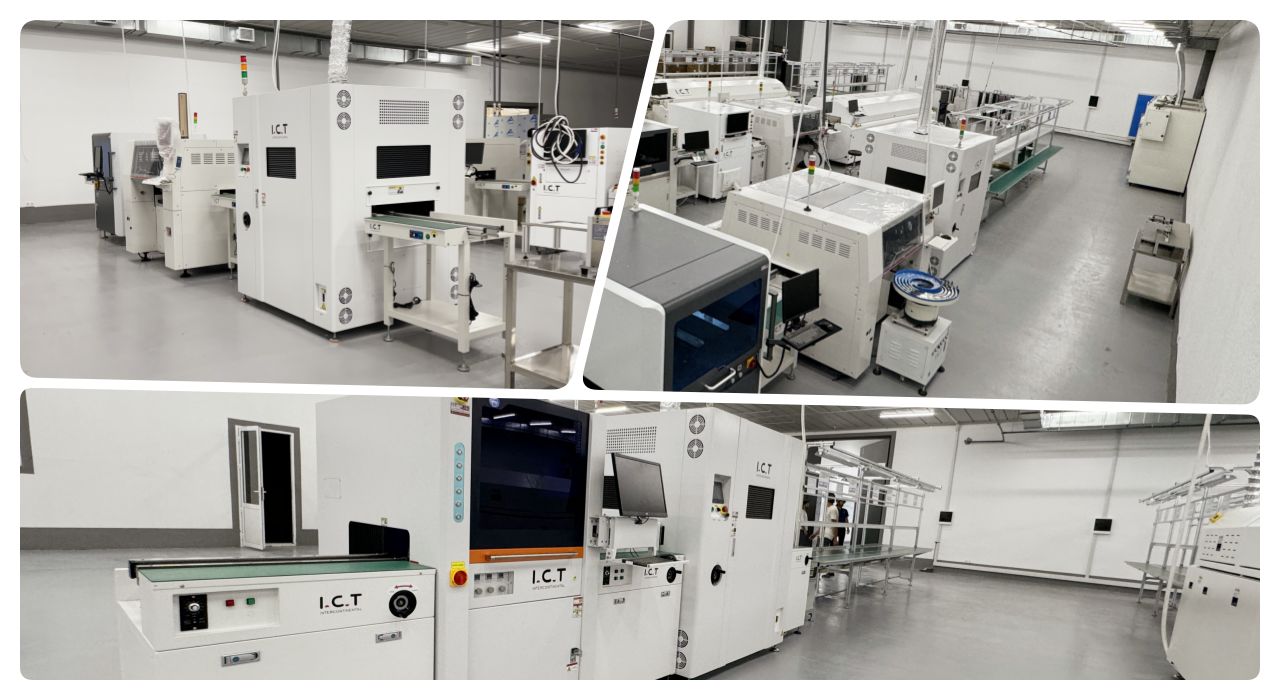

| Coating Line Equipment List
Our PCBA Coating Line offers advanced tools for efficient and precise circuit board protection. The fully automated coating line includes a selective coating machine for accurate application, a curing oven for durable finishes, AOI for quality checks, a lift and flipper for smooth handling, and a conveyor system for seamless production.
This high-quality PCBA Coating Line ensures stable operation, reliable dustproof, waterproof, and explosion-proof coating, meeting diverse industry needs. With modular designs and global support from I.C.T, it enhances productivity for protective coating tasks.
| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
| Customer Success Video
In the video, our engineer visits European dashboard producer. They acquired full line with smt coating machine for pcb led, loader, UV oven, unloader, wave soldering, AOI. He installs, debugs for optimal performance. Trains on operation/maintenance/troubleshooting. Trials resolve challenges, optimize processes, improve efficiency/quality. Enables high-quality production in shortest time. Shows precise spraying on automotive boards, fast programming, seamless integration in coating spraying gluing machine for pcb led for LED reliability.
| Services and Training
I.C.T provides installation/debugging/maintenance for smt coating machine for pcb led. Engineers offer operational training: basic operation, maintenance pointers, troubleshooting common issues. Quick response to production problems. On-site support ensures smooth trial production. Remote help available. Spare parts stocked. Audits optimize for selective conformal coating machine in LED. Refresher courses. Material upgrades. Guarantees <1% downtime, high ROI across 72 countries.
| What Clients Say
Clients praise engineers for expert installation and swift fixes in Europe. smt coating machine for pcb led delivers even coating on dashboards, 99.9% yield. Secure packing survives shipping. <12h responses prevent halts. Valve swaps cut change 80%, boost output. "Best coating spraying gluing machine for pcb led—reliable," says leader. Extends LED board life in harsh conditions.
| Certifications and Standards
SMT coating machine for pcb led holds CE, RoHS, ISO9001. Patents on key technologies like modular valves. Every unit passes 72h burn-in, accuracy tests, compatibility checks. IPC-A-610 standards, full traceability. Third-party audits confirm <0.1% defects. Ensures safe, green operation for selective conformal coating machine in LED/auto sectors. Reduces risks globally.

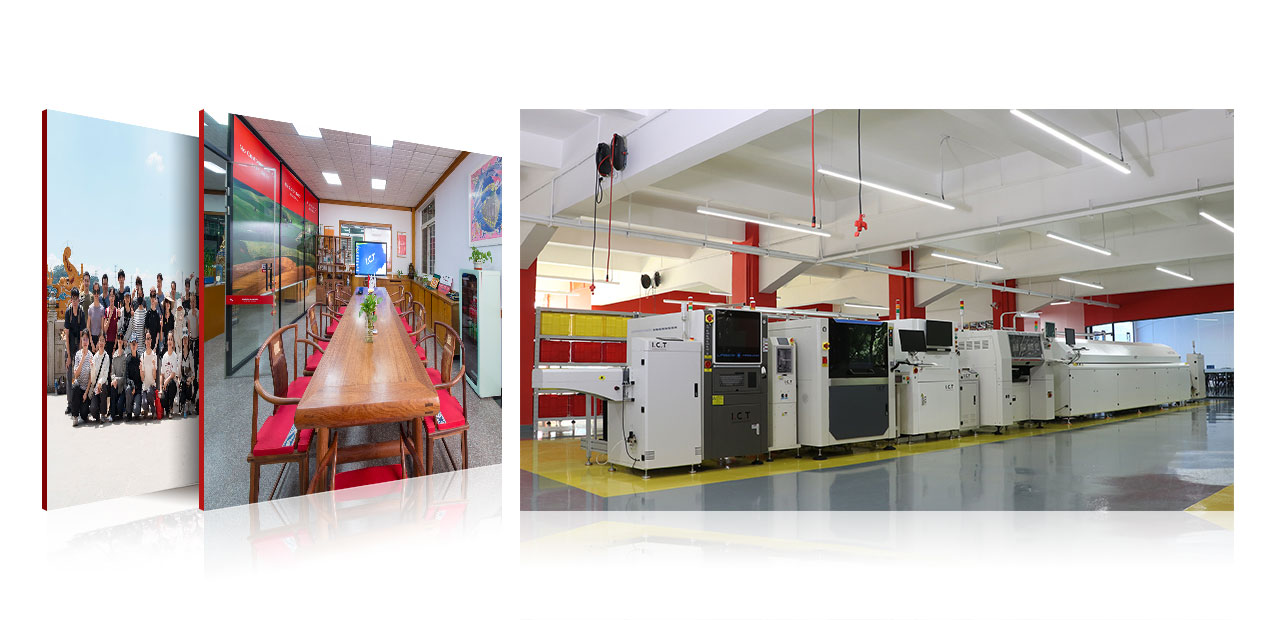

| About I.C.T Company and Factory
I.C.T owns R&D/production 12,000m² since 2012. 89 staff including 20 engineers, $30M funds, 8 branches. Serves 1,600+ clients in 72 countries with 0-1 SMT solutions: analysis, planning, equipment, training, optimization. Strict quality systems, 100% inspection, cleanroom assembly. Covers PCBA, SMT, DIP, coating, robots. Globalization and localization create cross-value platform in smt coating machine for pcb led.
