I.C.T TCR-M | Automatic SMT PCB Turn Conveyor
I.C.T
| Quantity: | |
|---|---|

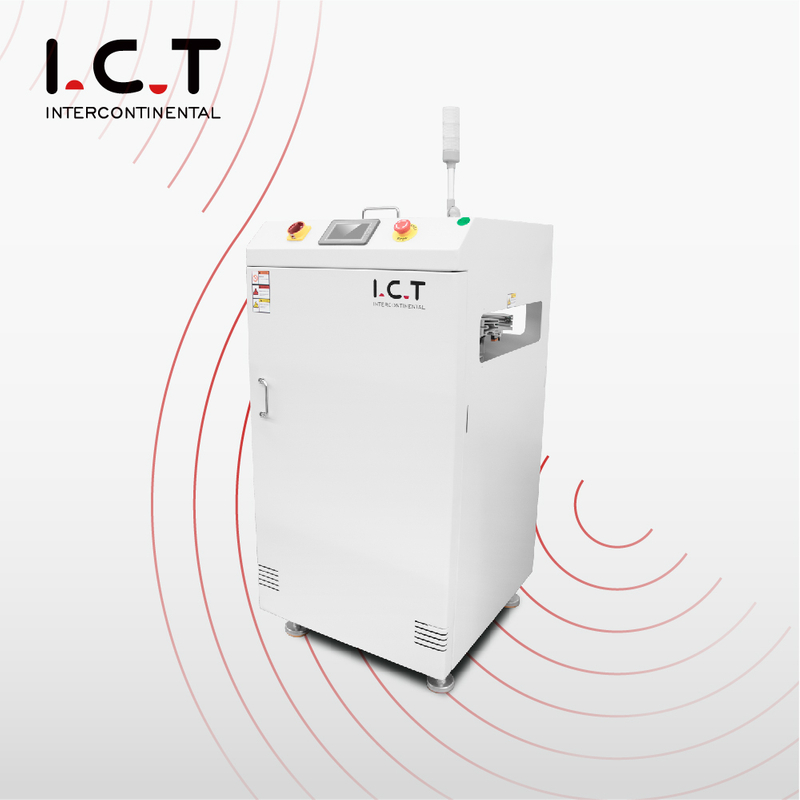

| SMT PCB Turning Conveyor
The SMT PCB Turning Conveyor is designed for automated PCB handling in SMT production lines. It efficiently rotates PCBs at a 90-degree angle, allowing smooth redirection between different production channels. The conveyor features adjustable width and speed, making it versatile enough to handle various PCB sizes and production speeds. Its SMEMA compatibility ensures easy integration with other SMT equipment, and its compact design saves valuable production space. With a durable and low-maintenance build, the conveyor offers reliable performance for continuous operation.
| Detailed Product Features
a. 90-Degree Rotation for Efficient Redirection
This conveyor allows PCBs to be rotated by 90 degrees, enabling efficient redirection between different channels in your SMT production line. This feature helps optimize the flow of PCBs, ensuring smooth transitions and minimizing production bottlenecks. Whether working with different PCB designs or transitioning between stages, the 90-degree rotation provides seamless integration with the rest of your production line.
b. Adjustable Width for Versatility
Equipped with adjustable width control, this conveyor is capable of handling various PCB sizes. Whether you're working with small or large PCBs, the conveyor can be easily adjusted to accommodate different dimensions. This flexibility enhances the machine’s versatility and makes it suitable for a wide range of production needs.
c. SMEMA Compatibility for Seamless Integration
The SMT PCB Turning Conveyor is fully compatible with SMEMA standards, allowing it to easily integrate with other equipment in your SMT production line. This SMEMA compatibility ensures smooth data exchange and synchronization with pick-and-place machines, reflow ovens, and other SMEMA-compatible devices, creating a fully automated and efficient production workflow.
d. Space-Efficient Design
Designed for environments with limited space, the SMT PCB Turning Conveyor features a compact design that minimizes its footprint without compromising on functionality. It can easily be incorporated into existing production lines, making it a great choice for businesses looking to optimize their available space while maintaining high performance and reliability.
LED inspection lights, metal chain conveyors, and ionizer fans stand ready. Automatic width motors and segment transport control handle special requirements. Every option arrives fully tested. These choices let the smt mini pcb magazine loader match any SMT layout precisely.
| Specification
| Specification | Model TC350 | Model TC460 |
|---|---|---|
| Dimension (mm) | 7007301200 | 8008001200 |
| PCB Size (mm) | 5050400*350 | 5050530*460 |
| Cycle Time | Approx. 15 Seconds | Approx. 15 Seconds |
| Belt Type | Round Belt or Oblate Belt | Round Belt or Oblate Belt |
| Control System | PLC | PLC |
| Power | Max 250 VA | Max 250 VA |
| Transport Height | 900±20mm (or Customer Specified) | 900±20mm (or Customer Specified) |
| PCB Direction | L to R or R to L | L to R or R to L |
| Communication | SMEMA for Both In & Out | SMEMA for Both In & Out |
| Power Supply | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) |
| Weight | 170 Kg | 220 Kg |
| Option | Automatic width adjustment | Automatic width adjustment |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
