Every solder paste printer produces not one deposit but a distribution of them — thousands of paste bricks per board, each with its own volume, height and position, varying slightly from cycle to cycle as stencil condition, squeegee pressure, paste rheology and environment drift. Solder paste printing process capability is the discipline of measuring that distribution, compressing it into two numbers — Cp and Cpk — and using those numbers to decide, with evidence instead of instinct, whether the printing process can hold your pad-level specifications at the yield you promise your customer. The measurement data that feeds it comes overwhelmingly from solder paste inspection, and the machines that produce the deposits in the first place are the I.C.T solder paste printing machines at the head of every line this guide assumes.
This guide walks the capability discipline the way a process engineer would actually build it. It starts with why capability — not average performance — is what determines defect rates, then establishes the measurement foundation: what the SPI actually measures, and why gage studies must precede any capability claim. From there it explains Cp, Cpk and control charts in printing-specific terms, details how to run a capability study with honest sampling and defensible specification limits, and closes with a root-cause ladder for capability loss, the improvement actions that actually move Cpk, and a working workflow that keeps the gain from evaporating after the project ends.
Table of Contents
Running a capability study: sampling, targets and data hygiene
A working workflow: from capability study to sustained control
Ask a printing line how it is performing and the answer is usually an average: "we run about 92 percent volume" or "offset is typically under 25 microns." Averages are comfortable and nearly useless for predicting defects. Reflow does not care what your deposits averaged; it cares whether every individual deposit crossed the minimum-volume threshold, and that question is answered by the tails of the distribution — by how far and how often the process wanders toward its limits. Process capability is the statistics of those tails. It converts thousands of SPI measurements into indices that state, quantitatively, how much margin separates your real-world variation from the nearest specification limit, and therefore how many defects you should expect before you ever see them.
The sections below build the argument in three steps. First, they define what the printing process is actually producing — a stochastic population of paste deposits, not a fixed geometry — and why that reframing matters. Second, they quantify what low capability costs in scrap, rework and escapes, using defect-rate arithmetic that most teams never run. Third, they connect capability indices to statistical process control, explaining how control charts watch stability while Cp and Cpk judge adequacy, and why a process can be perfectly in control and still produce defects.
A stencil printer's product is not a board; it is a set of several hundred to several thousand solder paste deposits, each intended to be a precise brick of paste centered on a pad. Every one of those deposits is a random draw from a distribution whose spread is set by the physics of the print: the rheology of the paste, the geometry of the aperture, the wear state of the stencil underside, the compliance of the squeegee, the stability of the separation speed, and the repeatability of the vision system that aligns board to stencil. When engineers speak of the printing process, they mean that distribution — and when they speak of its capability, they mean how far that distribution's natural spread fits inside the specification limits that reflow and electrical function impose.
This reframing has a practical consequence: any single deposit measurement is nearly meaningless in isolation. A brick measured at 94 percent of target volume tells you nothing about capability unless you know where the rest of the population sits. A deposit at 101 percent on one board and 89 percent on the next may represent a wildly capable process or a catastrophic one, depending entirely on spread. This is why capability work is inseparable from solder paste printing data analysis at scale — hundreds of deposits per board, dozens of boards per condition — and why SPI machines that sample only a few pads per board cripple the statistics before the math ever starts. The unit of analysis is the population, and every conclusion in this guide is a statement about populations.
The arithmetic connecting capability to defects is brutal because defect rates scale with the tail area beyond the specification limit, and tail area grows exponentially as capability falls. A process running at Cpk 1.67 produces roughly 0.6 defects per million opportunities beyond the nearer limit; at Cpk 1.33 that rises to about 32 ppm; at Cpk 1.00 it reaches about 1,350 ppm; and at Cpk 0.8 the process is shedding tens of thousands of defective deposits per million. For a board with 800 pads, a printing process at Cpk 1.0 statistically expects roughly one out-of-spec deposit on nearly every board — which surfaces in production as insufficient-solder and open-joint flags at post-reflow AOI, bridging flags where excess paste spread, and rework loops that consume technician hours at rates nobody budgeted.
The cost does not stop at rework. Deposits that pass SPI but sit deep in the tail become the intermittent field failures that survive test, escape to customers and return as warranty claims whose root cause — a marginal paste volume on one thermal pad — is invisible months later. Low capability also taxes the line indirectly: engineers chase defects symptom by symptom, operators slow the line for inspection, and every process change triggers a new round of trial and error because nobody can predict how the distribution will shift. Capability work exists precisely to replace that churn with numbers, and the investment case for better printing equipment is usually settled by comparing the cost of a capability study against one quarter of tail-driven rework — an economics covered from the capital side in our analysis of what a stencil printer costs and when it pays back.
Statistical process control and process capability answer two different questions that factories routinely conflate. Control charts answer a stability question: is the process behaving consistently over time, with variation that comes only from common causes, or are special causes — a worn squeegee, a contaminated stencil, a paste batch change — injecting shifts that the process never saw before? Capability indices answer an adequacy question: given the variation the process actually has, does the distribution fit inside the specification limits with acceptable margin? The two are independent. A process can be perfectly stable — every point inside control limits, no trends, no runs — and still be incapable, if its natural spread is simply wider than the spec window allows.
This is why mature printing organizations run both together: the control chart as a real-time watchdog that rings an alarm when the process shifts, and the periodic capability study as the audit that judges whether stability is good enough. The sequence matters too. Computing Cpk on an unstable process produces a number with no predictive value, because the next special cause will move the distribution and invalidate it. The disciplined order is: first demonstrate statistical control with charts, then compute capability on the in-control data, then use the capability verdict to direct improvement. The remainder of this guide follows exactly that order — measurement first, control second, capability third, improvement last — because reversing it is the most common reason capability programs collapse into spreadsheet decoration.
Every capability number in this discipline is only as trustworthy as the measurements beneath it, and in paste printing those measurements come overwhelmingly from solder paste inspection. SPI is not a passive quality gate; it is the data engine of the entire capability program. What it measures, how it measures it, and how much of the process it samples jointly determine whether your Cp and Cpk describe reality or an artifact of the measurement system. This section establishes that foundation before any indices are computed, because a capability study built on a weak gage is worse than no study at all — it produces confident numbers pointed in the wrong direction.
Four sub-sections cover the ground. First, the four physical parameters SPI extracts from every deposit and what each one reveals about the print. Second, the difference between 2D and 3D inspection, and why height-dependent volume calculation makes 3D effectively mandatory for capability work. Third, the gage repeatability and reproducibility study that validates the measurement system itself before any process claims are made. Fourth, the practical matter of where the SPI sits in the line and how its data flows back to the printer to close the loop. Throughout, one framing holds: solder paste printing process capability is a chain of deposit physics, measurement quality and statistics, and the weakest link in that chain — never the strongest — is the number your customer audit will find.
Modern 3D SPI measures each deposit four ways, and each parameter tells a different story about the print. Volume — the total three-dimensional quantity of paste deposited — is the master parameter, because reflow joints are formed by a mass of solder, and insufficient volume produces starved joints while excess volume produces bridging risk. Area — the footprint of the deposit on the pad — exposes smearing, slumping and aperture blocking that volume alone can hide. Height reveals the vertical dimension of the brick, which discriminates between a tall thin deposit and a flat wide one with identical volume, and is the most sensitive early indicator of stencil-to-pad gasketing problems. Offset — the displacement of the deposit centroid from the pad centroid — is the direct measure of print registration and the earliest flag for vision-system or transport-induced misalignment.
The four parameters are diagnostic as a set precisely because their failure signatures differ, which is what makes the table below the working reference for any investigation. When volume drops while height holds, the suspect is aperture filling — paste rheology or aperture design; when height collapses with volume, suspect gasketing or separation; when offset moves while volume holds, suspect alignment or board support rather than the print head. Interpreting capability failures this way — by which parameter moved, not just that an index fell — is the discipline that turns SPI data from a scorecard into a diagnosis, and it is the interpretive backbone of the root-cause ladder developed in Section 5.
Parameter | What it measures | Primary failure modes exposed | Typical spec basis |
|---|---|---|---|
Volume | 3D quantity of paste per deposit | Insufficient solder, opens, bridges from excess | Percent of aperture-theoretical volume, commonly 50–150% window |
Area | Footprint of deposit on the pad | Smearing, slumping, partial aperture blockage | Percent of pad or aperture area |
Height | Vertical profile of the brick | Poor gasketing, stencil nicked or warped, separation faults | Fraction of stencil thickness |
Offset | Centroid displacement vs pad centroid | Misalignment, vision drift, transport shift | Microns or percent of pad dimension |
Two-dimensional SPI infers deposit quality from a single top-down image, estimating volume from projected area under assumptions that paste rarely honors. Because it cannot measure height, a 2D system cannot distinguish a full-height brick covering 80 percent of the pad from a smeared half-height smear covering all of it — two deposits with identical projected area, wildly different reflow behavior, and identical 2D verdicts. Three-dimensional systems reconstruct height per pixel using laser triangulation or structured light, computing genuine volume, and that difference is not incremental: it is the difference between inspecting shadows and measuring objects. Every capability number in this guide assumes 3D data, because Cp computed from 2D volume estimates measures the assumption, not the process.
The 2D-versus-3D distinction also explains a common budgeting error. Factories sometimes retain 2D SPI for speed or cost and discover that their capability studies produce unstable Cpk values that swing between studies without any process change — because the gage error of the volume estimate is a large fraction of the process variation being measured. As a working rule, when gage error approaches 20 to 30 percent of total observed variation, the capability index becomes more a property of the inspector than the printer, and no amount of statistical adjustment recovers the truth. For lines doing genuine capability work, 3D inspection is not a premium feature; it is the entry ticket, and its cost is trivial against the rework that misdirected studies cause.
Before any capability claim, the measurement system itself must be validated with a gage repeatability and reproducibility study, because total observed variation is the sum of process variation and measurement variation, and only the former should appear in your indices. The standard procedure is simple in principle: measure the same printed board multiple times under identical conditions to isolate repeatability — the pure noise of the SPI itself — and have different operators or loading cycles measure the same boards to isolate reproducibility, the variation introduced by handling. A widely used acceptance guideline treats gage variation below 10 percent of the tolerance as excellent, 10 to 30 percent as conditionally acceptable, and above 30 percent as a measurement system that will drown the process signal.
In paste printing practice, two gage traps dominate. The first is stencil-side variation between cycles: paste on the stencil underside shifts between prints, so "the same board measured twice" is impossible after the board leaves — studies must therefore use fixture-repositioning repeatability rather than true re-measurement, and must state that distinction. The second is reference-plane error: SPI computes height relative to a detected board surface, and warped or reflective boards corrupt the plane, inflating height and volume noise that no printer improvement can fix. Validating the gage once per SPI relocation or major software change, and re-validating after any optical maintenance, keeps these traps visible — and keeps the capability program anchored to deposits rather than to instrument quirks.

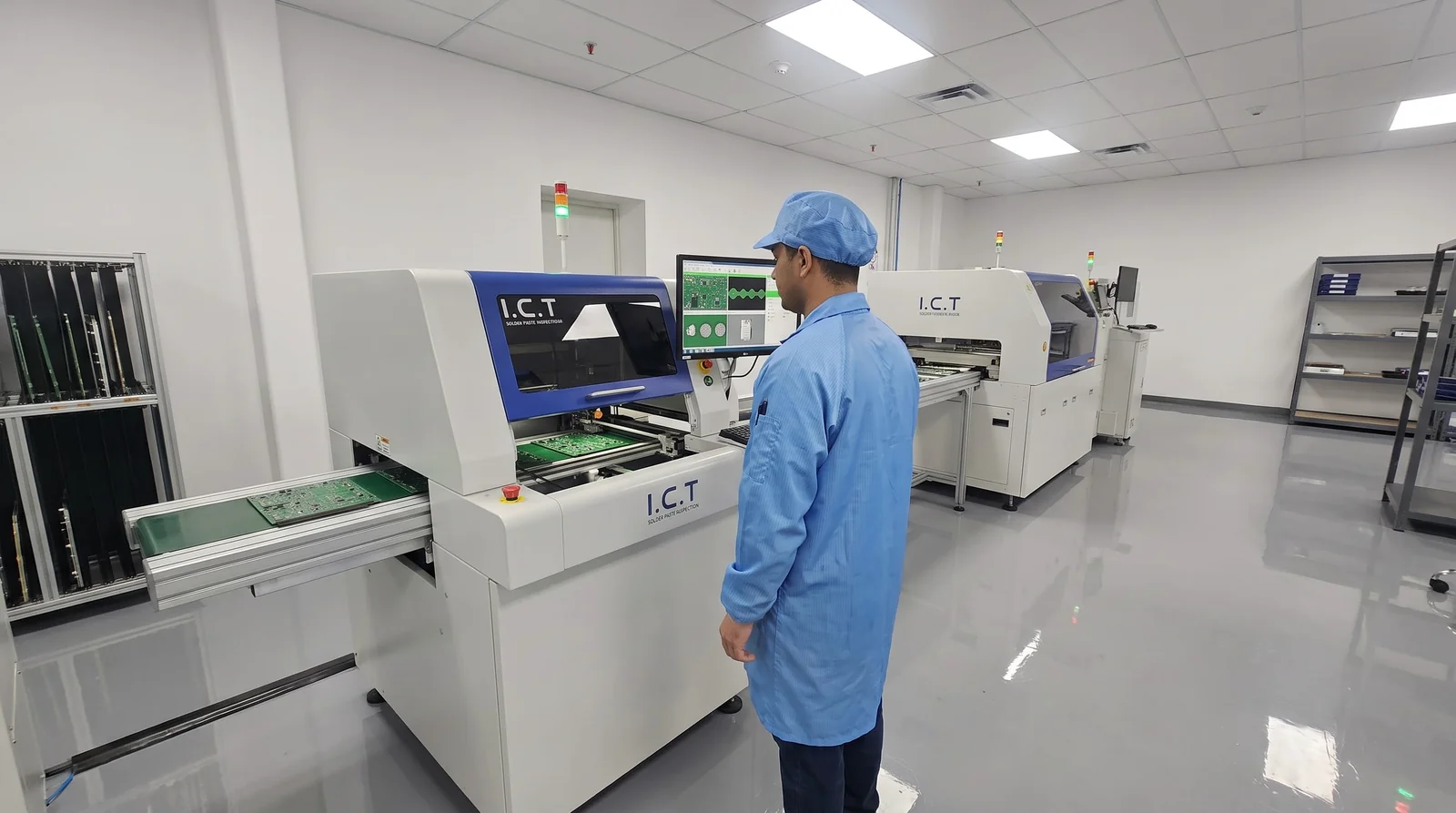

Physically, the SPI sits immediately downstream of the printer, inspecting deposits before reflow locks them in place, and that position is what makes closed-loop correction possible. The data flow matters as much as the position: deposit measurements stream from SPI to line software keyed by board ID, panel position and pad reference, where they aggregate into the distribution statistics that control charts and capability studies consume. When SPI flags a drifting parameter, the feedback path splits in two — real-time correction, where the printer adjusts print offset or squeegee pressure automatically in response to measured trends, and engineering correction, where the capability data triggers human intervention on stencil condition, paste management or mechanical wear.
The integration quality between printer and inspector quietly sets the ceiling on the whole program. Lines where printer and SPI exchange data natively — sharing board programs, pad maps and alignment references — can attribute a deposit to a print cycle, a stencil and a paste batch, which is the attribution that root-cause work in Section 5 depends on. Lines where the machines are strangers, connected only by conveyor and a shared SMEMA handshake, produce capability data stripped of context: the chart shows a decline, but nothing in the record says which change caused it. When specifying or upgrading equipment, treat native SPI-printer data integration as a capability-program requirement rather than a convenience feature — it is the difference between knowing that capability fell and knowing why.
With a validated measurement system feeding clean data, the indices themselves are straightforward — but printing-specific interpretation is where most programs stumble. Cp and Cpk are ratios comparing the specification window to the process spread, and the difference between them encodes the single most actionable piece of information in the whole discipline: how much of your capability problem is poor centering versus poor spread. Control charts complement them by verifying that the distribution was stable while you measured it. This section explains each tool in printing terms, gives the working thresholds that turn indices into verdicts, and shows how to read a chart the way an investigator reads a timeline.
The order of treatment matters. Cp versus Cpk comes first because the comparison diagnoses the problem class before any fix is chosen. The X-bar and R chart comes second because stability must be demonstrated on the same data used for capability, not on a different day's production. The threshold table then converts both into the plain-language verdicts that shift reviews actually run on, and the closing sub-section shows a worked reading — the pattern a chart shows when a squeegee begins to wear, told end to end so the abstractions become concrete.
Cp compares the width of the specification window to six standard deviations of the process: it asks how well the process could perform if it were perfectly centered between the limits. Cpk asks the honest version of the question — where the process actually sits relative to the nearer limit — by penalizing the index for off-center operation. The two numbers together form a diagnosis. When Cp is high but Cpk is low, the process spread fits comfortably inside the spec window, but the distribution is shifted toward one limit; the fix is centering, which usually means recalibrating print offset, correcting a systematic pressure imbalance or adjusting volume targets — cheap, fast, and often recoverable in a single shift. When Cp itself is low, the spread is simply too wide to fit no matter where it is centered; the fix is variation reduction, which means mechanical, stencil, paste or environmental work, and takes the sustained effort described in Section 6.
Printing adds a subtlety: most capability studies in this field run one-sided or effectively one-sided, because the catastrophic limit is usually the minimum-volume threshold, not the maximum. A deposit 20 percent above target is usually harmless; a deposit 20 percent below a minimum threshold is a reflow open. For one-sided study, teams commonly compute a lower capability index against the minimum limit alone — and the Cp-versus-Cpk diagnosis then becomes a question about the position of the entire distribution relative to that floor. A line whose deposits average 118 percent of target with wide spread may post an acceptable lower-limit Cpk; a line averaging 96 percent with the same spread may fail it. Same variation, different centering, different verdict — the essence of why both numbers, not either, belong in the report.
The workhorse control chart for printing plots subgroup means (X-bar) and subgroup ranges (R) over time — typically the mean and range of volume ratio across all pads on a board, or across a fixed panel position, sampled once per cycle or per panel. The X-bar chart detects shifts in the process center: a worn squeegee gradually lowering transfer efficiency walks the mean down until it crosses a control limit, announcing the drift days before individual deposits fail specification. The R chart detects changes in spread: paste going stale or a stencil underside contaminating shows up as widening ranges even while the mean holds. The two charts are read together, and both must be in control before any capability index computed from the same data deserves trust.
Control limits deserve one emphatic clarification that printing teams get wrong constantly: they are computed from the process data itself — three standard errors of the subgroup statistic — and have nothing to do with specification limits. A deposit can be perfectly in control on the chart and still be out of specification, if the process is stably producing the wrong thing; conversely, a wild outlier inside the spec limits will breach a tight control limit and correctly demand investigation. Confusing the two limits produces the classic failure of pasting specification lines onto control charts and then ignoring the chart's real alarms. The control chart watches the process against its own history; the capability index judges that history against the customer's requirements — the distinction that separates genuine solder paste printing data analysis from chart decoration. Both questions, answered separately, are what a mature review actually reads.
Indices become useful when thresholds attach consequences to them, and the industry has converged on three working bands. At Cpk 1.00, the process margin equals one standard deviation on each side, corresponding to roughly 1,350 defects per million beyond a limit — a process that survives only with heavy screening and rework, and that should trigger immediate containment. At Cpk 1.33, margin is four sigma wide, around 32 ppm beyond the nearer limit — the classical minimum for an actively managed process, and the level most automotive and medical customers write into supplier requirements. At Cpk 1.67, margin reaches five sigma and roughly 0.6 ppm — the level demanded for safety-critical deposits and the honest target for fine-pitch work where a single marginal joint can scrap an assembly.
The table below turns these bands into the verdict-and-action language that production reviews use, and adds the uncomfortable lower band where indices below 1.00 mean the process is expected to generate defects continuously. Two printing-specific cautions apply when applying the table. First, thresholds attach to stable processes only — an index computed across a known shift inherits the worst of both segments and flatters nobody. Second, board-level aggregation matters: a line-level Cpk of 1.4 can conceal a critical fine-pitch footprint running at 1.05, and the customer does not care about your line-level average. Mature programs therefore compute capability per footprint class — or at minimum per package-pitch group — and let the worst class, not the average, set the improvement agenda.
Cpk band | Approx. ppm beyond nearer limit | Verdict | Standard action |
|---|---|---|---|
≥ 1.67 | ~0.6 ppm | High capability | Maintain; monitor with charts; suitable for safety-critical and fine-pitch |
1.33 – 1.67 | ~32 ppm | Adequate, actively managed | Keep SPC active; improve toward 1.67 for critical footprints |
1.00 – 1.33 | ~1,350 ppm | Marginal | Containment + centering corrections; schedule variation-reduction work |
< 1.00 | > 1,350 ppm | Not capable | Stop-and-fix; 100% inspection until re-studied; formal improvement project |
A worked example makes the machinery concrete. Suppose volume-ratio X-bar points hover at 98 percent for weeks, then begin a slow, steady decline — 97.5, 97, 96.3 — with the R chart quiet. No point has yet breached a control limit, but a run of consecutive points on one side of the centerline is itself a Western Electric rule violation, and the pattern fingerprints the cause class: gradual monotonic drift with stable spread is the signature of progressive mechanical change — a wearing squeegee edge, a slowly contaminating stencil underside, or an under-stencil wipe frequency set too low for the paste in use. The chart has not merely alarmed; it has narrowed the investigation before anyone touched the machine.
Contrast the alternative reading: a single X-bar point jumps to 104 percent while the R chart spikes simultaneously, then everything returns to normal. That signature — a transient in both center and spread, not a drift — points to a discrete event: a paste batch change, a stencil reinstallation, a maintenance intervention with the wrong squeegee pressure entered, or a warped panel that stressed the support pins. The response differs too: the drift case schedules a wipe-frequency review and squeegee inspection for the next planned stop; the transient case freezes the suspect material and traces the batch. This is the practical payoff of chart literacy — the same index failure, diagnosed differently because the timeline pattern differs, leading to different and cheaper first actions.
A capability study is an experiment, and like any experiment it lives or dies on its design long before the statistics run. Solder paste printing process capability is only ever as good as the study design behind it, and the three decisions that determine whether the resulting Cpk means anything are which parameter you study, how the sample is drawn across time and conditions, and where the specification limits come from. Get all three right and the study produces a number that survives customer audits and directs engineering work. Get any one wrong and the study produces a number that must be quietly discarded the first time someone asks a hard question about it.
This section works through those decisions in the order they arise in practice: parameter selection and the trade-offs between studying all pads versus a sentinel footprint; sampling architecture — subgroups, study duration, and the deliberate inclusion of the variation sources the process will actually meet in production; and finally specification limits, where the difference between aperture-theoretical targets and customer-mandated minimums decides whether the study measures your intention or your obligation. Throughout, the guiding rule is that the sample must be honest about variation: a capability study that quietly excludes night shifts, paste-batch changes or first-boards-after-maintenance has measured a hypothetical process, not yours.
The first design decision is which measured parameter the capability claim attaches to, and volume ratio — measured deposit volume as a percentage of the aperture-theoretical volume — is the default for good reason: it is the parameter reflow physics cares about most, it aggregates naturally across pads of different sizes, and its specification window (commonly 50 to 150 percent of theoretical, tightened per customer requirement) is the one contractually examined during audits. Height and offset earn their own studies in specific circumstances: height capability matters for packages where paste height drives component seating — large connectors, poP stacks — and offset capability matters where fine pitch makes registration the binding constraint rather than volume.
The second and harder decision is scope of pads. Computing capability across every pad on the board blends populations with genuinely different behaviors — a 0.4 mm pitch BGA aperture and a 2 mm discrete pad live in different regimes — and produces a blended index that describes neither. The standard architecture is stratification: compute capability per footprint class (fine-pitch, standard discrete, large thermal), and report the class-wise results alongside any aggregate. A useful compromise for lines with hundreds of footprints is a sentinel-panel approach — nominate the 20 to 30 most critical footprints, chosen by pitch, current defect history and electrical criticality, and compute the headline index on those while trending the full population for drift. The sentinel set becomes the line's capability dashboard, and the discipline of defending sentinel selection annually keeps it honest.
Sample architecture serves two masters: statistical precision and variation coverage. Precision is the easier master — subgroup structure for the control chart (commonly subgroups of 5 to 20 deposits, one subgroup per panel or per cycle) and enough subgroups that the standard deviation estimate itself is stable, with 25 or more subgroups being the classical recommendation for initial studies. Coverage is the demanding master: the sample must span the conditions production will actually meet — multiple paste batches, all shifts, first boards after extended stops, start-of-shift and end-of-shift, and the full stencil life window if the claim must survive it. A study run on one afternoon with one paste jar measures a snapshot; its Cpk has no obligation to describe next week.
The practical resolution is a two-tier cadence summarized in the table below: a baseline study, run deliberately across at least a week of production including a paste change and both maintenance cycles, which earns the formal capability claim; and rolling verification, computed continuously from routine SPI data and reviewed weekly, which watches whether the claim still holds. The rolling tier is where modern lines have an structural advantage — because SPI already measures every pad on every board, the verification data arrives free, and the only discipline required is aggregating it correctly and resisting the temptation to reset charts after every minor excursion. Lines that treat capability as a continuous metric measured in production, rather than a periodic audit performed for customers, are the ones whose indices actually predict next quarter's defect rate.
Study tier | Sample design | Duration | Purpose |
|---|---|---|---|
Baseline study | ≥ 25 subgroups; sentinel footprints; all shifts | 1–2 weeks incl. paste change + PM cycle | Formal capability claim; customer audit evidence |
Rolling verification | Continuous SPI data, same strata as baseline | Weekly review window | Watch drift; verify claim still holds |
Post-change study | Same strata, before/after comparison | Short window around the change | Prove an improvement or a new stencil/recipe holds |
Specification limits deserve the same skepticism as the measurements, because an index against a fictional limit certifies nothing. The defensible hierarchy for paste printing runs: customer-mandated limits first, where contracts specify minimum volume percentages or offset maxima for defined package classes; then internal process specifications derived from reflow physics and electrical requirements, documented and owned by process engineering; then the default windows inherited from stencil design practice, where the aperture-theoretical volume from the design rules of IPC-7525 provides the reference against which volume ratio is computed. What is never acceptable is a limit reverse-engineered to make last quarter's data look capable — a practice common enough to have its own nickname in quality circles and to fail audits predictably.
Two printing-specific notes sharpen the hierarchy. First, paste specifications interact: the volume window a paste formulation can tolerate is documented in the paste manufacturer's data under the J-STD-005 classification system, and a study that computes capability against a 90-to-110 percent window while running a paste whose print stability only supports a 70-to-140 percent reality is measuring an aspiration. Second, asymmetric windows are legitimate and common — many footprints carry a tight lower limit (starvation causes opens) and a loose upper limit (excess causes bridges only beyond a much higher threshold), and capability against the nearer limit is then the only honest single number. Whatever limits are chosen, they belong in the study report with their provenance, because in every serious audit the first question about a Cpk is "against whose specification, and where did that come from?"
When a capability study returns a verdict below target, the number itself says nothing about where to look — and unstructured troubleshooting wastes shifts guessing. The disciplined alternative is a root-cause ladder: an ordered sequence of cause families, ranked by how often they explain capability loss in production and how cheaply each can be checked, so that investigation walks from the frequent and inexpensive toward the rare and invasive. The ladder below reflects what long-run solder paste printing data analysis across many lines actually shows: stencil condition and print parameter drift explain the large majority of capability failures, which is convenient because both sit at the cheap end of the check spectrum.
Four sub-sections climb the ladder. Stencil and aperture causes come first — they are the most frequent culprits and include the under-stencil cleaning regime, which deserves its own focused treatment because it is both a top cause and a top fix. Print head mechanics come second: squeegee condition, pressure balance and speed stability, where a well-designed print head turns variation sources into constants. Material and environment come third — paste age, thermal history, humidity and board warpage. The section closes with interaction and intermittent causes, the hardest class to catch, along with a summary table that maps each cause family to its signature in the SPI data and its first corrective action.
The stencil is the process's dimensional master, and its condition degrades in ways that show up in the capability statistics before they show up in AOI. Aperture walls accumulate flux residue and partially dried paste, shrinking effective aperture area and dragging transfer efficiency down board by board until the volume distribution slides toward the lower limit. Under-stencil cleaning is therefore not housekeeping but a capability control, and its two settings — wipe frequency and wipe type (dry, wet, or vacuum-assisted) — are among the highest-leverage variables in the entire process: too infrequent and residue accumulates until a deep-clean recovery cycle perturbs production, too aggressive and solvent residue itself deposes paste quality. The cleaning chemistry and regime interact with both paste and stencil coating, and the selection logic deserves the same rigor as any process parameter, as laid out in our guide to how under-stencil cleaning keeps paste volume stable.
Beyond residue, the stencil itself ages mechanically: foil nicking from mis-set support or foreign objects creates height anomalies localized to specific apertures, foil tension relaxation changes gasketing against the board, and aperture burring from repeated cleaning with abrasive means permanently roughens walls in ways no wipe recovers. The diagnostic signature distinguishes these cleanly in the data: global drift with uniform spread points to residue; localized outliers that repeat at identical pad positions across boards point to physical aperture damage; and a slow widening of the volume distribution without mean shift points to tension loss. Each signature has a different remedy — a cleaning-regime change, a stencil replacement, or a tension inspection — which is why the signature, not the index alone, should trigger the action.
The print head converts machine settings into roll dynamics, and every degrading element in that conversion widens the deposit distribution. Squeegee blade wear is the classic: an edge that loses its geometry changes the pressure footprint along the stroke, and the symptom in the data is directional — deposits at the stroke ends diverge from those at center, or print direction begins to matter — long before the average moves. Pressure imbalance between blade sides produces a lateral signature, with one stroke direction printing consistently differently from the other. Speed instability shows up as cycle-to-cycle variance in transfer efficiency, particularly at separation, where the speed profile governs how paste releases from aperture walls.
The reason this family ranks second on the ladder rather than first is that a well-engineered print head removes most of its members in advance. Closed-loop pressure control holds force constant against board topography; independent squeegee pressure per side cancels directional asymmetry; programmable separation speed profiles make the release a controlled event rather than a mechanical accident. When capability data shows a print-head signature, the evaluation sequence is: inspect blades for wear and damage (minutes, visual), verify actual applied pressure against setpoint (minutes, gage), then audit the separation profile against the recipe (minutes, comparison). A line that still fights this family weekly is usually fighting equipment that predates closed-loop control, and the upgrade case typically closes on capability arithmetic alone — the same arithmetic that justifies, for lower-mix lines, a dual-squeegee semi-automatic stencil printer whose balanced blade system removes the directional signature as a cause class entirely.
Paste is a living material with a thermal and mechanical history, and that history moves distributions in patterns the ladder must anticipate. Cold paste straight from refrigeration prints with altered viscosity and recovers rheology only after controlled warm-up; skipping or shortening that ramp shows as a slow first-hours drift that mirrors mechanical wear almost perfectly — the classic false accusation. Paste age beyond its stencil-life window degrades gradually as flux volatiles evaporate, and the distribution response is a widening spread plus slow mean decay. Batch transitions are visible in well-instrumented lines as step changes coinciding with material changeover, which is precisely why sampling architecture in Section 4 demands spanning batches — a study that never crosses a batch change is incapable of seeing the variation class that will dominate next quarter.
Environment acts more subtly. Humidity swings change paste tack and slump behavior; temperature drift in the print area alters viscosity and therefore fill and release; and both interact with line-idle patterns, so the overnight-restart first board earns its reputation as a capability outlier. Board-side physics completes the family: warpage changes the gasketing gap and produces location-dependent volume signatures that correlate with board topography rather than print direction. The countermeasures are procedural more than mechanical — enforced paste warm-up logging with expiry tracking, humidity and temperature monitoring at the print point with alarm bands, a defined first-board disposition after extended stops, and panel support that neutralizes warp. None of these is expensive; all of them are invisible until capability data makes their cost appear in the distribution.
The residual class — the causes that survive the first three families — shares one property: each is individually rare, but collectively they explain the capability drops that otherwise get labeled "mysterious." Interactions head the list: a marginal stencil coating may print acceptably with fresh paste and fail with aging paste, so the capability collapse appears only when two ordinary conditions coincide, and a study that samples both conditions independently of each other will never reproduce it. Support-pin configurations that work for standard panels misbehave for the warped panel that arrives twice per shift; vision correction compensating for a drifting fiducial masks a transport problem until the day it does not; and separator-speed profiles tuned for one paste family degrade quietly when a formulation change ships without process requalification.
Catching this class requires data discipline more than process knowledge: the capability database must carry context — paste batch, stencil ID and clean-count, squeegee age, ambient conditions, first-board flags — so that when an intermittent excursion appears, the population can be sliced by each context variable to find the interaction. The table below condenses the full ladder into the reference investigators actually use: cause family, its signature in the SPI data, and the first action that earns its place by cost-versus-probability. Lines that institutionalize this table as the standing first response to any capability drop report the majority of investigations closing within one shift — which is the operational definition of a root-cause discipline that works.
Cause family | Typical SPI signature | First corrective action |
|---|---|---|
Stencil residue / cleaning regime | Global volume drift, spread stable | Audit wipe frequency & type; verify cleaning chemistry |
Aperture damage / foil wear | Repeatable outliers at fixed pads | Microscope inspection; replace stencil |
Squeegee wear / pressure imbalance | Directional or end-vs-center divergence | Blade inspection; verify pressure against setpoint |
Paste history / batch change | Step change or slow spread widening | Check warm-up log, age, batch correlation |
Environment / warp | Time-of-day or location-dependent pattern | Review ambient logs; check support-pin map |
Interactions | Excursion only under combined conditions | Slice capability data by context variables |
Diagnosis earns its keep only when improvement follows, and improvement in capability terms has exactly two levers: move the distribution's center toward the target, or shrink its spread. Centering is arithmetic — cheap, fast and often undone by the next uncontrolled change — while spread reduction is engineering, slower but permanent. The failure mode of improvement programs is attempting the second while the first remains undone, which spends engineering weeks polishing a distribution that sits in the wrong place. The sequence in this section therefore runs centering first, spread second, verification third — with each stage's expected effect on the indices stated so progress is measurable rather than anecdotal.
The three sub-sections match that sequence. Centering corrections draw on the Cp-versus-Cpk diagnosis from Section 3 and typically live in offset, pressure balance and volume targets. Mechanical and recipe changes address spread at its sources — print head capability, stencil quality, support strategy and the separation profile — and this is where equipment capability quietly sets the ceiling: a printer whose repeatability specification exceeds your capability target has defined your best possible Cpk before the study begins, and the selection logic in our guide to choosing a solder paste printing machine for your line exists precisely to keep that ceiling high enough. Verification closes the loop with the before-and-after study protocol that converts a claimed improvement into an audited one.
Centering corrections are the highest return-on-effort actions in the entire discipline because they require no hardware and often no engineering change — only data already in the SPI record. The canonical case is a volume distribution averaging 92 percent against a 70-to-130 window: shifting the mean to 100 percent via a print-offset recalibration or a volume-target adjustment in the recipe moves the nearer-limit margin from two sigma to three, and Cpk climbs accordingly while Cp never moved. The diagnostic signature from Section 3 makes these targets explicit: high Cp with low Cpk means the spread already fits, and every hour spent on mechanical improvement before centering is an hour spent moving a distribution that only needed to be slid.
Two centering disciplines separate mature lines from struggling ones. The first is measuring the offset before correcting it: because SPI sees the whole distribution, the correct centering adjustment is computable from data — the shift needed to place the mean at target — rather than guessed from last night's worst board. The second is distinguishing systematic offset from oscillation: a stable offset corrects once and holds, while a mean that wanders around the target is a spread problem wearing a centering costume, and chasing it with repeated manual adjustments adds adjustment noise on top of process noise. Lines that automate this feedback — letting the printer consume SPI statistics and trim print offset within bounded limits — report centering becoming a maintained property rather than a recurring project, which is exactly the standing posture the sustained-control workflow in Section 7 formalizes.
Spread reduction attacks the physics that generates variation, and its levers rank roughly by effort. Recipe optimization comes first: separation speed profiles, squeegee pressure and speed, and wipe frequency re-optimized via designed experiments routinely recover capability without touching hardware, particularly on lines whose recipes predate the current stencil generation or paste formulation. Stencil quality comes second — foil thickness matched to the aperture size mix, nano-coated walls for release consistency, and aperture design per the IPC-7525 rules that govern area ratios — because stencil-grade improvements pay across every print for the stencil's whole life. Print-head and support mechanics come third: closed-loop pressure, independent blade control, and board support that holds warp flat. For product mixes that stress the mechanical envelope — long boards, heavy panels, LED strips — the support-and-rigidity ceiling is set by machine class, and moving up a class, as our review of large-format plane screen printers for long boards and the purpose-built 1.2-meter fully automatic LED stencil printer illustrates, is often what converts a stubborn 1.1 into a stable 1.4.
The discipline that makes mechanical improvement stick is changing one factor family at a time and re-studying after each — because spread is generated by a product of small effects, and changing four things at once leaves the study unable to attribute the gain, so nothing is learned that survives the next failure. A practical pattern that works: run the designed experiment on recipe factors first (days, no hardware), lock the winning recipe, re-study; then evaluate stencil-grade options at the next stencil reorder (weeks, but amortized), re-study; then scope mechanical upgrades against the remaining gap, with the purchase arithmetic grounded in the same defect-cost reasoning that equipment selection generally runs on — including, where the alternative technology question arises, the boundary analysis in our comparison of why stencil printing remains the high-volume default. Sequenced this way, each stage's gain is proven, owned and banked before the next stage spends anything.
An improvement is not an improvement until a new capability study proves it, and the verification protocol has three properties that separate audited gains from anecdotes. First, the comparison must be like-for-like: same strata, same sentinel footprints, same specification limits and similar production conditions as the baseline, with any unavoidable difference — a paste batch, a season — documented so reviewers can discount for it. Second, the study must include the conditions the improvement claims to have fixed: a centering correction verified on a Tuesday afternoon but untested against a cold-start Monday morning has verified nothing about the operating reality the correction was supposed to govern. Third, the result must be stated as movement in the indices with their uncertainty — "Cpk moved from 1.08 to 1.41 on the sentinel set, with the fine-pitch class now the binding constraint at 1.31" — because that sentence directs the next project, whereas "process improved" directs nothing.
Verification also has a governance purpose that outlasts the project: the before/after study record becomes the reference point that future drift is judged against, and the improvement's recipe, stencil and material settings become the documented baseline that change control protects. Lines that skip formal verification pay for it invisibly — improvements decay under parameter drift and staff turnover, and a year later nobody can say what the gain was or which settings produced it. The two-hour discipline of re-running the study, updating the control-chart baselines and filing the comparison report is what converts engineering work into institutional capability, and it is the bridge between this section's projects and the standing workflow that the next section turns into routine.
Everything before this section describes capabilities; this one describes a system — the standing workflow that turns studies, charts and corrective actions into a routine that survives staff turnover and production pressure. Sustained solder paste printing process capability is not a project with an end date; it is an operating rhythm, and the design problem is familiar to anyone who has watched a quality program decay: the first study is run with energy, the charts are posted, and six months later the charts are stale, the indices are quoted from memory, and a capability drop announces itself through the customer instead of through the data. The workflow below exists to prevent that decay by giving every element an owner, a cadence and a defined escalation path.
Three sub-sections specify the system. The improvement loop defines the standing cycle — monitor, detect, diagnose, correct, verify — as a repeating rhythm rather than a one-time project. Ownership and cadence assign each element to a role and a frequency, because unowned metrics decay on schedule. The closing checklist condenses the entire guide into a reference table that a new process engineer can run their first review from — the same review sequence that experienced teams run from habit, written down so it survives them.
The standing cycle is a plan-do-check-act loop with printing-specific content in each quadrant. Plan: maintain the sentinel footprint list, the specification-limit register with provenance, and the sampling strata — reviewed quarterly, changed deliberately, never drifted. Do: run the rolling SPI aggregation continuously, so the capability database grows as a by-product of production rather than as a project. Check: the weekly review reads the control charts for rule violations and trends, computes the rolling Cpk on the sentinel set, and compares against the capability register — the documented target each footprint class must hold. Act: any breach triggers the root-cause ladder from Section 5 as the standing first response, and any corrective action closes with the verification protocol from Section 6 before the loop resets.
Two design choices keep the loop alive where most die. The first is that the loop's inputs are automatic: because SPI measures every board anyway, the weekly review consumes data that already exists — the solder paste printing data analysis that once required manual exports now happens inside the line software — and the only human effort is reading and deciding. Reviews that require manual data collection get skipped in busy weeks, and busy weeks are precisely when drift happens. The second is that the loop's escalation is pre-agreed: the response to a Cpk below 1.0, a chart rule violation, or two consecutive weekly declines is written down in advance with names and deadlines attached, so the decision made at 8 a.m. on review day is the decision made calmly in a meeting room rather than improvised at 2 a.m. on a stopped line. Discipline that depends on judgment calls at crisis moments is discipline that fails exactly when needed; the loop's value is that it removes the judgment call.
Every element of the system carries a named owner and a fixed cadence. Operators own the line-level checks that data quality depends on: paste warm-up logging, first-board disposition after stops, and responding to SPI alarms in real time — daily, per shift. Process technicians own the weekly review: reading charts, computing rolling capability on the sentinel set, and opening corrective actions with the ladder — weekly, on a fixed calendar slot that survives busy weeks because it is short and decision-focused rather than a data-gathering session. The process engineer owns the register: specification limits, capability targets per footprint class, corrective-action closure and the quarterly re-validation of gage and sentinel list — quarterly, with a standing agenda. Management owns the escalation: the stop-and-fix authority when indices fall below the action band, and the budget response when the ladder points at mechanical capability limits that need capital.
The escalation ladder itself has three rungs, agreed in advance. Rung one: a single rule violation or a small capability decline within band — technician investigates with the ladder, closes within the week, no line impact. Rung two: rolling Cpk below the internal action threshold or a repeat violation — engineer takes ownership, containment inspection is defined, corrective action carries a deadline, and management is informed in the same review where it was detected. Rung three: Cpk below 1.0 on any contractual footprint class — the line stops treating itself as capable: customer-notification obligations are assessed, screening or contained production is implemented, and a formal improvement project opens with management sponsorship. Writing the rungs down in advance is what makes them workable — escalation that must be negotiated each time it triggers gets negotiated away.
The checklist below compresses the entire guide into the sequence of a competent weekly review, ordered so each step's output feeds the next: charts first (stability), capability second (adequacy), context third (attribution), decisions last. A review that runs this table top to bottom on a healthy line takes fifteen minutes; on a line with findings, it produces a corrective action with an owner and a date before anyone leaves the room. Teams adopting the workflow should run the checklist literally for the first month, then let it become habit — the point of writing habit down is that new engineers inherit competence instead of folklore.
Step | Check | Pass criterion | If failed |
|---|---|---|---|
1 | Control charts (X-bar & R) on sentinel set | No rule violations; no unexplained trends | Run root-cause ladder; contain if trend persists |
2 | Rolling Cpk per footprint class | ≥ internal target (typically 1.33); worst class governs | Open corrective action with owner & date |
3 | Cp vs Cpk diagnosis on any declining class | Centering vs spread identified | Choose centering fix or variation-reduction project accordingly |
4 | Context slicing: paste batch, stencil count, squeegee age | No correlation with excursions | Attribute cause; adjust consumable schedule or recipe |
5 | Open corrective actions | All on schedule; verified per protocol on closure | Escalate rung per agreed ladder |
6 | SPI gage health (repeats, reference plane) | Repeat checks within gage band | Schedule gage maintenance before trusting this week's data |
Building process capability on the right printing platform
Cp and Cpk measure what your process does — and the ceiling on what it can do is set by the machine making the deposits. A printer whose repeatability specification, alignment stability and print-head control fall short of your capability target has defined your best possible Cpk before any study begins, which is why equipment selection and capability planning belong in the same conversation rather than in separate departments. Every automatic stencil printer in the I.C.T solder paste printing machines lineup is engineered for exactly the repeatability that capability programs demand: closed-loop print-head control that holds squeegee pressure constant across the stroke, native SPI data integration that gives every deposit a context for root-cause work, and the vision and transport stability that fine-pitch capability targets require. Browse the full stencil screen printing machine range to match a platform to your footprint mix, or contact our process team with your current capability data — we will review it against the platform that should be producing it, and against the improvement sequence in this guide, before you spend a cent of capital.
The working standard is 1.33 as the minimum for an actively managed process and 1.67 for safety-critical or fine-pitch footprint classes, with the worst footprint class — not the line average — governing the verdict. Below 1.33, improvement projects are warranted; below 1.00, the process is statistically expected to produce out-of-spec deposits continuously and needs containment plus formal correction. Many customer contracts in automotive and medical electronics write 1.33 into supplier requirements, so the practical target is the higher of your internal standard and your customers'.
Not credibly for production claims. Manual methods — measuring a handful of deposits with a microscope or weighing test prints — produce samples too small and too biased to estimate the distribution tails that capability indices are made of, and they cannot span shifts, batches and stencil life the way sampling requires. A capability study without 3D SPI data describes a snapshot of a few hundred deposits at best; with SPI measuring every pad on every board, the same study describes the process. For any customer-facing capability claim, SPI-grade measurement is the entry requirement.
Two mechanisms explain this common paradox. First, downstream screening: if AOI or rework catches what the print produces, the defect rate at test looks fine while the print process bleeds into inspection cost — capability is still poor, it is simply being paid for at the AOI station. Second, specification slack: the process may be running far from the nearest spec limit on the footprints that dominate volume while a small critical class quietly runs marginal, so board-level averages flatter the truth. This is precisely why capability is computed per footprint class and read against process margins, not against the visible defect rate alone.
A formal baseline study earns its claim once — after a line is qualified, after any major change (new printer, stencil generation, paste supplier), and after any corrective project. After that, capability becomes a rolling metric: because SPI measures production continuously, the weekly review recomputes Cpk from routine data, and the baseline is refreshed on a schedule set by change activity rather than the calendar — typically quarterly in stable operations, immediately after anything that touches the print mechanism, stencil system or material supply changes.
Control limits are computed from your own process data — three standard errors around the centerline — and answer "is the process behaving consistently with its own history?" Specification limits come from customer requirements and reflow physics and answer "is what it produces good enough?" The two are independent: a process can be perfectly in control while producing out-of-spec product, and a spec-conforming outlier can still breach a control limit and correctly demand investigation. Control charts watch stability; capability indices judge adequacy against the specification — and neither substitutes for the other.
Not automatically — it raises the ceiling. If the current constraint is an off-center distribution, centering fixes cost nothing and a new machine changes nothing. But where the constraint is spread from print-head mechanics, alignment repeatability or support rigidity, equipment capability defines the best Cpk achievable no matter how the recipe is tuned. The disciplined sequence is: center first, optimize recipe second, and evaluate capital third against the remaining gap — at which point the repeatability specification of candidate printers, compared against your capability target, is the deciding number.
The classical baseline is 25 or more subgroups, with subgroups of 5 to 20 deposits each, spanning at least a week of production that includes a paste change, both shifts and a maintenance cycle — the statistics converge quickly, but the variation coverage is what makes the number honest. A study of one afternoon with one paste jar produces a Cpk with no obligation to describe next week. Rolling verification then costs nothing additional, since SPI data from routine production continues to accumulate the same statistics for free.
Volume ratio, for most lines: it is the parameter reflow physics cares about most, its specification window is what audits examine, and it aggregates meaningfully across pad sizes within a footprint class. Height earns a dedicated study where component seating matters — connectors, poP stacks — and offset where fine pitch makes registration the binding constraint. Start with volume capability per footprint class on a sentinel set; add height or offset studies where the defect history, package types or customer requirements point at those parameters specifically.
